Inspection System

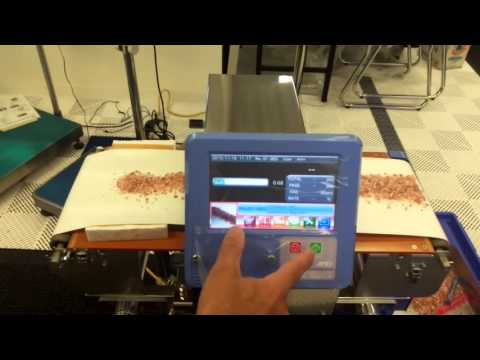

Metal Detector
Inspection history function with the ability to record 100 inspection results in the internal memory. Capacity can be increased by using USB memory.
Cleaning and maintenance is simple with a detachable conveyor belt.

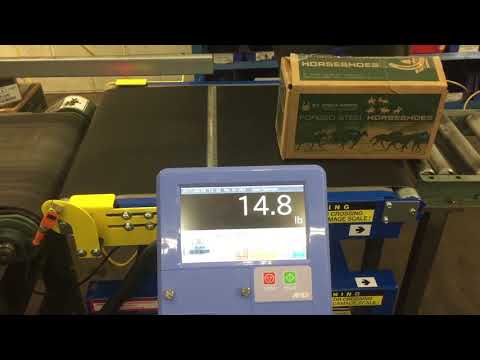

Checkweigher:
AD-4961(Capacity: 500g to 2,000g / Resolution: 0.01g to 0.1g)
- Protected from dust and water to IP65 standards.Hygienic design with the entire system washable.
- Suitable for use in HACCP program.
- Automatic sensitivity setting function.
- Easy operation with 7 inch color touch panel.
- Variable belt speed of 10-60m/min.
Inspection history function with the ability to record 100 inspection results in the internal memory. Capacity can be increased by using USB memory.
Cleaning and maintenance is simple with a detachable conveyor belt.
Checkweigher:
AD-4961(Capacity: 500g to 2,000g / Resolution: 0.01g to 0.1g)
-
7 inch color touch panel The display utilizes a high visibility touch panel color LCD with user friendly Graphic User Interface (audio guidance support function included). Image import from USB Product images can be quickly uploaded to the checkweigher from a USB flash drive, making product identification and upload fast and simple. IP65 Protected from dust and water to IP65 standards. Hygienic design with the entire system washable. Stores up to 1000 products Products can be divided into 10 different groups, with up to 100 products able to be recorded within each group. Lightweight and compact design With its modular structure, the AD-4961 allows for rapid and simple installation or relocation. Unique modular design AD-4961 consists of four units: an infeed conveyor unit, a weighing conveyor unit, a control unit and a base unit, allowing fast and simple assembly.
In the case of system shutdown, you do not need to wait for a service engineer to respond to the issue.
Just simply replace the unresponsive module by yourself, so that you can shorten system downtime and maximize production efficiency.
Ask Price
Ask Price
Ask Price
Ask Price
Ask Price
Ask Price
Ask Price
Interested in this product?
Get Best Quote
| Configuration | Conveyor |
| Application | Packaging, Pharma, Food |
| Metal Type | All Metal |
| Aperture Size | 150×50 mm |
| Construction | Hygienic Design |
| Reject Mechanism | Pusher |
| Weight | 105kg |
| Power Supply | Single Phase AC100 to 240V,50/60Hz |
| Brand | A&D |
| Conveyor Width | 250mm |
| X Ray Output | 150W (50kV 3mA) |
| External Output | Relay Output 8 Points |
| System Length | 800mm |
| Conveyor Speed | 10 to 70 m/min |
| Operation Temperature | 35 Celsius |
| Belt | Antifungal Antibacterial Polyurethane Compounds |
| Dust Water Resistance Specifications | IP66 for Inspection Room |
| Number of Recorded Items | 1000 items |
| Maximum Power Consumption | 670VA |
| Display | 15 Inch Touch Panel Color Display |
| Casing Material | SUS304 |
| Maximum Conveying Capacity | 5 kg |
| Conveyor Height | 860 mm |
| External Input | Non Voltage Contact Input 8 Points |
Features:
- Most compact system on the market.
- Simple GUI with a 15' color touchscreen provides for easy operation.
- Quick and stable product setup
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Brand | A&D |
| Power Supply | Single phase AC100V-240V (+10% / -15%),50/60Hz 180VA |
| External Input | Non-Voltage Contact Input 4 Points |
| Conveyor Belt Width | 250mm |
| Conveyor Belt Speed | 10-60m/min |
| Height | 100mm |
| PLC interface | Modbus RTU/Modbus TCP,FTP Server Function (LAN),Relay Output/Universal Input |
| Maintenance | Gear Drive System |
| Dust Water Resistance Specifications | IP65 Compliant |
| Pass Height | 80mm |
| External Output | Relay Output 8 Points |
| Width | 350mm |
| Conveyor Length | 800mm |
Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device
| Touch Panel | YES | ||||
| 2D graph display | YES | ||||
| Menu with graphic display | YES | ||||
| Audio guidance for operation | YES | ||||
| Supports Modbus | YES | ||||
| FTP server function | YES | ||||
| History can be recorded in USB memory | YES | ||||
| Accessibility to I/O box. | YES | ||||
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Power Supply | Single Phase AC100 to 240V,50/60Hz |
| Weight | 90kg |
| Brand | A&D |
| Model Number/Name | AD-4991-2510 |
| Operation Temperature Humidity | 35 Celsius |
| External Output | Relay Output 8 Points |
| Maximum Conveying Capacity | 5kg |
| Dust Water Resistance Specifications | IP66 for Inspection Room |
| System Length | 800mm |
| Conveyor Speed | 10 to 45m/min |
| Shilding Curtain | Tungsten |
| Belt | Antifungal Antibacterial Polyurethane Compounds |
| Casing Material | SUS304 |
| External Input | Non Voltage Contact Input 8 Points |
| Conveyor Width | 250mm |
| Number Recorded Items | 1000 items |
| The Maximum Power Consumption | 570VA |
| Display | 15 Inch Touch Panel Color Display |
| Conveyor Height | 860 mm |
| X Ray Output | 100W (50kV 2mA) |
X-Ray Metal Detector, Food Metal Detector, Pharma Metal Detector, Food & Pharma Metal Detector
Features:
- Most compact system on the market.
- Simple GUI with a 15' color touchscreen provides for easy operation.
- Quick and stable product setup.
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability.
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Brand | A&D |
| Weight | 105kg |
| Power Supply | Single Phase AC100 to 240V,50/60Hz |
| Casing Material | SUS304 |
| External Output | Relay Output 8 Points |
| Number of Recorded Items | 1000 items |
| Maximum Power Consumption | 670VA |
| System Length | 800mm |
| Conveyor Speed | 10 to 70 m/min |
| Operation temperature | 0 to 35 Celsius |
| Belt | Antifungal Antibacterial Polyurethane Compounds |
| External Input | Non Voltage Contact Input 8 Points |
| Conveyor Width | 250mm |
| Display | 15 Inch Touch Panel Color Display |
| Conveyor Height | 720-860mm |
| X Ray Output | 150W (50kV 3mA) |
| Dust Water Resistance Specifications | IP66 for Inspection Room |
| Maximum Conveying Capacity | 5 kg |
Features:
- Most compact system on the market.
- Simple GUI with a 15' color touchscreen provides for easy operation.
- Quick and stable product setup
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Weight | 90kg |
| Brand | A&D |
| Dust Water Resistance Specifications | IP66 for Inspection Room |
| Model Number/Name | AD-4991-2510 |
| Power Supply | Single Phase AC100 to 240V,50/60Hz |
| Operation Temperature Humidity | 35 Celsius |
| External Output | Relay Output 8 Points |
| Maximum Conveying Capacity | 5kg |
| System Length | 800 mm |
| Conveyor Speed | 45m/min |
| Shilding Curtain | Tungsten |
| Belt | Antifungal Antibacterial Polyurethane Compounds |
| Casing Material | SUS304 |
| External Input | Non Voltage Contact Input 8 Points |
| Conveyor Width | 250mm |
| Number Recorded Items | 1000 items |
| The Maximum Power Consumption | 570VA |
| Display | 15 Inch Touch Panel Color Display |
| Conveyor Height | 860mm |
| X Ray Output | 100W (50kV 2mA) |
X-Ray Metal Detector, Food Metal Detector, Pharma Metal Detector, Food & Pharma Metal Detector
Features:
- Most compact system on the market.
- Simple GUI with a 15' color touchscreen provides for easy operation.
- Quick and stable product setup.
- Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
- Suitable for use in HACCP program
- Easy cleaning and replacment with quick release belt and curtains
- Stainless and sloped surfaces minimize water collection and maximize cleanability.
- Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Brand | Essae |
| Accuracy | 1.0g |
| Display Type | Digital |
| Weight | 200mm |
| Capacity | 6,000 g |
| Best-in-class precision | ||
| With a newly developed digital load cell and an ultra-high speed processing module, high level precision of 0.08g (3)*1 has been realized. With this high accuracy checkweigher, you can minimize the giveaway of materials above the specified weight and contribute to reductions in production costs. | ||
| *1 For AD-4961-2KD-2035. Depends on the shape and the condition of the product and installation environment. | ||
| 7 inch color touch panel. | ||
| The display utilizes a high visibility touch panel color LCD with user friendly Graphic User Interface (audio guidance support function included). | ||
| Image import from USB. | ||
| Product images can be quickly uploaded to the checkweigher from a USB flash drive, making product identification and upload fast and simple. | ||
| IP65 | ||
| Protected from dust and water to IP65 standards. Hygienic design with the entire system washable. | ||
| Stores up to 1000 products. | ||
| Products can be divided into 10 different groups, with up to 100 products able to be recorded within each group. | ||
| Lightweight and compact design. | ||
| With its modular structure, the AD-4961 allows for rapid and simple installation or relocation. | ||
| Unique modular design | ||
| AD-4961 consists of four units: an infeed conveyor unit, a weighing conveyor unit, a control unit and a base unit, allowing fast and simple assembly. In the case of system shutdown, you do not need to wait for a service engineer to respond to the issue. Just simply replace the unresponsive module by yourself, so that you can shorten system downtime and maximize production efficiency | ||
View Complete Details
Yes, I am interested!
Interested in this product?
Get Best Quote
| Brand | A&D |
| Model Number/Name | AD-4991-2510 |
| Weight | 90kg |
| Power Supply | Single Phase AC100 to 240V,50/60Hz |
| Operation Temperature Humidity | 0 to 35 Celsius |
| External Output | Relay Output 8 Points |
| Maximum Conveying Capacity | 5kg |
| Dust Water Resistance Specifications | IP66 for Inspection Room |
| System Length | 800mm |
| Conveyor Speed | 10 to 45m/min |
| Shilding Curtain | Tungsten |
| Belt | Antifungal Antibacterial Polyurethane Compounds |
| Casing Material | SUS304 |
| External Input | Non Voltage Contact Input 8 Points |
| Conveyor Width | 250mm |
| Number Recorded Items | 1000 items |
| The Maximum Power Consumption | 570VA |
| Display | 15 Inch Touch Panel Color Display |
| Conveyor Height | 720-860mm |
| X Ray Output | 100W (50kV 2mA) |
X-Ray Metal Detector, Food Metal Detector, Pharma Metal Detector, Food & Pharma Metal DetectorFeatures:Most compact system on the market. Simple GUI with a 15' color touchscreen provides for easy operation. Quick and stable product setup. Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities. Suitable for use in HACCP program Easy cleaning and replacment with quick release belt and curtains Stainless and sloped surfaces minimize water collection and maximize cleanability. Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure
