A & D Instruments India Pvt Ltd

Cuff Type	Upper Arm
Measurement Mode	Automatic
BP Classification	Hospital Use
Cuff Size	22-32 cm
Memory Readings	2000 Readings
Power Source	Mains Power
Brand	A&D
Weight	Approx. 5.5 kg (12.1lb)
Model	TM-2657P
Measurement Accuracy	Pressure +/-3 mmHg,Pulse +/-5%
Storage Conditions	Temperature -20-60 deg C,humidity 10-95% RH,no condensing
NIBP Measurement Range	SYS 40-270 mmHg,DIA 20-200 mmHg,Pulse 30-240 bpm
Applicable Arm Circumference	7inches(18.0cm) to 13.8inches (35.0cm)
AC Power Supply Unit	Switching 100-240V AC,50-60Hz
Pressure Detection Method	Capacitance type pressure transducer
Measurement Method	Oscillometric
Counting Function	Display of number of measurements to date up to 999,999 times
Protection Against Electrical Shock	Class I,Type B
Operating Conditions	Temperature 10-40 deg C,humidity 30-85% RH,no condensing
Pressure Display Range	0-299 mmHg
External Dimensions	241(W)x324(H)x390(D)mm (9.5(W)x13.0(H)x15.4(D)inches)

The TM-2657P is a fully automatic blood pressure monitors, whose ground-breaking designs have been well received and have created many new applications, places of use, and markets. The main reasons for the high reputation of the previous models are their fast and accurate measurement, compact profile, ease-of-use and durability.The new TM-2657P has been superbly styled in Japan, having a slim and compact design with increased printout speed, and offers a diverse selection for connectivity. The TM-2657P helps expand market potential in the various locations and areas in everyday life such as hospitals, medical clinics, health checkups, corporate wellness, pharmacy services, and fitness centers.Accurate  and  reliable  oscillometric  measurement  of  blood pressure  on  the  upper  arm  relies  on  correct  cuff/bladder   dimensions and pressure applied. The A&D Torque Controlled Belt drive Method (TCBM) holds the upper arm perfectly with the essential personalized cuff  circumference,  the  same  measurement  preparation  carried out by clinical nurses. This   optimum  ergonomic design enables the users to measure their  blood pressure with accuracy, ease, safety, high speed and comfort.

Brand	A&D
Model	TM-2657P
Weight	Approx. 5.5 kg (12.1lb)
Measurement Method	Oscillometric
AC Power Supply Unit	Switching 100-240V AC,50-60Hz
Protection Against Electrical Shock	Class I,Type B
Pressure Display Range	0-299 mmHg
NIBP Measurement Range	SYS 40-270 mmHg,DIA 20-200 mmHg,Pulse 30-240 bpm
Measurement Accuracy	Pressure +/-3 mmHg,Pulse +/-5%
External Dimensions	241(W)x324(H)x390(D)mm (9.5(W)x13.0(H)x15.4(D)inches)
Applicable Arm Circumference	7inches(18.0cm) to 13.8inches (35.0cm)
Cuff Size	125x300mm (4.9x11.8inches)
Counting Function	Display of number of measurements to date up to 999,999 times
Pressure Detection Method	Capacitance type pressure transducer
Operating Conditions	Temperature 10-40 deg C,humidity 30-85% RH,no condensing
Storage Conditions	Temperature -20-60 deg C,humidity 10-95% RH,no condensing

The TM-2657P is a fully automatic blood pressure monitors, whose ground-breaking designs have been well received and have created many new applications, places of use, and markets. The main reasons for the high reputation of the previous models are their fast and accurate measurement, compact profile, ease-of-use and durability.

The new TM-2657P has been superbly styled in Japan, having a slim and compact design with increased printout speed, and offers a diverse selection for connectivity. The TM-2657P helps expand market potential in the various locations and areas in everyday life such as hospitals, medical clinics, health checkups, corporate wellness, pharmacy services, and fitness centers.

Accurate  and  reliable  oscillometric  measurement  of  blood pressure  on  the  upper  arm  relies  on  correct  cuff/bladder   dimensions and pressure applied. The A&D Torque Controlled Belt drive Method (TCBM) holds the upper arm perfectly with the essential personalized cuff  circumference,  the  same  measurement  preparation  carried out by clinical nurses. This   optimum  ergonomic design enables the users to measure their  blood pressure with accuracy, ease, safety, high speed and comfort.

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

Measurement range	Pressure 0 - 299 mmHg,Systolic pressure 60 - 279 mmHg,Diastolic pressure 40 - 200 mmHg
Brand	A&D
Display Type	Digital LCD,Pressure/Pulse displayed simultaneously
Weight	Approx. 245g, excluding the batteries
Power Supply	4 x 1.5V batteries (R6P,LR6 or AA) or AC adapter (TB-233) (Not included)
Model	UA-767S-W
Measurement Method	Oscillometric measurement
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Memory Storage	60
Memory Data Average	Maximum 60 data average of systolic,diastolic,and pulse values
Cuff	SlimFit cuff with plastic D-ring / Arm circumference 22-32cm
Storage Conditions	-20deg C to +60 deg C / 10%RH to 95%RH
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Dimensions	Approx. 140 [W] x 60 [H] x 105 [D] mm

The UA-767S is also the successor of the UA-767 series for single user focused on "Simple operation". Ease of use as it is, new feature %IHB is installed, also the number of memory has been upgraded to 60.

Features:

• Latex-free and metal-free SlimFit cuff
• Latex-free Wide range cuff
• %IHB Indicator to show frequency of Irregular Heartbeat
• Cuff Fit Error Indicator
• Movement Error Indicator
• WHO Blood Pressure Classification Indicator
• 60-memory + Average Reading

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

Brand	A&D
Weight	250 g
Measurement Range (Pressure)	299 mmHg,Systolic
Model	UA-651BLE
Display Type	Digital LCD, Pressure/Pulse displayed simultaneously
Power Supply	4 x 1.5V batteries (LR6,R6P or A A) or AC adapter (TB-233) (Not included)
Measurement Accuracy	Pressure +/-3 mmHg, Pulse +/-5%
Storage Conditions	-20deg C to +60 deg C / 10%RH to 95%RH
Measurement Method	Oscillometric Measurement
Dimensions	96 [W] x 68 [H] x 130 [D] mm
Cuff	SlimFit Cuff with plastic D-ring / Arm circumference 22-32cm
Memory Storage	30
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Number Of Measurements	700 times LR6

The UA-651BLE was designed based on the UA-651, which
was designed to inherit A&D''s original concept of blood
pressure monitors for easy and accurate monitoring.
It is clinically proven in accuracy and is equipped with
Bluetooth Smart technology.

Features:

• Bluetooth Ver.4.0LE
• Bluetooth communication (Windows, iOS, Android)
• Internal memory of 30 data records
• Irregular HeartBeat (IHB) indicator - LCD only
• Extra large 3-line display for easier reading of results
• One-touch measurement
• Latex-free and metal-free, slimFit Cuff
• Compact design for portability

Measurement range	Pressure 0 - 299 mmHg,Systolic pressure 60 - 279 mmHg,Diastolic pressure 40 - 200 mmHg
Brand	A&D
Model	UA-611
Weight	Approx 230 g, excluding the batteries
Power Supply	4 x 1.5V ba tteries (R6P,LR6 or AA) or AC adapter (TB-233 C) (Not included)
Pulse Beats Minute	40-180
Measurement Method	Oscillometric measurement
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Memory	Last 30 measurements
Useful Life	Device 5 years(when used 6 times a day),Cuff 2 years (when used 6 times a day)
Dimensions	Approx. 96(W) x 68(H) x 130(D) mm
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Storage Conditions	-20 deg C to +60 deg C / 10%RH to 95%RH

The simple one-touch measurement of this unit offers the user precise BP results. The 3-line display shows all the readings (systolic, diastolic and pulse) simultaneously. It has memory with an average reading displayed when recalling the stored data.

Features:

• Latex-free and metal-free SlimFit Cuff
• Irregular HeartBeat (IHB) indicator
• WHO Blood pressure classification indicator

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P

Usage/Application	Clinic
Weight	Approx. 215g (0.47lb) without cuff
Model Number	TM-2440
Pulse	30 ~ 200 bpm,+/-5%
Battery Life	Approx. 200 measurements
Battery	3x LR6 ("AA") type batteries - alkaline or Ni-cd type
Brand	A&D
Measurement Method	Oscillometric
Blood Pressure Measuring Range	40 ~ 280 mmHg (SYS - 60 ~ 280mmHg/DIA - 40 ~ 160mmHg)
Blood Pressure Accuracy	+/- 3 mmHg
Pressurization Method	Micro pump
Maximum Pressure	300 mmHg
Preset Pressure	Automatic
Depressurization Method	Electric Controlled Exhaust Valve (ECEV)
Interval Setting	5,10,15,20,30,60,120 min.
Clock	24 hour clock,calendar (~ year 2096)
Memory Data	Up to 300 sets of data
Operating Temperatures	10 deg C ~ 40 deg C (50 deg F ~ 104 deg F),Less than 85%RH (non-condensing)
Storage and Transportation	-20 deg C ~ 55 deg C (14 deg F ~ 131 deg F),Less than 95%RH (non-condensing)
External Dimensions	72(W) x 27(H) x 100(D) mm/2.8(W) x 1.0(H) x 3.9(D) inches

The TM-2440 is a compact & lightweight ambulatory blood pressure monitor, which incorporates our latest technology gained
from over 20 years experience in the manufacturing of ambulatory BPMs. This monitor was validated in accordance with
BHS protocol and its accuracy was proven to be A/A. Weighing only 215 grams, and the size of a cigarette pack, the portable
TM-2430 can be easily taken anywhere with a patient

Features:

• 24 hour ambulatory blood pressure monitoring.
• Light weight & compact size.
• Oscillometric measuring method
• Automatically adjusts:
• Proper Cuff Pressure
• Exhaust
• End of Measurement
• New pulse correction algorithm for faster measurement & noise rejection
• Automatic or manual measurement
• Battery Power (3 alkaline or Ni-Cd "AA")
• Date/Time display: 1997-2096 & auto leap year.
• Multiple measurement intervals - adapts to patient's exact requirements
• Data output to computer or printer
• RS-232C Connectivity

Brand	A&D
Model	UM-201
Weight	Approx. 480g (Unit without Battery)
Power Supply	4 x 1.5V Batteries (LR6 or A A)
Measurement Method	Oscillometric measurement
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Storage Conditions	-10 deg C to +60 deg C / 15%RH to 85%RH
Dimensions	Approx. 150(W) x 156(H) x120(D) mm

Currently many home-use blood pressure monitors are used in hospitals because of their reasonable cost and simple operation. The UM-201 is our solution to meet the required durability for hospitals and maintain an affordable price and simple operation. Replacement of current home-use devices with the UM-201 will guarantee heavy daily use and save lifetime cost in the long term.

Features:

• Durable and chemical resistant body
• Professional cuff and 3 cuff sizes are available for use
• One-touch operation
• Large LCD display
• Cuff holder and grip for carrying
• Irregular HeartBeat (IHB) indicator

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

Measurement range	Pressure 0 - 299mmHg,Pulse 40 - 200 beats / minute
Brand	A&D
Model	UM-211
Weight	Approx. 550g (Unit without Battery)
Battery Life	Approx. 300 measurements
Power Supply	AC 100V - 240V (Rechargeable Battery)
Measurement Method	Oscillometric measurement and Auscultatory measurement with stethoscope
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Memory Storage	Last 99 measurements
Storage Conditions	-20 deg C to +60 deg C / 10%RH to 95%RH
Dimensions	Approx. 120(W) x 200(H) x 140(D) mm

UM-211 is designed for multipurpose use in hospitals. This model is available for dual measurement mode, auscultatory mode with use of the stethoscope and oscillometric mode. UM-211'' s auscultatory mode is designed for daily and frequent use. Selectable deflation speed (2.5mmHg /sec. or 5.0mmHg / sec.) and quick start for auscultatory mode are features ‘Only from A D''.

Features:

• Dual measurement mode (Auscultatory and Oscillometric)
• Cuff holder and grip for carrying
• Durable and chemical resistant body
• Professional cuff and 5 cuff sizes are available for use
• Large LCD display with backlight
• Rechargeable battery (300 measurements at full charged)
• Adjustable inflation pressure (AUTO/220/250/280)
• Irregular HeartBeat (IHB) indicator
• Room temperature display

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

Brand	A&D
Model	UA-651BLE
Weight	Approx. 250 g, excluding batteries
Display Type	Digital LCD,Pressure/Pulse displayed simultaneously
Power Supply	4 x 1.5V batteries (LR6,R6P or A A) or AC adapter (TB-233) (Not included)
Measurement Method	Oscillometric measurement
Measurement Accuracy	Pressure +/-3 mmHg,Pulse +/-5%
Number Of Measurements	Approx. 700 times LR6 (alkaline batteries),Approx. 200 times R6P (manganese batteries)
Memory Storage	30
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Storage Conditions	-20deg C to +60 deg C / 10%RH to 95%RH
Dimensions	Approx. 96 [W] x 68 [H] x 130 [D] mm

The UA-651BLE was designed based on the UA-651, which
was designed to inherit A&D''''s original concept of blood
pressure monitors for easy and accurate monitoring.
It is clinically proven in accuracy and is equipped with
Bluetooth Smart technology.

Features:

• Bluetooth Ver.4.0LE
• Bluetooth communication (Windows, iOS, Android)
• Internal memory of 30 data records
• Irregular HeartBeat (IHB) indicator - LCD only
• Extra large 3-line display for easier reading of results
• One-touch measurement
• Latex-free and metal-free, slimFit Cuff
• Compact design for portability

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P

Brand	A&D
Weight	Approx. 215g
Blood Pressure Accuracy	+/- 3 mmHg
Depressurization Method	Electric Controlled Exhaust Valve (ECEV)
Maximum Pressure	300 mmHg
Measurement Method	Oscillometric
Preset Pressure	Automatic

The TM-2440 is a compact & lightweight ambulatory blood pressure monitor, which incorporates our latest technology gained
from over 20 years experience in the manufacturing of ambulatory BPMs. This monitor was validated in accordance with
BHS protocol and its accuracy was proven to be A/A. Weighing only 215 grams, and the size of a cigarette pack, the portable
TM-2430 can be easily taken anywhere with a patient

Features:

• 24 hour ambulatory blood pressure monitoring.
• Light weight & compact size.
• Oscillometric measuring method
• Automatically adjusts:
• Proper Cuff Pressure
• Exhaust
• End of Measurement
• New pulse correction algorithm for faster measurement & noise rejection
• Automatic or manual measurement
• Battery Power (3 alkaline or Ni-Cd "AA")
• Date/Time display: 1997-2096 & auto leap year.
• Multiple measurement intervals - adapts to patient's exact requirements
• Data output to computer or printer
• RS-232C Connectivity

Brand	A&D
Model	UA-651
Weight	Approx 240 g, excluding the batteries
Memory	Last 30 measurements
Pulse	40-180 beats/minute
Power Supply	4 x 1.5V ba tteries (R6P,LR6 or AA) or AC adapter (TB-233) (Not included)
Measurement Method	Oscillometric measurement
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Storage Conditions	-20 deg C to +60 deg C / 10%RH to 95%RH
Dimensions	Approx. 96(W) x 68(H) x 130(D) mm
Useful Life	Device 5 years(when used 6 times a day),Cuff 2 years (when used 6 times a day)

All the essential functions for blood pressure monitoring in a smart compact unit. The UA-651 was designed with A D''''s original concept of blood pressure monitors for easy and accurate monitoring in mind. With a 3-line display and one-touch operation, it retains our fundamental principle of designing easy-to-use monitors.

Features:

• Latex-free and metal-free SlimFit Cuff
• Irregular HeartBeat (IHB) indicator
• WHO Blood pressure classification indicator

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,Other
• Port of Dispatch: Gurgaon Head Office orThrough Dealer

Brand	A&D
Model Name/Number	UM-201
Weight	480g
Measurement Range	Pressure 0 - 299mmHg,Pulse 40 - 180 beats / minute
Power Supply	4 x 1.5V Batteries (LR6 or A A)
Measurement Accuracy	Pressure +/- 3mmHg,Pulse +/- 5%
Measurement Method	Oscillometric Measurement
Storage Conditions	-10 deg C to +60 deg C / 15%RH to 85%RH
Dimensions	Approx. 150(W) x 156(H) x120(D) mm

Currently many home-use blood pressure monitors are used in hospitals because of their reasonable cost and simple operation. The UM-201 is our solution to meet the required durability for hospitals and maintain an affordable price and simple operation. Replacement of current home-use devices with the UM-201 will guarantee heavy daily use and save lifetime cost in the long term.

Features:

• Durable and chemical resistant body
• Professional cuff and 3 cuff sizes are available for use
• One-touch operation
• Large LCD display
• Cuff holder and grip for carrying
• Irregular HeartBeat (IHB) indicator

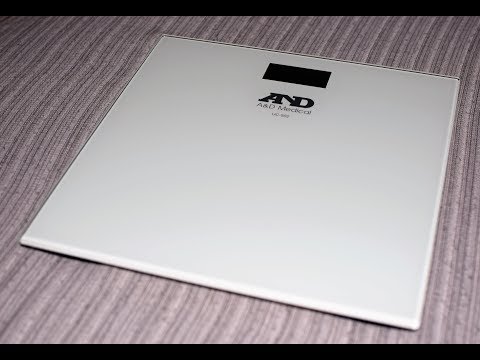

Brand	A&D
Division	0.1kg / 0.2lb
Model	UC-502
Dimension	Scale 300mm(L) x 300mm(w) x 23.6mm(H),Panel 300mm(L) x 300mm(W) x 6mm(H)
Net Weight	Approximately 1.51kg (Excluding the cells)
Display	Digital LCD,V.A. 63mm(L) x 30mm (W)
Measurement Range	5kg to 180kg
Working Environment Temperature	5 deg C to 40 deg C
Humidity	Less than or equal to 90%RH
Storage Environment Temperature	-20 deg C to 60 deg C
Power Source	3V (1 x CR2032 Button Cell)
Auto Off	4 to 6 seconds after last operation

The UC-502 is an affordable scale that is accurate and easy to use.
The scale performs weight measurement in kgs or lbs and is divisible by up to 100g/0.2lbs. It also features step on technology to enable
users to simply step on the scale to start measurement. This no button operation makes it easy to use for a wide range of users.

Features:

• Durable glass plate scale
• kg/lb selection
• imply step on to start weighing
• Low profile stylish design
• Powered by CR2032 battery

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P

Brand	A&D
Model Name/Number	UA-651
Weight	Approx 240 g, Excluding the batteries
Measurement Range (Pressure)	299 mmHg
Memory	Last 30 measurements
Pulse	180 beats/minute
Measurement Method	Oscillometric Measurement
Measurement Accuracy	Pressure +/- 3mmHg, Pulse +/- 5%
Dimensions	Approx. 96(W) x 68(H) x 130(D) mm
Operating Conditions	+10 deg C to +40 deg C / 15%RH to 85%RH/800 hPa to1060 hPa
Useful Life	Device 5 years(when used 6 times a day),Cuff 2 years (when used 6 times a day)
Storage Conditions	-20 deg C to +60 deg C / 10%RH to 95%RH

All the essential functions for blood pressure monitoring in a smart compact unit. The UA-651 was designed with A D''s original concept of blood pressure monitors for easy and accurate monitoring in mind. With a 3-line display and one-touch operation, it retains our fundamental principle of designing easy-to-use monitors.Features:Latex-free and metal-free SlimFit CuffIrregular HeartBeat (IHB) indicatorWHO Blood pressure classification indicator

Maximum Capacity	200 kg / 450 lb
Usage/Application	For Laboratory
Brand	A&D
Display Type	Digital LCD,Weight displayed after step off
Dimensions	Approx. 300 [W] x 300[D] x 31[H] mm
Model	UC-352BLE
Minimum Display	0.1 kg (0 to 100 kg) / 0.2 kg (100 to 200 kg),0.2 lb (0 to 220 lb) / 0.5 lb (220 to 450 lb)
Power Source	4 x 1.5V alkaline batteries (LR03 or A A A)
Battery Life	Approximately 1 year (two measurements per day when alkaline batteries are used)
Memory Storage	90
Operating Conditions	+10 deg C to +40 deg C / 30%RH to 85%RH
Storage Conditions	-10 deg C to +60 deg C / 30%RH to 85%RH
Wireless Communication	Bluetooth Ver.4.0LE WSP
Weight	Approx. 2.1 kg (4.7lb)including batteries

The UC-352BLE is modern, compact design health scale with
durable top glass plate. It''s step-on-start feature making it simple
to use with no buttons to press

Features:

• Bluetooth communication (Windows, iOS, Android)
• Durable glass plate scale
• Kg/lb selection
• Simply step on start weighing
• Beeps on completion of weighing
• Low profile stylish design

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P

Brand	A&D
Model	UT-201BLE
Battery Life	Prediction measurement Approx. 350 times,Equilibrium measurement Approx. 120 times
Weight	Approx. 25 g including battery
Measurement Range	32.0 to 42 .0 deg C
Display	3 digits (resolution 0.1 deg C),4 digits (resolution 0.1 deg F)
Measurement Method	Prediction measurement using thermistor,Equilibrium measurement using thermistor
Region For Measurement	Oral,under tongue
Temperature Sensor	Thermistor
Measurement Accuracy	+/- 0.1 deg C
Measurement Time	Prediction measurementApprox. 30 seconds,Equilibrium measurement Approx. 5 minutes
Power Supply	CR2032 x1 (3V Lithium battery),Use only battery that conforms to the IEC 60086-4.
Useful Life	5 years
Wireless Communication	Bluetooth Ver.4.0,low energy,HTP
Operating Conditions	+10 deg C to + 40 deg C / 15 %RH to 85 %RH
Storage Conditions	- 20 deg C to + 60 deg C / 15 %RH to 95 %RH
Dimensions	Approx. 40 [W] x 117 [H] x 15 [D] mm

The UT-201BLE-A digital thermometer is fast and accurate, and more precisely monitors your health. An illuminated annunciator blinks and a beeping sound tells when the measurement is complete. This illuminated annunciator together with the large bold display enables a sufficient reading. Extended functionality of wireless communication is provided by Bluetooth Smart technology.

Features:

• Bluetooth communication (Windows, iOS, Android)
• Oral use
• Last reading recall
• LED annunciator / beeping sound at completion of measurement
• Large bold displays for errorless reading
• Long battery life

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),D/P
