Introducing a portable, plug-and-play automatic water level controller — no microcontroller, no buttons, just smart switching using sensor logic!

Travel-Friendly & Compact
Easily carry and use it anywhere — ideal for technicians, service work, farms, and rented homes. Just plug it in, and it works!

How it Works:

Turn ON power → Motor runs if water is low

When tank is full → Sensor turns motor OFF

To restart → Simply power OFF and ON

LED shows motor ON status

Tech Specs:

Max Load: Up to 2HP motor (30A relay)

Input: 230V AC

Output: Plug-type motor control

LED Indicator for status

Note:
No warranty for overload, lightning, or wrong wiring

No need for buttons or switches
No programming required
Ideal for carry-use-plug operations

Ready to use – Plug and Play!

Sump to Overhead Tank – Water Level Controller
Specs & Features:
Contact Rating: 30 Amp Heavy Duty
Suitable for up to 2 HP Motor (Single Phase)
Modes:
• Auto Mode – Motor runs automatically based on tank levels
• Manual Mode – Can run motor anytime (even if tank full)
• Semi-Auto Mode – Press button to fill if tank is low but not empty (auto cut at full)
Dry Run Protection:
If water doesn't touch dry sensor for 2 mins, motor cuts OFF to avoid damage.
Manual reset required after inspection.
Sensor Setup:
• Sump Tank: 2 sensors (Low & High)
• Overhead Tank: 3 sensors (Low, High, Common)
• Dry Sensor on motor pipe
Smart Logic:
• Motor runs only if sump has water
• Stops when overhead tank is full
• Protects motor from dry run & overflow
No Warranty against:
• Overvoltage / Burning
• Rainwater entry / Physical damage
• Wrong wiring / Short circuit
Best for homes, villas, & apartments

Model WLC-20 Best in class Features4 level Overhead Tank IndicationWater Flow IndicatorsVoltage DisplayLow Voltage ProtectionHigh Voltage ProtectionDry Run ProtectionBuilt in ContactorNeed ButtonTank Empty IndicatorVoltage Error IndicationUser Adjustable Dry Run Trip TimeUser Adjustable Motor ON levelOperationsSwitches ON the Motor when the overhead tank is empty and switches OFF the motor when Overhead tank is fullSwitches ON the Motor when the "Need" switch is pressed, Fills up the overhead tank and turns the motor OFFSwitches OFF the motor when low Voltage or High Voltage Condition OccursSwitches OFF the Motor when Dry Run condition OccursConnectionsConnect Incoming Phase to Connector 1Connect Neutral to Connector 2Connect 3 and 4 across (in parallel to) the first element of ON/Start Push ButtonConnect 5 and 6 across (in parallel to) the second element of ON/Start Push ButtonConnect 7 and 8 in series with the OFF/Stop Push Button Connectors 9 to 16 to SensorsDimensionsWeight: 1.2 KGsLength: 21 CmBreadth: 20cmHeight: 11 cm

This device is suitable for making motor of when the tank is full or sump water level is full Can be used in borewell motor for capacitor start motor single phase it works as a semi automatic water level controller for which ones person has to be make it on then automatically of depending on sump or head tank full status

This water level controller PCB without Dry run protection features, can be used for replacement pcb for old or can be used as new device inside panel board

Water Level Controller

Model WLC-20

Naren WLC-20 offers a complete water management system, combining reli-ability, safety, and convenience in one device. Ideal for homes and businesses looking to optimize their water usage and protect their pump systems.

FEATURES

Automatic Filling System: When the water level drops in the overhead tank, the system ensures it is refilled automatically, avoiding manual checks.

Sump Water Detection: Checks for water availability in the sump before running the motor to avoid unnecessary operation.

Auto Motor Shut-off: Automatically turns off the motor if the sump runs dry, pro-longing the motor's lifespan.

Visual LED Indicators: Know your water levels at all times with 4-level overhead tank and 3-level sump indicators.

Voltage Monitoring: Displays real-time voltage to protect against unsafe electrical conditions.

Voltage Trip Protection: Automatically shuts off the motor during high or low voltage events to prevent damage.

Dry Run Protection: Protects the motor by ensuring it does not run when there is no water.

Adjustable Start Delay: Customize the delay for powering on the motor after power fluctuations.

Set Cut-Off Timer: An adjustable timer allows you to control how long the motor runs, with an automatic shut-off if it exceeds the set duration.

WATER LEVEL CONTROLLER ABS BODY
*Dear Sir,*

Here are the key *features and specifications* of our *Automatic Water Level Controller*:

*1⃣ Working Range:*
Operates reliably from *180V to 230V AC*. Handles normal household power fluctuations safely.

*2⃣ Dry Run Protection:*
If the motor is ON and water doesn’t reach the sensor point within *1 minute*, it *automatically switches OFF* to protect the motor from dry run.
In case of dry condition — once water touches the sensor after the motor starts, the *Running Light* will glow to indicate that *water is flowing upward* properly.

*3⃣ Operating Modes:*
- *Auto Mode:* Fully automatic ON/OFF based on tank levels.
- *Manual Mode:* Motor can be turned ON/OFF manually.
- *Semi-Automatic Mode:* Used for *refill on demand* — motor runs until required level reached, activated by push button.

*4⃣ Level Indicators:*
LED indications for *High, Medium, and Low* levels for both *Overhead Tank* and *Underground Tank*.
(Default: High-Low-Common with Dry Run sensor).
If more wires are used, *Medium Level* can also be displayed.

*5⃣ Sensor Details:*
- Supplied with *6 sensors* (standard type with studs).
- Low-cost sensor option: ₹30 per piece × 3 for underground tank.
- *Premium Float Sensor option* available — completely water-isolated, *long life and maintenance-free*.

*6⃣ Float Sensor Option:*
For float type setup — *2 sensors for overhead tank* + *2 sensors for underground tank* (₹250 each).

*7⃣ Dry Run Sensor:*
Included *free of cost*. Fixed at *pipe mouth* to sense actual *water flow* and stop the motor in case of dry run.

*8⃣ Display Indications:*
Shows tank levels, *motor ON/OFF status*, and *running light* indication when water starts moving upward.

*— ANAGHA AUTOMATION*

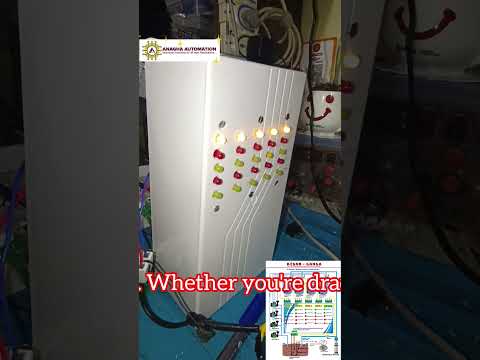

This is an five in one water level controller system that can Control up to five motors, including four single-phase motors and one three phase motor, effortlessly. This device is designed to monitor a single sump and four overhead tanks, ensuring optimal water distribution. Whether you're drawing water from the sump or a bore well, the connector interchangeability allows flexible motor output control based on your specific requirements..

Heavy duty ABS plastic Float sensor

Water level controller for 3phase motor, with 6 head stud Sensor, 1 Dry run sensor with fixtures and manual

Multipurpose PCB for water level controller with
Sump to Overhead Tank – Water Level Controller
Specs & Features:
Contact Rating: 30 Amp Heavy Duty
Suitable for up to 2 HP Motor (Single Phase)
Modes:
• Auto Mode – Motor runs automatically based on tank levels
• Manual Mode – Can run motor anytime (even if tank full)
• Semi-Auto Mode – Press button to fill if tank is low but not empty (auto cut at full)
Dry Run Protection:
If water doesn't touch dry sensor for 2 mins, motor cuts OFF to avoid damage.
Manual reset required after inspection.
Sensor Setup:
• Sump Tank: 2 sensors (Low & High)
• Overhead Tank: 3 sensors (Low, High, Common)
• Dry Sensor on motor pipe
Smart Logic:
• Motor runs only if sump has water
• Stops when overhead tank is full
• Protects motor from dry run & overflow
No Warranty against:
• Overvoltage / Burning
• Rainwater entry / Physical damage
• Wrong wiring / Short circuit
Best for homes, villas, & apartments

This water level controller is works on 3 phase input and also check for 3 phase all presence in case of missing three phase preventer inbuilt will prevent motor from getting ON , regular overact tank protection and underground tank protection with dry run protection available

3-Phase Preventer +  Water Level Controller (for DOL Starter)
Specs & Features:
Phase Protection Built-in:
Detects reverse phase,
Voltage imbalance > 80V,
Zero voltage / phase loss
Protects motor from wrong supply before water control even starts.
Contact Rating: 30 Amp Heavy Duty
Suitable up to 2 HP (Single Phase) or 3 Phase DOL Starter
Modes:
• Auto Mode – Motor runs automatically based on tank levels
• Manual Mode – Can run motor anytime (even if tank full)
• Semi-Auto Mode – Press button to fill if tank is low but not empty (auto OFF at full)
Dry Run Protection:
If water doesn’t touch dry sensor for 2 minutes, motor turns OFF automatically.
Manual reset needed after checking water flow.
Sensor Setup:
• Overhead Tank: 3 Sensors (Low, High, Common)
• Dry Sensor on pipeline/motor
(Note: No sump sensor – 3-phase safety acts as base condition)
Smart Logic:
• Motor only works when 3-phase power is correct
• Auto cutoff at tank full
• Dry-run and overflow protection built-in
No Warranty for:
• Burning, short circuit, overvoltage
• Rainwater entry, wrong wiring, physical damage
Ideal for buildings, villas, farms, & 3-phase motor systems
