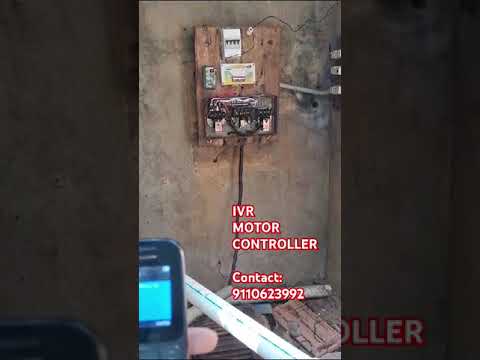

*Mobile Motor Controller – GSM with Battery Backup*

*Key Features:*

GSM Connectivity: Operate and monitor your motor remotely from anywhere.

Battery Backup (for SMS Alerts): Ensures last SMS is sent during power failure for accurate water usage calculation and proper monitoring.

Phase Failure & Surge Protection: Safeguards against phase loss, reverse sequence, high voltage, and surges.

Dual Motor Relays: One relay for ON and one for OFF, ensuring safe and reliable control.

Independent Auxiliary Relay (Optional): Can be used for lighting, theft protection siren, electric fence, or even operating a single-phase motor up to 30A.

Multi-User Control: Up to 5 authorized users can operate the system.

*Timer Functions:*

One-Time Timer: Runs the motor for a preset duration.

Cycle Timer (Passive Timer): Starts counting only after motor starts and is not linked to real-time clock.

Both ON duration and OFF duration can be set for automated cycles.

*Control Methods* (4-Way Operation):

1. Call with IVR – Interactive voice-based control.

2. SMS Command – Operate via simple text messages.

3. Android App – Convenient mobile control.

4. Direct Starter Switch – Manual operation when required.

*Additional Protection & Safety:*

Under Current & Over Current Cut-Off: Protects the motor from abnormal load conditions.

Kick-Start Capacitor Support (Optional): Provides a 3-second boost for motors with heavy starting load.

Safety Fuse: Additional safety layer for controller and motor.

*Optional Features* (at additional cost):

1. Three-phase voltage preventer for advanced protection.

2. Surge protection fuse kit.

3. Additional relay for independent applications (lighting, siren, fence, single-phase motor, etc.).

4. Overhead tank full-level cut-off (float sensor).

5. Overhead tank low-level start (float sensor).

*Applications:*

Borewell motors

Agricultural pumps

Industrial motors

Water supply automation

Security systems (lighting, siren, electric fence)

*Benefits:*

Multiple control options: Call, SMS, App, or Manual.

Flexible timer system with adjustable ON and OFF durations.

Protection from voltage faults and abnormal loads.

Expandable design with optional safety and control features.

Total Cost: ₹3500 to 4500 (all-inclusive) depending on Device, Labour, Material
"Water Level Controller Installation Cost in Bangalore:
However, additional costs may apply if:
- Wire length exceeds 30 meters
- Repeat visits are required
- Float level sensor installation is needed
- Device type varies (e.g., three-phase motor or pump controller)
Note: The base cost is for a standard sump to overhead tank single-phase motor controller installation."

Product Name: Automatic Water Level Controller – ACO Automatic Change over
Between SUMP & BORE pump
DAC Digitally Automated Controller
Model: ACO-WD
Brand: KISAN GANGA
DESCRIPTION:
This advanced microprocessor-based Automatic Water Level Controller is designed to manage both a sump motor (single-phase MCB type) and a bore motor (single-phase capacitor-run or double-button type) efficiently. It ensures a consistent water supply to your overhead tank while optimizing the use of available water sources.
KEY FEATURES:
Dual Motor Support: Controls both sump and bore motors independently.
Manual & Auto Operation:
Use the Manual switches for individual control.
In Auto mode, the controller checks the water level and runs the appropriate motor accordingly.
Auto Switch-over: Automatically switches from sump to bore motor if the sump is dry or water is low.
Dry Run Protection: Prevents damage by switching off the motor in case of dry run conditions.
Overhead Tank Monitoring: Continuously checks tank water level and maintains it.
Need Refill Button (Semi-Auto Mode): If the tank is more than half but not full, you can press this button to top it up manually.
Timer Mode: Allows cyclic motor operation as per user settings to maintain consistent water levels.
Fault Indicators: LED alerts for Sump (F3), Bore (F2), and Voltage-related faults (F1 - Hi/Lo Voltage).
Bright LED Display: Easy-to-read water levels and settings display.
P1 & P2 Selection: Select sump or bore manually via toggles for service or testing.
APPLICATIONS:
Residential buildings
Small commercial setups
Independent houses
Areas with irregular water supply
