Anagha Automation

This Water level controller product can support single phase motor MCB type, single phase motor with capacitor kick start, three phase motor with DOL starter, three phase motor with BITCO starter or SSS GOLD or SSC gold

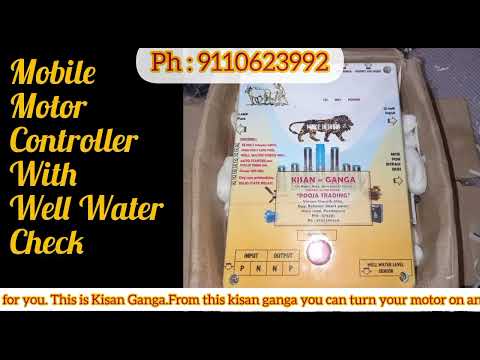

*Mobile Motor Controller – GSM with Battery Backup*
*Key Features:*
GSM Connectivity: Operate and monitor your motor remotely from anywhere.
Battery Backup (for SMS Alerts): Ensures last SMS is sent during power failure for accurate water usage calculation and proper monitoring.
Phase Failure & Surge Protection: Safeguards against phase loss, reverse sequence, high voltage, and surges.
Dual Motor Relays: One relay for ON and one for OFF, ensuring safe and reliable control.
Independent Auxiliary Relay (Optional): Can be used for lighting, theft protection siren, electric fence, or even operating a single-phase motor up to 30A.
Multi-User Control: Up to 5 authorized users can operate the system.
*Timer Functions:*
One-Time Timer: Runs the motor for a preset duration.
Cycle Timer (Passive Timer): Starts counting only after motor starts and is not linked to real-time clock.
Both ON duration and OFF duration can be set for automated cycles.
*Control Methods* (4-Way Operation):
1. Call with IVR – Interactive voice-based control.
2. SMS Command – Operate via simple text messages.
3. Android App – Convenient mobile control.
4. Direct Starter Switch – Manual operation when required.
*Additional Protection & Safety:*
Under Current & Over Current Cut-Off: Protects the motor from abnormal load conditions.
Kick-Start Capacitor Support (Optional): Provides a 3-second boost for motors with heavy starting load.
Safety Fuse: Additional safety layer for controller and motor.
*Optional Features* (at additional cost):
1. Three-phase voltage preventer for advanced protection.
2. Surge protection fuse kit.
3. Additional relay for independent applications (lighting, siren, fence, single-phase motor, etc.).
4. Overhead tank full-level cut-off (float sensor).
5. Overhead tank low-level start (float sensor).
*Applications:*
Borewell motors
Agricultural pumps
Industrial motors
Water supply automation
Security systems (lighting, siren, electric fence)
*Benefits:*
Multiple control options: Call, SMS, App, or Manual.
Flexible timer system with adjustable ON and OFF durations.
Protection from voltage faults and abnormal loads.
Expandable design with optional safety and control features.

This is an single phase supporting 30 AMP single relay water level controller for sump and overhead tank over flow protection

Single-Phase Water Level Controller (Up to 1 HP Motor)
This compact controller is designed for small motors (below 1 HP) with a 30A relay and ensures safe and efficient water level management.
Key Features
Dry Run Protection: Automatically cuts off the motor in 2 minutes if no water flow is detected.
Three Modes of Operation:
1. Automatic Mode: Fills the tank automatically and retries in case of water shortage.
2. Semi-Automatic Mode: If water level is slightly above the low sensor, pressing the Need button will refill and turn off automatically once full.
3. Manual Mode: Allows the user to turn the motor ON/OFF manually for additional water requirements.
Applications
Domestic water tanks
Small garden irrigation
Small pumps and motors under 1 HP

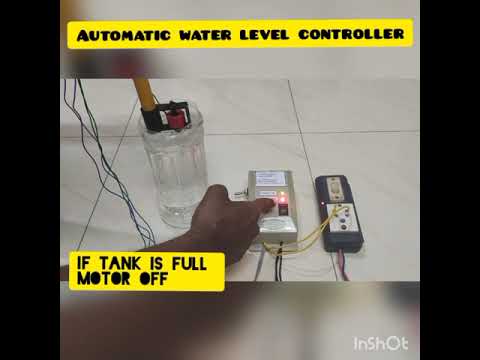

This water level controller without Dry run protection including with Transformer and Stud sensor

WLC 18
1. If Anytime EMPTY motor ON
2. If all tank FULL motor OFF
3. If NO Water flow Within 2 Minutes Motor OFF

One two different motor could be controlled from same device

Can be used for controlling motor by setting time and check over head tank full or underground tank empty which ever is applicable first

This is one motor 2 over Head tank filling device if any tank empty start motor if both tank Full stop motor double wireing needed for Tank to tank to Device
Only Device cost : 2600₹
With labour only:  1200₹
With 6core cable cost: 1400₹

Established in 2023, Anagha Automation is a famous Trader and Wholesaler of a Water Level Controller , Wifi Camera, Level Sensor and much more.

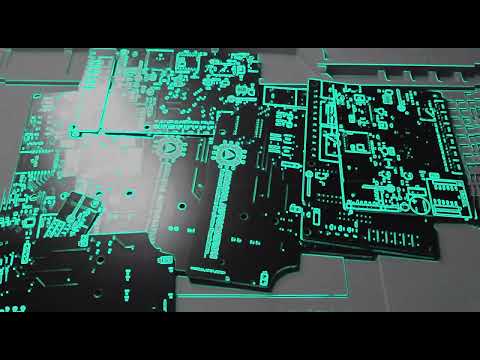

This device is a pair set which consists of TANK MANAGER +MOTOR MANAGER which will communicate to each other via sim or GSM communication which is limitless in terms of boundaries. on one side tank manager will inform water is full make motor off other side motor controller device receives SMS and make motor OFF and ON based on water level

This Float sensor used for passing signal to water level controller or any triggering device which expects change in fluid level
