Anton Paar India Private Limited

Usage/Application	Pharmaceuticals, Paint & Coatings, Food, Cosmetics, Polymers, Resin, Petrochemicals
Brand	Anton Paar
Model Name/Number	Modular Compact Rheomter 72
Features	TruRay (integrated light), QuickConnect (fast and easy mounting of the measuring system), Toolmaster
Automation Type	Automatic
Length	660
Width	380
Height	530
Torque	Minimum 200 microNm
Maximum Speed	1500 rpm
Temperature Range	-40 degree C to 400 degree C

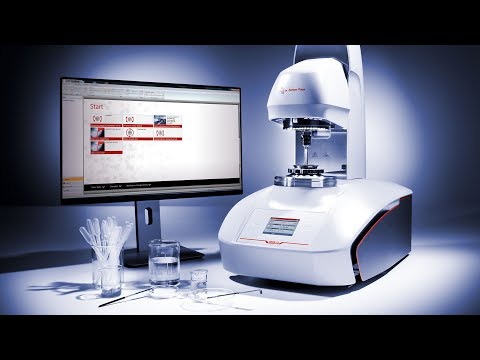

The Modular Compact Rheometer Series from Anton Paar reveals the full spectrum of a sample under the conditions you define. They have two measurement modes: rotational and oscillatory. Accessories such as plates, bobs, cones, heating and cooling chambers make it possible to study the sample’s properties under a wider range of conditions.There is a range of accessories available for both models. The step-by-step software and special features like TruRay (integrated light), QuickConnect (fast and easy mounting of the measuring system), ToolmasterTM (automatic tool recognition and configuration), etc. guarantee excellent ease of use.

Usage/Application	Bitumen/ Asphalt
Brand	Anton Paar
Model Name/Number	Dynamic Shear Rheometer 102 e
Temperature Range	Minus 160 to 1000 degree Celsius
Features	Toolmaster, QuickConnect, Peltier temperature device for dry sample heating
Automation Type	Automatic
Length	380
Width	660
Height	530

The dynamic shear rheometers allow precise measurements on asphalt binder and bitumen in a wide temperature range. Features such as Toolmaster™, QuickConnect, a Peltier temperature device for dry sample heating, and step-by-step instructions for measuring procedures according to AASHTO T315, AASHTO T350, AASHTO TP101, ASTM D7175, ASTM D7405, and DIN EN 14770 guarantee the most convenient operation. For measurements according to AASHTO T316, ASTM D4402, and DIN EN 13302 both instruments can be equipped with a Peltier-temperature-controlled measurement chamber for concentric cylinder geometries.
