Anton Paar India Private Limited

Viscosity Range	0.1 mPa·s (or cP) up to 6,000,000 mPa·s (6 M)
Speed Range	0.1–200 rpm
Display Type	LCD
Spindle Set	L/RH spindles
Usage/Application	Laboratory
Temperature Control	Peltier System
Brand	Anton Paar
Viscosity(cP) Range	1* to 6 M
Model	ViscoQC 100 L
Data Interface	USB
Viscocity Rpm	200
Accuracy	Plus minus 1.0 % full scale range
Speed [rpm]	0.1 to 200 , 25 increments 19 preset plus 6 editable

ViscoQC 100 is Anton Paar's brand new entry-level digital rotational viscometer for the measurement of the dynamic viscosity of low to high viscous samples using a variety of measuring systems. It determines the dynamic (apparent) viscosity as a single-point value. The instrument serves for quality control of liquid samples such as solvents up to semi-solid substances such as lotions. The L-model is for Low-viscosity samples (e.g. Solvents, Inks, Oils, Juices, Fruit concentrates, Smoothies, Mouthwash) and many more.

Additional Information:

• Delivery Time: 3-4 weeks

Measurement Type	Kinematic
Viscosity Range	0.3 mm²/s to 5,000 mm²/s
Temperature Range	+15 °C to +100 °C
Material	Stainless Steel
Automation Level	Fully Automatic
Usage/Application	Laboratory
Display Type	Touch Screen
Number Of Cups	1
Data Interface	Ethernet, RS232, USB
Model	SVM 1001 Simple Fill
Type	Benchtop
Sample Throughput	Up To 40/hr
Brand	Anton Paar
Size/Dimension	33 cm x 36.5 cm x 20.5 cm
Weight	6.6 Kg
Color	Grey

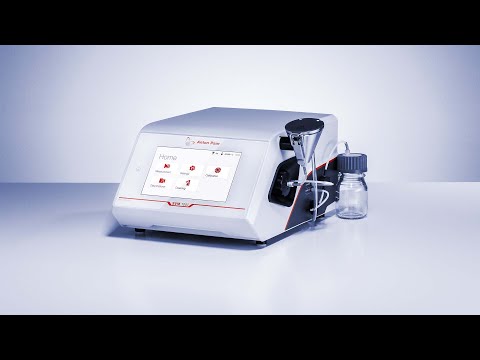

The SVM automatic viscometers deliver kinematic or dynamic viscosity – and, depending on the model, density, specific gravity, and API grades. All results are provided digitally, with no manual calculations required. Replace your full set of 12 glass capillaries with a single, robust unit. With the Simple Fill funnel, you can simply pour and measure – no pipettes, syringes, or other consumables needed. Our automatic viscometers use integrated Peltier technology, eliminating the need for a liquid bath, and feature durable metal cells to replace fragile glassware. Enjoy full compliance with ASTM D7042 and report results in both D7042 and D445, enabled by built-in ASTM-defined bias corrections.

Additional Information:

• Delivery Time: 3-4 weeks

Measurement Type	Kinematic
Types	Kinematic Viscometer
Viscosity Range	0.2 mm²/s to 30,000 mm²/s
Temperature Range	20–120°C
Automation Level	Fully Automatic
Usage/Application	Laboratory
Display Type	Touch Screen
Data Interface	RS232, Ethernet, USB
Model Name/Number	SVM 3001 Viscometer
Brand	Anton Paar
Sample Throughput	Up To 40/hr
Standard	ASTM D445, ASTM D7042
Size/Dimension	33 cm x 51 cm x 23.1 cm
Weight	15.9 kg
Viscosity repeatability	0.1%
Viscosity reproducibility	0.35%
Main Standards	ASTM D7042, D445 bias-corrected, ISO 23581, EN 16896 ASTM D4052, ISO 12185
Supported precision classes	Ultrafast,Fast and Precise
Sample volume min./typical	1.5 mL / 5 mL
Solvent volume min./typical	1.5 mL / 6 mL
Maximum sample throughput	33 samples per hour
Peltier temperature control	Designed for constant temperature
Net weight in kg	17.6 kg
Accessories	Magnetic particle trap (MPT), hot filling attachment (HFA)
Automation	Optional sample changer + High-Throughput Platform HTV
Data memory	1,000 measurement results

Our automatic kinematic viscometers determine kinematic and dynamic viscosity, density, viscosity index (VI), cloud point, freeze point, and many other parameters in one run. Exchange all your capillaries for a single unit. The SVM series covers the entire range with one cell for maximum flexibility. Enjoy all the benefits of ASTM D7042 and report in both D7042 as well as D445 with the integrated ASTM-defined bias corrections. No matter the sample, there’s an SVM that fits your needs.

• Enjoy the gold standard with the widest temperature range on the market: -60 °C to +135 °C
• Temperature change of up to 20 °C/mi
• Comply with SAE J300, ASTM D396, D975, D7666, ISO 23581, EN 16896, and other standards
• Combine with Xsample sample changers and Abbemat refractometers for automated multiparameter analyses
• Multiple parameters (viscosity, density, viscosity index, API, cloud point, freeze point, and more)
• 0.2 cSt to 30,000 cSt range – measure everything from jet fuel to wax
• No capillary change required
• D7042 is a global standard alternative to D445
• 150 % higher throughput compared to manual methods
• Up to 33 determinations per hour

Additional Information:

• Delivery Time: 3-4 weeks

Viscosity Range	1.6 mPa·s (or 10) up to 40,000,000 mPa·s (40M cP)
Speed Range	0.1–200 rpm
Display Type	LCD
Spindle Set	L/RH spindles
Usage/Application	Laboratory
Temperature Control	Peltier System
Model Name/Number	ViscoQC 100-R
Data Interface	Ethernet, USB, RS232
Brand	Anton Paar
Viscocity Rpm	200
Speed (rpm)	0.1 to 200
Max. spring torque	0.7187
Viscosity test	Single point
Accuracy	plus minus 1.0 % full scale range
Repeatability	plus minus 0.2 %

ViscoQC 100 is Anton Paar's brand new entry-level digital rotational viscometer for the measurement of the dynamic viscosity of low to high viscous samples using a variety of measuring systems. It determines the dynamic (apparent) viscosity as a single-point value. The instrument serves for quality control of liquid samples such as solvents up to semi-solid substances such as lotions. The R-model is for medium-viscosity samples (e.g. Paints, Coatings, Adhesives, Epoxy resins, Detergents ) and many more.

Additional Information:

• Delivery Time: 3-4 weeks

Viscosity Range	10 mPa·s up to 40,000,000 mPa·s (40 M)
Speed Range	0.1–200 rpm
Display Type	LCD
Usage/Application	Laboratory
Model Name/Number	ViscoQC 100-R
Material	Stainless Steel
Maximum Viscosity Range	10** to 40M
Brand	Anton Paar
Repeatability	plus minus 0.2 %
Viscosity test	Single point
Max. spring torque	0.7187
Accuracy	plus minus 1.0 % full scale range
Speed (rpm)	0.1 to 200

ViscoQC 100 is Anton Paar's brand new entry-level digital rotational viscometer for the measurement of the dynamic viscosity of low to high viscous samples using a variety of measuring systems. It determines the dynamic (apparent) viscosity as a single-point value. The instrument serves for quality control of liquid samples such as solvents up to semi-solid substances such as lotions. The R-model is for medium-viscosity samples (e.g. Paints, Coatings, Adhesives, Epoxy resins, Detergents ) and many more.

Measurement Type	Rotational
Viscosity Range	10 to 40,000,000 mPa·s (or cP)
Temperature Range	0–100°C
Automation Level	Fully Automatic
Usage/Application	Laboratory
Display Type	LCD
Data Interface	USB
Model Name/Number	ViscoQC100 R
Brand	Anton Paar
Viscosity test	Single point
Accuracy	plus minus 1.0 % full scale range
Repeatability	plus minus 0.2 %

ViscoQC 100 is Anton Paar's brand new entry-level digital rotational viscometer for the measurement of the dynamic viscosity of low to high viscous samples using a variety of measuring systems. Itdetermines the dynamic (apparent) viscosity as a single-point value. The instrument serves for quality control of liquid samples such as solvents up to semi-solid substances such as lotions. The R-model is for medium-viscosity samples (e.g. dairy poducts, paint, coating, shampoo, lotion) and many more.

Additional Information:

• Delivery Time: 6-8 weeks

Usage/Application	Laboratory
Brand	Anton Paar
Viscosity	1* to 6M
Model	ViscoQC 300 - L
Maximum Viscosity Range	1* to 6M
Features	Peltier temperature control,Automatic spindle recognition,Easy spindle attachment/exchange
Viscocity Rpm	0.0673
Size/Dimension	361 mm x 281 mm x 444 mm
Weight	6.2 kg

ViscoQC 300 ensures the quality of substance – from fluid to semi-solid samples – by delivering fully traceable viscosity results with a Peltier device for the most precise sample temperature control – right at your fingertips. Starting from a multi-point viscosity measurement for your respective purpose, your system is upgradeable with compliance (21 CFR Part 11) and/or additional analysis software to meet your future needs. Further improve your process with the optional sample bar code scanner and data processing via LIMS Bridge software.

Viscosity Range	1.3 mPa·s (or as low as 10 mPa·s with specific systems) up to 40,000,000 mPa·s (40 million cP)
Speed Range	0.01 rpm to 250 rpm
Display Type	LCD
Usage/Application	Laboratory
Model Name/Number	ViscoQC300 - R
Brand	Anton Paar
Viscosity	10** to 40M
Model	ViscoQC 300 - R
Maximum Viscosity Range	10** to 40M
Features	Peltier temperature control,21 CFR part 11 compliant,Magnetic coupling
Viscocity Rpm	0.7187

ViscoQC 300 ensures the quality of substance – from fluid to semi-solid samples – by delivering fully traceable viscosity results with a Peltier device for the most precise sample temperature control – right at your fingertips. Starting from a multi-point viscosity measurement for your respective purpose, your system is upgradeable with compliance (21 CFR Part 11) and/or additional analysis software to meet your future needs. Further improve your process with the optional sample bar code scanner and data processing via LIMS Bridge software.
