Apan Enterprise

Additional Information:

• Packaging Details: Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap, Micro Printer, Powder Test Box

Features:

§  D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

§  Adopt combined LED light source with high life and low power consumption, including UV / excluding UV;

§  Switch 8mm & 4mm aperture( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)

§  Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;

§  Accurate spectrum and lab data, used for color matching and accurate color transmission;

§  High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;

§  USB / Bluetooth dual communication mode, wider adaptability;

§  Super dirt resistant and stable standard white calibration board;

§  Large capacity storage space, which can store more than 30000 pieces of test data

§  10.2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;

§  Camera locating position and Stabilizer cross measurement position;

§  PC software has powerful function expansion;

Additional Information:

• Packaging Details: Grating Spectrophotometer, Power Adapter, User Guide, PC Software (Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture, Micro Printer, Powder Test Box.

window film transmission meter is an instrument for measuring the optical properties of uniform and transparent materials such as solar film, glass with film, heat-insulating glass and automobile side windsheild glass. We can select the measurement interface to display the infrared and ultraviolet rejection and transmittance

Window tinting on glass is not just decorative. It serves several functional purposes, including heat reduction, reducing harmful UV rays, enhancing privacy, and preventing upholstery fading. However, there are safety limits on how much tint you can legally apply to your glass windows.

Professionals use the tint darkness scale to measure Visible Light Transmission. The scale expresses Visible Light Transmission as a percentage (VLT%). When VLT% is “adequate”, authorities judge that a road user has a minimum, safe level of visibility outsode glass.

You place the glass you wish to measure inside of the tint meter. A light of a known frequency (usually ~550nm) then passes through the medium. Depending on the type of tint meter, on the other side of the glass, there will be either a:

1. Sensor to catch the light and calculate the reduction in light strength; or a
2. Reflector to return the light to a sensor located in the main unit. The sensor will calculate the reduction in light strength.

Feature

Easy to operate, fast measurement speed and instant display

The solar film transmission meter has only one button. The three test results will be displayed on the interface immediately after putting the materials into the test slot

Parallel light path, side windshield can be tested.

The LS163A Transmission Meter boasts parallel light path design, with a test slot wide 6mm, the instrument can also test large thickness materials such as car side windshield.

Humanized design, Rotating display interface

The display interface can be rotated in 4 directions adaptively, which is convenient for reading data when testing at different angles.

Real-time automatic calibration function

The LS163A solar film transmission meter has real time dynamic calibration function , the meter will make self-calibration after powering on.

Three display interfaces available

We can set the display interface as UV and IR rejection rate, light transmission rate or light transmittance.

Lock testing datas by pressing "Hold" button.

The window film transmission meter has data lock function. Press the "Hold" button after testing, the data will remain on the interface after taking away the tested materials.

Low power consumption

It can continuously measure for more than 100 hours.

The transmittance meter will automatically power off if without operation for 3 minutes

Specification:

UV Peak wavelength : 365nm

IR Peak wavelength : 1400nm

Visible light : 380-760nm, conform to the CIE photopic luminosity function

Accuracy : ±2% (Colorless and transparent material)

Resolution : 0.1%

Test Slot : 6mm *58mm (W*D)

Dimension : 146 mm ×73 mm ×24 mm (L*W*H)

Display : 128*128 Dot matrix LCD

Weight : 187g (Include Batteries)

Power supply : 4*AAA batteries

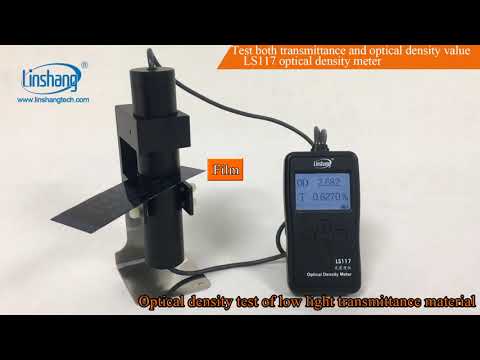

Parameter:
1.  Density Measuring range:  0.00 --- 6.00 OD
2.  Dot Area Measuring range: 0 --- 100%
3.  Resolution: 0.0005% Transmission / 0.01 OD
4.  Density Accuracy: +/-0.02 (0 -2.00 OD)
                      +/-2% (2.00-6.00 OD)
5.  Transmittance Accuracy: +/-1%(0% --- 50%)
                         +/-2%(50% --- 100%)
6.  Aperture: 2mm
7.  Light source: ANSI/ISO Visual
8.  Power supply: 4*AAA alkaline battery

Features:
1.  Completely self-contained operation. No independent power supply or light source required.
2.  Ideal for all graphic arts film applications, from quality control to calibration.
3.  Directly measures density, density difference and dot area.
4.  Simple to operate and easy to use
5.  Able to measure densities up to 6.0 OD

As an Authorized dealer we are engaged in providing the broad assortment optical instruments.

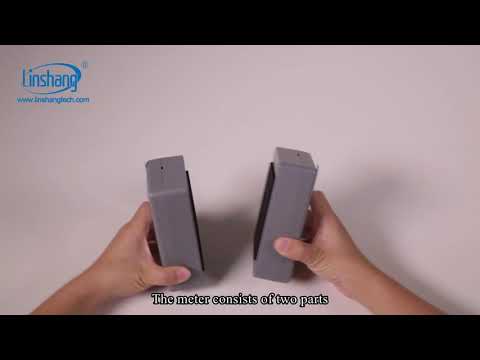

Split transmission meter has three independent testing units to measure the transmittance value of ultraviolet light, infrared light, and visible light.

is able to simultaneously measure and display..

1. UVR(Ultra Violet Rejection) value.
2. IRR(Infrared Rejection) value.
3. VLT(Visible Light Transmission) value

It is used for the transmittance testing of glass, plated film, organic materials, solar film and other translucent materials such as insulating glass, filmed glass, PMMA materials etc.

It consist of two parts: main part for measuring and displaying functions and the auxiliary part for light source and laser light for alignment.

Specifications :

•  VL Peak wavelength: 550nm
•  UV Peak wavelength: 365nm
•  IR Peak wavelength: 940nm
•  Resolution: 0.1% for measured value<10% and 1% for other ranges
•  Accuracy: better than +/-2% (Colorless and transparent material)
•  Test sample size: > 40*40mm
•  Power supply: built-in lithium rechargeable battery
•  Dimension: 140mm  x 82mm  x 92mm (length  x width  x height)
•  Weight: 680g

ø Two-parts dual mode of the main and auxiliary part facilitates the transmittance measurement of the automobile front windshield glass and building glass.

ø The built-in lithium rechargeable battery is easy for use without replacing the battery;

ø Use the USB port of computer to charge the meter via the built-in charger;

ø The laser alignment function guarantees the accurate alignment of the main part with the auxiliary part in the process of measurement and ensures accurate measurement.

ø Three light Transmittance Meter in one device; result is the average of three values

ø Two laser for two part alignment, more accuracy.

As an Authorized dealer we are engaged in providing the broad assortment optical instruments.

Transmission Meter is special for film, window tint, filmed glass and side windshield test, it’s a small size, portable product for transmission value measurement. It’s able to simultaneously measure and display Visible transmission values and UV, Infrared rejection values.

Directly display the rejection rate of UV and infrared. In this way, when the customers are testing the performance of a solar film or a filmed glass, they can directly know the UV and infrared rejection rate of their measured sample, and don’t need to calculate how much 100% minus the transmission.

Specification:

• VL Peak wavelength: 550nm
• UV Peak wavelength: 365nm
• IR Peak wavelength: 1400nm
• Size: 120mm *75mm *25mm(L*W*H)
• Thickness of testing sample: < 8mm
• Resolution: 0.1%
• Accuracy: ±2%(Colorless and transparent material)
• Weigh: 165g (include batteries)
• Battery: 4*AAA alkaline battery

Fetures

• The testing slot is up to 8mm, can test filmed glass directly .
• Compact, portable, battery powered, ultra-low power consumption.
• UV rejection meter, IR rejection meter,Visible light Transmittance Meter, Three functions in ONE device.
• Simple operation, rapid measurement, putting the testing sample in the “OPENING”, UV, VL and IR transmission values of the sample will simultaneously display immediately.
• Suitable for measure film, filmed glass, window tint, side windshield etc. Test for performance demonstrate, production, QA, inspection and so on many occasions

Additional Information:

• Item Code: AP-LS162A
• Delivery Time: Ex.Stock
• Packaging Details: LS162A Transmission meter, AA battery, User Manual

Comply with CIE No.15???GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

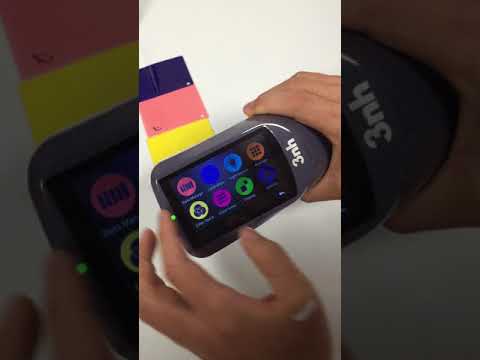

YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

YS3020 Grating Spectrophotometer

Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.

YS3010 Grating Spectrophotometer

4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.

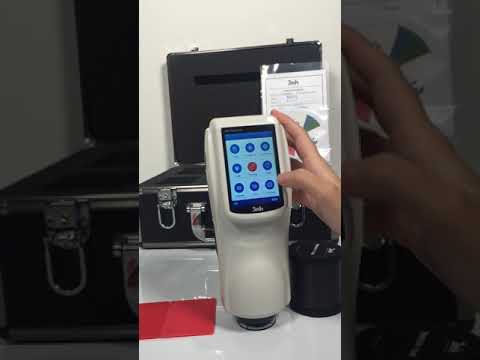

Features

• Perfect combination of beautiful appearance and the human body mechanics structural design

• D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

• Use long life and low power consumption combined LED light source, including UV/excluding UV.

• Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time.

• Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission.

• High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 image Element Double Arrays CMOS Image Sensor.

• USB/Bluetooth 2.1, dual mode, widely useful.

• Super stain-resistant and stable standard white calibration plate.

• Large capacity storage space, over 20,000 measurement data.

• Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement.

• Camera Locating Function, better position.

• PC software has a powerful function extension.

Additional Information:

• Packaging Details: Grating Spectrophotometer, Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover, Micro Printer, Powder Test Box

light transmittance meter can be used to test the light transmittance of glass products, solar films, laminated glass, coating materials, organic material panels and other materials. Suitable for display, production, quality inspection, inspection and other occasions.

• The light transmittance meter adopts the parallel light path of the light source and the light collecting design of the receiver, so that it can measure large thickness materials.

• Equipped with a fixed base, with two measurement methods; that is, it is suitable for testing such as on-site measurement of automobile front glass, and it is also suitable for fixed-point light transmission measurement such as a fixed station in a factory.

• Adopt high-resolution acquisition chip, which can realize high-precision data acquisition, fast response and real-time dynamic calibration, high measurement accuracy and fast test speed.

• The instrument can measure high-transmittance samples. The transmittance measurement range is 0.001% -99.8%, and the highest resolution can reach 0.001%.

Additional Information:

• Packaging Details: Light Transmittance Meter, AAA battery, User Manual, Stand, Carrying case.

• Densitometer
• Standard Step Density Tablet
• Power Cable
• RS-232 Serial Port Cable
• Software CD for Auto Calibration Quality Certification

New model YD5050 Plus Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing.

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


Product Features

1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.

2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

4. Perfect combination of the beautiful appearance and the ergonomic structure design;

5. Optional apertures: Φ2/4/8mm, adapt to more samples;

6. Large-capacity storage space, over 20,000 test data

7. Combined LED light sources with long life and low power consumption, including UV light;

8.  USB/Blue2.1 dual communication mode is widely useful;

9. Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Measurement Geometry : 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15

Features : high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.

Detector : 256 Image Element Double Array CMOS Image Sensor

Wavelength Range 400~700nm

Measurement Conditions :Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A), M1 (CIE Light Soure D50), M2 (Excluding UV light source), M3 (M2+Polarized light filter)

Density Standards ISO Status A, E, I, T

Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning

Color Spaces CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB

Color Difference Formula : ΔE*ab, ΔE*94, ΔE*00, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE(Hunter)

Other Colorimetric Index : WI(ASTM E313, CIE/ISO,AATCC,Hunter),  YI(ASTM D1925,ASTM 313),

MI (Metamerism Index), Opacity,

Chromaticity value: within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5

second intervals after white calibration)  Except M3

Can be used in accordance with:

AS/NZS 1580.602.2, ASTM C584, ASTM C523, ASTM D523, ASTM D1455, ASTM D2457, ASTM D4039, ASTM D4449, ASTM D5767, ASTM E430, ASTM E2387, BS 3900 D5, DIN 67530, ECCA T2, EN 12373-11, EN 13523-2, ISO 7668, ISO 2813, ISO 13803, ISO 17025, JIS K 5600-4-7, JIS Z 8741, TAPPI T 653 (20°)

A well-integrated service support is provided from service centre with team of trained customer support group headed by a Service Manager, who double up for technical & application support to our customers.

Additional Information:

• Packaging Details: Elcometer 480 Glossmeter, integrated calibration tile, calibration certificates for gauge & calibration tile, 2 x AA batteries, wrist strap, operating instructions, plastic carry case, ElcoMaster¿¿ software (Model T) and USB cable (Model T)

This meter is used to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of a coatings hiding power, or simple shade sorting tasks of metallized films, anodized aluminum or ceramics. It can calculate the contrast ratio (opacity) and store it. The operator can call up the data when required. It complies with ISO 2814, ISO 3906 , ISO 6504, BS 3900 and DIN 55984.

• Small and light, easily portable.

• No warm up period.

• Calibrate automatically: judge zero point and calibrate with the white board automatically

• With USB interface and software for transmitting data.

• One 1.5V alkaline Battery can be used for almost 60 hours and 100,000 reading.

• Long-term stable light source needs no replacing.

• With simple test mode and Statistics-Mode.

• Calculates the reflectance value automatically

Main Technical Parameters:

• Working angle: 0°(irradiate) , 45°(receive) ; CIE Illuminant C
• Range of Measurement: 0-100 units
• Resolution: 0.1%
• Accuracy: ±1 unit or 1% (full scale)
• Power Supply: One 1.5V alkaline battery or rechargeable
• Window Size:12x17mm(ellipse)
• Size: 114x32x64mm
• Weight:180g
• Testing Environment: 10???~40???, relative humidity should not be over 85%.

As a Authorized dealer we are engaged in providing wide gamut of optical instruments used in various optical applications.

Spectrum transmission meters can be used to measure the transmission of ultraviolet,infrared and visible light,

LS108H spectrum transmission meter is a desktop instrument, which is exclusively designed for optical transmittance test of various materials such as lens, glass, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small size materials. The flat bench-top meter is available for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.

Specification :

ø IR peak wavelength : 940nm

ø Visible light : 380nm-760nm

ø full wavelength,in line with CIE photopic luminosity function

ø Resolution : 0.1%

ø Measurement accuracy : ±2% (colorless uniform transparent material, 0-90% transmittance)

ø Minimum test sample size : 1mm dia.

ø Dimension : 170 mm ×180 mm ×144 mm (L*W*H)

ø Weight about : 1570 g

ø Display : 480px * 272px color LCD

ø Power supply :DC5V/1A

The LS108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to illuminate the transparent material. The sensor detects the incident light intensity of the three light sources and light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance shown in percentage.

Features:

• The instrument adopts parallel optical path design and the measurement results are stable and accurate.

• The instrument has a test aperture of 1mm, which is especially suitable for small-size materials testing.

• Users can select to measure the transmission value or rejection rate.

• The instrument has real-time dynamic self-calibration function,which can be automatically calibrated to 100% transmittance after booting.

• Stainless steel table top design for the convenience of placement and operation.

Additional Information:

• Packaging Details: MatchColor is a full software with 6 modules.

• Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

• Double Locating: Illuminating locating and precise cross locating.

• Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

• New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.

• 4mm Measuring Aperture.

• Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

• Connect PC computer to realize more functions.

• Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

• Hand-head structure: small and convenient; make the measurement easier.

• Exquisite appearance: adopts traditional and fashionable aesthetic designs.

• Spending huge sums on high-end mold. Product consistency approaches 100%.

• High cost performance: large output, good quality, cheap products.

1. Illuminating Locating
2. Cross Locating
3. Large Stable End Face
4. Small Concave-Convex End Face.

Whiteness Meter is mainly used to directly measure the whiteness value of solid object or Powder with flat surface. It can be widely used in whiteness measurement of textile printing and dyeing, paint, chemical building materials, paper board, plastic products, white cement, ceramics, enamel, talc powder, starch, flour, salt, detergent, cosmetics and other substances.

* It consists of Light Source, Optical System, Detection System, Data Process and Display System. The whiteness Calculation Formula of the instrument is blue light whiteness R457.
* Use of high quality imported components, good reliability.
* The optical path design is reasonable, simple. Adopt filter system with correction, the whiteness can be reflected quantitatively.
* No preheating after starting, measurements can be taken after simple calibration, easy to operate.
* Pass strict inspection and testing, the instrument conforms to the JJG 512-2002 Whiteness Meter Verification Regulation. Also conforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB12911, GB2409 and other standards.
* Able to memory 254 groups of measurement data.
* Use USB data out put and RS- 232 data out put to connect with PC.
* Provide Bluetooth data out put choice.
The light source of the instrument is long-life LED with 457nm, conforming to the light source requirement in the JJG 512-2002 National Metrological Whiteness Meter Verification Regulation. The measurement of the instrument adopts the principle of photoelectric effect. The diffuse reflectance Radiant Brightness Energy Value of the sample surface is receive by the optical cell. Then, the value is amplified by high-precision auto zeroing operation amplifier, inputted to the calibration circuit for energy calibration. Then, the whiteness value of the sample is directly shown on the digital display.

Online Optical Density Monitor is a non-contact online thickness tester for coating aluminized film, use the principle of optical transmittance to monitor the process of vacuum coating machine and the production line of glass, has two kinds of methods to display: transmittance and optical density.

The material of transmittance (optical density) and a certain proportion relationship with material of coating thickness. So by monitoring materials of optical transmittance (optical density) to achieve the uniformity of monitoring materials, the purpose of the coating thickness. As long as it is light through the material, can be monitored by monitoring the light transmittance product quality. Such as winding vacuum coating, coating, glass/film production line and so on.

System is divided into 3 parts:

a) Detection systems : Includes the source, receiver, controller and aluminum bracket;

b) Human-computer interaction devices : 7 inch LCD MMI, display the transmittance and optical density data of every test points.

c) Computer real-time monitoring system(Optional) : Data record, analysis, reporting, and other functions.

Due to the measured sample of this customer is more special, the card slot of our conventional glass transmittance on-line monitoring device is 20mm wide, can not meet customer needs. So we customized a flexible program, the test points, controllers and human-machine display interface will be provided by our company to test , collect, output and display dates. As for the bracket part,it will be customized according to the customer’s requirements. For this situation, the users will take the installation problem into account because my company doesn’t provide the whole set of glass transmittance on-line monitoring device.

This instrument provides dual RS485 communication interface, the standard MODBUS communication protocol, convenient for communications among LC, single-chip computer, MMI, kingview and computer. Coating machine can read directly optical density data of the equipment to realize the automatic control (closed-loop control).

Parameter:

1. Wavelength: according to the customer‘s need to choose, there are following option

Infrared : 850nm(the default option, strong anti-interference ability),

Visible light : 380nm-760nm(white light),

Green light : 530nm

2. Accuracy : ±1%

3. Resolution : 0.005%

4. Density measuring range : 0.00 -5.00 OD

5. Density resolution : 0.01 for 0.00 - 3.00 OD,

0.05 for 3.00 - 5.00 OD

6. The maximum measured points : 36

7. Distance between adjacent probe head:≥70mm

8. Distance between the sending and receiving probe: 20mm

9. Temperature range:-20°C +70°C

10. Data refresh cycle:300ms

11. Size:100mm*230mm(W*H) Length according to customer requirements

12. The number of flange electrode:

6 (Not deserve a computer monitor)

9 (Deserve a computer monitor)

13. Power supply:220V AC/50Hz

14. Communication:dual RS485.

• Industry-leading launch Flicker measurement instrument.

• Support Flicker Index, Percent Flicker measurement.

• Meets IES / ASSIST / ENERGY STAR / VESA specification definition.

• Standalone operation, no need for smart phone or PC connection.

• Light flicker frequency measurement.

• Spectrum diagram and including five light units-of-measure.

• Flicker time frequency domain real-time monitoring.

• C/P value highest.
