The Elcometer 134S Chloride Ion Test Kit for Surfaces allows the surface to be tested for chloride salts prior to application of a coating.

Chloride salts left on the surface before the first coat is applied can result in the coating system being forced off the surface by corrosion or blistering before the full life of the coating has been reached.

To ensure that the chloride has been removed it is essential that the surface is tested before the coating is applied.

Elcometer 134S test method: a latex sleeve is filled with a Chlor*Rid extract solution and stuck to the test surface where the solution is worked against the surface to extract the salts. The titration tube is inserted and the results can be recorded.

TEST PROCEDURE

1. Remove cap from CHLOR*EXTRACT solution bottle and pour entire contents into the test sleeve. If applying to a horizontal surface, clip the

sleeve to prevent loss of solution, removing any excess air.

2. Peel off the blue pressure sensitive backing from test sleeve; remove the air from the test sleeve by squeezing between fingers and thumb.

When evacuating air, take care not to spill CHLOR*EXTRACT from the sleeve.

3. Firmly apply test sleeve to test surface. Lift and hold the free end of the test sleeve upright to allow extract solution to come into contact with test surface. Use other hand to massage the solution through the test sleeve against the surface for 2 minutes.

4. When massage is complete, remove the test sleeve: For vertical or overhead surfaces, the solution will flow down to the closed end of the test sleeve. For horizontal surfaces, press and slide finger across sleeve to move solution to closed end of sleeve prior to removal. Use the clip to help retain the solution during sleeve removal.

5. Using caution and avoiding touching the ends of the titration tube, snap off both ends with the metal snapper provided and insert the titration tube into the test sleeve with smaller numbers and arrow at bottom.

Measurement Range : 1 - 60µg/cm² (1 - 60ppm)

Scale Resolution : 1µg/cm² (1ppm)

Tests per kit : 5

Storage Conditions Not exceeding : 25°C (77°F)
Weight : 250g (9oz)

Dimensions : 185 x 125 x 110mm (7 x 5 x 4.5”)


STANDARDS:
ISO 8502-5, SSPC Guide 15

Additional Information:

• Packaging Details: 5 x test kits each containing: titration tube snapper, strap, clip, pre-measured bottle of Chlor*Rid extract solution, sleeve, titration tube and operating instructions

The Dust Tape Roller presses the Elcometer 142 Dust Tape to the surface using a controlled constant force as required by BS EN ISO 8502-3 (BS 7079-B3:1993).

The Elcometer 135A Bresle Sampler is a self-adhesive rubber film patch with a sealed compartment for sampling of soluble impurities from steel surfaces with a suitable solvent. The Elcometer 135A Bresle Samplers are also part of the Elcometer 138/2 Surface Contamination Kit.

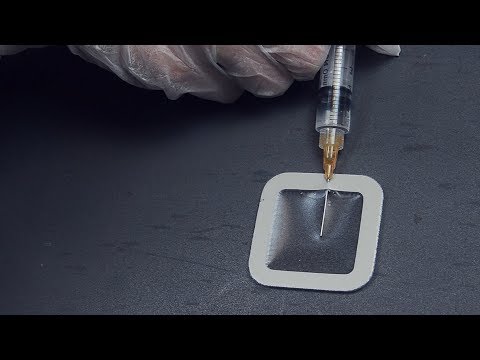

Elcometer 135B Bresle Patches are used to determine surface chloride contamination and are self-adhesive rubber film patches with a sealed compartment for sampling soluble impurities from steel surfaces with a suitable solvent. Elcometer Bresle Patches are also available as part of the Elcometer 138 Bresle Salt Kit.

Key features of the Elcometer 135C Bresle Test Patch include:

• Easy to peel off after test, leaving no foam on the substrate
• 19% thicker foam walls than traditional patches - easier to insert a needle
• Sealed compartment with clear flexible membrane for sampling soluble impurities
• Covers on both sides to protect against dust and contaminants
• Supplied with a Certificate of Cleanliness & Test Area
• Available in boxes of 25 & 100

STANDARDS:

ISO 8502-6, ISO 8502-9²

Additional Information:

• Item Code: Apan-BreslePatch-A

It is essential that the level of contaminants on a surface is measured prior to application of the coating to ensure the quality of the coating and that its optimum lifetime is achieved.

If the coating is applied to a contaminated surface, which is not properly prepared, it could fail prematurely resulting in costly re-coating and high maintenance costs.

Additional Information:

• Delivery Time: 3-4 Weeks
• Packaging Details: SCM 400, plastic tweezer, 100 x high purity sample papers, spare battery, 20 x PVC bags, disposable gloves, 3 x 2ml syringes, tissues, 8 x replacement plate support pads, operating instructions

The Elcometer 130 quickly and accurately measures the level of soluble salts on surfaces over 4 times faster than Bresle equivalent test methods

• Large buttons ideal for gloved hands
• Easy to use menus in multiple languages
• High reading limit indicator
• Factory calibrated for immediate use

Accurate

• Conductivity measurement to ±1%
• Can be used in accordance with National and International Standards
• Automatic temperature compensation ensures repeatable, accurate results
• Calibration verification tiles
• Trend and batch readings graph formats for instant on-screen analysis

Reliable

• Repeatable and reproducible measurements
• 2 years gauge warranty
• Supplied with fully traceable Test Certificates
• Batch & individual readings are stored with date and time stamp

Tough

• Heavy duty, impact resistant, dust and waterproof design equivalent to IP64
• Wipe clean sealed unit ideal for harsh environments
• Scratch and solvent resistant display

Efficient

• Instant readings allows multiple tests to be completed efficiently
• Alpha numeric batch identification
• Compatible with ElcoMaster^® and ElcoMaster^® Mobile App
• Calibration offset allows the use of non-pure water up to 2μg/cm²

Powerful

• Measuring range up to 50μg/cm² (3000ppm)
• USB and Bluetooth^® data output to iPhone* or Android™ devices
• Stores up to 100,000 readings in 1,000 batches
• Soluble salt and conductivity meter in one gauge

Efficient

• Instant readings allows multiple tests to be completed efficiently
• Alpha numeric batch identification
• Compatible with ElcoMaster^® and ElcoMaster^® Mobile App
• Calibration offset allows the use of non-pure water up to 2μg/cm²

Powerful

• Measuring range up to 50μg/cm² (3000ppm)
• USB and Bluetooth^® data output to iPhone* or Android™ devices
• Stores up to 100,000 readings in 1,000 batches
• Soluble salt and conductivity meter in one gauge

Key features of the Elcometer 130 Salt Contamination Meter include:

• Fast reading rate allows multiple tests to be completed efficiently
• Automatic temperature compensationensures accurate results
• Pressure plate ensures a constant and uniform pressure to paper
• Non-oxidising gold plated contactsensures lifetime accuracy
• Fully portable hand-held, ergonomic design ideal for use in the field
• Dust and water resistant rugged design equivalent to IP64
• Stores up to 100,000 readings in 1,000 alpha numeric batches
• USB and Bluetooth^® data output to ElcoMaster^® software

Users can either place a sample on the conductivity meter’s flat sensor or immerse the meter’s sensor directly into the solution under test. Conductivity Meter can be used for a broad range of applications, including: soluable salt concentrations, the electric conductivity (EC) of solutions used in agricultural operations and measuring rainwater pollution levels.

Conductivity Meter includes a convenient salinity conversion indicator.

Conductivity Meter features:

• Highly precise measurements can be obtained from a single drop
• Automatic range switching gives a wide measurement range of 1μs/cm to 19.9mS/cm
• Out of range and low battery alarms
• Visual indication when ambient temperature is outside the operating range

• Conductivity
• TDS
• Salinity

Additional Information:

• Packaging Details: Instrument, Test accessories

This is mutiparameter measurement Instrument

Highly precise measurements can be obtained from a single drop

• Automatic range switching gives a wide measurement range of 1μs/cm to 19.9mS/cm
• salinity conversion indicator
• Out of range and low battery alarms
• Visual indication when ambient temperature is outside the operating range

The pH scale ranges from 0 to 14pH - where 0pH is acidic and 14pH is alkaline. pH is temperature dependent thus the temperature of the sample under test will affect the pH value recorded.

sensor has automatic temperature compensation, ensuring like-for-like measurements can be taken for meaningful comparison of the results.

• Simultaneously displays pH and temperature
• Measurement hold / freeze function
• Record maximum and minimum readings over a series of tests
• °C / °F user switchable
• Waterproof to IP57 and floats on water
• Auto power off

The condition of the sensor is automatically monitored after each successive calibration and sensors can be easily replaced by the user as and when required.
