Shape	Square
Type	wet film thickness measurement
Material	Plastic
Measuring Range	50 to 800 micron / 2 to 32 mils
Brand	Elcometer
Model Name/Number	Elcometer 154 Plastic Wet Film Comb
dimension	40 x 40mm (1.57 x 1.57")
STANDARDS	BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125

Elcometer 154 Plastic Wet Film CombsThe Elcometer 154 Wet Film Combs are made from ABS plastic and are designed to be used once and kept as a record of wet film thickness measurement for quality assurance or customer requirements.

Metric and Imperial values are on the same wet film comb, 50 to 800µm on one side, 2 to 32mils on the other.

Each comb has 16 measurement steps.

Dimensions : 40 x 40mm (1.57" x 1.57”)

Additional Information:

• Packaging Details: Elcometer 154 Wet Film Comb

Type	Coating Thickness Gauge
Display	Digital
Brand	Elcometer
Model Name/Number	Elcometer 500
Weight	161g (5.68oz)
Accuracy	+-2% or +-10 micron (+-2% or +-0.4 mil)

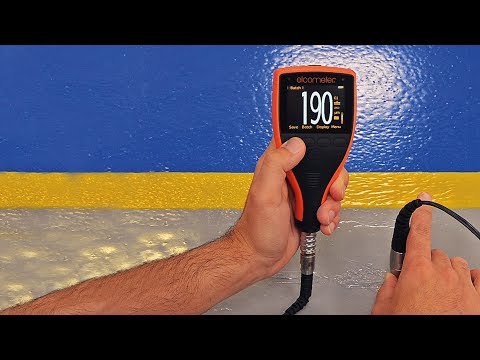

Elcometer 500 Concrete Coating Thickness Gauge accurately measures the thickness of coatings on concrete and other similar substrates (eg plasterboard, drywall, concrete block, brick) – non destructively.



Features

• Fast and accurate, the Elcometer 500 Coating Thickness Gauge takes repeatable and reproducible dry film thickness measurements of coatings on concrete up to 10mm‡ thick (Epoxy coatings, thickness on other materials may vary) or other similar substrates – without damaging the coating.
• Easy to read, user definable display with automatic screen brightness
• Store up to 100,000 readings in up to 1,000 alpha-numeric batches
• Rugged, intelligent ergonomic probes, designed for continuous use and field replaceable probe tips you can inspect all day, everyday
• Measure up to 10mm
  • C1 150 – 2,500μm & C2 750 – 10,000μm
• Measure more than 60 readings per minute in standard mode and over 140 readings per minute in scan mode – allows users to inspect more coatings in less time.
• Rugged, dust & waterproof design equivalent to IP54, ideal for almost all environments
• The built in signal strength indicator on the Elcometer 500 Coatings on Concrete Gauge prevents false or incorrect readings, as the gauge only displays the coating thickness measurement if the signal strength indicator goes green.
• Incredibly easy to use, can be used in accordance with ASTM D6132, SSPC PA9 & ISO 2808 Method 10
• USB & Bluetooth® data output to PC and Android™ or iOS mobile devices
• Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.

Additional Information:

• Packaging Details: Elcometer 500 Coating Thickness Gauge Model B & T Elcometer 500 Coating Thickness Gauge, 4ml (0.14fl oz) Bottle of Probe Tip Oil, 120ml (4fl oz) Bottle of Ultrasonic Couplant, 2 x AA Batteries, Protective Case, Transit Case (Model T), Wrist Harness, 3 x Screen Protector, ElcoMaster¿¿ Software (Model T), USB Cable (Model T), Test Certificate Elcometer 500 Coatings on Concrete Inspection Kit Elcometer 500 Model T Coating Thickness Gauge, C1 & C2 coating thickness probes, C1 & C2 probe measurement foils: 1, 2, 3 & 8mm (40, 80, 120 & 310mils), Elcometer 456 Model B Ferrous Integral Gauge, Elcometer 456 calibration foils: 0.5 & 1.5mm (20 & 60mils), 2 x coating calibration moulds, 2 x Wrist Harness, 6 x Screen Protector, 120ml (4fl oz) bottle of ultrasonic couplant, 4ml (0.14fl oz) bottle of probe tip oil, transit case, ElcoMaster¿¿ software & USB cable

Type	Mechanical Coating Thickness Gauge
Display	Analog
Measuring Range	0 - 600 micron
Brand	Elcometer
Model Name/Number	Elcometer 101
Accuracy	+-10% of the reading or 2.5 micron
Minimum Measurement Area	38 x 15mm (1.5 x 0.6")
STANDARDS	AS 2331.1.3, ASTM B 499, ASTM G 12, BS 5411-11, ISO 2178, JIS K 56001-7, SSPC PA2
Operating Plane	90 degree to substrate
Minimum Measurement Diameter	25mm (1") (on bar material)
Calibration	with calibration foils supplied

The Elcometer 101 Coating Thickness Gauge is a mechanical coating thickness gauge for measuring nonferrous coatings or sheets applied to or laid on a ferrous magnetic base
The original non – destructive dry film thickness gauge, the Elcometer 101 Magnetic Coating Thickness Gauge was the world’s first portable coating thickness gauge with the original being produced in 1947.
Insensitive to hot and cold surfaces – ideal for hot sprayed metal coatingsIncorporates reading hold featureAccuracy of ±10%Ideal for hazardous areas
The Elcometer 101 Magnetic Coating Thickness Gauge can be used in accordance with:
AS 2331.1.3ASTM B 499ASTM G 12BS 5411-11ISO 2178SSPC PA2Standards not in bold have been superseded but are still recognised in some industries
Operation :Hold the Elcometer 101 Coating Thickness Gauge at right angles to the surface to be measured, place the two contacts on the surface and push down the small button to release the pointer.When the pointer comes to rest, it will indicate the thickness of the coating. Readings can be speeded up by using the push button as a brake by pumping it in and out until the pointer comes to rest.If the component has become magnetised take an average of two readings through 180° at the same point.
Calibration :
Take a foil equal in thickness to approximately mid scale reading and place this on an uncoated base ofsimilar material to that to be measured. With the large zero button adjust the scale to the thickness of thefoil. This is a more accurate method than setting the instrument to zero on an uncoated base.To obtain an accurate reading the meter should be read with the pointer in line with zero button. Formaximum accuracy keep the instrument clear of strong magnetic fields.

A well-integrated service support is provided from service centre with team of factory trained customer support group headed by a Service Manager, who double up for technical & application support to our customers.

Mechanical Coating Thickness Gauges are an ideal choice when coating thicknesses need to be measured where batteries cannot be used or are difficult to obtain. For example in remote locations, underwater, where dangerous gasses are present, you are looking for a basic coating thickness gauge to measure coatings on Ferrous Substrates (e.g. steel).These gauges all use the original method of measurement – the amount of force needed to remove a magnet from a Ferrous Substrate and are basic coating thickness gauges to measure coatings on steel

Type	Mechanical Coating Thickness Gauge
Display	Analog
Measuring Range	0 - 6000 micron
Brand	Elcometer
Model Name/Number	Elcometer 211 Banana Gauge
Length	200 x 60 x 30mm (7.8 x 2.4 x 1.2")
Accuracy	+-5% of the reading or +-2.5 micron 0.1mil
Display Type	Metric or Imperial
Substrate Thickness	0.4mm (16mils) minimum
STANDARDS:	AS 2331.1.3, AS 3894.3-A, ASTM G 12, ASTM B 499, AS/NZS 1580.108.1, BS 5411-11, BS 3900-C5-6A
Measurement Area	30mm (1.18") Diameter minimum
Edge Effects	Must be at least 6mm (0.24") from edge

We are engaged in providing the broad assortment of Coating Thickness Gauges.

This Coating Thickness Gauge commonly referred to as the "Banana Gauge," has proven to be a successful coating thickness gauge up to 6 mm
where the use of electronic instruments is difficult to measures non-magnetic coatings, including paint, hard chrome, electroplating, galvanising, powder coating, plastic, epoxy and rubber applied to a ferromagnetic base.

The banana gauge works on the principle of magnetic resistance, by means of a small magnet and a tensioned spring.
The amount of force needed to remove a magnet from a Ferrous Substrate and are basic “Coating Thickness Gauge” to measure coatings on steel. The "v" grooved base, rubber feet and clear scale with its ranges for thicker coatings, make this instrument one of the most popular mechanical gauges in the world.

This is one of the most popular mechanical gauges in the world.

• Factory calibrated - with user calibration adjustment

• Foils supplied to check calibration on site

• Ideal for cold surfaces and underwater use

• Small and portable with an accuracy ±5%

• The “V” grooved base, ideal for pipeline inspection

• Available in either Metric or Imperial versions, the Elcometer 211

measures coatings up to 6mm (250mils).

This Gauges does not required batteries to operate & It is Ideal for many critical area like underwater coatings inspection, Hazardous areas, Very cold surfaces, Inflammable atmospheres in oil and gas production

It is factory calibrated with user calibration adjustment & Also Calibration Foils supplied with Gauge to check calibration on site

A well-integrated service support is provided from service centre with team of factory trained customer support group headed by a Service Manager, who double up for technical & application support to our customers.

 Elcometer 211 Coating Thickness Gauge can be used in accordance with the following National and International Standards: AS 3894.3-A, AS 2331.1.3, AS/NZS 1580.108.1, ASTM B 499, ASTM G 12, ISO 2808-7A, supersedes BS 3900-C5-6A, BS 5411-11, DIN50981, ISO 2808-6A, ASTM G 12, ISO 2178 supersedes BS 5411-11, NF T30-124, SSPC-PA2.

Additional Information:

• Packaging Details: Elcometer 211, calibration foil set, carry pouch, neck harness and operating instructions

Model Name/Number	Elcometer 3230 Wet Film Wheels
Brand	Elcometer
Measuring Range	up to 1000 micron
Type	Wet Film Thickness
Display Type	Analog
Size	50 x 30mm (1.97 x 1.18")
Usage/Application	Suitable for flat and curved surfaces
Packaging	Wet Film Wheel, storage case and operating instructions

Wet film wheels are high precision, accurate and easy to use instruments consisting of a set of three wheels, with measurement ranges from 0-25μm to 0-3000μm.

Using a wet film wheel: roll the wheel through a wet coating, the centre wheel eventually touches the film. This point on the scale indicates the thickness. When the volume to solids ratio of the coating is known, generally found on a product data sheet, the wet film thickness can be used to predict the dry film thickness. Roll from maximum to minimum to avoid a false reading caused by surface tension.

WET FILM WHEELS

The Elcometer 3230 wet film wheel consists of a central eccentric wheel and two outer concentric wheels. The diameter of the outer wheels is greater than that of the central wheel. By rolling the gauge through a wet coating, the centre wheel eventually touches the film. This point on the scale indicates the thickness. Various wet film thickness ranges are available up to a maximum of 1000pm (40mils).

Elcometer 3230 Coil Coating Wet Film Wheels
Elcometer 3230 but the outer wheels are knurled to allow measurements to be taken on slippery coatings or on fast-moving substrates. Two separate wet film thickness ranges are available; 0 - 50pm (0 - 2mils) and 0 - 100pm (0 - 4mils).

Use	Curved surfaces and tight radii
Measurement Accuracy	+-0.25mils (+-5 micron) or +-5% of the coating thickness, whichever is greater
Resolution	0.04mils (1 micron)
Application	After spraying before the oven
Measurement Range	30 - 110 micron (1.18 - 4.4mils )

 Elcometer 550 Non-Contact Powder Thickness Gauge, this gauge includes a laser guide to help detect and keep consistent measuring distances. As a result, the number of readings and the speed at which they are completed are significantly increased.

By carefully controlling the thickness of powder applied to a product, you can minimize your powder usage and ensure the quality of your coating. As contact measurement solutions damage the finish and do not predict the cured coating thickness, measuring the powder thickness pre-cure requires a non-contact solution.

Using third generation proven airborne ultrasonic technology, the new Elcometer 550 accurately predicts cured coating thickness by non-contact measurement of coating powders.

• Accurately predicts the cured coating thickness within ± 5% of the reading or ±0.25mils (±5µm)
• Ergonomic gun designed for comfort when taking multiple readings
• Hand held sensor allows easy positioning of the gun for fast measurement
• Large illuminated colour display with positioning graph to guide orientation of sensor probe
• Tough aluminium case, ideal for testing in an industrial environment

Easy to Use

• Easy to read, large colour display
• Adjustable screen brightness for all test conditions
• Ergonomic probe - ideal for continuous testing
• Can be used straight out of the box with minimal set up time
• On-screen guidance graph and handle LEDs help you orientate the probe sensor for fast, accurate measurements.

Reliable

• Fast, accurate and repeatable results
• Can be used in accordance with ASTM D7378-Procedure C
• Proven, 3rd Generation, airborne ultrasonic technology
• User-programmable setup to account for varying powder shrinkage rates

Enhanced Technology

• Measure thicknesses from 1.18 - 4.4mils (30 - 110µm)
• 0.04 sq in (1mm²) measurement area - ideal for flat, curved and small surfaces
• Test coatings on a wide range of substrates, including metal, wood, MDF, plastic and pre-coated surfaces

Elcometer 550 Stabalizer Bar

Additional Information:

• Packaging Details: Elcometer 550 Gauge with rechargeable battery universal charger unit and cable sensor gun and lead shoulder harness reference block USB-PC transfer cable carry case test certificate operating instructions

Brand	Elcometer 121/4 Standard & Top Paint Inspection Gauges (P.I.G.)
Measuring Range	2 - 2000 micron (0.08 - 80mils)
Dimensions	110 x 75 x 30 mm (4.3 x 3 x 1.2")
Tungsten Carbide Cutter No 6	Angle 5.7 degree / 2 - 200 micron (0.1 - 8mils)
Tungsten Carbide Cutter No 4	Angle 26.6 degree / 10 - 1000 micron (0.5 - 35mils)
Weight	369g (13oz)
Tungsten Carbide Cutter No 1	Angle 45 degree / 20 - 2000 micron (1 - 80mils)

We are engaged in providing the broad assortment of Paint Inspection Gauge ( P.I.G.) Destructive coating thickness gauge used to measure multi-layer coatings.

It is also known as 'Tooke gauge'.

A Tooke gauge is a destructive testing tool used to determine the overall thickness, or the individual layer thickness, of a dry paint or coating in accordance with ASTM D4138. The gauge works by making a small incision (about the width of a pencil) through the coating down to the substrate level. The triangular V-shaped groove is then observed through a microscope on the gauge where an adjustable scale is used to measure the thicknesses of the coating layers. Coating an object to the proper dry film thickness reduces the likelihood of corrosion.
Although coating thicknesses are typically measured using non-destructive tools, these devices have their limitations. For instance, due to their method of operation, non-destructive tools can only measure coating thicknesses on non-metallic substrates. Furthermore, non-destructive methods cannot distinguish between different coating layers (e.g., top coat, intermediate layer, primer, etc.). A Tooke gauge must be used when the thickness of individual layers needs to be determined, such as for a failure analysis.

Perform hardness and cross-hatch adhesion tests with a single gauge – top unit only Elcometer 121/4 Standard & Top Paint Thickness Gauges can be used on single or multiple coats on virtually all substrates, including wood, plastics, metals, etc.

The Elcometer 121/4 Coating Inspection Gauges are hand-held that offers a quick, versatile method of coating examination and measurement in a portable, easy-to-use format.

The Paint Inspection Gauge is available in two versions, Standard and Top: • Standard gauges can be used for microscopic coating examination and destructive measurement of coating thickness. • Top gauges have the same functionality as standard gauges and can also be used for cross-hatch adhesion testing using optional tools.

Both P.I.G. models are supplied with illuminated integrated graticule microscopes.

The Paint Inspection Gauge Top model has an internal carousel allowing each of the three cutters to be selected easily together with a cross hatch adhesion tester.

• MEASURING FILM THICKNESS
• MEASURING MULTI-LAYER COATINGS
• POOR ADHESION (GIVES THE ILLUSION OF TOO LITTLE FILM THICKNESS)
• NO SEPARATION
• [TOP] MEASURING CROSS-CUT ADHESION

• Compact and convenient, ideal for paint thickness measurement in confined areas
• Made of anodised aluminium for durability
• Bright LED light source for clear vision
• Top Model can hold one cross hatch cutter & three standard cutters which are locked tight, a simple rotation of the cutter holder changes the cutting tool.

• Lightweight and durable – anodised aluminium construction.
• [STANDARD] The gauge holds a single cutting tool with built-in storage for 3 cutting tools.
• [TOP] Cutting tools are mounted on a rotary tool holder within the body of the gauge, allowing rapid change from one test to the next.
• [TOP] The tool holder accommodates three cutting tools plus an optional cross-hatch cutting tool.
• Built-in 50x microscope with rotatable graticule scale.
• Bright white LED light – ensures clear vision through the microscope.
• Small size – facilitates use of the gauge in confined areas.

Range : 2 - 2,000μm (0.08 - 80mils) Accuracy is dependent on tool cut angle, half a division

AS 1580.108.2, AS 1580.408.4, AS 3894.9, ASTM D 3359-B, ASTM D 4138-A, BS 3900-C5-5B, BS 3900-E6, DIN 50986, ECCA T6, EN 13523-6, ISO 2808-5B, ISO 16276-2, ISO 2409, ISO 2808-6B, JIS K 5600-1-7, NF T30-038, NF T30-123

Additional Information:

• Packaging Details: Elcometer 121/4, cutters 1, 4 and 6, x50 microscope, 4 x AG3 batteries for lamp (fitted), hexagonal wrench, black marker pen, wrist strap, carry case and operating instructions

Service Location	Vadodara
Coating type	Tests ultra-thin coatings
Fixture	Tests with fixture
Measurements	Continuous measurement support
Measuring principle	Magnetic Induction
Sample Size	Tests small size material
Sample shape	Tests special-shaped material

Plating thickness gauge with separate probe snd instrument help to measure various type of plating thickness applications. Plating thickness gauge is specially used to detect copper, zinc, tin, chromium and non-magnetic coatings on iron and other ferromagnetic metal substrates.

The plating thickness gauge has ultra-high measurement accuracy and repeatability. It can be used to measure the thickness of ultra-thin coatings below 10μm. Plating thickness gauge is widely used in metal processing industry, hardware and other industries and is particularly suitable for testing small-sized materials with a minimum measurement area diameter of only 7 mm.

Features

Ultra-small objects can be measured easily
LS225+F500 plating thickness gauge use F500 ultra-small probe, which is especially suitable for measuring coatings on small workpieces such as screws and bolts.



Advanced technology ensures measurement accuracy and the ability to measure ultra thin coatings
The probe adopts digital oscillation technology and high-speed ADC acquisition to ensure the high stability of the plating thickness gauge It can measure ultra-thin coatings.


Conforms to national and international standards

LS225+F500 coating thickness gauge can continuously takes measurements which is ideal for analyzing large areas and gets one measurement result in 0.4 seconds.


Multiple Calibration adjustment options including 1-5 points

Plating Thickness Gauge supports zero adjustment and multi-point calibration (up to 5 points). It is equipped with 7 pieces of standard films of different thicknesses. The curve can be modified according to the standard film or the actual workpiece to make the measurement data more accurate
Powerful data statistics function
With data statistics function, it can store up to 9 measurement values. The plating thickness gauge can automatically calculate the maximum, minimum, average and standard deviation of the measured data.

Hard probe

The hard probe ensures long-term effective use of the instrument.


Fixture optional, Measurement stable
Dedicated stable fixtures are provided for users to purchase, which can make the measurement more convenient and eliminate the measurement errors caused by human factors

Material Grade	Plastic
Material	Plastic
Usage/Application	Calibration
Value	Metric and Imperial
Accuracy	+-1% accuracy
Certificate	Optional Calibration Certificate available
Range	thicknesses from 12.5 micron to 20mm
Traceability	unique serial number for traceability
Size 1	50 x 25mm (1.97 x 0.98")
Size 2	75 x 50mm (2.95 x 1.97")

Calibration foils or shims are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. Shims provide the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.

Other Details:

Usage/Application	Monitor the floor thickness in real time
Weight	Instrument 620 GM, Sensors 670 gm
Display Type	The instrument features a 5.0-inch full-color touch screen with a resolution of 854x480
Type	NDT Method
Measurement range	20-900mm
Maximum permissible error	20-350mm+-1mm, 350-600mm+-2mm, 601-900mm+-3mm
Other Testing	Assess the hardness of other materials such as rock and masonry.
Data storage capacity	The instrument can store data for 5000 components locally
Battery	The instrument features built-in large-capacity lithium-ion batteries

Concrete Thickness Tetser are portable instruments that use electromagnetic non-destructive testing technology to measure the thickness of concrete and other non-ferromagnetic media.
They have the advantages of simple operation, wide measuring range, small measuring error, etc. The most outstanding function of the instruments is that the host can automatically find the position of the transmitting probe within the effective range of signal reception and lock the center, which greatly saves the measurement time.


Applications of Floorslab Testers :
Using a floorslab thickness tester can quickly and accurately measure the actual thickness of the floor to ensure that the construction quality meets the design requirements.
During the construction process, the floor thickness detector can monitor the floor thickness in real time to ensure that the construction is carried out in accordance with the design specifications.
Concrete Thickness Tester can help assess the current condition of the floor slab, determining whether there is insufficient thickness or structural weakness due to aging.
Specification :
Measurement range : 20-900mm
Maximum permissible error : 20-350mm ± 1mm                                          350-600mm ± 2mm                                          601-900mm ± 3mm
Data storage capacity : The instrument can store data for 5,000 components locally
LCD : The instrument features a 5.0-inch full-color touch screen with a resolution of 854*480
Battery : The instrument features built-in large-capacity lithium-ion batteries
Size : [Host] Size: 200*125*50mm         [Transmitting probe] Size: ф90*87(mm)         [Receiving probe] Size: ф110*110mm
Weight : [Host] Weight: 620g             [Transmitting probe] Weight: 270g             [Receiving probe] Weight: 400g

Model Name/Number	Elcometer 3233 Pfund Thickness Gauge
Brand	Elcometer
Type	Pfund Thickness Gauge
Weight	195g (6.88oz)
Type 1	Aluminium
TYpe 2	Stainless steel
Dimensions	60 x 80mm (2.36 x 3.15")
Standarad	ASTM D 1212-B, NF T30-125

The Elcometer 3233 Pfund Thickness Gauge is a simple but effective gauge which is used to determine the wet film thickness of paints and similar products The gauge is ideal for measurement of translucent products (varnish, oil, etc.)
The gauge consists of two concentric cylinders, one sliding inside the other. A spherical glass lens is fitted to the bottom of the inner cylinder.When the gauge is pressed down onto the surface being tested the lens becomes immersed in the wet film. The thicker the film, the greater the diameter of the paint spot left on the lens.
For ease of use, the gauge includes a stainless steel rule for measuring the diameter of the paint spot. A conversion table in these instructions allows the diameter to be converted into film thickness.

Additional Information:

• Packaging Details: Pfund Thickness Gauge, stainless steel rule, conversion table, storage case and operating instructions
