Audvio Technologies OPC Pvt Ltd

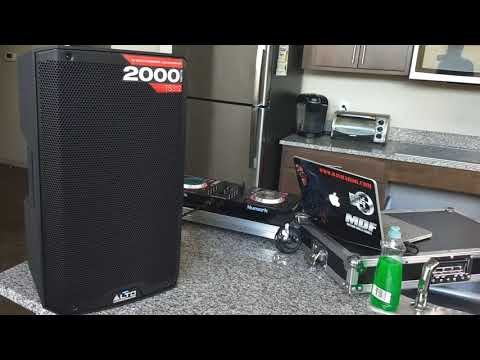

• 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
• 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
• 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
• High quality, lightweight, cabinet design for easy transport, set up and installation
• Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points
• Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
• Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
• LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
• HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
• Crossover: 2 kHz
• Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m)
• Frequency Response: 53 Hz – 20 kHz (+/- 3 dB)
• Frequency Range: 46 Hz – 22 kHz (-10 dB)
• Horn Coverage: 90° H x 60° V nominal
• Equalization: Contour Switch Low and High Frequency +3dB Boost
• Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
• Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
• Indicators: 2 x Power LED (front and rear), Clip limiter LED
• Protection: Electronic clip, Thermal and transducer overdrive protection
• Power Connection: IEC with Mains Fuse
• AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
• Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
• Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
• Dimensions: (H x W x D): 23.8” x 13.9” x 13.8” / 605mm x 354mm x 350mm
• Net Weight: 35.9 lbs. / 16.3 kg.

Additional Information:

• Delivery Time: 1 WEEK

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
• A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge perforated, steel grille protects components from damage.

Additional Information:

• Item Code: JRX225
• Production Capacity: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition¿¿¿ Waveguide
• Delivery Time: buy depends
• Packaging Details: https://audviotechnologies.com/ Audvio Technologies (OPC) Private Limited image1 No.4, 1st Floor, Vivekananda Nagar Main road, Mariamman Nagar, Kolathur, Chennai : 600 099. Tamilnadu, India. Phone :+91 9884280422 Email: Sales@audviotechnologies.com Email: gokulakumar@audviotechnologies.com Website: www.audviotechnologies.com

Black

250

60Hz – 20 kHz

< 0.2% -1 W

60dB, +4dBu

12 VDC/1A

2.5"

REED LIGNIN

4 Ohms

5"

Cane Lignin

31.5 x 13.8 x 9 in

Extended 30ft – 50ft
