Automat Irrigation Private Limited

Features

• Corrosion-free 5 years’ warranty: Cutting-edge advanced polymer technology which makes it corrosion free.
• Exceptional strength: Reinforced glass fibre, which gives extra strength, durability & provides the best resistance to impact, corrosion & chemicals. Underdrain flutes made with PPGF (Poly Propylene Glass Filled) for extended life.
• Best in class features with leading-edge performance: Advanced design of under drain system to get maximum performance, comes with high-quality ‘Automat’ ball valves & butterfly valves for ease of operation.
• Anti-clogging: New advanced design of flutes which prevents clogging & reduces the pressure drop in the filter.
• Lightweight & durable: 55% less weight as compared to metal filters with equivalent strength & capacity per volume.
• All-weather compatible: The filter works efficiently even in high humidity areas.
• Trouble-free maintenance: Large service ports for easy maintenance.
• Automation: MachClean Sand Media Filter media filters can operate in either manual or automatic modes.

Applications

• Primary filtration to protect drip & micro-irrigation systems and prevent emitters from plugging.
• For filtering surface water from open sources like - an open well, pond, river, or lake, which often contains organic biological contaminants, silt & clay.
• Suitable to use with fertilizers and acids.

The high-quality filter can be operated in manual mode as well as in automatic mode with the power of working efficiently even in high humidity areas and providing end-user with ease in installing, operating and maintenance of the filter.

Features

• Corrosion-free 5 years’ warranty: Cutting-edge advanced polymer technology which make it corrosion free.
• Exceptional strength: Reinforced glass fibre, which gives extra strength, durability & provides the best resistance to impact, corrosion & chemicals. underdrain flutes made with poly propylene glass filled for extended life.
• Best in class features with leading-edge performance: Advanced design of under drain system to get optimum performance, comes with high-quality 'Automat' ball valve & butterfly valves for ease of operation.
• Anti-clogging: New advanced design of flutes which minimize clogging & reduces the pressure drop in the filter.
• Lightweight & durable: 45% less weight as compared to metal filters with equivalent strength & capacity per volume.
• All-weather compatible: The filter works efficiently even in high humidity areas.
• Trouble-free maintenance: Large service ports for easy maintenance.
• Automation: MachClean media filters can operate in either manual or automatic modes.

Suitable for use as a primary filtration device in small farm holdings. Made from special, chemically bonded polymer for durability. Easy to install and low maintenance.

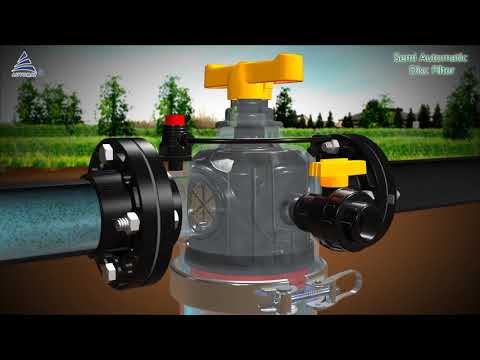

Features

• Filter designed for Pressure rating PN8 (8bar).
• 2 male threaded pressure port at the top for easy visibility of pressure.
• Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
• Filter with Clogging indicator, Red pop up comes out at x 0.6 kg/cm² pressure differential, indicated end user to clean filter manually.
• During cleaning operation, all inlet water passes through the pipe, and water jets removes dirt from the discs.
• Barrel with 1½" Drain port.
• Handle for 90-degree rotation for cleaning of disc without dismantling of filter.
• Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
• Grooved disc design with dimensional consistency proven with more than 95% filter efficiency.

ure uninterrupted irrigation with the most efficient cleaning solution from the Automat "Turbo Series". With dedicated Automat controller, the self-cleaning filter delivers perfect cleaning even in low-pressure applications.

Features

1. Automatic flushing triggered by pressure differential, time or manual flushing feature.

2. Equipped with highly sensitive Pressure Differential Switch.

3. Low Pressure drop.

4. Multiple screen areas available to address water quality issues.

5. Slow and controlled spiral movement of the suction scanner provides excellent cleaning and reduce the wear and tear.

6. Continuous uninterrupted irrigation during the flushing process.

7. Can be operated on electric or solar power.

8. Minimal water wasted during flushing process.

Applications

1. Drip and micro irrigation systems.

2. Turf irrigation.

3. Industrial wastewater.

Suitable for use as a primary filtration device in small farm holdings. Made from special, chemically bonded polymer for durability. Easy to install and low

Features

1. Body made of special chemically bonded polymer for durability.

2. Non Corrosive SS-316 Stainless Steel Filter Mesh.

3. A secondary filter (75-100 Microns) is required to operate the product.

4. Available in 2½” BSP/NPT male thread connection: HT-125T-SA. 2” BSP/NPT male thread connection: HT-124T-SA. 3” BSP/NPT male thread connection: HT-126T-SA.

5. Easy to install & Low Maintenance.

Automat's unique double filtration unit offers a large filtration area that reduces cleaning frequency. It features tool-free cartridge cleaning and durable, UV-stabilized materials for long-lasting performance.

Features

• Extra-large Filtration area reduces frequency of cleaning & all increased flow.
• Available in multiple filtration & flow with Disc & Screen options in all the models.
• Disc Cartridge: Hydraulic clamping is used to insure the quality of filtration.
• No tools required to open and close the filter for cartridge cleaning.
• Made from high quality UV Stabilized engineering plastic having good mechanical strength, durability and excellent corrosion resistance.
• Tested according to ISO standard to ensure many years of operations.

Made from reinforced engineering plastic for durability and hydro dynamically designed to create maximum centrifugal action – the sand and dirt collected can be easily flushed out through drain port.

FEATURES

1. Dirt can be easily flushed out through drain port.

2. Collector chamber can be easily cleaned by opening collector cover.

3. Hybrid Nylon Clamp with SS Lock used to open/close collector cover from collector chamber.

4. Easy to install and low maintenance.

5. Stand for Height Increase.

6. Specially designed High Wear Resistant Special Plastic inserted in the bottom of cone to avoid wear due to strong sand vortex.

• Disc Filter designed for outside to inside flow.
• AUXILLARY CONNECTIONS - Two pressure gauge ports with ¼” male threaded connections.
• Filter body and cap connected by the threaded connection to sustain high pressure and easy opening and closing.
• Spring loaded disc cartridge for uniform compression of discs.
• UV protected, chemical and high pressure resistant reinforced plastic material used.

Specifications:

• Robust design.
• Disc housing fan generates the hydro-cyclonic effect that reduces cleaning frequency.
• Grooved disc design provides high filtration efficiency.
• Uniform distribution of flow into filter housing optimizes filtration process.
• 3/4” drain ball valve & end plugs supplied along with the filter.

Specifications:

The AquaDisc Fully Automatic Disc Filter is a compact, efficient, and cost­ effective solution designed to protect irrigation systems from impurities and prevent emitter clogging. With automated cleaning and minimal water usage during back flushing, this advanced filter system saves time and energy. The integrated "FILTER SMART' controller ensures optimal operation, enhancing system performance and reducing maintenance efforts.

• Available in 2", 3", 4" & 6" sizes
• Agriculture: Ideal for surface water containing algae and organic matter from reservoirs, rivers, and waste treatment plants.
• Landscaping & Turf Irrigation: Perfect for institutional parks, residential complexes, sports fields, and golf courses, ensuring uninterrupted water flow and system efficiency
