Automat Irrigation Private Limited

Quick coupling valves allow hoses to be quickly connected to an underground irrigation supply pipe. They are normally located under a valve box and are used for hand watering points or for connection of temporary irrigation sprinklers. Often used in garden centres, the connection points can be used to connect bench sprinklers or for hand

Features

• One-piece solid brass construction for durability.
• Stainless steel spring.
• Brass Valve
• Drain hole in body to minimize debris collection
• Specially designed grommet.
• Auto close lid when not in use.
• Cover made of Thermo Plastic Elastomete.
• Maximum working pressure – 10 Bar.

Our extremely durable, hard-working Ball Valve offering is a critical component in completing assembly of pipe systems engineered and designed to last over ten years plus in harsh conditions

Features

1. Quarter turn handle operated ball valve.

2. End connections: Threaded/Solvent Socket

3. Max. Pressure:
   - 1" , 1-1/2" & 2" : 16 Bar/ 230Psi

   - 2-1/2" & 3" : 10 bar/ 145Psi

4. True union design for easier installation or repair, without expanding the pipe system.

5. User friendly design allows smooth operation of handle.

6. Union nut load does not transfer onto ball.

7. Free from vibration or chattering during opening and closing of valve.

8. In build Spanner wrench on Handle for valve dissemble /assemble.

9. TPE Seals with 0-ring gives cushioning effect that ensures leakage free and low fixed torque.

10. Chemical/Corrosion resistant, Colour UV stabilized.

Quick coupling valves allow hoses to be quickly connected to an underground irrigation supply pipe. They are normally located under a valve box and are used for hand watering points or for connection of temporary irrigation sprinklers. Often used in garden centres, the connection points can be used to connect bench sprinklers or for hand watering.

Features

1. One-piece solid brass construction for durability

2. Stainless steel spring

3. Brass Valve

4. Drain hole in body to minimize debris collection.

5. Specially designed grommet

6. Auto close lid when not in use

7. Cover made of Thermo Plastic Elastomete

8. Maximum working pressure – 10 Bar.

Suitable for high-flow applications – installed in lines where conventional ball and other irrigation valves are difficult to install and operate. With medium.

Features

• Sturdy and solid design
• Multi turn liner motion throttling valve
• Construction made of Engineering Plastic for strength & durability
• Easy to open and clean after period operation when used in underground valve box
• Smooth movement using throttling wheel, makes the user operate the valve easily.
• No leakage within operating pressure range, when valve completely shut off.
• Can be installed in horizontal and vertical lines
• Does not cause water hammering when operated.
• Chemical / Corrosion Resistant & UV protected.

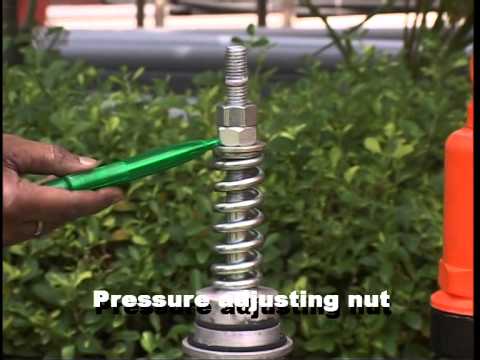

Features

1. Quick response to relief system surge pressure.

2. High strength aluminium casting construction.

3. Long term setting stability.

4. User Friendly design

5. Easy Pressure setting

6. Pressure port available for pressure adjustment.

Applications

1. Pressure Relief valves are suitable for aluminium and high pressure plastic piping used in irrigation systems.

2. Pressure Relief valves are reliably protect piping system for damage caused by surge water pressure.

Our extremely durable, hard-working Ball Valve offering is a critical component in completing assembly of pipe systems engineered and designed to last over ten years plus in harsh conditions.

Features

• Quarter turn hand operated ON/OFF ball valve.
• End connections: Threaded/Plain Socket
• Max. Operating Pressure: 10 Bar
• User friendly design allows smooth operation of handle
• Handle with ribs for good gripping in operation
• Union nut load does not transfer on to ball.
• TPE effect that ensures leakage free and low fixed torque
• Chemical/Corrosion resistant, Color UV stabilized.

Safety valves help in avoiding possible damages to pipes and accessories. When the pipe is being filled, the air release valve remains open expelling all the surplus air outside the installation and when the pipe is full of water, air release valve closes tightly.

Features

• Simple Design Ensures trouble- free Performance.
• Cast Aluminium Body Combines the Dual advantage of being Lightweight as well as Provides Corrosion resistance.
• Synthetic Rubber Seal Assures Positive Rubber Seal Even with Low Head Application.

Metal Continuous Acting Air release & vacuum relief Valve are specially manufactured out of durable & weather resistant.

Features

1. Lightweight Aluminium body.

2. Large Volume air release when line is filled.

3. Continuously release air pockets while line is in operation.

4. Connection Size: 2" Female threaded BSP/NPT Positive vacuum relief when line is draining.

5. Do not leak at low pressure.

Hydraulically operated valve for green house irrigation system as well as turf and field crop irrigation.

Features

• Simple and robust design, only 4 parts involved.
• Brass Body and cover plate for durability and corrosion resistant.
• Metal reinforced rubber valve lid designed for smooth operation without deformation at high pressure with drop tight shutoff
• Very less down time.
• Minimum Head loss due to very efficient internal design
• Arrow for correct installation of hydraulic valve.
• Compatible with most irrigation controllers available in market

Our extremely durable, hard-working Ball Valve offering is a critical component in completing assembly of pipe systems engineered and designed to last over ten years plus in harsh conditions

Features

• Quarter turn handle operated ball valve.
• End connections: Threaded/Solvent Socket
• Max. Pressure:- 1" , 1-1/2" & 2" : 16 Bar/ 230Psi - 2-1/2" & 3" : 10 bar/ 145Psi
• True union design for easier installation or repair, without expanding the pipe system.
• User friendly design allows smooth operation of handle.
• Union nut load does not transfer onto ball.
• Free from vibration or chattering during opening and closing of valve.
• In build Spanner wrench on Handle for valve dissemble /assemble.
• TPE Seals with 0-ring gives cushioning effect that ensures leakage free and low fixed torque.
• Chemical/Corrosion resistant, Colour UV stabilized.

Features

1. Large orifice allows fast intake of air.

2. Pressure balanced float.

3. Designed for smooth and reliable operation for longer period. • Superior plastic material resistant to Chemical and fertilizer.

4. Less parts involve for lower maintenance.

Applications

1. Anti-Siphon Vacuum Breaker designed for irrigation system.

2. For vacuum break in head unit, dripline, protect pipe system from excessive vacuum and collapse, fast drain of filters & avoid suction dust into the emitters.

3. Prevents pipe Collapse during transient pressure drop.

Designed for three hydraulic flow control positions with common port at base of the valve body. Three hydraulic positions – open, close & automatic and user friendly design allows smooth operation of handle with position indicator.

Features

1. Designed for three hydraulic flow control positions.

2. Common Port at base of the valve body.

3. Base Port Thread: Male threaded ¼” ‐ 19BSP or ¼” ‐ 18 NPT, 1/8 ” ‐ 28 BSP or 1/8 ” ‐ 27 NPT

4. Three Ports Thread: Female threaded 1/8 ” ‐ 28 BSPT or 1/8 ” ‐ 27 NPT

5. Passage Size: 3.5 mm (9/64 ”)

6. Max. Pressure: 10 Kg/cm2 (145Psi).

7. One moving part only.

8. Three hydraulic control positions: Open, Close & Automatic.

9. All valves are sealed when handle position in between port position.

10. User friendly design allows smooth operation of handle with position indicator.

11. All Plastic parts are Chemical/Corrosion resistant, Colour UV stabilized.

Our extremely durable, hard-working Ball Valve offering is a critical component in completing assembly of pipe systems engineered and designed to last over ten years plus in harsh conditions.

Features

1. Regular handle for use in complete header assembly unit.

2. Pressure Rating :
   -PN- 16 for upto 2” Ball valves

   PN- 10 for 21/2", 3” & 4”

3. Specially designed long handle for ease of operation once installed in system

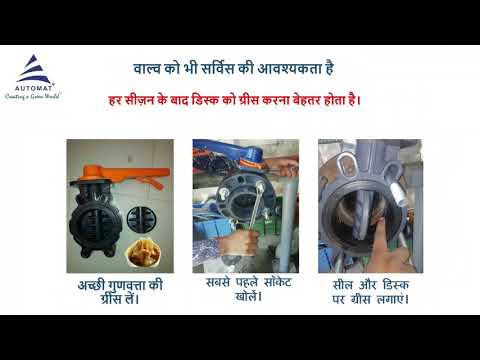

One-piece body made of U-PVC, disc design ensures low torque and low pressure loss. Butterfly valve suited for water application in irrigation and also suitable.

Features

1. Light Weight, easy to install.

1. One Piece Body made of PVC-U.

1. Disc designed ensuring low torque and low pressure loss.

1. Suitable for piping in a limited space.

Features

•  Expulsion (Kinetic Air): When the pipe is being filled, the air release valve remains open expelling all the surplus air outside the installation. When the. Pipe is full of water; air release valve closes tightly.
• Air Admission (Air Intake): While negative pressure (pipe vacuum) the air. Release valve opens to allow the air to go inside the pipe. This system avoids possible damages in pipes and accessories.
• Expulsion of the residual air (Automatic Air): The air release valve constantly releases the residual air generated in the installation (due to water level changes in reservoir during fertigation / leakages in suction pipe, fittings), expelling air even when the system is under pressurized condition.

Durable, Weather Resistant and Non corrosive Made of reinforced Polypropylene.

Features

1. Engineering Plastic for durability.

2. Large Volume air release as line is filled.

3. Positive vacuum relief when line is draining.

4. Do not leak at low pressure.

5. Venting passage protect by Screen.

Features and Benefits

1. Double chamber robust construction ensures Io pressure actuation & protection of diaphragm.

2. Superb Hydraulic design requires low actuation pressure & Dynamic seal design prevents seal against friction & erosion.

3. Made up of UV stabilized Engineering grade plastics makes it light weight, corrosion & chemical resistant & durable in outdoor applications.

Features

1. Used for Automatic Backwash of Filters Batteries of Sand Filters, Disc Filters, Screen Filters.

2. Single Filter Autonomic Backwash System.

Multi-turn, linear motion throttle valve. Straight through flow with minimal head loss, its slow operation prevents water hammer. Float, body inside profile.

Features

1. Multi turn Linear motion throttle valve.

2. End connections: Female Threaded type

3. Max. Pressure: 6 Bar/85Psi.

4. Straight through flow with minimal pressure loss.

5. Its slow operation prevents water hammer.

6. Visual float position indicator to show us % throttle of piping system.

7. Steel Rod inserted in full length during injection moldings of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.

8. Float Body profile is matched by CNC machines for smooth operation and keeping the leakage under permissible limit during complete shut off.

9. Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.

10. During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap..

11. Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%).

12. Chemical / Corrosion resistant, Color UV stabilized.

Easily divert flow of water through pipelines with the 3-way Ball Valve (Line Changer). Suitable for piping systems that require partial or full diversion of water from one pipe or two different pipes.

Features and Benefits

• Efficient diversion & flow control: East to divert flow in "L" direction from one sprinkler irrigation piping system to another. Option of partial diversion varying from 25% to 75% for better flow control.
• Corrosion-proof & long-lasting: The aluminium body enhances the valve's longevity compared to the existing 'Steel' made valves available in the market.
• Effortless operation: Long handle for effortless opening and closing of valve during flow diversion.
• Proficient engineered design: The internal construction of the valve allows minimum obstruction hence minimum pressure loss and high flow rate.
• Locking option: Handle locking feature which prevents handle movement when the system is running.
• Superior quality parts: High quality ball & seal for long life.
• Light in weight & durable: Made of aluminium which gives it adequate strength, & makes it lightweight.
• Stress-free maintenance: Easy to dismantle and remove from piping system for maintenance.

Applications

• Sprinkler irrigation
• Drip irrigation
• Flood irrigation
• Any water piping system

Suitable for installation between flanges, the wafer swing check valves have compact dimensions. The wafer swing check valves are easy to install because the valve opens in case of any minimum pressure increase and closes at any minimum pressure decrease. As wafer body slips between the standard flanges, flange gaskets are not required.

Features

1. High performance and cost Effective design

2. Requires little space in the piping system

3. U-PVC Material gives excellent chemical and corrosion resistant.

4. Prevents leakage from flap seal at lower pressure.

5. Easy installation: Wafer body slips between the standard flanges.

6. No flange gaskets required.

7. Arrow for correct installation Check valve.

8. Light weight.

Allows the flow of water in one direction to avoid the reverse flow during the closure of pump.

Features

1. High performance and Cost Effective design.

2. Delivers High Volume of water quickly with unrestricted full flow.

3. Spring Loaded Guided Ball for smooth & quick operation.

4. Polypropylene Material gives excellent chemical and corrosion resistant

5. Prevents leakage from Ball seal at lower pressure.

6. Stainless steel bolt, nut & washer for long life.

7. Two pressure Ports.

8. Inlet Pressure port works as indicator for priming of pump

9. Arrow for correct installation of Check valve.

10. Light weight.

Technical Specifications

1. Two parts design

2. Material: Acetal (POM)/PP

3. Pressure Rating: 4bar

4. UV Resistant

5. Smooth Knob movement

6. Barb designed for easy lateral pipe gripping without leakage at pressure.

Designed for three hydraulic flow control positions with common port at base of the valve body. Three hydraulic positions – open, close & automatic and user friendly design allows smooth operation of handle with position indicator.

Features

• Designed for three hydraulic flow control positions.
• Common Port at base of the valve body.
• Base Port Thread: Male threaded ¼” ‐ 19BSP or ¼” ‐ 18 NPT, 1/8 ” ‐ 28 BSP or 1/8 ” ‐ 27 NPT
• Three Ports Thread: Female threaded 1/8 ” ‐ 28 BSPT or 1/8 ” ‐ 27 NPT
• Passage Size: 3.2 mm (1/8 ”)
• Max. Pressure: 16 Kg/cm2 (230Psi).
• One moving part only.
• Three hydraulic control positions: Open, Close & Automatic.
• All valves are sealed when handle position in between port position.
• High quality Teflon seals and Nickel plated brass ball resistant to all kind of irrigation water.
• Plastic parts are Chemical/Corrosion resistant, Colour UV stabilized.

Features

• Compact Design Specially designed for ease
• of operation.
• Made from high quality UV Stabilized, chemical resistant engineering plastic.
• Rubber seals & o rings are resistant to chemicals & fertilizers
• used in irrigation, ensures leak-proof operation for longer period.
• Pressure rating PN-10
• Available in ¾’’ BSP threaded connection.
• Most convenient to use for filter flushing.
• Easy for Maintenance.

Application

• For flushing of manual irrigation filters.

Features

1. Delivers: Lower opening pressure, High flow capacity, Minimum pressure loss, No vibration and distortion and Rapid response.

2. Innovative water passage offers one of the highest flow coefficient amongst the similar products available.

3. Polymeric valve with great durability and corrosion resistance.

4. Reinforced diaphragm offers smooth operation, tight shut-off and no distortion.

5. Simple and robust design involving 4 main parts.

Applications:

1. Agricultural and landscape irrigation.

2. Green house and Turf irrigation.

3. Waterworks treatment plants and distribution systems.

4. Industrial application (mining, wastewater, marine).

Features

Quick response to relief system surge pressure.

• High strength aluminium casting construction.

• Long term setting stability.

• User Friendly design

• Easy Pressure setting

• Pressure port available for pressure adjustment.

Applications

• Pressure Relief valves are suitable for aluminium and high pressure

• plastic piping’s used in irrigation systems. Pressure Relief valves are reliably protect piping system for damage caused by surge water pressure.
