Batra Trading Company

Additional Information:

• Item Code: 9027123
• Production Capacity: 100
• Delivery Time: 1
• Packaging Details: BOX

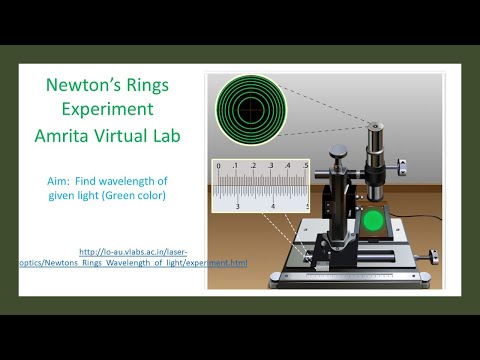

After experimental arrangement, the glass plate is inclined at an angle 45° to the horizontal.This glass plate reflects light from the source vertically downloads and falls normally on the convex lens. Newton's rings are seen using a long focus microscope, focussed on the air fil. The cross-wire of the microscope is made tangential to the 20^th ring on the left side of the centre. The readings of the main scale and vernier scale of the microscope are noted. The cross wire is adjusted to be tangential to the 18^th,16^th, 14^th etc on the left and 2nd, 4th, 6th etc on the right and readings are taken each time. From this the diameter of the ring is found out which is the difference between the readings on the left and right sides. The square of the diameter and hence Dn² and D²n m are found out. Then wavelength is calulated using equatio.
Components:

Light source, Filter, Microscope, Lens, Medium and Glass plate.

1. Choose Medium Combo box helps you to choose the type of medium that the simulation have to perform.
2. Radius Slider helps to change the radius of curvature of lens.
3. The wavelength slider helps to change the wavelength of light used.

1. The start button will help to play the simulation.
2. The variation in the rings can be seen when the medium,wavelength of light or the radius of the lens changes.

1. Click on the "light on" button.
2. Select the lens of desirable radius.
3. Adjust the microscope position to view the Newton rings.
4. Focus the microscope to view the rings clearly.
5. Fix the cross-wire on 20^th ring either from right or left of the centre dark ring and take the readings .
6. Move the crosswire and take the reading of 18^th,16^th...........2^nd ring.
7. You have to take the reading of rings on either side of the centre dark ring.
8. Enter the readings in the tabular column.
9. Calculate the wavelength of the source by using the given formula.

To find Least Count

One main scale division = ............... cm

Number of divisions on Vernier = ...............

L.C = One main scale division/ Number of division on vernier=.......................

Calculation:

Mean value of D²_{m p} - D²_m =.......cm²
Wavelength of light = (D²_{m p} - D²_m)/4pR

=.............................nm

Wavelength of light from the given source is found to be = ..........nm

Additional Information:

• Item Code: SOX35WATT
• Production Capacity: 1000
• Delivery Time: 1 DAY
• Packaging Details: BOX

In this experiment, the user will prepare a sugar solution of known concentration (c), but unknown identity. The user will obtain the observed rotation (α_obs) from the experiment using the polarimeter and use that information to calculate the specific rotation [α] of the given sample using the above formula. The identity of the sample can thus be found out from the given list of specific rotations for different chemicals.

The procedure to perform this experiment is self-explanatory and leads the user in a step-by step manner to accomplish the task. The protocol briefly involves the following steps:
