Air Classifying Mills
| Capacity | 500 kg/hr |
| Automation Grade | Automatic |
| Classifier Application | Paddy |
| Country of Origin | Made in India |
Our expertise lies in providing a vast array of Automatic Air Classifying Mill, which is based on advanced tools and machines. These products are developed using quality assured raw material, procured from well known vendors of the market. The whole range is tested on well defined parameters to confirm international standards.
Technical Specifications:
Model No (ACM) | 1-Lab | 2 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 75 | 100 |
Main Motor Power(HP) | 1 | 5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 75 | 100 |
Classifier(HP) | 1 | 1 | 1.5 | 2 | 2 | 3 | 7.5 | 7.5 | 7.5 | 10 | 15 | 15 |
Suction Blower(HP) | 1 | 5 | 10 | 15 | 20 | 25 | 40 | 50 | 60 | 75 | 100 | 125 |
Rotor speed (Max RPM) | 20500 | 11500 | 8750 | 6000 | 6000 | 5000 | 4250 | 4250 | 3200 | 2700 | 2700 | 2000 |
Classifier Speed RPM(max) | 10000 | 5400 | 4200 | 3600 | 3000 | 3000 | 2700 | 2700 | 2700 | 2700 | 2200 | 2200 |
Mill inlet airflow M3/Hr | 100 | 300 | 500 | 1000 | 1350 | 1800 | 2700 | 3600 | 4500 | 5400 | 6500 | 9000 |
Multiplying Factor | 0 | 0.1 | 0.5 | 1 | 1.25 | 1.75 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 8 |
Additional Information:
- Item Code: ACM-01
View Complete Details

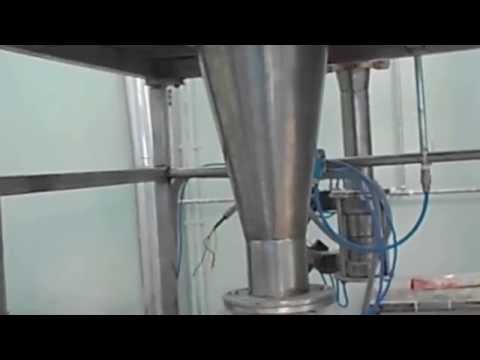

Air Classifying Mill
₹ 4,50,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Capacity | 500 kg/hr |
| Automation Grade | Automatic |
| Classifier Application | Paddy |
| Voltage | Yes |
| Production Capacity | 5-5000 kg hr. |
The Chips / flakes of material to be ground are conveyed from the hopper to the grinding chamber by means of variable feed screw. The grinding of material starts immediately when material enters in to the grinding chamber. (Because of high powered suction) The particle size of product / material is reduced to desirable size by grinding pins and liner. When the particles reach to its required size they will enter in to the air stream through baffle ring and classifier. We can control the particle size by variable speed available both for feeding mechanism and classifier. Thus the over sized particles return into the grinding chamber for further reduction of particle size.
Technical Specifications:
Material | Feed Size | Output (Fineness) | Output (Kg/hr/hp) |
Cane Sugar | Nominal 20 Mesh | 98% < 325 Mesh | 30 |
Talc | Nominal 80 Mesh | 99% < 325 Mesh | 18 |
Soya | Flake 1/4" - 0 | 98% < 80 Mesh | 25 |
Hydrated Lime | Nominal 80 Mesh | 97% < 25 Microns | 10 |
Limestone (soft) | 1/4" - 0 | 97% < 20 Microns | 7 |
Milk Crumb | Nominal 20 Mesh | 99% < 400 Mesh | 10 |
Magnesium Oxide | Nominal 40 Mesh | 99% < 325 Mesh | 20 |
Cocoa Press Cake (10–12% butter fat) | 65% <100 Mesh | 99% < 200 Mesh | 25 |
Phenolic Resin | 1/2" - 0 | 97% < 200 Mesh | 20 |
Zinc Sterate | 1/8" Flakes | 97% < 38 Microns | 7 |
Xanthan Gum | Nominal 1/8" | 97% < 44 Microns | 8 |
Barium Sulfate | Nominal 60μ | 97% < 14 Microns | 8 |
Carbon Black | 900 PPM> 44μ | 10–25 PPM > 44 Microns | 20 |
Additional Information:
- Item Code: ACM-SERIES
- Pay Mode Terms: T/T (Bank Transfer)
- Port of Dispatch: NHAVASHIVA MUMBAI INDIA
- Delivery Time: 45 DAYS
- Packaging Details: WOODEN bOX
