Board Series	Uno
Operating Voltage (VDC)	5v
Operating Voltage	5 V
Model Name/No.	UNO R3
I O Pins	14
Communication Port	USB Type B
Clock Speed	16 MHz
Analog IO Pins	6 Pins
Microcontroller	ATmega328P
USB Connector	USB-B
Communication	I2C
I/O Voltage	5V
DC Current per I/O Pin	20 mA
Power Supply Connector	Barrel Plug
Main Processor	ATmega328P 16 MHz
USB-Serial Processor	ATmega16U2 16 MHz
Weight	25 g
Width	53.4 mm
Length	68.6 mm
Brand	UNO

• The Arduino UNO is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the UNO is the most robust board you can start playing with. The UNO is the most used and documented board of the whole Arduino family.

Main features :-

• Arduino UNO is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

Replaceable chip

• The ATmega328P can easily be replaced, as it is not soldered to the board.

EEPROM

• The ATmega328P also features 1kb of EEPROM, a memory which is not erased when powered off.

Battery Connector

• The Arduino UNO features a barrel plug connector, that works great with a standard 9V battery.

Software & Cloud

• The following software tools allow you to program your board both online and offline.

Description

• The Arduino UNO R3 is the perfect board to get familiar with electronics and coding. This versatile microcontroller is equipped with the well-known ATmega328P and the ATMega 16U2 Processor. This board will give you a great first experience within the world of Arduino.

Target areas: Maker, introduction, industries

ATMega328P Processor
Memory

• AVR CPU at up to 16 MHz
• 32KB Flash
• 2KB SRAM
• 1KB EEPROM

Security

• Power On Reset (POR)
• Brown Out Detection (BOD)

Peripherals

• 2x 8-bit Timer/Counter with a dedicated period register and compare channels
• 1x 16-bit Timer/Counter with a dedicated period register, input capture and compare channels
• 1x USART with fractional baud rate generator and start-of-frame detection
• 1x controller/peripheral Serial Peripheral Interface (SPI)
• 1x Dual mode controller/peripheral I2C
• 1x Analog Comparator (AC) with a scalable reference input
• Watchdog Timer with separate on-chip oscillator
• Six PWM channels Interrupt and wake-up on pin change

ATMega16U2 Processor

8-bit AVR® RISC-based microcontroller Memory

• 16 KB ISP Flash
•  512B EEPROM 512B
• SRAM debugWIRE interface for on-chip debugging and programming Power 2.7-5.5 volts

Application

• Examples The UNO board is the flagship product of Arduino. Regardless if you are new to the world of electronics or will use the UNO as a tool for education purposes or industry-related tasks. First entry to electronics: If this is your first project within coding and electronics, get started with our most used and documented board; Arduino UNO. It is equipped with the well-known ATmega328P processor, 14 digital input/output pins, 6 analog inputs, USB connections, ICSP header and reset button. This board includes everything you will need for a great first experience with Arduino. Industry-standard development board: Using the Arduino UNO board in industries, there are a range of companies using the UNO board as the brain for their PLC’s. Education purposes:

Additional Information:

• Production Capacity: 500

Operating Voltage (VDC)	2.7v
Model	Uno Rev3 SMD
Digital I/O Pins	14 (of which 6 Provide PWM Output)
DC Current per I/O Pin	20 mA
Flash Memory	32 KB (ATmega328P) of Which 0.5 KB Used by Boot Loader
SRAM	2 KB (ATmega328P)
EEPROM	1 KB (ATmega328P)
Clock Speed	16 MHz
LED_BUILTIN	13
Length	68.6 mm
Width	53.4 mm
Weight	25 g

Overview

The Arduino Uno Rev3 SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip.

Additional features coming with the R3 version are:

• ATmega16U2 instead 8U2 as USB-to-Serial converter.
• 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
• stronger RESET circuit.

"Uno" means "One" in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.

Related Boards

If you are interested in boards with similar functionality, at Arduino you can find:

• Arduino Uno Rev3
• Arduino Uno WiFi Rev2

Getting started

The Getting Started section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section you can find examples from libraries and built-in sketches as well other useful information to expand your knowledge of the Arduino hardware and software.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.

Description The Arduino UNO R3 is the perfect board to get familiar with electronics and coding. This versatile microcontroller is equipped with the well-known ATmega328P and the ATMega 16U2 Processor. This board will give you a great first experience within the world of Arduino.

Target areas: Maker, introduction, industries

Features
ATMega328P Processor
Memory

• AVR CPU at up to 16 MHz
• 32KB Flash 2KB SRAM
• 1KB EEPROM Security Power On Reset (POR) Brown Out Detection (BOD)

Peripherals

• 2x 8-bit Timer/Counter with a dedicated period register and compare channels
• 1x 16-bit Timer/Counter with a dedicated period register, input capture and compare channels
• 1x USART with fractional baud rate generator and start-of-frame detection
• 1x controller/peripheral Serial Peripheral Interface (SPI)
• 1x Dual mode controller/peripheral
• I2C
• 1x Analog Comparator (AC) with a scalable reference input
• Watchdog Timer with separate on-chip oscillator
• Six PWM channels Interrupt and wake-up on pin change.

ATMega16U2 Processor
8-bit AVR® RISC-based microcontroller

Memory

• 16 KB ISP Flash 512B
• EEPROM 512B
• SRAM debugWIRE interface for on-chip debugging and programming

Application

• Examples The UNO board is the flagship product of Arduino. Regardless if you are new to the world of electronics or will use the UNO as a tool for education purposes or industry-related tasks. First entry to electronics:

Operating Voltage (VDC)	5v
Model Name/No.	UNO R3
Series	Classic Family
Input Voltage (limits)	12V
Analog IO Pins	6
External Power Supply	5-12V
Circuit Operating Voltage	5V
Maximum Operating Temperature	80
Country of Origin	Made in India
TYPE	EDUCATIONAL

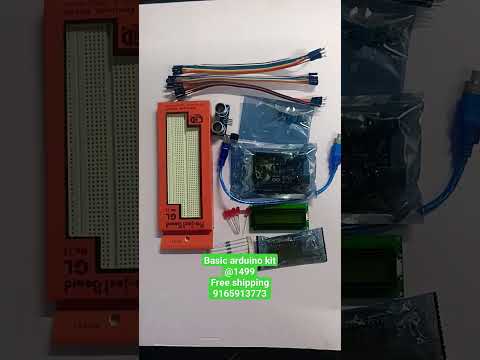

1-uno with cable, 1-breadboard, jumper mm20 mf20 ff20, led-10, m switch-5, pot-1, ldr-1,dht11-1, IR Sensor - 1, ultrasonic - 1, sound sensor - 1, sg90-1, resister-12, buzzer-2, lcd-1, 9v battery - 2, battery connector with uno dcpin - 1

Additional Information:

• Item Code: UNOBASICKIT
• Production Capacity: 100
• Delivery Time: 2 TO 4DAY
• Packaging Details: BOX

Operating Voltage (VDC)	2.7v
Model Name/No.	Nano
Microcontroller	ATmega328
Clock Speed	16 MHz
Flash Memory	32 KB of which 2 KB Used by Boot Loader
Brand	DANGI
Architecture	AVR
SRAM	2 KB
Analog IN Pins	8 Pins
EEPROM	1 KB
DC Current per I/O Pins	40 mA (I/O Pins)
Digital I/O Pins	22 (6 of which are PWM)
Power Consumption	19 mA
PCB Size	18 x 45 mm
Weight	7 g

Overview

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Related Boards

If you are looking for a Nano board with similar functionality but also provide additional features, check:

• Arduino Nano 33 BLE
• Arduino Nano 33 BLE SENSE
• Arduino 33 IoT
• Arduino Micro

Getting Started

Find inspiration for your projects with the Nano board from our tutorial platform Project Hub.

You can find in the Getting Started with Arduino Nano section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section you can find examples from libraries and built-in sketches as well other useful information to expand your knowledge of the Arduino hardware and software.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.

Description Arduino® Nano is an intelligent development board designed for building faster prototypes with the smallest dimension. Arduino Nano being the oldest member of the Nano family, provides enough interfaces for your breadboard-friendly applications. At the heart of the board is ATmega328 microcontroller clocked at a frequency of 16 MHz featuring more or less the same functionalities as the Arduino Duemilanove. The board offers 22 digital input/output pins, 8 analog pins, and a mini-USB port

Target Areas Maker, Security, Environmental, Robotics and Control Systems

Features

ATmega328 Microcontroller

• High-performance low-power 8-bit processor Achieve up to 16 MIPS for 16 MHz clock frequency
• 32 kB of which 2 KB used by bootloader
• 2 kB internal
• SRAM 1 kB
• EEPROM
• 32 x 8 General Purpose Working Registers Real Time Counter with Separate Oscillator Six PWM Channels
• Programmable Serial USART Master/Slave SPI Serial Interface

Power

• Mini-B USB connection
• 6-20V unregulated external power supply (pin 30)
• 5V regulated external power supply (pin 27)

Sleep Modes

• Idle ADC Noise Reduction
• Power-save
• Power-down
• Standby
• Extended Standby

I/O

• 22 Digital
• 8 Analog
• 6 PWM Output

Application

• Examples Arduino Nano is the first embedded microcontroller in the Nano series with minimum functionalities, designed for mini projects from the maker community. With a large number of input/output pins gives the advantage of utilizing several serial communications like UART, SPI and I2C. The hardware is compatible with Arduino IDE, Arduino CLI and web editor. Security: The high-performance and low-power capabilities gives the chance to develop security based applications like access control systems using fingerprint sensors. The flexibility to interface sensors and external devices using serial communication has improved the scope of utility. Environmental:

Additional Information:

• Item Code: A000005

Brand	GENERIC
Model	Pro Mini
Microcontroller	ATmega328P
Board Power Supply	12 V
Analog Input Pins	6 Pins
Digital I/O Pins	12 Pins
Flash Memory	32KB of which 2 KB Used by Booth Loader
SRAM	2 KB
EEPROM	1 KB
Clock Speed	8 MHz

The Pro Mini is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.

The Arduino Pro Mini was designed and is manufactured by SparkFun Electronics.

You can find here your board warranty information.

Getting Started

• You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Need Help?

• On the Software on the Arduino Forum
• On Projects on the Arduino Forum
• On the Product itself through our Customer Support

Documentation OSH: Schematics

• Arduino Pro Mini is open-source hardware! You can build your own board using the following files:

Power

• The Arduino Pro Mini can be powered with an FTDI cable or breakout board connected to its six pin header, or with a regulated 3.3V or 5V supply (depending on the model) on the Vcc pin. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.

The power pins are as follows:

• Raw For supplying a raw voltage to the board.
• Vcc The regulated 3.3 or 5 volt supply.
• Gnd Ground pins.

Memory

• The ATmega328P has 32 kB of flash memory for storing code (of which 0.5kB is used for the bootloader). It has 2 kB of SRAM and 1kBs of EEPROM (which can be read and written with the EEPROM library.

Input and Output

• Each of the 14 digital pins on the Pro Mini can be used as an input or output, using pinMode,digital Write,and digitalRead functions. They operate at 3.3 or 5 volts (depending on the model). Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms. In addition, some pins have specialized functions:
• Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the TX-0 and RX-1 pins of the six pin header.
• External Interrupts: 2 and 3. These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value. See the attachInterrupt function for details.
• PWM: 3, 5, 6, 9, 10, and 11. Provide 8-bit PWM output with the analogWrite function.
• SPI: 10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK). These pins support SPI communication, which, although provided by the underlying hardware, is not currently included in the Arduino language.
• LED: 13. There is a built-in LED connected to digital pin 13. When the pin is HIGH value, the LED is on, when the pin is LOW, it's off.



We are a trusted supplier and distributor of Arduino Uno R3 SMD ATmega328P Boards, ideal for electronics projects, embedded system development, robotics, and IoT applications. This board is based on the ATmega328P microcontroller (SMD version) and offers reliable performance for beginners, students, and professionals.

The Arduino Uno R3 SMD functions the same as the DIP version but uses a surface-mounted ATmega328P chip, making it compact and cost-effective while maintaining full compatibility with Arduino IDE and shields.

.
