Board Model	Pi 4 Model B
Model No./Name	Raspberry Pi 4 Model B
Memory	8GB
Processor	Quad-Core Cortex-A72
SD card support	Yes
GPIO	Standard 40-Pin GPIO Header
Multimedia	OpenGL ES, 3.0 Graphics
Input Power	5V DC
Environment	Operating Temperature 50 Degree C
Packaging Type	Box
Production Lifetime	January 2026
Connectivity	Wireless LAN, Bluetooth 5.0
Video & Sound	2 x Micro HDMI Ports

Your new desktop computer

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. For the first time, we've built a complete desktop experience. Whether you're editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

Silent, energy-efficient

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Networking

Fast networking

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

USB 3

Your new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

Choice of RAM

Your choice of RAM We're making different variants of the Raspberry Pi 4 available, depending on how much RAM you need — 1GB, 2GB, 4GB, or 8GB.

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems. This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.


Warning:-
• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC
minimum1
. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.
• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.

These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.

• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.
A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.

Series	Nano Family
Brand	Arduino
Board	SKU ABX00027
Microcontroller	SAMD21 CortexM0+ 32bit low power ARM MCU
USB Connector	Micro USB
Analog Input Pins	8 Pins
External Interrupts	All digital pins
Connectivity	Wi-Fi And Bluetooth
Sensors	IMU LSM6DS3
Communication	SPI
I/O Voltage	3.3V
DC Current per I/O Pin	7 mA
Processor	SAMD21G18A 48MHz
Memory	Nina W102 uBlox Module
Weight	5gr
Width	18 mm
Length	45 mm
Model Name/No.	Nano 33 IoT

• The Arduino Nano 33 IoT combines the Arduino Nano form factor with an easy point of entry to basic IoT and pico-network applications. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth® Low Energy device sending data to a cellphone, the Nano 33 IoT is your one-stop-solution for many of the basic IoT application scenarios.

Main features:-

• The Arduino Nano 33 IoT is Arduino's smallest board to get started with Internet of Things (IoT). Using the popular Arm® Cortex®-M0 32-bit SAMD21 processor, it also features the powerful u-blox NINA-W102 Wi-Fi module and the ECC608A crypto-chip for security.

Wi-Fi®

• The board comes with Wi-Fi® connectivity and Arduino IoT Cloud compatibility. This allows you to create IoT applications in your own projects.
• The Nano 33 IoT is Bluetooth® enabled allowing you to control peripheral devices via bluetooth and start implementing Bluetooth® Low Energy applications.
• The Nano 33 IoT comes with an IMU (LSM6DS3), combining an accelerometer and a gyroscope. Build your own motion tracking device and implement it in your projects.

operating voltage

• The microcontroller on the Arduino Nano 33 IoT runs at 3.3V, which means that you must never apply more than 3.3V to its Digital and Analog pins. Care must be taken when connecting sensors and actuators to assure that this limit of 3.3V is never exceeded. Connecting higher voltage signals, like the 5V commonly used with the other Arduino boards, will damage the Arduino Nano 33 IoT.
• To avoid such risk with existing projects, where you should be able to pull out a Nano and replace it with the new Nano 33 IoT, we have the 5V pin on the header, positioned between RST and A7 that is not connected as default factory setting. This means that if you have a design that takes 5V from that pin, it won't work immediately, as a precaution we put in place to draw your attention to the 3.3V compliance on digital and analog inputs.
• 5V on that pin is available only when two conditions are met: you make a solder bridge on the two pads marked as VUSB and you power the NANO 33 IoT through the USB port. If you power the board from the VIN pin, you won't get any regulated 5V and therefore even if you do the solder bridge, nothing will come out of that 5V pin. The 3.3V, on the other hand, is always available and supports enough current to drive your sensors. Please make your designs so that sensors and actuators are driven with 3.3V and work with 3.3V digital IO levels. 5V is now an option for many modules and 3.3V is becoming the standard voltage for electronic ICs.

Software & Cloud

• The following software tools allow you to program your board both online and offline.
• Description The Arduino Nano 33 IoT and Arduino Nano 33 IoT with headers are a miniature sized module containing a Cortex M0+ SAMD21 processor, a Wi-Fi®+Bluetooth® module based on ESP32, a crypto chip which can securely store certificates and pre-shared keys and a 6 axis IMU. The module can either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly soldering it via the castellated pads

Target areas: Maker, enhancements, basic IoT application scenarios

• SAMD21G18A
• Processor
• 256KB Flash 32KB
• Flash Power On Reset (POR) and Brown Out Detection (BOD)

Peripherals

• 12 channel DMA
• 12 channel event system
• 5x 16 bit Timer/Counter 3x 24 bit
• timer/counter with extended functions
• 32 bit RTC Watchdog Time
• CRC-32 generator Full speed Host/Device USB with 8 end points
• 6x SERCOM (USART, I2C, SPI, LIN) Two channel I2S 12 bit

Operating Voltage (VDC)	5v
Model Name/No.	Micro
Series	Classic Family
Input Voltage (limits)	6-9V
Analog IO Pins	16
Circuit Operating Voltage	5V
External Power Supply	YES

Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board

The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G. This is a great solution to get your final project on the welding prototype board.

The Mega Pro Embed functionalities are identical to the Mega 2560. Even though it is an Embed board, it is solid as stable as the Mega Board. It uses the original chip, and 16 MHz high-quality quartz resonators are present on the board. The board uses the chip CH340G as the converter UART-USB. It provides a stable data exchange result when you work at a frequency of 12Mhz (requires the driver to be installed on the computer).

You can power the board or power the pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages from 6V to 9V (peak 18V) DC. The voltage regulator allows to use up to 18V as an input value, however, we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device.

Additional Information:

• Item Code: Mega2560ProATMEGA2560-16AU
• Production Capacity: 100
• Delivery Time: 2-5DAYS
• Packaging Details: 1*PER PACK

Model Name/No.	UNO R3
Series	MKR Family
Brand	Arduino
Operating Voltage (VDC)	2.7v
Operating Voltage	5v

Overview

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

Related Boards

If you are looking at upgrading from previous Arduino designs, or if you are just interested in boards with similar functionality, at Arduino you can find:

• Uno Rev 3
• Arduino Nano
• Arduino DUE without headers

Getting Started

Find inspiration for your projects with the Mega 2560 board from our tutorial platform Project Hub.

You can find in the Getting Started with Arduino MEGA2560 Rev 3 section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section you can find examples from libraries and built-in sketches as well other useful information to expand your knowledge of the Arduino hardware and software.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.

Description

Arduino® Mega 2560 is an exemplary development board dedicated for building extensive applications as compared to other maker boards by Arduino. The board accommodates the ATmega2560 microcontroller, which operates at a frequency of 16 MHz. The board contains 54 digital input/output pins, 16 analog inputs, 4 UARTs (hardware serial ports), a USB connection, a power jack, an ICSP header, and a reset button.

Target Areas 3D Printing, Robotics, Maker

Features

ATmega2560 Processor

• Up to 16 MIPS Throughput at 16MHz
• 256k bytes (of which 8k is used for the bootloader)
• 4k bytes EEPROM
• 8k bytes Internal SRAM
• 32 × 8 General Purpose Working Registers
• Real Time Counter with Separate Oscillator
• Four 8-bit PWM Channels
• Four Programmable Serial USART
• Controller/Peripheral SPI Serial Interface

ATmega16U2

• Up to 16 MIPS Throughput at 16 MHz
• 16k bytes ISP Flash Memory
• 512 bytes EEPROM
• 512 bytes SRAM
• USART with SPI master only mode and hardware flow control (RTS/CTS)
• Master/Slave SPI Serial Interface

Sleep Modes

• Idle
• ADC Noise Reduction
• Power-save
• Power-down
• Standby
• Extended Standby

Power

• USB Connection
• External AC/DC Adapter
• I/O
• 54 Digital
• 16 Analog
• 15 PWM Output

The Board
Arduino® Mega 2560 is a successor board of Arduino Mega, it is dedicated to applications and projects that requirelarge number of input output pins and the use cases which need high processing power. The Arduino® Mega 2560comes with a much larger set of IOs when we compare it with traditional Uno board considering the form factor ofboth the boards.
1.1 Application Examples

Robotics: Featuring the high processing capacitity, the Arduino Mega 2560 can handle the extensive roboticapplications.

RF Data Rate	RF 250 Kbps
Brand	Digi
Transceiver Chipset	Silicon Labs EM357 SoC
Indoor/urban Range	200 ft (60 m)
Transmit Power	3.1 mW
Serial Data Interface	UART, SPI
Frequency Band	SM 2.4 GHz
Hardware	S2C
Digital I/o	15

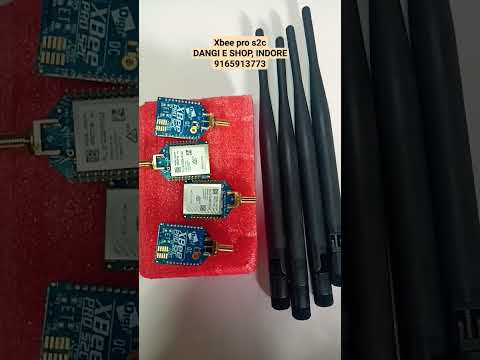

XBee/XBee-PRO® S2C Zigbee® RF Module User Guide

• This manual describes the operation of the XBee/XBee-PRO Zigbee RF Module, which consists of Zigbee firmware loaded onto XBee S2C and PRO S2C hardware. The XBee/XBee-PRO Zigbee RF Modules provide wireless connectivity to end-point devices in Zigbee mesh networks. Using the Zigbee PRO Feature Set, these modules are inter-operable with other Zigbee devices, including devices from other vendors. With the XBee, users can have their Zigbee network up-and-running in a matter of minutes without configuration or additional development. The XBee/XBee-PRO Zigbee RF Modules are compatible with other devices that use XBee Zigbee technology. These include ConnectPortX gateways, XBee and XBee-PRO Adapters, Wall Routers, XBee Sensors, and other products with the Zigbee name.

Safety instructions

• XBee modules n The XBee radio module cannot be guaranteed operation due to the radio link and so should not be used for interlocks in safety critical devices such as machines or automotive applications. n The XBee radio module have not been approved for use in (this list is not exhaustive): l medical devices l nuclear applications l explosive or flammable atmospheres n There are no user serviceable components inside the XBee radio module. Do not remove the shield or modify the XBee in any way. Modifications may exclude the module from any warranty and can cause the XBee radio to operate outside of regulatory compliance for a given country, leading to the possible illegal operation of the radio. n Use industry standard ESD protection when handling the XBee module. n Take care while handling to avoid electrical damage to the PCB and components. n Do not expose XBee radio modules to water or moisture. n Use this product with the antennas specified in the XBee module user guides. n The end user must be told how to remove power from the XBee radio module or to locate the antennas 20 cm from humans or animals.

Low-cost, easy-to-deploy modules provide critical end-point connectivity to devices and sensors

XBee RF modules provide OEMs with a common footprint shared by multiple platforms, including multipoint and ZigBee/ Mesh topologies, and both 2.4 GHz and 900 MHz solutions. OEMs deploying the XBee can substitute one XBee for another, depending upon dynamic application needs, with minimal development, reduced risk and shorter time-to-market. XBee 802.15.4 RF modules are ideal for applications requiring low latency and predictable communication timing. Providing quick, robust communication in point-to-point, peer-to-peer, and multipoint/star configurations, XBee 802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial communication, or as part of a more complex hub-and-spoke network of sensors, XBee 802.15.4 RF modules maximize performance and ease of development. XBee 802.15.4 modules seamlessly interface with compatible gateways, device adapters and range extenders, providing developers with true beyond-the-horizon connectivity. The updated XBee S2C 802.15.4 module is built with the SiliconLabs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to DigiMesh® or ZigBee® mesh protocols if desired.

Benifites:-

Simple, out-of-the-box RF communications, noconfiguration needed– Point-to-multipoint network topology– 2.4 GHz for worldwide deployment– Common XBee footprint for a variety of RF modules– Industry leading sleep current of sub 1uA– Firmware upgrades via UART, SPI or over the air– Migratable to DigiMesh and ZigBee PRO protocolsand vice-versa

Range	4000 ft
Number Of Pins	14 Pins
RF Data Rate	RF 250 Kbps
Brand	Digi
temp	85 Degree C
Mounting Type	Dip
Type	Male

DIP XBee 3Pro RPSMA Module, For Electronics, Rf 250 Kbps

Digi XBee® 3Pro modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.
Digi XBee 3PRO Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others.
With Digi Remote Manager®, Digi XBee 3PRO modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and Digi XCTU® software tools simplify adding functionality, configuration and testing.
From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee 3 Series is engineered to accelerate development and deployment.

XCTU is free and compatible with Windows, MacOS and Linux.

Simple wireless network configuration and architecture.

Simple development tool for quickly building XBee API frames.

Explore and read firmware release notes

Additional Information:

• Item Code: xbee3pro
• Production Capacity: 100
• Delivery Time: 15 - 20 day
• Packaging Details: tray

Board Model	Pi 3 B plus
RAM Size	1 GB
Wireless Connectivity	Wi Fi plus BT
Model No./Name	Raspberry Pi 3 Model B+
GPIO Pins	40 Pin
Storage Type	microSD
Power Input	Micro USB
Memory	1GB
Operating Power	DC
SD card support	Yes
Video Output	HDMI
Warranty	1 Year
Form Factor	Standard Pi
Usage/Application	For word-processing, spreadsheets, high-definition video, games, and programming.

RPi 3 Model B+ BCM2837B0 SoC, IoT, PoE Enabled

• SOC: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC
• CPU: 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
• RAM: 1GB LPDDR2 SDRAM
• WIFI: Dual-band 802.11ac wireless LAN (2.4GHz and 5GHz ) and Bluetooth 4.2
• Ethernet: Gigabit Ethernet over USB 2.0 (max 300 Mbps). Power-over-Ethernet support (with separate PoE HAT). Improved PXE network and USB mass-storage booting.
• Thermal management: Yes
• Video: Yes – VideoCore IV 3D. Full-size HDMI
• Audio: Yes
• USB 2.0: 4 ports
• GPIO: 40-pin
• Power: 5V/2.5A DC power input
• Operating system support: Linux and Unix
• Camera interface (CSI), Display interface (DSI), Micro SD card slot (now push-pull rather than push-push), Video Core IV 3D graphics core

Key Improvements from RPi 3 Model B to RPi 3 Model B+

• Improved compatibility for network booting
• New support for Power over Ethernet
• Processor speed has increased from 1.2Ghz on Pi 3 to 1.4Ghz
• New dual-band wireless LAN chip, 2.4Ghz and 5Ghz with embedded antenna
• Bluetooth 4.2 Low Energy
• Faster onboard Ethernet, up to 300mbps speed

Model No./Name	Raspberry Pi 4 Model B
Memory	4GB
Processor	Quad-Core Cortex-A72
SD card support	Yes
GPIO	Standard 40-PGPIO Header
Video & Sound	2 x Micro HDMI Ports
Environment	50 Degree C
Connectivity	Wireless LAN, Bluetooth 5.0
Production Lifetime	January 2026.
Packaging Type	Box
Multimedia	OpenGL ES, 3.0 Graphics
Input Power	5V DC

4GB Raspberry Pi 4 Model B Single Board Computer

Brand	Robu
Model Name/Number	ESP32 CAM
Connectivity	Electric
Input Voltage (Volt)	5V
Operating Temperature ( DegreeC)	85 Degree C
SPI Flash	Default 32Mbit
RAM	520KB SRAM
Bluetooth	Bluetooth 4.2 BR/EDR and BLE Standards
Wi-Fi	802.11 b/g/n/
UART Baudrate	115200 bps
Image Output Format	JPEG( OV2640 support only ), BMP, Grayscale
Spectrum Range	2484 MHz
Shipment Weight	0.082 kg
Shipment Dimensions	8 x 6 x 2 cm

1. Flash LED off: 180mA @ 5V.
2. Flash LED on to maximum brightness: 310mA @ 5V.
3. Deep-sleep: 6mA @ 5V min.
4. Modem-sleep: 20mA @ 5V min.
5. Light-sleep: 6.7mA @ 5V min.

Description:-

The ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization has a very competitive small-size camera module that can operate independently as a minimum system with a footprint of only 40 x 27 mm; a deep sleep current of up to 6mA and is widely used in various IoT applications.

It is suitable for home smart devices, industrial wireless control, wireless monitoring, and other IoT applications.

This module adopts a DIP package and can be directly inserted into the backplane to realize rapid production of products, providing customers with high-reliability connection mode, which is convenient for application in various IoT hardware terminals.

ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture. It has the main frequency adjustment range of 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc.

Note: The product dimension may have ±2% error. The product color may have some variation due to the light effect.

Features :
ESP32-CAM :

1. The smallest 802.11b/g/n Wi-Fi BT SoC module.
2. Low power 32-bit CPU, can also serve the application processor.
3. Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
4. Built-in 520 KB SRAM, external 4MPSRAM.
5. Supports UART/SPI/I2C/PWM/ADC/DAC.
6. Support OV2640 and OV7670 cameras, built-in flash lamp.
7. Support image WiFI upload.
8. Supports TF card.
9. Supports multiple sleep modes.
10. Embedded Lwip and FreeRTOS.
11. Supports STA/AP/STA+AP operation mode.
12. Support Smart Config/AirKiss technology.
13. Support for serial port local and remote firmware upgrades (FOTA)

Specifications :

1. Wireless Module: ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.
2. External Storage: micro SD card slot up to 4GB.
3. Camera
   • FPC connector.
   • Support for OV2640 (sold with a board) or OV7670 cameras.
   • Image Format: JPEG( OV2640 support only ), BMP, grayscale.
   • LED flashlight.
4. Expansion: 16x through-holes with UART, SPI, I2C, PWM.
5. Misc: Reset button.
6. Power Supply: 5V via pin header.
7. Power Consumption.
   1. Flash LED off: 180mA @ 5V.
   2. Flash LED on to maximum brightness: 310mA @ 5V.
   3. Deep-sleep: 6mA @ 5V min.
   4. Modem-sleep: 20mA @ 5V min.
   5. Light-sleep: 6.7mA @ 5V min.
8. Dimensions (ESP32): 40 x 27 x 12 (LxWxH) mm.
9. Temperature Range: Operating: -20 ℃ ~ 85 ℃; storage: -40 ℃ ~ 90 ℃ @ < 90%RH.

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Dimensions	23.86 x 25 x 9mm
Brand	Raspberry Pi
Weight	3g
Lens size	4 inch
Temp Range	60 Degree
Image Control Functions	Automatic Exposure Control
Connection to Raspberry Pi	15-Pin Ribbon Cable
Max Image Transfer Rate	1080p
Still Picture Resolution	3280 x 2464
Resolution	8-Megapixe
Image Sensor	Sony IMX 219 PQ CMOS Image Sensor In a Fixed-Focus Module

• Learn how to connect the Raspberry Pi Camera Module to your Raspberry Pi and take pictures, record video, and apply image effects.
• What you will needRaspberry Pi computer with a Camera Module port
• All current models of Raspberry Pi have a port for connecting the Camera Module.
• Note: If you want to use a Raspberry Pi Zero, you need a Camera Module ribbon cable that fits the Raspberry Pi Zero’s smaller Camera Module port.

Raspberry Pi Camera Module

There are two versions of the Camera Module:

• The standard version, which is designed to take pictures in normal light
• The NoIR version, which doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark.

Connect the Camera ModuleEnsure your Raspberry Pi is turned off.

• Locate the Camera Module port
• Gently pull up on the edges of the port’s plastic clip
• Insert the Camera Module ribbon cable; make sure the connectors at the bottom of the ribbon cable are facing the contacts in the port.
• Push the plastic clip back into place.

• Start up your Raspberry Pi.

• Go to the main menu and open the Raspberry Pi Configuration tool.

• Select the Interfaces tab and ensure that the camera is enabled:

• Select the Interfaces tab and ensure that the camera is enabled:

• Reboot your Raspberry Pi.

How to control the Camera Module via the command line

• Now your Camera Module is connected and the software is enabled, try out the command line tools raspistill and raspivid.

Open a terminal window by clicking the black monitor icon in the taskbar:

• Type in the following command to take a still picture and save it to the Desktop:
• Press Enter to run the command.
• When the command runs, you can see the camera preview open for five seconds before a still picture is taken.
• Look for the picture file icon on the Desktop, and double-click the file icon to open the picture.
• By adding different options, you can set the size and look of the image the raspistill command takes.
• For example, add -h and -w to change the height and width of the image
• raspistill -o Desktop/image-small.jpg -w 640 -h 480
• Now record a video with the Camera Module by using the following raspivid command:
  raspivid -o Desktop/video.h264
• In order to play the video file, double-click the video.h264 file icon on the Desktop to open it in VLC Media Player.

• For more information and other options you can use with these commands, read the documentation for raspistill and the documentation for raspivid.

How to control the Camera Module with Python code

• The Python picamera library allows you to control your Camera Module and create amazing projects.

• Open a Python 3 editor, such as Thonny Python IDE:

• Open a new file and save it as camera.py.

• Note: it’s important that you never save the file as picamera.py.

• Enter the following code

• Save and run your program. The camera preview should be shown for five seconds and then close again.

• Note: the camera preview only works when a monitor is connected to your Raspberry Pi. If you are using remote access (such as SSH or VNC), you won’t’ see the camera preview.

• If your preview is upside-down, you can rotate it by 180 degrees with the following code

Model No./Name	Raspberry Pi 4 Model B
Memory	4GB
Processor	Broadcom BCM2711
Dimensions	9x6x3mm (LXWXH)
Environment	50 Degree C
Product SD Card Support:	Micro SD Card
Production Lifetime	January 2026
Multimedia	3.0 Graphics
GPIO	Standard 40-Pin GPIO Header
Input Power	USB-C Connector
Connectivity	Wireless LAN, Bluetooth 5.0
Video & Sound	4-Pole Stereo Audio and Composite Video Port
Weight	39gm

The official Raspberry Pi case for Raspberry Pi 4.

Specifications

• High-quality, two-part ABS construction
• Cut-outs for the dual micro HDMI, Audio/Video, USB and Ethernet ports, as well as the USB-C power connector and access to the microSD card.
• Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
• This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
• The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Warning:-

• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC minimum1 . Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items. • The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.
• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.

Safty

To avoid malfunction or damage to this product please observe the following:
• Do not expose to water, moisture or place on a conductive surface whilst in operation.
• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.

1 A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.

Model No./Name	Raspberry Pi Zero W
Memory	512MB
Processor	Broadcom BCM2710A1, Quad-core 64-Bit SoC (Arm Cortex-A53 @ 1GHz)
Input Power	5V DC 2.5A
Operating Temperature	70 Degree C
Production Lifetime	January 2028
Connectivity	Mini HDMI Port
Video	HDMI Interface

• The Raspberry Pi Zero W extends the Pi Zero family and comes with added wireless LAN and Bluetooth connectivity.
• Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board. The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero. Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification. The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.
• Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.

Warning:-

• Any external power supply used with Raspberry Pi Zero 2 W shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to Raspberry Pi Zero 2 W may affect compliance, result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors, and mice when used in conjunction with Raspberry Pi Zero 2 W.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.

Safty Instruction:-
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi Zero 2 W is designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the edges to minimise the risk of electrostatic discharge damage.

Model No./Name	Raspberry Pi Pico Series
Product Memory	2MB
Peripherals	1 xUSB 1.1 Controller
Input Power	5.5V DC
Operating Temperature	85 Degree C
Production Lifetime	January 2028

Powerful, flexible microcontroller boards, available from $4

• The Raspberry Pi Pico series is a range of tiny, fast, and versatile boards built using RP2040, the flagship microcontroller chip designed by Raspberry Pi in the UK
• From light displays and IoT devices to signage and manufacturing processes, the Raspberry Pi Pico series gives you the power to control countless home, hobby, and industrial operations.
• Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.
• More experienced users can take advantage of Raspberry Pi Pico's rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.
• Now available with wireless connectivity or pre-soldered headers, for even more flexibility in your projects.

RP2040

• Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264kB internal RAM and support for up to 16MB of off-chip flash. A wide range of flexible I/O options includes I2C, SPI, and - uniquely - Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Connect wirelessly

• Network your Pico for a complete IoT solution. Raspberry Pi Pico W comes with a fully certified module on board featuring 2.4GHz 802.11n wireless LAN, making it the perfect solution for loT applications and projects requiring wireless communication. Pico W is available now for $6.

New to this?

• We've put together a whole book to help you get started with your new Raspberry Pi Pico. From installing MicroPython to getting to grips with PIO, Get Started with MicroPython on Raspberry Pi Pico is your essential guide.

Debugging with ease

• The Raspberry Pi Debug Probe is an all-in-one USB-to-debug kit that provides all the necessary hardware and cables for easy, solderless, plug-and-play debugging, making it easy to use a Raspberry Pi Pico with non-Raspberry Pi platforms such as Windows and Mac, and with typical Linux computers.

Well documented

• Whether you’re taking your first steps with a microcontroller or you want to develop a product using RP2040, we’ve put together the guides and tools you’ll need to get the most out of Raspberry Pi Pico.



Raspberry Pi Pico has been designed to be a low cost yet flexible development platform for RP2040, with the following

key features:

• RP2040 microcontroller with 2MB Flash

• Micro-USB B port for power and data (and for reprogramming the Flash)

• 40 pin 21×51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations

◦Exposes 26 multi-function 3.3V General Purpose I/O (GPIO)

◦23 GPIO are digital-only and 3 are ADC capable

◦Can be surface mounted as a module

• 3-pin ARM Serial Wire Debug (SWD) port

• Simple yet highly flexible power supply architecture

◦Various options for easily powering the unit from micro-USB, external supplies or batteries

• High quality, low cost, high availability

• Comprehensive SDK, software examples and documentation

For full details of the RP2040 microcontroller please see the RP2040 Datasheet, however the headline features are:

• Dual-core cortex M0+ at up to 133MHz

◦On-chip PLL allows variable core frequency

• 264kB multi-bank high performance SRAM

• External Quad-SPI Flash with eXecute In Place (XIP) and 16kB on-chip cache

• High performance full-crossbar bus fabric

Brand	Nodemcu
Part Number	ESP8266MOD
Connectivity	Wi-Fi Direct
Current Consumption	170mA.
Flash Memory Attachable	16MB max
Processor	Tensilica L106 32-bit.
Processor Speed	160MHz.
Number of Pin	30Pins

ISM 2.4GHZ
PA 25D30
99 2.11B/g/g

 Robo India presents tutorial on how to install NodeMCU Amica, ESP8266 wifi module based development board.Introduction:

NodeMCU Amica is a ESP8266 Wifi Module based development board. It has got Micro USB slot that can be directly connected to the computer or other USB host devices.

It has got appearance as shown in above image. It has got 15X2 Header pins and a Micro USB slot, the headers can be mounted on breadboard and the micro USB slot is for connection to USB host device that may be a computer. It has got CP2102 USB to serial converter.

 CP2102 Installation

In order to install CP2102 (USB to Serial Converter), you will need driver for the same. You may download drivers from the following link. This link offer drivers for 32 and 64 bit operating system.

• Window
• Mac
• Linux
• Android

You may download CP2102 Drivers from here.

Once you have downloaded drivers as per the operating system your system has got. Connect the nodeMCU to your computer and install the downloaded drives when your system prompts to install the drivers for the newly connected USB device.

Go to the device manager of your computer and note down the COM port allocated to the newly connected USB device i.e. You nodeMCU Amcia. This comport number will be required while using NodeMCU Amica.

Now your NodeMCU is installed on your computer. You may need following tutorials.

1. Flashing ESP8266 wifi Module with NodeMCU firmware.

2. Introduction to LUA, ESP8266 and ESPlorer.

Other tutorial on ESP8266 Wifi module is also there please see the category ESP8266 Wifi module in the left category panel.

Operating Voltage	3.3v
Model Name/No.	UNO R3
Series	Classic Family
type	Dip
port	USB
Brand	Arduino
Usage	For write, compile, and upload code to Arduino boards

Arduino is an open-source electronics prototyping platform, popular among hobbyists, artists, and anyone interested in interactive objects. It consists of both hardware (the physical board) and software (the Integrated Development Environment or IDE). The hardware features a microcontroller, which is a small computer, and various input/output pins that allow it to interact with sensors and other electronic components. The software allows users to write and upload code (called "sketches") to the microcontroller, enabling it to control connected devices and respond to inputs.

Additional Information:

• Item Code: unor3
• Production Capacity: 100
• Delivery Time: 3 to 7day
• Packaging Details: tested

Current Rating	2Amp
Function	Solar light trap auto on off
Voltage	3.7v
Usage	For For Insect Trapping Devices
Material	Plastic

solar insect trap circuit is used for controll the device timely on off.

Additional Information:

• Item Code: solartrap
• Production Capacity: 500
• Delivery Time: within 1 week

Motor Type	DC Motor
For Use With	Arduino
Mfr. Part Number	HW-95
Motor Output Voltage	5V
Continuous Current Per Channel	2A
Max Power Dissipation	25W
Junction Operating Temperature	130 Degree C
Model	L298N

While you’ll eventually need to learn to control DC motors in order to build your own robot, you’ll probably need something a little easier to get started – which is where the L298N motor driver comes in. It can control the speed and spinning direction of two DC motors.

In addition, it can control a bipolar stepper motor, such as the NEMA 17. If you want to learn more about it, check out this tutorial.

Controlling a DC Motor
We can only have full control over a DC motor if we can control its speed and spinning direction. This is possible by combining these two techniques.
PWM – to control speedH-Bridge – to control the spinning direction

PWM – to control speed

The speed of a DC motor can be controlled by changing its input voltage. A widely used technique to accomplish this is Pulse Width Modulation (PWM).

PWM is a technique in which the average value of the input voltage is adjusted by sending a series of ON-OFF pulses. This average voltage is proportional to the width of the pulses, which is referred to as the Duty Cycle.

The higher the duty cycle, the higher the average voltage applied to the DC motor, resulting in an increase in motor speed. The shorter the duty cycle, the lower the average voltage applied to the DC motor, resulting in a decrease in motor speed.

H-Bridge – to control the spinning direction

The spinning direction of a DC motor can be controlled by changing the polarity of its input voltage. A widely used technique to accomplish this is to use an H-bridge.
An H-bridge circuit is made up of four switches arranged in a H shape, with the motor in the center.

Closing two specific switches at the same time reverses the polarity of the voltage applied to the motor. This causes a change in the spinning direction of the motor.

The following animation shows the working of the H-bridge circuit.

L298N Motor Driver Chip

At the center of the module is a big, black chip with a chunky heat sink – the L298N.

The L298N chip contains two standard H-bridges capable of driving a pair of DC motors, making it ideal for building a two-wheeled robotic platform.

The L298N motor driver has a supply range of 5V to 35V and is capable of 2A continuous current per channel, so it works very well with most of our DC motors.

L298N Motor Driver Module Pinout

The L298N module has 11 pins that allow it to communicate with the outside world. The pinout is as follows:
Power Pins
The L298N motor driver module receives power from a 3-pin, 3.5mm-pitch screw terminal.

The L298N motor driver has two input power pins: VS and VSS.

VS pin powers the IC’s internal H-Bridge, which drives the motors. This pin accepts input voltages ranging from 5 to 12V.

VSS is used to power the logic circuitry within the L298N IC, and can range between 5V and 7V.

GND is the common ground pin.

Output Pins

The output channels of the L298N motor driver, OUT1 and OUT2 for motor A and OUT3 and OUT4 for motor B, are broken out to the edge of the module with two 3.5mm-pitch screw terminals. You can connect two 5-12V DC motors to these terminals.

Each channel on the module can supply up to 2A to the DC motor. The amount of current supplied to the motor, however, depends on the capacity of the motor power supply.
Direction Control Pins
The direction control pins allow you to control whether the motor rotates forward or backward. These pins actually control the switches of the H-Bridge circuit within the L298N chip.

Temperature Sensor	STMicro LPS25HB
IMU	STMicro LSM9DS1
Color Sensor	TCS3400 RGB Color and Brightness Sensor
LED Matrix	8x8 RGB LED Display
Joystick	5-Button Miniature Joystick with Up
Production Lifetime	January 2028
Brand	Raspberry
Model	Pi Sense HAT

• The Raspberry Pi Sense HAT gives your Raspberry Pi an array of sensing capabilities. The on-board sensors allow you to monitor pressure, humidity, temperature, colour, orientation, and movement. The bright 8x8 RGB LED matrix allows you to visualise data from the sensors, and the five-button joystick lets users interact with your projects.
• The Sense HAT was originally developed for use on the International Space Station, as part of the educational Astro Pi programme run by the Raspberry Pi Foundation in partnership with the European Space Agency. It is well suited to many projects that require position, motion, orientation, or environmental sensing. The Sense HAT is powered by the Raspberry Pi computer to which it is connected.
• An officially supported Python library provides access to all of the on-board sensors, the LED matrix, and the joystick.The Sense HAT is compatible with any Raspberry Pi computer with a 40-pin GPIO header.

Warning:-

• This product shall only be connected to a Raspberry Pi via the GPIO header.
• Any external power supply used with the Raspberry Pi Sense HAT shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to the Raspberry Pi Sense HAT may affect compliance, result in damage to the unit, and invalidate the warranty.
• The connection of incompatible devices to the GPIO connection of a Raspberry Pi computer may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
• Operation of this device requires adult supervision.

Safty:-

To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi computers and the Raspberry Pi Sense HAT are designed for reliable operation at normal ambient temperatures
. • Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the corners to minimise the risk of electrostatic discharge damage.

• The Sense HAT is an add-on board that gives your Raspberry Pi an array of sensing capabilities. The on-board sensors allow you to monitor pressure, humidity, temperature, colour, orientation, and movement. The bright 8×8 red LED matrix allows you to visualise data from the sensors, and the five-button joystick lets users interact with your projects.

Hardware designed for space:

• The Sense HAT was originally developed for use on the International Space Station, as part of the educational Astro Pi programme run by the Raspberry Pi Foundation in partnership with the European Space Agency. It is well suited to many projects that require position, motion, orientation, or environmental sensing. The Sense HAT is powered by the Raspberry Pi computer to which it is connected.



Material	Cardboard
Model Type	Working Model
Usage/Application	For School Projects
Power	DC Battery
Kit Required	Yes

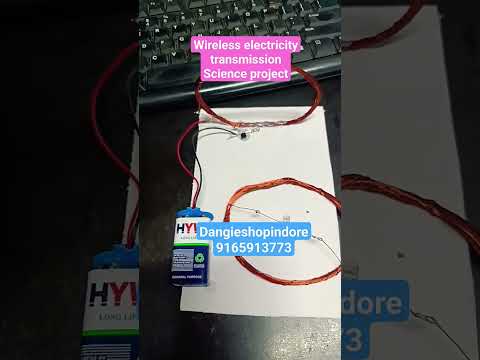

Wireless energy transmission, school level minor project
