ELECTRICAL SPECIFICATIONS: Frequency Range 1.5 - 30 MHz. Gain Unity  Bandwidth Full 1.5 to 30 MHz. Polarization Horizontal or Inverted "V" Input Impedance 50 Ohms. Radiation Pattern Omni-directional VSWR 2 : 1  RF Power Handling Capacity 500 Watts. Input Termination N-Female Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Net Weight 4 Kgs. (antenna only) Wind Rating 160 Km/Hr. Balun Base Diameter 65 mm (Balun) Base Material Nylon (Balun) Overall Length 23 Meters. Shipping Box Size 0.60 x 0.15 x 0.15 Meter Dipole Materials Twisted Copper with Insulator Spreaders Materials PVC Pipe Insulator Materials Nylon Recommended Mast Height 9 Meters (30 Feet) Distance between Mast 25 Meters   ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)25 to +65 Degrees Celsius Storage Temperature (-)40 to +75 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-2FHFANT
• Production Capacity: 1000/Month
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

ELECTRICAL SPECIFICATIONS: Frequency Range 1.5 - 30 MHz. Gain Unity  Bandwidth Full 1.5 to 30 MHz. Polarization Horizontal or Inverted "V" Input Impedance 50 Ohms. Radiation Pattern Omni-directional VSWR 2 : 1  RF Power Handling Capacity 500 Watts. Input Termination N-Female Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Net Weight 4 Kgs. (antenna only) Wind Rating 160 Km/Hr. Balun Base Diameter 65 mm (Balun) Base Material Nylon (Balun) Overall Length 23 Meters. Shipping Box Size 0.60 x 0.15 x 0.15 Meter Dipole Materials Twisted Copper with Insulator Spreaders Materials PVC Pipe Insulator Materials Nylon Recommended Mast Height 9 Meters (30 Feet) Distance between Mast 25 Meters   ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)25 to +65 Degrees Celsius Storage Temperature (-)40 to +75 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-3FHFANT
• Production Capacity: 1000/Month
• Delivery Time: Ready Stock
• Packaging Details: Box Packaging

ELECTRICAL SPECIFICATIONS: Frequency Range 1.5 - 30 MHz. Gain Unity  Bandwidth Full 1.5 to 30 MHz. Polarization Horizontal or Inverted "V" Input Impedance 50 Ohms. Radiation Pattern Omni-directional VSWR 2 : 1  RF Power Handling Capacity 500 Watts. Input Termination N-Female Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Net Weight 4 Kgs. (antenna only) Wind Rating 160 Km/Hr. Balun Base Diameter 65 mm (Balun) Base Material Nylon (Balun) Overall Length 23 Meters. Shipping Box Size 0.60 x 0.15 x 0.15 Meter Dipole Materials Twisted Copper with Insulator Spreaders Materials PVC Pipe Insulator Materials Nylon Recommended Mast Height 9 Meters (30 Feet) Distance between Mast 25 Meters   ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)25 to +65 Degrees Celsius Storage Temperature (-)40 to +75 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-2FHFBANT
• Production Capacity: 1000/Month
• Delivery Time: Ready Stock
• Packaging Details: Box Packaging

Design Features: WD-118-400 VHF UHF aviation band heavy duty fully welded discone antenna is specially designed to survive the most extreme conditions, where conventional antennas often fail. Due to its low VSWR through entire band from 118-400 MHz., this discone antenna can be used as a transmitting and receiving antenna with high efficiency, to meet the broadband requirement of a base station antenna such as spectrum monitoring or jamming application without need of multiple antennas. WD-118-400 wideband discone antenna is extremely rugged, fully welded at all junctions, all weather model, does not require any field tuning or adjustments. The wide vertical beam-width of discone antennas allows clear communication for ground, sea, and ground-to-air applications. The fully welded wide band discone antenna is highly suitable for Oceanic application especially in arctic region where vibration and ice loading are main concern. Constructions: The fully welded wide band discone antenna uses 6063T6 Mil grade ultra corrosion resistant architectural anodized aluminum alloy with powder coating finish to protect the antenna further from severe environmental condition. All internal junctions are enclosed within a ruggedized radome to ensure survivability in the worst environments. The powder coating on all metal surfaces ensures complete protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and sand storms in desert environments. Discone Antenna termination enclosed inside the mounting pipe for complete weather protection. All the screws, nuts and bolts of heavy duty wide band discone antenna are made of type 316 marine grade stainless steel. Electrical Specifications: Frequency Range 118-400 MHz Gain 2.15 dBi Bandwidth 118-400MHz Polarization Vertical Input Impedance 50 Ohms Radiation Pattern Omni-directional VSWR - Equal To or Better Then 2:1 RF Power Handling Capacity 500 Watts Input Termination N-Female Mechanical Specifications: Antenna Materials 6063T6 Aluminum Alloy Mounting Hardware -Materials Marine Grade Stainless Steel Wind Rating 200 Km/Hr. Overall Length 1.2 Meters Shipping Length 1.25 Meters Maximum Mount Pipe Diameter 52 mm (2 Inches) Gross Weight 6.5 Kgs. Environmental Specifications: Operating Temperature (-)30 to +70 Degrees Celsius Storage Temperature (-)40 to +80 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-DISCONE100-400Mhz
• Production Capacity: 1000/Month
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

• 360° Omnidirectional Coverage
  Radiates signal uniformly in all horizontal directions, ensuring consistent connectivity for multiple devices in all directions around the antenna—ideal for base stations or access points.

• Optimized for 4GHz Band
  Specifically tuned for the 3.8 to 4.2 GHz frequency range, making it suitable for specialized communication systems such as fixed wireless, private LTE, or licensed microwave links.

• Rugged Outdoor Construction
  Designed with a waterproof, UV-resistant radome and corrosion-resistant mounting hardware—ensuring long-lasting performance in harsh outdoor environments.

• Designed for VHF Band (88 MHz)
  Tuned specifically for the VHF frequency range, this antenna is ideal for FM radio broadcasting, public service communication, and marine or amateur radio applications.

• Flexible Whip Construction
  Made with a durable, flexible whip (typically stainless steel or fiberglass) that can withstand bending, vibrations, and wind—perfect for mounting on moving vehicles.

• Magnetic or Fixed Mount Options
  Available with magnetic base or bolt-on mounts for secure installation on cars, trucks, boats, or communication vehicles—offering ease of use and portability.

Additional Information:

• Item Code: DW-DISCONE25-3000MHZ
• Production Capacity: 1000 Pcs Monthly
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

• High Directional Gain
  Provides focused signal reception and transmission in the UHF 512 MHz band, ideal for long-range point-to-point communication, such as land mobile radio, telemetry, or wireless data links.

• Narrowband Precision
  Tuned specifically for the 512 MHz frequency, this antenna ensures minimal signal loss and strong performance within its target band—excellent for reliable communication in fixed installations.

• Durable Outdoor Design
  Built with corrosion-resistant aluminum elements and UV-stabilized mounting hardware, making it weatherproof and suitable for rooftop, tower, or pole mounting in rugged environments.

• High Directional Gain – Focused beam pattern provides strong signal reception/transmission in one direction, ideal for long-range applications.

• Precision-Tuned for 512MHz – Optimized for exclusive use at 512MHz frequency, ensuring maximum efficiency and minimal interference.

• Lightweight & Durable – Compact, weather-resistant design (typically aluminum or fiberglass) for reliable outdoor deployment.

A 6 dBi 66 MHz GP Antenna is a ground plane (GP) antenna designed to operate at 66 MHz, offering a gain of 6 dBi. It features a vertical radiator with a ground plane system to provide omnidirectional coverage in the horizontal plane. Commonly used in VHF communication systems such as public safety, land mobile radio, and specialized industrial applications, this antenna delivers reliable signal strength and durability in outdoor environments.

A 0 dBi 174 MHz GP Antenna is a ground plane (GP) antenna designed to operate at 174 MHz with a unity gain (0 dBi), offering omnidirectional radiation in the horizontal plane. It features a vertical radiator with radial ground elements to provide a balanced and simple radiation pattern. Commonly used in VHF communication systems such as public safety, land mobile radio, and broadcasting, this antenna delivers reliable coverage and ease of installation for outdoor applications.

Additional Information:

• Item Code: DWLPDA0.6-10GHz
• Production Capacity: 100 Pcs
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

Additional Information:

• Item Code: DW-LPDA512MHZ
• Production Capacity: 1000/Month
• Delivery Time: 2-3 DAYS
• Packaging Details: BOX PACKAGING

  OMNI_DIRECTIONAL STACKED DIPOLE ARRAY  DESIGN FEATURES: The DW-SD6450 high performance UHF stacked dipole array is designed for use with highly populated radio sites requiring long haul omni-directional coverage. The DW-SD6450 is heavy duty stacked dipole array features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni directional characteristics. This stacked dipole array is highly suitable as base station antennas for Repeater and Paging sites.  CONSTRUCTIONS: The SD6-450 Stacked Dipole Array consists of four folded dipoles stacked vertically, fed in phase. This Stacked Dipole Antenna operates at D.C. ground for protection against lightning. Termination of phasing harness cable sealed by heat shrinking tube making stacked dipole antenna waterproofing. The 3.65 Meters long central mast for mounting the dipoles is shipped in two sections of 1.85 Meters each for easy of shipping.   RADIATION PATTERN: When the FOUR dipoles are arranged 90 degrees apart around the central mast, 6dBd. omni directional radiation pattern results. Aligning the FOUR dipoles collinearly (facing in one direction) a 9dBd. offset radiation pattern is obtained. The radiation pattern can be changed in the field by use of common hand tools. ELECTRICAL SPECIFICATIONS: Frequency Range 406 - 512 MHz. Gain 6 dBd. Omni or 9 dBd. Offset Bandwidth 25 MHz. Polarization Vertical Input Impedance 50 Ohms. Radiation Pattern Omni Directional Vertical Beamwidth –Half Power Points 18 degrees (Vertical) VSWR 1.5 : 1  RF Power Handling Capacity 250 watts. Input Termination N-Female  Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Mounting Hardware Stainless Steel Wind Rating 210 Km/Hr. Overall Length 3.6 Meters Support Pipe Aluminum – Outer Diameter 51 mm Dipoles Aluminum – Outer Diameter 12.7 mm Shipping Length 1.85 Meters 4.5 Feet Long Horizontal Side Arms – 2 Nos. Aluminum Maximum Mount Pipe Diameter 52 mm (2 Inches) Gross Weight 12 Kg  ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)30 to +70 Degrees Celsius Storage Temperature (-)40 to +80 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-SD6406
• Production Capacity: 1000/Month
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

DESIGN FEATURES: The DW-SD3150 high performance VHF lower band stacked dipole array is designed for use with highly populated radio sites requiring long haul omni-directional coverage. The  DW-SD3150 is heavy duty stacked dipole array features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni-directional characteristics. This stacked dipole array is highly suitable as base station antennas for PMR, Repeater and Paging sites.  CONSTRUCTIONS: The SD3-150 Stacked Dipole Array consists of TWO folded dipoles stacked vertically, fed in phase. This Stacked Dipole Antenna operates at D.C. ground for protection against lightning. Termination of phasing harness cable sealed by heat shrinking tube making stacked dipole antenna waterproofing. The 3.6 Meters (12 feet) long central mast for mounting the dipoles is shipped in two sections of 1.8 Meters (6 feet) each for easy of shipping. The stacked dipole antenna is suitable to mount on the top of tower and is supplied with two mounting brackets.  RADIATION PATTERN: When the TWO dipoles are arranged 180 degrees apart around the central mast, 3dBd. (5.15dBi) omni-directional radiation pattern results. Aligning the TWO dipoles collinearly (facing in one direction) a 6dBd. (8.15dBi) offset radiation pattern is obtained. The radiation pattern can be changed in the field by use of common hand tools.   ELECTRICAL SPECIFICATIONS: Frequency Range 136 -174 MHz. Gain 3dBd Omni /6dBd Offset Bandwidth 10 MHz. Polarization Vertical Input Impedance 50 Ohms. Radiation Pattern Omni Directional Vertical Beam-width –Half Power Points 36 Degrees  VSWR – Less than 1.5 : 1  RF Power Handling Capacity 500 watts. Input Termination N-Female Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Mounting Hardware Stainless Steel Wind Rating 200 Km/Hr. Overall Length 3.6 Meters (12 feet) Support Pipe Aluminum – Outer Diameter 51 mm Dipoles Aluminum – Outer Diameter 12.7 mm Shipping Length 1.8 Meters (6 feet) Maximum Mount Pipe Diameter 52 mm (2 Inches) Gross Weight 10  Kgs. ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)30 to +70 Degrees Celsius Storage Temperature (-)40 to +80 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DW-SD3150
• Production Capacity: 1000/Month
• Delivery Time: 1-2 Days
• Packaging Details: Box packaging

DESIGN FEATURES: The DW-SD3512 high performance VHF lower band stacked dipole array is designed for use with highly populated radio sites requiring long haul omni-directional coverage. The  DW-SD3512 is heavy duty stacked dipole array features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni-directional characteristics. This stacked dipole array is highly suitable as base station antennas for PMR, Repeater and Paging sites.  CONSTRUCTIONS: The SD3-150 Stacked Dipole Array consists of TWO folded dipoles stacked vertically, fed in phase. This Stacked Dipole Antenna operates at D.C. ground for protection against lightning. Termination of phasing harness cable sealed by heat shrinking tube making stacked dipole antenna waterproofing. The 3.6 Meters (12 feet) long central mast for mounting the dipoles is shipped in two sections of 1.8 Meters (6 feet) each for easy of shipping. The stacked dipole antenna is suitable to mount on the top of tower and is supplied with two mounting brackets.  RADIATION PATTERN: When the TWO dipoles are arranged 180 degrees apart around the central mast, 3dBd. (5.15dBi) omni-directional radiation pattern results. Aligning the TWO dipoles collinearly (facing in one direction) a 6dBd. (8.15dBi) offset radiation pattern is obtained. The radiation pattern can be changed in the field by use of common hand tools.   ELECTRICAL SPECIFICATIONS: Frequency Range 136 -174 MHz. Gain 3dBd Omni /6dBd Offset Bandwidth 10 MHz. Polarization Vertical Input Impedance 50 Ohms. Radiation Pattern Omni Directional Vertical Beam-width –Half Power Points 36 Degrees  VSWR – Less than 1.5 : 1  RF Power Handling Capacity 500 watts. Input Termination N-Female Lightning Protection Direct Ground  MECHANICAL SPECIFICATIONS: Mounting Hardware Stainless Steel Wind Rating 200 Km/Hr. Overall Length 3.6 Meters (12 feet) Support Pipe Aluminum – Outer Diameter 51 mm Dipoles Aluminum – Outer Diameter 12.7 mm Shipping Length 1.8 Meters (6 feet) Maximum Mount Pipe Diameter 52 mm (2 Inches) Gross Weight 10  Kgs. ENVIRONMENTAL SPECIFICATIONS: Operating Temperature (-)30 to +70 Degrees Celsius Storage Temperature (-)40 to +80 Degrees Celsius Humidity 0 to 95% RH

Additional Information:

• Item Code: DWSD-512Mhz
• Production Capacity: 1000/Month
• Delivery Time: 1-2 Days
• Packaging Details: Box Packaging

A 174 MHz Whip Mobile Antenna is a flexible, vertically oriented antenna designed to operate around 174 MHz, typically within the VHF frequency band. It is commonly used on vehicles for mobile communication applications such as public safety, land mobile radio, and commercial two-way radio systems. The whip design provides omnidirectional coverage and is built to withstand vibration, weather, and outdoor conditions, ensuring reliable signal transmission and reception on the move.

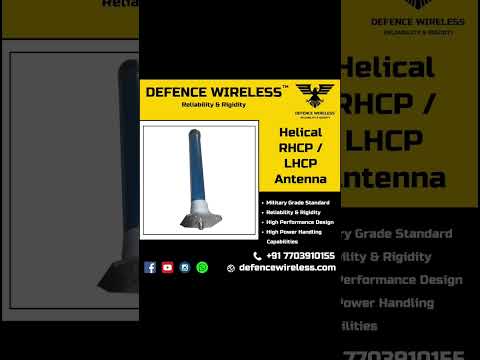

• Compact Helical Design
  The coiled (helix) structure offers a compact form factor while maintaining efficient radiation—ideal for embedded and portable 2.4GHz applications like Wi-Fi, Zigbee, or Bluetooth.

• Omnidirectional or Directional Radiation (Depending on Pitch)
  Can be designed to offer omnidirectional coverage for general wireless connectivity or directional gain for focused signal transmission in wireless communication systems.

• Tuned for 2.4GHz ISM Band
  Optimized for 2.4–2.5 GHz frequency range, making it suitable for a variety of wireless devices, including drones, routers, remote controls, and IoT modules.

A 3 dBi 136 MHz GP Antenna is a ground plane (GP) antenna designed to operate at 136 MHz, typically within the VHF band. Offering a gain of 3 dBi, it provides omnidirectional coverage with improved signal strength compared to a unity gain antenna. Featuring a vertical radiator and radial ground elements, it is commonly used in land mobile radio, public safety, and commercial communication systems, delivering reliable performance and durability in outdoor environments.

A 0 dBi 66 MHz GP Antenna is a ground plane (GP) antenna designed to operate at 66 MHz with a unity gain (0 dBi), providing omnidirectional coverage around the horizontal plane. It consists of a vertical radiator and radial ground elements, offering a simple, balanced radiation pattern. Commonly used in VHF communication systems for reliable, basic signal transmission in public safety, industrial, and land mobile radio applications.

A 3 dBi 88 MHz GP Antenna is a ground plane (GP) antenna designed to operate at 88 MHz, offering a gain of 3 dBi. It features a vertical radiator with radial ground elements, providing omnidirectional coverage with improved signal strength over a unity gain antenna. Commonly used in VHF communication applications like public safety, land mobile radio, and broadcasting, this antenna delivers reliable performance and durability in outdoor environments.

• Wide Frequency Coverage - Optimized for high performance across the full 1000MHz range with consistent gain

• Directional High Gain - Provides 6dBi directional gain for improved signal strength and reduced interference

• Lightweight Durable Design - Compact log-periodic dipole array construction with rugged materials for reliable outdoor/indoor use
