EMC Instruments

Flow Meter Type	Portable
Brand	TUF 2000H
Flow Media Type	Water
Display	Digital
Response Time	5Sec
Model Name/Number	TUF2000H
Application Media	Water
Applicable Pipe Diameter	15 NB to 6000 NB

This flowmeter can be virtually applied to a wide range of measurement. A variety of liquidapplications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage,reclaimed water, cooling water, river water, plant effluent. etc

Additional Information:

• Delivery Time: 01 day

Material	Brass
Usage/Application	Automotive
Brand	CPC
Flow Media Type	Liquid
Display	Digital

Incepted in the year 2019, “EMC INSTRUMENTS” is a distinguished wholesaler offering an enormous consignment of Pressure Transmitter,Flow Meter etc. Under the administration of our guide “Mr. Manish Kushwaha”, we have garnered a reputed position in this highly competitive industry.

Usage/Application	Industrial
Brand	EMC
Flow Media Type	Water
Application Media	Water
Display	Digital
Ingress Protection	IP65
Model Name/Number	TDS-100H

TDS-100H is a completely non-invasive ultrasonic flow meter using an ultrasonic signal to measure the flow rates with the transient time method. The unit has a built i datalogger for over 2000 lines of data and is optional for an external datalogger. TDS-100H has a pair of Transducers capable of measuring flowrates in pipes from 15mm to 6000mm at temperature between 0 to 160 Degree C.

Additional Information:

• Item Code: 9026
• Delivery Time: 2 weeks

Display Type	Digital
Usage/Application	Air Velocity
Model Name/Number	HT 9829
Make	2025
Country of Origin	Made in India

Features: • Telescoping probe is ideal for measuring in HVAC ducts and other small vents; extends up to 7ft (2.1m) maximum length with cable
• Built-in RS-232 PC serial interface for connection to PC
• Extra large 1.4" (36mm) dual LCD display
• MAX/MIN, Data Hold
• Complete with telescoping probe with cable, six AAA batteries and protective holster. NOTE: AC Adaptor not available for this model
• Optional Windows® compatible Data Acquisition Software and serial cable enable user to display and capture readings on a PC, with adjustable sample rate and alarms

Packaging Type	Box
Material	Stainless Steel
Brand	Langry
Model Name/Number	LR-FS500
Usage/Application	Industrial
Display Type	Digital

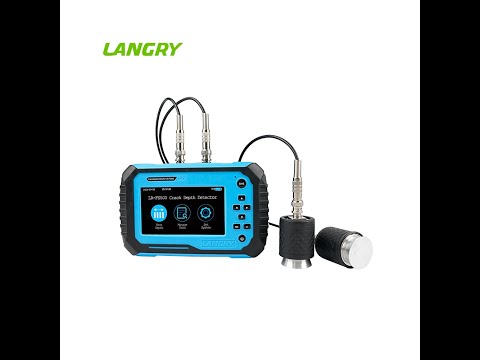

LANGRY’s LR-FS500 Crack Depth Detector precisely measures crack depth with ultrasonic waves. It is ideal for inspecting concrete and non-metal surfaces.

Brand	Electronet
Model Name/Number	ELMAG200
Display	Digital
Application Media	Water
Accuracy	0.5%
Usage/Application	Process Industry
Material	Stainless Steel

Electronet series ELMAG -200 are micro-controller based full bore type electromagnetic flow meters specially used for various industrial applications. These flow meters accurately measure the flow rate of conductive liquids and slurries in closed pipes. Due to its simple and rigid design, the flow meter is an obstruction less and maintenance-free instrument inplace of conventional mechanical flow measuring devices. The use of ‘Pulsed DC’ technology offers highest ability and bettermeasuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow. The instrument is based onFaraday’s law of electromagnetic induction. A magnetic ?eld is generated by the instrument in the flow tube. The fluid flowingthrough this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is providedwith respect to measuring flow range.
