EMC Instruments

Voltage	8 V
Material	Mild Steel
Capacity	50 Measures
Usage/Application	Industrial
Frequency	50 Hz
Country of Origin	Made in India

Cronosonic is an instrument for ultrasonic pulse velocity through transparency which can be used toinvestigate poles, truss, diaphrams, laboratory samples and many other structures made of concrete or stone.It performs measurements with direct, indirect and semi direct method. Very compact instrument is providedwith display for realtime visualization of the time of fly (T.O.F.) and velocity of investigated material.Measurements can be transferred to a PC through USB connection. For the visualization of wave form it ispossible to interface instrument with external oscilloscope. Ultrasonic pulse velocity survey is a standardizedsystem in diagnostics of concrete. From analysis of compression P waves into material, it is possible to getTime of Fly (T.O.F.) of ultrasonic waves and propagation speed of the same into investigated material. Thishigh frequency method is particularly indicated for compact materials such as dried concrete and onstructural elements of reduced dimensions as trusses, poles, etc. This instrument series allows to estimatemechanical characteristics of materials, evaluate homogeneity rate and any eventual fractures, cavities,defects or anomalies of the element.

Usage/Application	Industrial
Material	Mild Steel
Voltage	240V
Frequency	50 Hz
Display	Yes
Country of Origin	Made in India

Incepted in the year 2019, “EMC INSTRUMENTS” is a distinguished wholesaler offering an enormous consignment of Pressure Transmitter,Flow Meter etc.   Under the administration of our guide “Mr. Manish Kushwaha”, we have garnered a reputed position in this highly competitive industry.

Material	Mild Steel
Display Type	Digital
Usage/Application	Industrial
Operating Mode	Automatic
Country of Origin	Made in India
Type	Pull Out Tester

Instruments and equipment used to detect the pull-out force of various anchors, anchor cables, steelminiature2bars, planting bars, expansion bolts, chemical anchor bolts, railway spikes, and various anchors, and canalso be used for on-site pull-out force testing of glass curtain walls. The test is a necessary testinginstrument for all quality inspection units, reinforcement units, supervision units, universities, coal mines,etc.

Material	Stainless Steel
Country of Origin	Made in India
Warranty	12 Months
Model Number	TEM92

Incepted in the year 2019, “EMC INSTRUMENTS” is a distinguished wholesaler offering an enormous consignment of Pressure Transmitter,Flow Meter etc. Under the administration of our guide “Mr. Manish Kushwaha”, we have garnered a reputed position in this highly competitive industry.

Is It Portable	Portable
Usage/Application	Industrial
Display Type	Digital
Warranty	12 Months
Country of Origin	Made in India

Incepted in the year 2019, “EMC INSTRUMENTS” is a distinguished wholesaler offering an enormous consignment of Pressure Transmitter,Flow Meter etc. Under the administration of our guide “Mr. Manish Kushwaha”, we have garnered a reputed position in this highly competitive industry.

Capacity	500 kN
Material	Stainless Steel
Usage/Application	Laboratory
Brand	LANGRY
Operating Mode	Manual

The LANGRY Anchor Bolt Pull-out Tester is a versatile tool for testing the anchoring force of various components. It is ideal for on-site testing and quality inspections.

Measuring Range	70 MPa
Hammer Type	N
Impact energy	2.207 Nm
Service Location	Pan India
Brand	TEM912
Country of Origin	Made in India
Service Type	Rebound Hammer Testing Services
Type	Rebound Hammer Testing Services
Service Mode	Offline
Payment Mode	Offline

Essential for structural engineering, construction, and quality control,  Digital Rebound Hammer provides accurate compressive strength measurements for ordinary concrete, ensuring compliance with industry standards and enhancing structural integrity assessments.

Hammer Type	N
Measuring Range	70 MPa
Impact energy	2.207 Nm
Brand	Langry
Country of Origin	Made in India

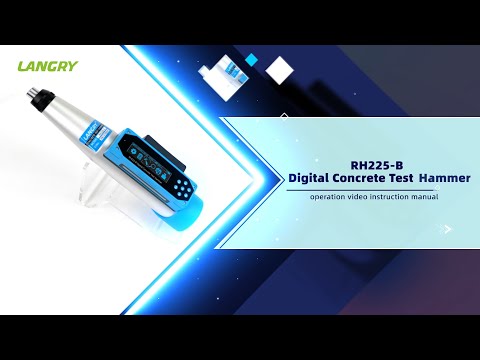

The RH225-B Digital Rebound Hammer, meticulously developed by Langry Technology, is a practical patented product that fully complies with national regulations.

Material	Mild Steel
Automation Grade	Automatic
Color	Blue
Frequency	Customized
Country of Origin	Made in India

IWIN-Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under staticload, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable formonitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port,wharf and industrial and civil buildings subjected to static load.After the first loading and unloading of the ground by the circular bearing plate and loadingdevice, the second loading is carried out. The values of deformation modulus Ev2 and Ev2/Ev1are calculated by the measured stress_under the bearing plate and the corresponding centralsettlement value S of the bearing plate.

Material	Mild Steel
Automation Grade	Semi-Automatic
Usage/Application	Industrial
Finishing	Polished
Country of Origin	Made in India

We are engaged in offering Dynamic Plate load Test Equipment to our clients. Our range of all products is widely appreciated by our clients.

Test type	Drop Weight
Product Type	Testing Machine
Model Name/Number	Vu-Con
Application	Concrete
Standard	ASTM C1383
Brand	JAMES INSTRUMENT
Display Type	Digital
Automation Grade	Automatic

The Vu-Con® System provides the engineer with the sturdiest, most reliable system for impact echo analysis. No moving parts and implementation of the latest microcomputer technology has created a system that is both sophisticated and reliable. The unit comes with a 90 mm (3.5) by 115 mm (4.5) graphic display screen that is easily viewed in daylight. This allows rapid analysis of results in situ. It may store more than 200 individual tests with time and date indication.

Material Type	Soil
Test Application	Geotechnical Study
Test Method	4 Probe Method
Report Detail Level	Complete Design Report
Instrument Type	Resistivity Meter

This type of survey is carried out with the purpose to reconstruct an electro-tomography 1D for a measurement point. The geo-electric method consists in the experimental determination of the resistivity distribution characterising the electric structure of a medium. In the SEV method, the distance between the electrodes is increased progressively and the ratio between d.d.p. and the current intensity is measured from time to time. The resistivity values thus obtained are influenced by the characteristics of the materials at increasingly greater depths. In view of this second effect, a geometric correction must be made and therefore factors that depend on distances MN (measurement electrodes) and AB (input electrodes) must be introduced in the calculation of the resistivity. According to the variations of the electrodes positions along the geo-electric area, different quadrupole systems are identified: Wenner and Schlumberger. A profile 1D of the ground resistivity is obtained below one point.
