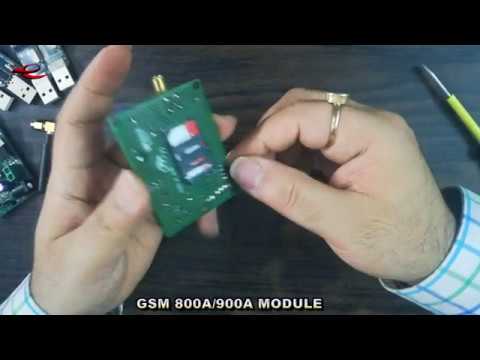

GSM800A Simcom Module & GPRS Modem With Finger Antenna

EnGeniusLab introduce a new & compact design of GSM & GPRS module by using NEW Chip SIM800A IC. It is GSM800A Module which use brain of SIMCOM 800 SOC, It is capable do all GSM related work & also support AT & T command with TTL output. It has also feature of speaker & mic connectivity using berg terminals. It has one silent & important feature that it support DTMF feature on call.

It is advance from 900A, because it has good network connectivity & in-build DTMF technology which give power of control on call. Apart from this, module can directly work on 5V & 12V, it means we can direct connect it to any microcontroller with 5V without external voltage.

• Integrated low power 32-bit MCU; Integrated 10-bit ADC; Integrated TCP/IP protocol stack, TR switch, balun, LNA, power amplifier and matching network, PLL, regulators, and power management units
• Supports antenna diversity Wi-Fi 2.4 GHz, support WPA/WPA2 Support STA/AP/STA+AP operation modes Support Smart Link Function for both Android and iOS devices Support Smart Link Function for both Android and iOS devices
• SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIOSTBC, 1x1 MIMO, 2x1 MIMOA-MPDU & A-MSDU aggregation and 0.4s guard interval

ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers. It providesunsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standaloneapplication, with the lowest cost, and minimal space requirement.

Note:

The only difference between ESP-12E and ESP-12F is the layout of the PCB antenna. The ESP12F has an optimized antenna

• Smallest sim800l gprs gsm module micro sim card core board quad-band ttl serial port
• Package includes one piece
• Module size: 25 x 23 mm

Additional Information:

• Delivery Time: 1 Day

• Quad Band 850/900/1800/1900 Mhz GSM Module
• Supports GPRS Mulislot class 12/10, maximum 85.6Kbps (uplink/downlink)
• Can transmit voice, SMS, data over GSM
• Supports Bluetooth 3.0 EDR
• Various protocol stacks inbuilt: FTP, HTTP, FTPS, HTTPS, SSL, POP3, SMTP, TCP, UDP
• Jamming Detection
• Support DTMF Detection
• Support Audio record and playback
• Flash Size: 24Mbit (actual usable flash size is less)
• Control via AT Commands (3GPP TS 27.007, 27.005)
• Supply Voltage: 3.4V to 4.4V
• Peak Current Requirements: 2A (during network related activities)

• Quad Band GSM / GPRS Module
• Internal Flash Size: 24 MBits (usable flash will be less)
• Can transmit voice, SMS, data over GSM
• Support GPRS Class 12/10, max 85.6Kbps (uplink or downlink)
• Supports Bluetooth 3.0 EDR

ESP32 Antenna and balun RF are already integrated, power amplifier, low noise amplifiers, filters, and power management module. The complete solution occupies the least amount of printed circuit area.

This board is used with 2.4GHz dual-mode Wi-Fi and Bluetooth chips by low power TSMC 40nm technology,
the best power and RF properties, which are safe, reliable and scalable to a variety of applications.

• High performance-price ratio
• Small volume, easily embezzled to other products
• Strong function with support LWIP protocol, Freertos
• Supports three modes: AP, STA and AP + STA
• Compatible with the Lua program, easy to develop

Additional Information:

• Delivery Time: 1 Day

The NRF24L01+ is a single chip 2.4GHz transceiver with an embedded base band protocol engine (Enhanced ShockBurstTM), suitable for ultra low power wireless applications. The NRF24L01+ is designed for operation in the world wide ISM frequency band at 2.400 - 2.4835GHz. You can operate and configure the nRF24L01+ through a Serial Peripheral Interface (SPI). The register map, which is accessible through the SPI, contains all configuration registers in the NRF24L01+ and is accessible in all operation modes of the chip. The radio front end uses GFSK modulation. It has user configurable parameters like frequency channel, output power and air data rate. NRF24L01+ supports an air data rate of 250 kbps, 1 Mbps and 2Mbps. The high air data rate combined with two power saving modes make the NRF24L01+ very suitable for ultra low power designs.nRF24L01+ is drop-in compatible with nRF24L01 and on-air compatible with NRF2401A, nRF2402, nRF24E1 and nRF24E2. Inter-modulation and wideband blocking values in NRF24L01+ are much improved in comparison to the NRF24L01 and the addition of internal filtering to NRF24L01+ has improved the margins for meeting RF regulatory standards. Internal voltage regulators ensure a high Power Supply Rejection Ratio (PSRR) and a wide power supply range.

• Orignal and Brand new product
• Model: NRF24L01+
• Data Rate: 250kbps, 1Mbps and 2Mbps on air data rates, Ultra Low Power Operation, 11.3mA TX at 0dBm Output Power
• Supply Range: 1.9 to 3.6V
• 13.5mA RX at 2Mbps air data rate

1100 m distance NRF24L01 + PA + LNA wireless module, transmitting antennas NRF24L01P + PA + LNA is ultra-long-distance data transmission specially developed high-power and high sensitivity wireless module .NRF24L01P + PA + LNA wireless module operates in Free license 2.4G ISM band, point to point applications, can also be composed of star network, NRF24L01P + PA + core LNA wireless module for the Norwegian NORDIC company's latest high-performance wireless data transmission chip NRF24L01 +, with the Division professional design, increased power PA and LNA chip, RF switch with pass filter composed of a professional full-duplex RF power amplifier, such that the effective communication distance has been greatly expanded. In the RF section, the Division has done a lot of debugging optimized match, making the highest emission efficiency, harmonic minimum, NRF24L01P + PA + LNA wireless module for RF interference external devices meet the minimum, while not susceptible to interference from other devices dramatically raise high stability work. NRF24L01P + PA + LNA wireless module is highly integrated, the size of only 41mm * 15.5mm, easily embedded in any space-constrained products, customers simply add a MCU via SPI port control NRF24L01P + PA + LNA wireless module can be completed over long-range wireless data transmission system design, without the need for the development of complete RF section

Additional Information:

• Delivery Time: 1 Day

The NRF24L01 transceiver module transmits data using GFSK modulation and operates in the 2.4 GHz worldwide ISM frequency band. The data transfer rate can be one of 250kbps, 1Mbps, and 2Mbps. These modules are so small, you can use them to add a wireless interface to practically any project. The module's operational voltage ranges from 1.9 to 3.6V, but the good news is that the logic pins are 5-volt tolerant, allowing us to connect it directly to an Arduino or any other 5V logic microcontroller without the need for a logic level converter. An SMA connector and a duck-antenna are included. The special RFX2401C chip integrates the PA(Power amplifier), LNA(Loe-Noise amplifier), and transmit-receive switching circuitry. This range extender chip, in combination with a duck antenna, allows the module to attain a transmission range of around 1000 meters. The nRF24L01 can be easily paired with a variety of microcontroller systems; MCU/ARM/PIC/AVR/STM32 by using the SPI protocol or an RF24 library when pairing with Arduino. Features 2.4GHz RF transceiver Module Operating Voltage: 1.9V-3.6V Communication Protocol: SPI Low-cost wireless solution

NodeMCU is a low-cost open source IoT platform. It initially included firmware which runs on the ESP8266 Wi-Fi Soc and hardware which was based on the ESP-12 module.

The prototyping hardware typically used is a circuit board functioning as a (DIP) which integrates a USB controller with a smaller surface-mounted board containing the MCU and antenna. The choice of the DIP format allows for easy prototyping on pcb. The design was initially was based on the ESP-12 module of the esp8266, which is a Wi-Fi SoC integrated with a Xtensa LX106 core, widely used in IoT applications

ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller. The ESP32 is integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules

Additional Information:

• Delivery Time: 1 Day

Additional Information:

• Production Capacity: 100
• Delivery Time: 2

Additional Information:

• Production Capacity: 100
• Delivery Time: 1 Day

This is Magnetic Mount Spring Antenna having a frequency of  2400 – 2483 MHz and gain of 3dBi. This is very helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antenna’s magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.

It provides high gain of 3 dBi and suitable for tough terrain and open air environment applications. Input impedance of this antenna is 50 ohm. It comes with magnetic base. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater, GSM sensor, GSM module& GSM modems.

433MHz 12V 4 Channel Relay Module Wireless with RF Remote Control Switch without Battery can be controlled by a wireless remote through a wireless RF link. The relays can be used to control 240 V AC up to 10A  appliances, motors, other electronic circuits, etc. The board can operate within a range of 50m when the remote is in line of sight and around 25m when indoors.

The RF link on this board works on the 433 MHz frequency. Both the transmitter and the receiver come with an onboard antenna and offer a compact and simple design.

The 5 Inch Touch Screen HDMI Interface TFT LCD Module is a good solution for those who are seeking for a bigger resolution display.

Operating Voltage : 12V DC Digital Output : logic one (+12V DC) logic zero (0V DC)*LAN Connector Digital Output Which Make This Device Easy To Interface With Board & Directly To Motors To Control In Both Clock & Anti-Clock Directions, External LAN Connector Available for easy connections. Mounting Hole of 2.5mm diameter for Easy Mounting*Kindly buy EnGeniusLab’s ORIGINAL product from Embeddinator store. NO SUPPORT / REPLACEMENT will be given for FAKE / CLONE products sold by other stores.
