we  supplied a custom solution that met all the abovementioned requirements: a column mounted Liftronic® Easy, 5 meters highwith a 3 joint arm, 4,2 meter long.It features:3.70 m. stroke; float mode; pneumatic brakes on the arm joints; motorbrake; pendant with UP/DOWN, speed, and brakes control buttons.

Additional Information:

• Production Capacity: As per order
• Delivery Time: 8-0 Weeks

Liftronic® EASY belongs to the INDEVA® intelligent industrial manipulators Liftronic® Series;
Designed for simple applications and non-complex and rapid work cycles. Only standard gripping tools applicable underneath the force sensing handle. A quick coupling device allows for quick and easy replacement of gripping tools to suit different load types.
Different models are available for capacities up to 320 kg and for applications on different supports such as freestanding column, ceiling, overhead rails and jibs.

Additional Information:

• Production Capacity: upto 500Kg
• Delivery Time: 6-8Weeks

Electronic Manipulators Liftronic^® SeriesLiftronic® Pro
– rope on the vertical axis;
– custom gripping tools
Liftronic® Easy
– rope on the vertical axis;
–  standard gripping tools
Liftronic® Air
– parallelogram rigid arm for the vertical axis;
– suitable for handling offset loads
Liftronic® Mobile
– it can be mounted onto a pallet truck;
– easy to move and use at different work stations
Read more…
Read more…
Read more…
Read more…
Advantages of Liftronic® INDEVA® Intelligent Devices for Handling  vs.traditional pneumatic manipulators.

auto-weight sense and auto balancing

very responsive and precise

ergonomic and effortless handling

remote troubleshooting  through App-Indeva

can be interconnected in logic industry 4.0

efficient and user-friendly auto diagnostic system: many auto- diagnostic parameters for accurate and quick fault diagnostic.

The Liftronic® Series Industrial electronic manipulators are known as INDEVAs, Intelligent Devices for Handling.
The INtelligent DEVices for hAndling (INDEVAs) are a new generation of advanced industrial manipulators, featuring electronic control.
They represent the evolution of traditional industrial manipulators and belong to the innovative product family of manual load handling assist devices known as Intelligent Assist Devices or IADS.
Many are the advantages of an INDEVA® compared to a traditional pneumatic manipulator, the main of which is surely the auto-weight sense and auto balancing feature and its greatest responsiveness. For these unique features the INDEVAs can be truly considered ‘human extenders’.
Liftronic® Series Intelligent Devices for HAndling (electronic manipulators)  are ideal anywhere speed, fluid movement and exact positioning of the load are required.

Additional Information:

• Delivery Time: 18 Weeks

The INDEVA® manipulators have been repeatedly chosen by many companies in the automotive industry thanks to Scaglia INDEVA® ‘s great experience in the design of customized gripping tools for moving back doors of different shapes, sizes and weights.

Generally, the back doors are gripped by a vacuum gripping system to prevent damage from falling.

The back door is gently positioned to prevent impacts and bounces.

In a sector such as the automotive industry where the concept of safety must be a priority, the Liftronic® system, thanks to its cutting-edge technology, guarantees a high standard of safety.

MAIN FEATURES
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Simple gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Enclosure protection: 54 IP
Vertical stroke: up to 2.80m

Additional Information:

• Production Capacity: As per requirement
• Delivery Time: 10-12 Weeks

An linear manipulator structure extra version, equipped withelectric hoist and push-button control panel. The system was suppliedwith standard hook unto which customer applied their gripper.

Price : 10 lakh onwards

Additional Information:

• Item Code: LiftronicLinear
• Production Capacity: As per order
• Delivery Time: 8-10Weeks
• Packaging Details: Will be shared later.

Advantages of Liftronic^® INDEVA^® Intelligent Devices for Handling  vs.traditional pneumatic manipulators.
auto-weight sense and auto balancing
very responsive and precise
ergonomic and effortless handling
remote trouble shooting  through App-Indeva
can be interconnected in logic industry 4.0
efficient and user-friendly auto diagnostic system: many auto- diagnostic parameters for accurate and quick fault diagnostic.
The Liftronic^® Series Industrial electronic manipulators are known as INDEVAs, Intelligent Devices for Handling.
The INtelligent DEVices for hAndling (INDEVAs) are a new generation of advanced industrial manipulators, featuring electronic control.
They represent the evolution of traditional industrial manipulators and belong to the innovative product family of manual load handling assist devices known as Intelligent Assist Devices or IADS.
Many are the advantages of an INDEVA^® compared to a traditional pneumatic manipulator, the main of which is surely the auto-weight sense and auto balancing feature and its greatest responsiveness. For these unique features the INDEVAs can be truly considered ‘human extenders’.
Liftronic^® Series Intelligent Devices for HAndling (electronic manipulators)  are ideal anywhere speed, fluid movement and exact positioning of the load are required.
The end effectors for the Liftronic^® Series manipulators
They can be linked either to standard gripping chucks or to bespoke gripping devices designed by our engineers specifically for each application.
Read more on the Liftronic^® Series end effectors:
Liftronic^® Pro end effectors
Liftronic^® Easy standard end effectors
INDEVA^® Modulo

Additional Information:

• Item Code: Liftronic
• Production Capacity: Upto 570Kg
• Delivery Time: 12 Weeks
• Packaging Details: As per Technical Specs.

Liftronic® Air Liftronic®  Air belong to the INDEVA® Liftronic® Series of intelligent industrial manipulators;
It combines the intelligent control system of the Liftronic® Series with the rigid parallelogram arm structure alike the pneumatic manipulators of the PN Series.
They represent the state of the art technology for handling offset loads.

Liftronic® Air is the latest technology and has no direct competition on market!!
Latest generation industrial manipulators of the INDEVA® family. They combine the strength of traditional pneumatic manipulators with the intelligence of the INDEVA®. Their power for lifting is pneumatic, but they are electronically controlled.  Models are available from 80 to 250 kg, that can be supplied either column, ceiling or overhead rail mounted. Compared to traditional pneumatically controlled manipulators, Liftronic® Air offers important advantages which help improve safety, egonomics and productivity.
Download Liftronic® Air leaflet and read  the comparison table:  Liftronic® Air vs. traditional pneumatically controlled manipulator


Additional Information:

• Delivery Time: 14-16 Weeks

Securing the handling of uncomfortable objects such as panels and glass sheets is a common requirement for companies operating in this sector.

The manual handling of these particularly bulky and uncomfortable items to grip generally requires more workers, and includes the risk of damaging both the product and the health of the operator.

Several INDEVA ®  manipulators have been supplied to companies to handle panels and glass sheets and position them appropriately for processing.

The operator can handle heavy glass panes all day without effort, without interruptions when changing the weight of the load being lifted, without having to hold down buttons, and without the risk of load falling or personal injury.

An INDEVA ®  is the only solution to increase productivity, ergonomics and safety when handling loads manually.

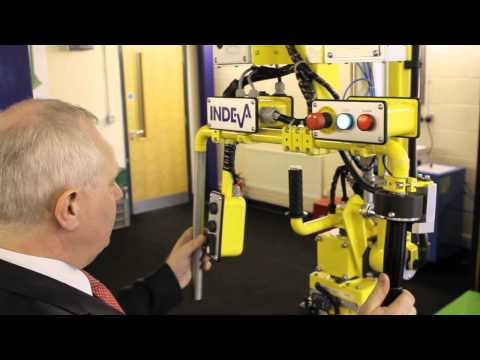

PN series manipulators are traditional industrial manipulators featuring pneumatic control and drive.

PN series balancers can be designed according to the ATEX regulations as per the EU Directives 94/9 regarding applications in controlled environments with danger of explosion, classified classes 1 and 2 (Gas).

PN series manipulators are traditional industrial manipulators featuring pneumatic control and drive.Type:

PN Ergo

PN Compatto

PN Flex

PN Zip

Pneumatic Manipulators balancers can be designed according to the ATEX regulations as per the EU Directives 94/9 regarding applications in controlled environments with danger of explosion, classified classes 1 and 2 (Gas).

max load capacity is 500 kg

Additional Information:

• Production Capacity: As per order
• Delivery Time: 14 Weeks -26Weeks

A Lift Assist Device INDEVA with a base suitable for being fitted on a pallet truck
Liftronic Mobile is an INDEVA Lift Assist Device designed to be installed on a pallet truck so that it can be moved and used wherever it is needed.

Main features and Advantages of Liftronic Mobile
Easy to fix onto a pallet truck
One lift assist device available for different work stations
Allows for very smooth handling operations thanks to its 4 jointed arm
Auto-weight sense and auto-balancing
Safe and easy to move around
Fast, responsive and precise
Low carbon footprint
Easy interchange of grippers for different applications
Easy maintenance, having all components easily accessible behind a removable carter.

Additional Information:

• Item Code: Liftronic_Mobile
• Production Capacity: -
• Delivery Time: 20Weeks

A rail mounted model Liftronic^® Easy slides along overhead bridge mounted rails. It is suitable for covering a large work area.
Main features
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA^® Gateway
• Unparalleled safety
• Ergonomic design
• Simple gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint
TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m
TECHNICAL DATA SHEET

Additional Information:

• Delivery Time: 7-8 Weeks

The paper industry and the plastics industry are national realities of excellence.

In the face of a domestic market that continues to grow quite steadily, it is thanks to exports that the sector is showing positive results: exports of these items have reached an overall increase of almost 7% year on year.

As these sectors are projected towards growth and innovation, several companies have relied on INDEVA manipulators for the handling of paper and plastic reels.

They are used with great satisfaction to load packaging machines with large reels of shrink film and paper.

With the INDEVA systems it is possible to easily handle reels of different weights and sizes thanks to the automatic and continuous weight balancing technology.

The movement of heavy objects such as reels, rolls and bumps is often very difficult and requires more than one operator, involving considerable physical effort.

Moving reels, rolls and bumps for eight hours a day would become particularly onerous for health.

Using an INDEVA ®  Liftronic ®  system allows you to maintain a constant level of productivity throughout your work cycle, handling reels, rolls and bumps in total ergonomics and safety.

Additional Information:

• Delivery Time: 10-12 Weeks

A manufacturer of transmission and power components has reorganized its “heavy picking” area in the warehouse by creating a dedicated area for the multiple handling of items to be placed inside bins.

The use of hoists located in different locations has been completely dismantled and the hoists removed. They have optimized the logistics by grouping all the “heavy picking” in a single area where they have installed a bridge crane structure with overhead rails along which a manipulator arm of the Liftronic Easy series, version Overhead Arm, runs.
A single operator in a picking area can maintain productivity constant all day long with very little effort.
Logistics optimization also includes a reduction of the number of workers at the “heavy picking” area: from one for each position with a hoist to a single operator for the entire picking area.

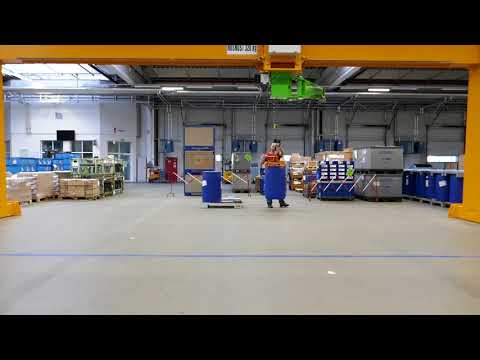

The Manipulator arm that slides under overhead rails can be used in a very large area; moving the overhead manipulator arm horizontally requires a very light effort by the operator, thanks to the smooth sliding allowed by the aluminum rails. Vertical load movement is almost effortless thanks to the electronic control of the Lifronic series manipulator.

Using a hoist all day long was causing serious health issues for the operators; they were, in fact, suffering from carpal tunnel inflammation for having to keep a button pressed all the time for the up-down movements.  Click here for a comparative table between a hoist and an INDEVA Liftronic Easy    and here to see a comparative video
Moreover, now they can handle the loads naturally with hands on the load (float mode) and move them easily as they were weightless.

Ergonomics for the operator has significantly improved, health issues relative to this work cycle solved and overall productivity has increased.

Additional Information:

• Production Capacity: Upto 320Kg

Linear Manipulator version is the best solution for reaching offset loads in a work area with low ceiling.
Main features
Auto-weight sense and automatic load weight balancingHigh precision in load placingThe load doesn’t suffer any impact when positionedTouch sensitive handle giving fingertip controlled movement: you can move the load at the exact speed you want, very quick or very slowTotal safety in the event of sudden loss of load: the controls immediately balance the system, so removing the risk of sudden upward movement of the toolingUser-friendlyEasy to maintainRemote servicing available
TECHNICAL DATA SHEET

Additional Information:

• Item Code: Linear_manipulator
• Production Capacity: As per order
• Delivery Time: 8-10Wks

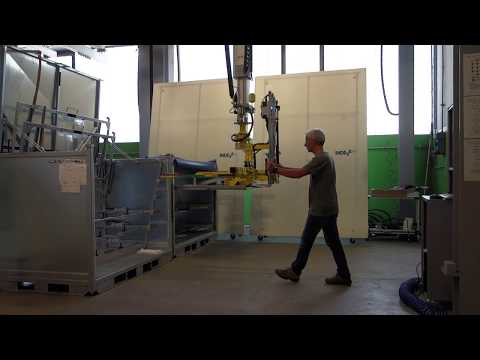

We have provided aoverhead rail mountedLiftronic® coupled withan aluminium telescopiccolumn with customgripper for handling offcenter loads. This telescopiccolumn is highly resilientand easy running even withoff-center loads. Price may be varies as per requirement.

Main features
• Auto-weight sense and auto-balancing
• Wide visibility and manoeuvrability
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: 120kg
Max lifting speed: 18 m/min
Vertical telescopic stroke: up to 1.30m

Additional Information:

• Item Code: LIFTRONICTL
• Production Capacity: AS PER ORDER
• Delivery Time: 10-12WEEKS
