Ergo Handlers

Max Load	300 kg
Usage/Application	Material Lifting
Automation Grade	Semi Automatic
Power Source	Hydraulic
Material	Iron
Brand	Indeva
Features	Auto-weight sense and auto-balancing
Power supply	110/230 V-AC - 50/60 Hz
Max. Gross Capacity	20kg (weight of lifting tool included)

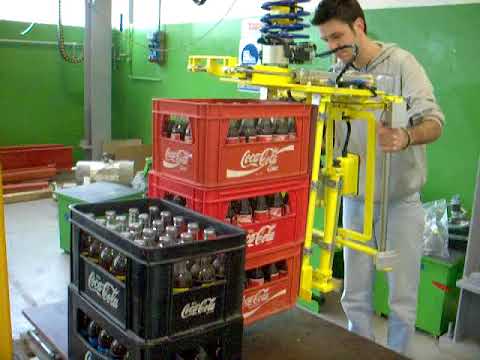

Overhead rail  or ceiling mounted INDEVA  Liftronic Pro with articulated arm. This solution is suitable when you can’t use any space on the floor for a column mounted solution or you need to cover a large area.

MAIN FEATURES
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

Max Load	300 kg
Usage/Application	Material Lifting
Automation Grade	Manual
Power Source	Hydraulic
Material	Iron
Brand	Indeva
Features	Auto-weight sense and auto-balancing
Max. Gross Capacity	320kg (weight of lifting tool included)
Power Supply	110/230 V-AC - 50/60 Hz

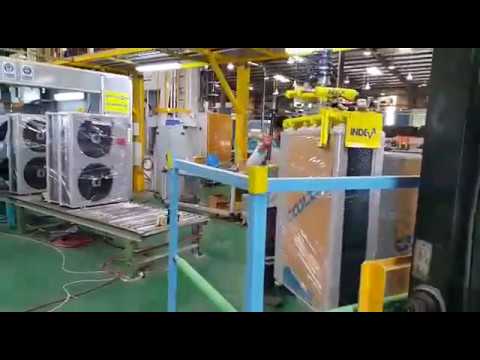

Liftronic® Pro version Column + Arm  is available in different configurations depending from the max load capacity, arm length and column height required for each application.

It is delivered complete with a custom designed gripping tool.

It can be fixed unto the floor or on a moveable base platform.

MAIN FEATURES
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint



TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

Capacity	60 BPM
Automation Grade	Semi-Automatic
Usage/Application	Industrial
Model Name/Number	Liftronic Pro Linear
Power Consumption	700 VA
Max Lifting Speed	0,6 m/sec
Packagig Size	Box

Main features

• Auto-weight sense and automatic load weight balancing
• High precision in load placing
• The load doesn’t suffer any impact when positioned
• Touch sensitive handle giving fingertip controlled movement: you can move the load at the exact speed you want, very quick or very slow
• Total safety in the event of sudden loss of load: the controls immediately balance the system, so removing the risk of sudden upward movement of the tooling
• User-friendly
• Easy to maintain
• Remote servicing available

Capacity	6 Persons
Max. Gross Capacity	120kg
Max lifting speed	18 m/min
Vertical Telescopic Stroke	Up to 1.30m
Packaging Type	Box
Material	Iron

The Liftronic® intelligent Manipulator mounted on a telescopic column, which is heavy-duty, smooth-running, backlash-free, and low-maintenance even with off-centered loads.

Main features
• Auto-weight sense and auto-balancing
• Wide visibility and manoeuvrability
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: 120kg
Max lifting speed: 18 m/min
Vertical telescopic stroke: up to 1.30m

Main features
• Auto-weight sense and auto-balancing
• Wide visibility and manoeuvrability
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint



TECHNICAL DATA
Max. gross capacity: 120kg
Max lifting speed: 18 m/min
Vertical telescopic stroke: up to 1.30m

Load Capacity	3 Ton
Mounting Type	Overhead rail
Tooling Type	Vacuum gripper
Application	Packaging, Assembly, Palletizing, Glass handling, Sheet handling, Machining
Crane Type	Double Girder
Max. Gross Capacity	From 80 to 320kg (weight of lifting tool included)
Power supply	110/230 V-AC - 50/60 Hz
Power Consumption	Max 700 VA
Vertical Stroke	Up to 2.80m

A rail mounted model Liftronic slides along overhead bridge mounted rails. It is suitable for covering a large work area

Main features
• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

Usage/Application	Lifting
Accessories	Side Loader
Model Name/Number	Liftronic Pro Lifttruck
Max Capacity	50 kg
Max Vertical Stroke	Max 3000 mm
Max Lifting Speed	0,6 m/sec
Power Consumption	700 VA

INDEVA® Liftruck  is an industrial manipulator that includes an order picker to carry the pallet with reels, an INDEVA® Liftronic® with articulated arm and an orbital tool head for handling reels. Necessary within the textile industry in the texturizing, spinning and weaving areas to load creels up to 5 m high with reels of max 40 kg . A single man can carry out the whole work cycle: collect pallets in the stock room and carry them up to the creel, place the spools on the creel prior 90° rotation, collect and carry all the tubes and partition carton blanks. The operator can quickly and precisely pick and release the reels, by means of the orbital tool head with expanding chuck . The release is allowed only when the reel is safely placed on the pin. The electronic balancer INDEVA®  grants a smooth, quick and precise reel handling.An INDEVA® Liftruck can be used also for handling cardboard cases by means of a vacuum gripper.

Main features

• Max capacity: 50 kg
• Max vertical stroke: max 3000 mm
• Max lifting speed: 0,6 m/sec
• Control: electronic – 24 Volt D.C.
• Power consumption: 700 VA
• Jointed Arm : Orbit-Arm®- possibility of custom arm lengths.
• Gripping tool with orbital tool head and expanding chuck: equipped with reel barycentre adjust device and quick coupling device for quick chuck replacement allowing to handle reels with diameters ranging from 70 to 150 mm .
• It is possible to use a vacuum gripper as end effector for handling cardboard cases.
• Control panel: it comprises a direction indicator, a battery charge indicator, a steering wheel, control handle for back/forward moves, emergency stop.
• Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor.
