Esab India Limited

Welding Process	MMA
Output Current	200 Amp
Welding Current	200 A
Technology	Inverter
Model	Rogue ES 200i Pro
Phase	Single Phase
Duty Cycle	60 %
Input Voltage	220 V
Brand	ESAB
Working Voltage	230V +- 15%
Protection Class	IP23S
Weight	8.2 kg
Dimension (LxBxH)	403 x 153 x 264 mm
Maximum Input Current	30 A
Open Circuit Voltage	78 V

The Rogue is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and Digital control; ensuring a precise consistent arc.

Features:

• Superior Arc characteristics –Smooth, Stable performance. PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m.
• Robust Design –IP23S Designed for Fabrication Shop or Site application. Generator Compliant –Suitable for use with generators (recommended 7 kW).

Welding Current	600A
Welding Process	Arc/MMA
Input Phase	Three Phase
Model	EasyWeld SSR 600
Welding Current Range	600A
Rated Duty Cycle	60%
Material Application	Mild Steel (MS)
Brand	ESAB
Phase	3 Phase
Working Voltage	415V +- 10%
Insulation	H
Cooling	Forced Air
Power Factor	0.8
Weight	160 Kg
Dimension (LxBxH)	615 X 455 X 850 mm
Technology	Thyristor

EasyWeld SSR 600 is a fully Thyristorised power source designed for MMA welding, Air Carbon Arc gouging (A-CAG) and Scratch TIG. Its heavy duty design makes it suitable for continuous usage.

Features:

• Ripple free DC output gives excellent weld quality.
• Superior Arc Control- Adjustable Arc Force with On/Off Switch.
• Smooth welding output with minimal spatter
• Suitable with MSGP, SS, LH and a wide range of hard facing electrodes
• Overload and Thermal protection

Industries:

• Heavy Fabrication
• Railways
• Cement
• Mining
• Repair and Maintenance

Welding Current	200 A
Phase	Single Phase
Duty Cycle	60 %
Output Current	200 Amp
Technology	IGBT Inverter
Welding Process	MMA
Input Voltage	220 V
Suitable Electrode Rod	E6013
Frame Material	Metal
Brand	ESAB
Weight	2.4 Kg
Safety	IP21S
Dimension	24 x 10.3 x 18.5 cm
Model	Xpert Weld 201i

Esab Xpert Weld 201i Inverter(Igbt) Single Phase Portable Welding Machine With Hot Start And Anti-Stick Functions with 1Year Warranty.

Technology -
The latest generation IGBT inverter design results superior weld quality, less spatter and good welding bead appearance. The robust housing designed for rugged use, and with IP21S rating, makes suitable for outdoor and indoor applications.

Features:
In-built protection against thermal overloading, protect machine from major damages.

Performance:
Suitable to use with Mild Steel, Low-Hydrogen and Stainless-Steel electrodes.

Specification:
Single phase input supply, works with low voltage and high voltage supply of 220V ±15%.

Package:
Welding Power Source, 2m Input cable with 16A Plug, 1.5m Electrode welding cable set, 1.5m Earth cable set, Shoulder Strap.

Additional Information:

• Item Code: 4610210141
• Packaging Details: Welding Power Source, 2m Input cable with 16A Plug, 1.5m Electrode welding cable set, 1.5m Earth cable set, Shoulder Strap.

Welding Process	MMA
Welding Current	200 A
Technology	Inverter
Output Current	200 Amp
Phase	Single Phase
Duty Cycle	40 %
Suitable Electrode Rod	E6013
Input Voltage	220V +-15%
Brand	ESAB
Model	Xpert Weld 220i
Frequency	50 Hz
Output Power	9.24 kW
Weight	3.18 Kg

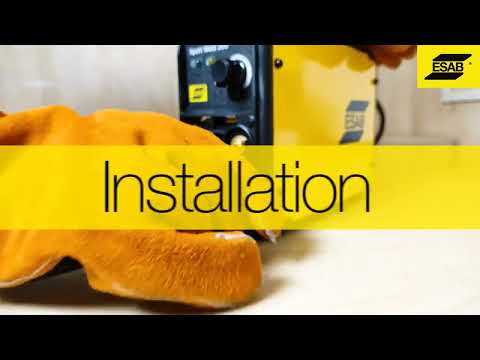

Esab Xpert Weld 220i Inverter (Igbt) Single Phase Heavy Duty Portable 220Amp Welding Machine With Built-In Hot Start And Anti-Stick Functions with 1 Year Warranty.Welding Process - Heavy Duty powerful IGBT inverter power source for MMA welding with output current up to 220Amp. Suitable for all type of electrode up to 5mm. Quick start with OCV 68V.

Specification:
Single phase input supply - 220V ±15% with input power (max)- 9.24KVA

Feature:
Protection against thermal overload with Enclosure Class IP 21S. Meets international standard (IEC 60974-1)

Package:
Welding Machine, 2m Input cable, 2m Electrode welding cable set, 2m Earth cable set.

Additional Information:

• Item Code: 4610210142
• Packaging Details: Input cable, welding cable, earth cable, welding hand-shield, Wire brush & strap

Welding Current	600A
Welding Process	Arc/MMA
Input Phase	Three Phase
Model	Arc 630i
Welding Current Range	20-600A
Rated Duty Cycle	60%
Technology	IGBT Inverter
Material Application	Mild Steel (MS)
Brand	ESAB
Working Voltage	400 -15%
Duty Cycle	488A@100%
Power Factor	0.93
Efficiency	85%
Protection Class	IP21
Weight	59 Kg
Dimension (LxBxH)	650 x 355 x 624 mm
Product Type	New
Standards of conformity	IEC 60974-1, IEC 60974- 10
Operating temperature	-10 to +40 Deg C

Arc601i is heavy duty IGBT based inverter power source suitable for MMA welding, AirCarbonArcGouging(A-CAG), Scratch TIG and designed for 24x7 usage.

Features:

• Stable performance with long leads in MMA with E6013 and E7018 electrodes
• Wide operating window: 20 to 630A
• Wide mains voltage tolerance: 400V - 15%..+20%
• User-friendly controls: Adjustable arc force & hot start in MMA mode and process selection switch for MMA / Scratch TIG
• In-built protections: overcurrent, thermaloverload, overvoltage, undervoltage.

Application Areas:

• Heavy fabrication
• Construction and erection projects
• Cement plants
• Process plants
• Repair and maintenance

Welding Current	300 A
Output Current	300 Amp
Technology	Inverter
Phase	3 Phase
Model	Arc 300i
Duty Cycle	60 %
Input Voltage	415 V
Welding Process	MMA+TIG
Brand	ESAB
Working Voltage	415V +-10%
Cooling	Forced Air
Power Factor	0.90
Efficiency	85%
Protection Class	IP21
Weight	15 Kg
Dimension (LxBxH)	440 x 220 x 360 mm

Arc 301i is an IGBT based Inverter controlled powersource designed for MMA welding. The compact design enables easy portability with continuous welding capabilities.

Features:

• Inverter based for Energy Efficiency
• Light weight for improved portability
• Protection against Over-Temperature, Under-Voltage, Over-Voltage, Single-Phasing
• User friendly controls –Adjustable Arc force and Hot start
• In-built Miniature Circuit Breaker –protection from abnormal input supply

Industries:

• Light fabrication
• Furniture & decorative products
• Repair & Maintenance
• Civil Construction

Welding Current	400 A
Output Current	400A
Technology	Inverter
Phase	3 Phase
Model	Arc 400i
Duty Cycle	60 %
Input Voltage	415 V
Welding Process	MMA+TIG
Brand	ESAB
Working Voltage	400V +-15%
Insulation	H
Cooling	Forced Air
Power Factor	0.9
Efficiency	85%
Protection Class	IP21S
Weight	24.5 Kg
Dimension (LxBxH)	512 x 255 x 400 mm

Arc 400i is an IGBT based inverter controlled power source designed for MMA welding. The power source is designed as a compact power source for easy portability.

Features:

• Inverter controlled - efficient power usage
• Light weight - for improved portability
• Wide mains voltage tolerance - for stable welding controls
• Protection against Over-Temperature, Under-Voltage, Over-Voltage and Single-phasing
• User friendly controls – Adjustable Arc force and Hot start

Industries:

• Light fabrication
• Construction
• Repair & Maintenance

Welding Current	1200 A
Output Current	1250A
Welding Head Type	Single Wire
Phase	3 Phase
Automation Grade	Automatic
Power Source Type	Inverter
Duty Cycle	60 %
Brand	ESAB
Insulation	H
Technology	IGBT
Output Current at 100% Duty Cycle	1250A
Open Circuit Voltage (OCV)	84V
Model Number	CPRA 1250i
Dimensions	840 x 380 x 900 mm
Weight	115 kg

CPRA 1250i is a heavy duty IGBT based inverter power source with multi-process capability designed for high productivity SAW & gouging applications. SAW Tractor CPRA is a tractor mounted SAW welding head for a wide range of applications.

• Heavy duty - rated at 1250A / 100% duty cycle,suitable for 24x7 usage.
• Wide mains voltage tolerance - 415V+/-15%.
• Multi-process - suitable for SAW, MMAW and ARC Air Gouging (AAG) upto 10mm electrodes.
• SAW Tractor CPRA - 4 roll drive for smooth wire feeding for 2.0 - 6.0mm diameter wires and provided with mechanical pointer for tracking.
• In-built protections against overheating, overcurrent and under voltage.

Phase	Three Phase
Current Rating	400 A
Output Current	400 Amp
Welding Process	MMA
Input Voltage	415 V
Duty Cycle	60 %
Cooling Type	Air Cooled
Mains Supply	415 V, 2 Ph , 50 Hz
Current Control	Stepless
Input Current	63A
Brand Name	ESAB
Dimension	410 mm x 600 mm x 720 mm (H x L x W)
Open Circuit Voltage	80V
Weight Kg	115 kg
Model	Transweld 400

Transweld 401x is a Manual Arc Welding Transformer that combines unique functionality and safety features. It is economical, natural cooled and delivers excellent welds. It is rugged dependable and suitable for shop or site use. Robust and compact construction ability to withstand rough handling at sites.

Features:

• Fully portable, light weight and compact.
• Natural air cooled machine ensures maximum safety of transformer as opposed to fan-cooled where fan-failure can cause burning of coils.
• Current available in single range.
• Current indicator and current control handle both on front panel.
• Superior dynamic characteristics gives soft and smooth arc, minimum spatter.
