Esab India Limited

Welding Process	Multi Process
Welding Current	500 A
Technology	Inverter
Output Current Range	500 Amp
Model	Aristo 500ix
Welding Current Range	500A
Phase	3 Phase
Duty Cycle	60 %
Input Voltage	415 V
Brand	ESAB
Insulation	H
Power Factor	0.91
Efficiency	88%
Weight	58.5 kg (129 lbs)
Dimension (LxBxH)	712 x 325 x 470 mm
Enclosure Class	IP23
Application Class	S

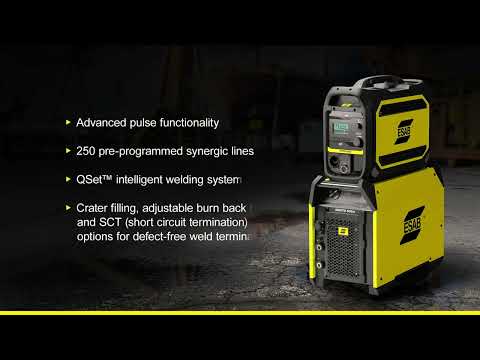

Aristo 500ix is a portable heavy industrial pulse power source with robust and reliable mechanical design. Together with Robust Feed U6 it is the perfect solution for demanding pulse applications.FEATURES: Advanced pulse functionality reduces heat input and minimizes spatterUp to 250 pre-programmed synergic lines (U82 Plus)QSet™ intelligent welding systemCrater filling, adjustable burn back time for defect-free weld terminationsDurable and rugged – IP23 rating for outdoor and indoor use in rough environmentsEasy-to-use - Clear and intuitive user interface for everyone to get started quickly. Glove-friendly knobs make adjustments quick and easy.Industries: Steel Erectors, Marine and Offshore, Windtower, Structural Steel Fabrication, Mining, Transportation, Tank and Vessel Fabrication, Steel Industry, Ship/Barge Building, Railcars, Pressure Vessels, Offshore Oil, Mobile Equipment, Industrial and General Fabrication, Energy.

Wire dia capacity	1.2 mm
Phase	3 Phase
Brand	ESAB
Model	Migmatic 251
Input voltage	220 V
Process type	MIG
Cooling	Forced Air
Output Current	250 Amp
Power Consumption	9.5 kVA
Insulation	H
Dimension (LxBxH)	620 x 390 x 580 mm
Speed Control	Stepless
Torch Connection Type	Euro

Migmatic 251 is a step switched welding rectifier, designed for MIG/MAG welding. It's unique design enables high-speed welding on thin sheets.

Features:

• Display - Digital Ammeter and Voltmeter.
• Spot & Stitch timer with pre-set setting option
• User friendly OCV check option.
• Facilitated with output steps control voltage.

Industries:

• Automotive Industry, Repair & Maintenance
• Appliances (Furniture, Kitchenware, etc)
• Light and Medium Fabrication

Wire dia capacity	1.6 mm
Phase	3 Phase
Brand	ESAB
Model	Auto K 600
Input voltage	415 V
Process type	MIG MAG
Cooling	Forced Air
Output Current	600 Amp
Insulation	H
Weight	160 kg
Dimension (LxBxH)	675 x 455 x 850 mm
Technology	Thyristor
Wire Diameter	1.6mm
Speed Control	Stepless

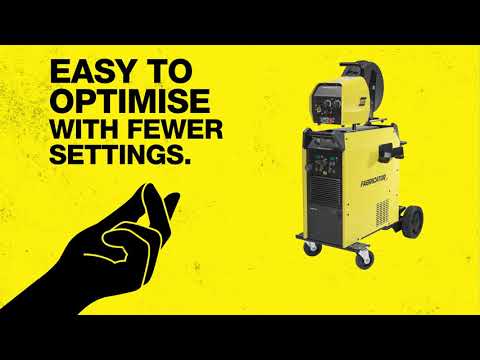

Auto K 600 is a thyristorised MIG/ MAG power source designed for heavy duty applications. The rugged design wire-feeder is best suited to withstand tough and dusty working conditions. Its excellent arc stability and smooth welding in a range of materials, thicknesses and applications makes it the preferred choice of customers.

Features:

• Energy Efficient - Power Factor 0.9
• User Friendly Controls - Digital Ammeter and Voltmeter
• Protection - Thermal, Single Phasing, Control Circuits & Over-Amperage
• Excellent Weld characteristics for Reduced Re-work

Industries:

• Heavy fabrication
• Construction & Projects
• Repair & Maintenance

Wire dia capacity	1.2 mm
Phase	3 Phase
Brand	ESAB
Model	Auto K 401
Input voltage	415 V
Process type	MIG MAG
Cooling	Forced Air
Output Current	400 Amp
Working Voltage	36V
Insulation	H
Wire feeder type	Separate
Duty cycle	60 %
Automation grade	Semi automatic
Weight	121 Kg
Dimension (LxBxH)	675 x 350 x 690 mm
Speed Control	Stepless
Torch Connection Type	Euro

MIG/MAG Thyristorised Welding Power Source
Auto K401 is a versatile MIG/MAG thyristorised welding power source. It is capable of welding a wide range of materials, including mild steel, stainless steel and aluminum with precise control and consistent welds.
Features:

• Compact Design: Improving maneuverability in tight workplaces.
• Rugged Wire Feeder: Withstands harsh environments and delivers consistent wire-feed in demanding conditions.
• Excellent Arc Stability: Stable and consistent arc even at high amperages, resulting in smooth and clean welds with minimal splatter.
• Crater Control for smooth weld finish

Industries:

• Light & Medium Fabrication
• Furniture & decorative products
• Repair & Maintenance
• Automotive Industry
