Esab India Limited

Robot axes	1 Axis
Payload	50 kg
Welding process	MIG MAG
Reach	2000 mm
Brand	ESAB
Mounting	Track mounted, Floor
Welding Type	MIG
Axis Number	6
Payload, Max	6 Kg
Repeat Positioning	+-0.05 mm
Max Armspan	1443.5 mm

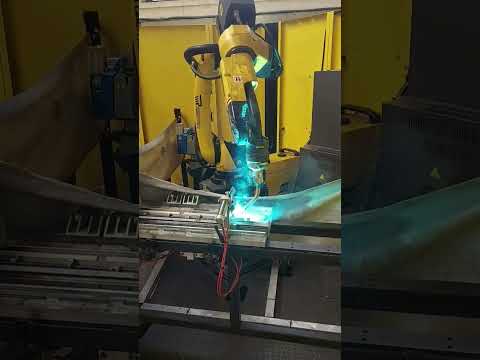

Model Number	C1400X

ESAB Welding Robots are designed with simplified set-up for new users eliminating the need for complex operating procedures.

• Easy to use, Easy to program
• Minimum footprint with maximum working envelope
• Lightweight teach pendant
• Independent emergency safety stop function
• Improved performance of EMC and EMI

Equipment Type	Full System
Welding Process	MIG
Tube OD Range	10–170 mm
Head Type	Open Head
Axis Control	3 Axis
Cooling Type	Air Cooled
Brand	ESAB
Welding Current Max	200A
Phase	Single Phase
Rotation Speed	9.9 RPM
Wire Feed Speed	100 IPM
Model Number	6

AMI (An ESAB Brand) designs and manufactures the world's broadest and most advanced range of automated and advanced orbital welding systems for Tube to Tube, Pipe to Pipe, Tube to Tubesheet welding. Experience the next generation in orbital welding technology.

• Automatic pipe schedule generation
• Vision System Enabled
• Productivity monitoring
• Weld Cloud and Orbital Analysis
• Rugged, reliable tube-to-tubesheet weld head with 200 A torch
• Self Supporting weld head
• Welds in any position, including overhead

Stroke Length	6×6 m
Column Type	Travelling & Rotating
Boom Load	1000 kg
Drive Type	AC Motor
Control Type	Remote
Suitable Process	TIG, MIG/MAG, Plasma
Brand	ESAB
Welding Process Suitable	SAW
Weld Head	A2
Welding Power Source	DC
Column- Effective working range (Max)	10 m
Boom- Effective working range (Max)	8 m

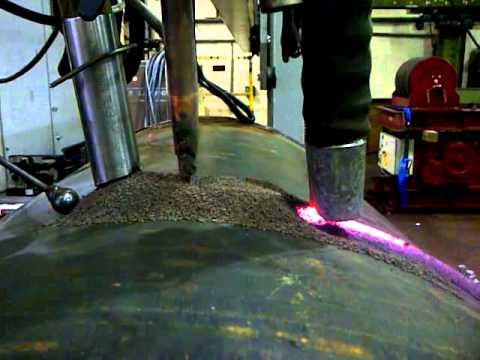

ESAB Column and Booms systems are for cost effective and flexible weld mechanization solutions.

• Modular design concept allows total customization using standard components.
• Choose from stationary or mobile, rail-travelling carriage systems.
• Versatile to respond to any automated welding demand.

Welding Process	MIG Pulse
Tube OD Range	10–170 mm
Power Source Type	Inverter
Output Current (Ampere)	150 A
Head Type	Open Head
Axis Control	3 Axis
Cooling Type	Air Cooled
Brand	ESAB
Phase	1 Phase
Weld Current	150A
Tube suitable with OD	190.5 mm
Tube suitable with Wall thickness	4 mm
Model Number	9

AMI (An ESAB Brand) designs and manufactures the world's broadest and most advanced range of automated and advanced orbital welding systems for Tube to Tube, Pipe to Pipe, Tube to Tubesheet welding. Experience the next generation in orbital welding technology.

· Auto-switching of input voltages from 100 to 240, 50/60 Hz

· 150 A maximum output possible on 100 vac/30 A input

· The Model 9 series of orbital weld heads are designed for fusion (TIG) welding of tube, pipe, fittings or other cylindrical components

· Each weld head fits a wide range of tube sizes via easily replaced, size specific clamps

Conveyor Type	Manual
Roller Material	Stainless Steel
Automatic Grade	Semi Automatic
Load Capacity	1000 kg
Roller Diameter	750 mm
Capacity	60 Ton/ Section
Material	Stainless Steel
Brand	ESAB
Max Turning capacity	180 Ton
Turning speed Range	1300 mm/ min
Workpiece diameter range	6000 mm
Mains supply	415 V

ESAB CD 5-120 are conventional roller beds. Gritblasted steelwork with polyurethane finished coating to endure the abrasive environment of offshore and marine industries.

• Robust design with durable rollers
• Specially formulated high-load polyurethane tire design for high wear resistance
• Solid state inverter for precise speed control
• Motorized and idler rail bogie versions.

Drive Type	Motorized
Roller Material	Stainless Steel
Material	Stainless Steel
Roller Diameter	500 mm
Capacity	60 Ton/ section
Length	20 feet
Brand	ESAB
Max Turning capacity	180 Ton
Turning speed Range	1000 mm/ min
Mains supply	415 V AC
Control Voltage	24 V AC

ESAB SD 5-120 are self-alligning roller beds. Gritblasted steelwork with polyurethane finished coating to endure the abrasive environment of offshore and marine industries.

• Robust design with durable rollers
• Specially formulated high-load polyurethane tire design for hig wear resistance
• Solid state inverter for precise speed control
• Motorized and idler rail bogie versions
• Electrical clutch
