Esab India Limited

Electrode Type	Stainless Steel
AWS Grade	E308L
Rod Length	350 mm
Current Type	DC
Operating Position	All Position
Brand	ESAB
Welding Current	DC+
Shielding Gas	100% CO2
Elongation	40%
AWS	AWS A5.22 E308LT1-1
Length	350 mm
Diameter	3.15 mm
Wire Diameter	2 mm

Weld FCW 308L are all-positional rutile type flux cored wires for joining stainless steels of similar composition. Weld FCW 309L is suitable for dissimilar joining with unalloyed or low alloyed steels. These wires provide smooth running characteristics with a good slag release and weld bead appearance.

Special Features:

• Smooth running characteristics
• Good weld bead appearance
• All position welding

AWS Grade	E6013
Length	350 mm
Coating Type	Rutile
Current Type	DC
Operating Position	All Position
Brand	Esab
Tensile Strength	510 MPa
Coating	Rutile
Alloy Type	C-Mn
Specification	SFA/AWS A5.1 : E6013
Brand Name	ESAB
Impact Value	90 J
Shielding Gas	AWS
Elongation %	28%
Yield	420 MPa
Welding Current	260A
Diameter	3.15 mm
Size	5 mm

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

Length Available: 350 / 450 mm

ESAB 28 is a medium heavy rutile coated mild steel electrode designed for welding of unalloyed structural steels in all positions. The electrode gives smooth radiographic quality weld with low spatter and smoke. Slag is self detachable and the bead shape is uniform and finely rippled.

Electrode Type	Rutile - Low Carbon
Length	350 mm
AWS Grade	E309L-16
Diameter	3.15 mm
Rod Length	350 mm
Material	Stainless Steel
Operating Position	All Position
Coating	Rutile
Alloy Type	Austenitic Cr-Ni
Cr/ Ni	23/ 13.6%
Specification	SFA/AWS A5.4 : E309L-16
Brand Name	ESAB
Elongation %	40%
Shielding Gas	AWS
Tensile Strength	600 MPa
Yield Strength	490 MPa
Current Type	AC/DC
Welding Current Range	AC, DC+

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

OK 67.63 is a rutile based, low carbon all positional electrode of 23Cr-13Ni type for joining of stainless steels to unalloyed or low alloyed steels. Also suitable for transition layers when surfacing mild or low alloyed steels with stainless steel weld metal.

Electrode Type	Mild Steel
Length	350 mm
AWS Grade	E7018
Diameter	3.15 mm
Size	2.5 mm x 350 mm
Operating Position	All Position
Tensile Strength MPa	580 MPa
Brand Name	Esab
Impact Value	120 J
Alloy Type	Ni-Cu alloyed
Specification	SFA/AWS A5.5 : E8018-G
Elongation	28%
Tensile Strength	580 MPa
Yield Strength	500 MPa
Current Type	AC/DC
Welding Current	AC,DC+

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

Length Available: 350 / 450 mm

OK 73.08 is a Ni-Cu alloyed low hydrogen electrode, which deposits a weld metal with good corrosion resistance to sea water and flue gases. The weld metal has excellent mechanical properties. It is used for the welding of weather proof steel and ship’s hull structural steel and shell plating of ice-breakers.

Electrode Type	Hardfacing
Length	450 mm
AWS Grade	E6013
Diameter	5 mm
Rod Length	300 mm
Material	Cast Iron
Current Type	DC
Operating Position	All Position
Size	6.3 mm
Welding Current Range	140A
Brand	ESAB
Hardness	59 HRC
Net Wt. of Electrodes in a Carton	3 Kg
Net Wt. of Electrodes in a Case	12 Kg
Operating Current	DC +/-, AC 70

Cobalarc 1M deposits chunky chromium carbides in tough austenitic matrix. Excellent wear resistance on 12-14% manganese steel components. Gives better abrasion resistance on mild and low alloy steel bases where impact requirement is limited.

Special Features:

• Exceptional resistance to severe abrasion and moderate to heavy impact
• Oxidation resistance at elevated temperatures.
• Unmatched deposition rates - high integrity deposits.
• Use of low current as compared to any solid core electrodes keeps the dilution by parent metal to a minimum.
• Non-hygroscopic coating needs no storage precaution.

Electrode Type	Rutile - Low Carbon
Length	350 mm
AWS Grade	E308L-16
Diameter	3.15 mm
Rod Length	350 mm
Material	Stainless Steel
Operating Position	All Position
Coating	Rutile
Alloy Type	Austenitic Cr-Ni
Cr/ Ni	20/ 10%
Specification	SFA/AWS A5.4 : E308L-16
Brand Name	ESAB
Elongation %	42%
Shielding Gas	AWS
Tensile	610 MPa
Yield	470 MPa
Welding Current Range	210A
Current Type	AC/DC

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

OK 61.63 is a rutile based low carbon 20Cr-10Ni type stainless steel electrode with controlled ferrite that provides excellent resistance to corrosion, cracking and high temperature scaling up to 800°C.

Rod Type	Low Hydrogen
Process	MMAW
Diameter	4 mm
Grade	E7018
Rod Length	350 mm
AWS Grade	E7018
Application	Maintenance, Pipe Welding, Fabrication
Size	5 mm x 350 mm
Brand	Esab
Welding Current	DC+, AC 70V
Impact Value	70J
C/ Mn	0.08/ 1.2%
Tensile Strength MPa	530 MPa
Brand Name	ESAB
Alloy Type	C-Mn
Yield	440 MPa
Elongation	28%
Specification	SFA/AWS A5.1 : E7018

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

Length Available: 350 / 450 mm

ESAB Xpert 7018 are basic coated, hydrogen controlled iron powder electrodes designed for welding in all positions. These electrodes provide excellent welding performance with stable arc, good arc striking & restriking properties and deposits radiographic quality welds. ESAB Xpert 7018-1 delivers good CVN impact toughness up to -46ºC.

Applications:

• Structural fabrication
• General fabrication
• Pressure vessels

Features:

• Good arc stability
• Radiographic quality welds
• All position welding

Diameter	3.15 mm
Length	450 mm
Rod Length	450 mm
Current Type	AC
Alloy Type	High Chromium
Application	Abrasion, Corrosion
Size	3.15 mm
Welding Current Range	90A
Brand	ESAB
Hardness	55 HRC
Welding Current	DC +/-,AC 70
Net Wt. of Electrodes in a Carton	4.5 Kg
Net Wt. of Electrodes in a Case	18 Kg

Duroid 650 is a rutile-coated electrode gives an air-hardening type weld deposit, which is resistant to severe abrasion and moderate impact between metal to mineral wearing stresses. It provides moderate resistance to corrosion and scaling.

Special Features:

• Smooth arc with low spatter
• It is very easy to use in all positions
• Excellent weld bead appearance

Rod Type	Stainless Steel
Length	450 mm
Process	Gas Welding
Diameter	4 mm
Rod Length	350 mm
Material	Stainless Steel
AWS Grade	E309L-16
Application	Fabrication, Structural, Maintenance
Coating	Rutile
Alloy Type	Austenitic Cr-Ni
Cr/ Ni	23.5/ 12.6%
Specification	AWS A5.4 E308L-16
Brand Name	ESAB

Size Available: 2.5/ 3.15/ 4.0 mm

ESAB Plus series of stainless steel electrodes are rutile based electrodes for joining stainless steels of similar composition. ESAB 309L/309 Plus is also suitable for dissimilar joining with unalloyed or low alloyed steels and for transition layers when surfacing mild or low alloyed steel with stainless steel weld metal.

ESAB Plus range of electrodes have easy arc initiation / re-striking characteristics and are resistant to porosity in adverse working conditions.

Applications:

• General Stainless Steel Fabrication
• Dissimilar Metals Joining
• Surfacing

Features:

• Smooth running characteristics
• Stable on both AC & DC welding
• Easy Arc initiation & Re-striking
• Good weld bead appearance
• Resistance to porosity in adverse conditions

Type	Ferro-Nickel (Machinable)
Length	350 mm
Diameter	3.15 mm
Material	Cast Iron
AWS Classification	E Ni-CI
Application	Joining CI to Steel
Size	3.15 mm
Welding Current Range	50A
Brand	Esab
Operating Current	DC +/-, AC 50
Net Wt. of Electrodes in a Carton	1 Kg
Net Wt. of Electrodes in a Case	10 Kg

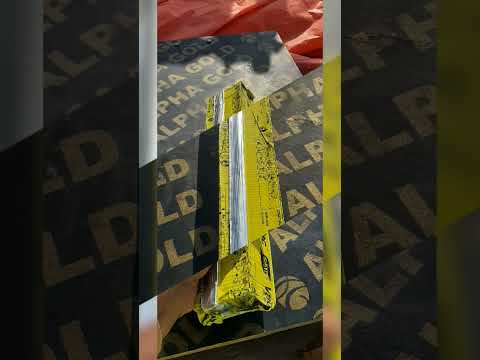

Ferrocast is a low heat input electrode designed to weld all weldable cast irons. The deposit is fully machinable with good strength that helps in the correction of defects in heavy castings and in the welding of cast iron to mild steel and other metals.

Special Features:

• Excellent running characteristics
• Smooth bead finish
• Perfect colour match

AWS Grade	E7018
Diameter	4 mm
Tensile Strength	550 MPa
Current Type	AC/DCEP
Operating Position	All Position
Coating Type	Low Hydrogen
Size	5 mm x 450 mm
Tensile Strength MPa	550 MPa
Brand Name	ESAB
Length mm	450 mm
Shielding Gas	AWS
Yield	470 MPa
Specification	SFA/AWS A5.1 : E7018
Welding Current	AC, DC+
Alloy Type	C-Mn
Elongation %	28%

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

Length Available: 350 / 450 mm

ESAB 36H is a basic coated, hydrogen controlled iron powder electrode designed for welding in all positions. It gives tough, crack resistant weld on mild and low alloy steels. It deposits good radiographic quality welds and is ideal for welding restraint structures where stresses can not be avoided.

Rod Type	Stainless Steel
Length	350 mm
Process	MMAW
Diameter	4 mm
Rod Length	350 mm
Material	Stainless Steel
AWS Grade	E308L-16
Application	Maintenance, Pipe Welding, Fabrication, Structural
Coating	Rutile
Alloy Type	Austenitic Cr-Ni
Cr/ Ni	18.8/ 9.7%
Specification	AWS A5.4 E308L-16
Brand Name	ESAB
Elongation %	45%
Shielding Gas	AWS
Tensile	580 MPa (84 ksi)
Yield	440 MPa (64 ksi)
Welding Current	DC+, AC 70V

Size Available: 2.5/ 3.15/ 4.0 mm

ESAB Plus series of stainless steel electrodes are rutile based electrodes for joining stainless steels of similar composition. ESAB 309L/309 Plus is also suitable for dissimilar joining with unalloyed or low alloyed steels and for transition layers when surfacing mild or low alloyed steel with stainless steel weld metal.

ESAB Plus range of electrodes have easy arc initiation / re-striking characteristics and are resistant to porosity in adverse working conditions.

Applications:

• General Stainless Steel Fabrication
• Dissimilar Metals Joining
• Surfacing

Features:

• Smooth running characteristics
• Stable on both AC & DC welding
• Easy Arc initiation & Re-striking
• Good weld bead appearance
• Resistance to porosity in adverse conditions

Length	450 mm
Diameter	3.15 mm
Tensile Strength	430 MPa
Hardness	54 HRC
Current Type	DC
Operating Position	All Position
Size	3.15 mm
AWS Grade	E6013
Welding Current Range	90A
Brand	Esab
Welding Current	DC +/-, AC 70
Net Wt. of Electrodes in a Carton	4.5 Kg
Net Wt. of Electrodes in a Case	18 Kg

Duroid 550B is a high performance electrode that gives an air-hardening type weld deposit resistant to high abrasion and moderate impact between metal to mineral wearing stresses. This electrode is suitable for overlays on mild steel, carbon steel and austenitic manganese steel. Works fine with big jobs as well.

Special Features:

• Position usage possible
• Smooth arc with low spatter
• Better slag release & excellent weld bead appearance

Brand	Esab
Size	5 mm
Length	450 mm
AWS Classification	E9018M
Electrode Diameter	3.15 mm
Alloy Group	HSLA
Weight Per Packet	4 Kg
Welding Current	AC, DC+
Alloy Type	Cr-Ni-Mo alloyed
Tensile Strength MPa	640 MPa
Specification	SFA/AWS A5.5:E9018M
Impact Value	110 J
Shielding Gas	AWS
Elongation	29%
Yield Strength	570 MPa

Size Available: 2.5/ 3.15/ 4.0/ 5.0 mm

Length Available: 350 / 450 mm

ESAB 98 is a Cr-Ni-Mo alloyed hydrogen controlled iron powder type electrode, for welding high tensile strength steels. The electrode deposits, tough and crack resistant welds. The optimum addition of iron powder permits the use of higher currents and results in improved arc characteristics coupled with higher metal recovery. The operational characteristics are excellent in all positions. ESAB 98 finds extensive use in pressure vessels, piping, penstock, earth moving equipment, machinery parts, automobile parts, chemical plants etc.

Diameter	3.15 mm
Length	350 mm
Rod Length	450 mm
Hardness	50–55 HRC
Size	5 mm x 350 mm
Current Type	AC
Alloy Type	Manganese Steel
Application	Abrasion
Brand	Esab
Welding Current Range	160A
U.T.S	40 kg/mm2
Welding Current	DC +/-, AC 50
Net Wt. of Electrodes in a Carton	2.5 Kg
Net Wt. of Electrodes in a Case	12.5 Kg

A monel-cored electrode depositing a weldmetal, which bonds easily and matches in colour with cast iron. Weld deposit is soft, ductile and machinable. It is very effective for defect correction in foundries.

Special Features:

• Smooth and stable arc with low spatter.
• Excellent colour match.
• Good machinablity.
• Slag is easily detachable.

Diameter	5 mm
Length	450 mm
Rod Length	450 mm
Hardness	27 HRC
Current Type	AC
Alloy Type	High Chromium
Application	Impact
Size	5 mm
Brand	Esab
Welding Current Range	200A
Net Wt. of Electrodes in a Carton	5.0 Kg
Net Wt. of Electrodes in a Case	20 Kg

Duroid 250 is a smooth running rutile coated general-purpose hardfacing electrode, depositing a tough air-hardening chrome-manganese alloy weld metal, suitable for resisting moderate abrasion and impact.

Special Features:

• Smooth arc with low spatter
• Excellent weld bead appearance
• Deposits a weld with self-lifting slag

Diameter	3.15 mm
Length	450 mm
Rod Length	450 mm
Current Type	AC
Alloy Type	Manganese Steel
Application	Abrasion
Size	3.15 mm
Welding Current Range	120A
Brand	ESAB
Hardness	36 HRC
WELDING CURRENT	DC+/-,AC 50
Net Wt. of Electrodes in a Carton	4.5 Kg
Net Wt. of Electrodes in a Case	18 Kg

Duroid 350 is a smooth running rutile coated hardfacing electrode depositing a tough air hardening type chrome- manganese alloy weld metal with a hardness of around 350 BHN (36 Rc) suitable for resisting moderate abrasion and impact. Deposit is machinable with suitable carbide tipped tools.

Special Features:

• Smooth and stable arc with low spatter loss
• Excellent weld bead appearance
• Deposits a weld with fine bead appearance and easy de-slagging properties
