The Engineering Science Apparatus Workshop

• Optical System: Infinite
• Tube Lens Focal Length :200mm
• System Optical Magnification :40-1000X
• Expandable System Optical :40-1600X
• Magnification (Optional Parts Required) :40-1000X
• Total Magnification :10X High Eyepoint Eyepiece
• Standard Eyepiece :4X 10X 40X 100X Infinity Plan Achromatic
• Objective: System Field of View Dia. 0.2-5mm
• Expandable System Field of View Dia. 0.14-5.5mm
• System Working Distance :0.12-12.31mm
• Expandable System Working Distance :0.12-12.31mm

• Main Body: Ergonomically designed co-axial and all die casted sturdy body.
• Viewing Head: 45 degrees inclined binocular head with diopter setting for one eye-piece
• Objectives: Anti-fungal, anti reflection coated German made 4x, 10x, 90x and 100x 011 immersion semi-plan Achro din objectives, fully brass made with clear lenses and nicely designed external look and self-centered objectives.
• Light source: High-quality LED illumination & SMPS based 100v-220v wide voltage range
• Eye-pieces stage: Anti-fungal, anti reflection coated German made the 10x wide field with fov-18mm and 15x wide field pairs.
• Stage: Graduated double layer mechanical rectangular stage with chrome finished clips.
• Condenser: Abbe 1.15 NA iris diaphragm condenser with swing in-swing out filter holder
• Packing And Accessories: Main body, 4 objectives, 1 eyepieces, power cable, packing dust and accessories cover, cleaning cloth and binocular head
• Packaging: Packed in styrofoam box and cardboard box with white 4, blue filter

• Optical System: CFI60 infinity
• Illumination: 6V-30W halogen lamp; 6V-30W transformer built-in; ND8, ND4 filters built-in
• Focusing: Coaxial coarse/fine focus knob; Focus stroke: 30mm;
• Coarse: 9.33mm per rotation; Fine: 0.1mm;
• Minimum reading: in 1µm increments
• Eyepiece: 10x (F.O.V. 22mm)
• Eyepiece tube: P-TT3 Trinocular Tube for polarizing microscopy; P-TB2 Binocular Tube for polarizing microscopy
• Intermediate tube: Built-in focusable Bertrand lens removable from optical path; Conoscopic/Orthoscopic observations switchable; Analyzer built-in; Plate/compensator slot
• Analyzer 360° rotary dial; Minimum reading angle 0.1°
• Nosepiece : Centering quintuple nosepiece (detachable); DIN slot
• Stage: Ball bearing rotary stage; Rotatable 360° horizontally;
• can be fixed at a specific position; Graduated 360° (in 1° increments);
• Rotation clamp equipped;
• Attachable mechanical stage: 35 x 25 mm travel; vernier 0.1mm
• Condenser:Dedicated strain-free swing-out type; P Achromat N.A. 0.9
• Polalizer No scale markings

• An Advanced First-Class High Quality Laboratory Microscope
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• 30 Degree Inclined, 360 Degree Swiveling Compensation-free Trinocular Head
• Eight Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X
• Koehler Illumination System with Field Diaphragm for Lighting Control
• Kohler Condenser with Iris Diaphragm and Swing-Out Filter Holder
• Intensity-Variable Transmitted Halogen Lighting System
• Color Filters Included
• Rack and Pinion Adjustment for Condenser
• Large 3-D Double Layer Mechanical Stage
• Low Position Coaxial Stage Movement Control Knobs
• Dual Side Coaxial Coarse and Fine Focusing Control
• Adjustable Interpupillary Distance
• Adjustable Diopters on Both Oculars
• Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
• Five Achromatic DIN Objectives Included
• Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and 20X

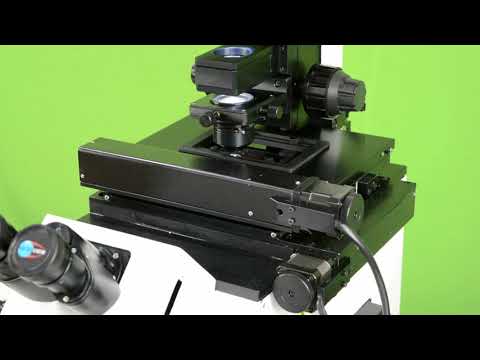

• Equipment Type : Inverted
• Optical System : Colour Corrected Infinity Optical System
• Observation Tube : Siedentopf Widefield Binocular 45° [F.N. 22]
• Eyepieces : 10X/22 extra wide field eyepieces
• Viewing Height : 423 mm
• Sample Stage : Stepper motor controlled 120 x 120 mm with provision to hold well plate,
• 035 mm, 054 mm, and 065 mm petri dish, 4 glass slide etc.
• Objectives : 4 Nos. 5x, 10x, 20x and 50x)
• Turret : Motorized positioning and 4 slots for keeping
• Fluorescence filter wheel unit : 2 deck (8 Slot each
• Condenser : Abbe condenser
• Focus : Motorized Stepper motor controlled
• Illumination : 50 W Quartz halogen ( 150W Xe Arc Lamp Optional )

• Eyepiece Wide field 10x
• Nosepiece Triple
• Focusing Coaxial coarse & fine adjustment
• Stage Mechanical stage
• Objectives 10x, 40x, 100x
• Substage Abbe condenser 1.25 N.A.
• Light Source Built in 110V 30W Tungsten illumination.

• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage210 V
• Frequency60 Hz
• PhaseSingle Phase

• ColorWhite and Black
• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage210 V
• Frequency60 Hz

• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage230 V
• Frequency50 Hz
• PhaseSingle Phase

• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage210 V
• Frequency60 Hz
• PhaseSingle Phase

EYEPIECES
Wide field WF 10x/20 mm eyepieces

HEAD

• Binocular and trinocular models have 30° inclined Ø 30 mm tubes
• The interpupillary distance is adjustable between 48 to 75 mm
• All models have a ±5 diopter adjustment on left tube
• All heads are 360° rotatable and secured with a screw
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES - 45 MM PARFOCAL

• BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
• Optional 20x/0.40 and S60x/0.85 objectives are also available
• The S40x, S60x and S100x objectives are spring loaded.

• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage210 V
• Frequency60 Hz
• PhaseSingle Phase

• ColorWhite and Black
• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage210 V
• Frequency50 Hz

• Usage/ApplicationLaboratory
• Country of OriginMade in India
• Power SourceElectric
• Voltage230 V
• Frequency60 Hz
• PhaseSingle Phase

• ESAW monocular compound microscope is an excellent choice to be used in school and to teach students. Compound microscopes are basic light microscopes.
• High-quality wide-field pairs of 10x and 15x anti-fungal, anti reflection coated optics 8 with high-quality semi-plan Achro brass objectives with a great imaging quality LED illumination & SMPS based 1000-2200 wide voltage range and these are nicely packed in styrofoam enclosure with box and instruction manual.

• Eyepieces: high quality wide-field pairs of 10x and 15x anti-fungal, anti reflection coated optics
• Objectives: semi-plan achro din objectives 4x, 100, 40/45x s. l & 100x oil immersion (s. l.).

• Observation Head: Trinocular observation head inclined at 45°, rotate-able through 360., Interpupillary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having the adjustable dioptric scale.
• Objectives: Semi plan Achro din objectives 4x, 10x, 40/45x s. l. 100x oil immersion (S. l. ).
• Illumination: In built white bright LED illumination with imps based power supply 100-220v.
• Mechanical Stage: co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation.

• Used by doctors, pathologists, vets, students, researchers.
