Model	SX20
Type	Cisco WebEx
Room size	Medium room
Camera type	Integrated camera
Video resolution	Full HD 1080p
Connection type	IP based
Included items	Codec + cam + mic, Codec only
Brand	Cisco
Video Format	VGA
Mounting	Table mount
Mic type	Table mic
Warranty	1 Year
License type	Perpetual
Exposure Control	Auto
Usage/Application	Video conferencing purpose offices colleges etc
Communication Type	Video
Model Name/Number	CISCO SPARK / ROOM KIT/ ETC

The SX20 Quick Set provides the performance expected of more expensive systems in a sleek, compact, multi-featured package. This powerful quick set is ideal for small businesses just starting out with telepresence, or large enterprises looking to broaden the benefits of telepresence throughout their organizations.

The SX20 Quick Set can transform a flat panel display into a high-definition telepresence system. It also offers:

·        Embedded Cisco MultiSite technology for adding three more participants to a call

·        Support for Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs*

·        Support for switched conferencing for enhanced layouts and video on both screens of dual-screen endpoints*

·        Simple, intuitive connections for simple setup

In addition, you can easily control room peripherals such as lights, room dividers, curtains, and more, directly from the Cisco TelePresence Touch 10 through a customizable API**  ( requires an external third-party control system processor).

Specifications at a Glance

·        Standards-compliant 1080p solution

·        Premium resolution (1080p60)

·        H.323 and Session Initation Protocol (SIP) up to 6 Mbps point to point

·        Three camera options (2.5 times, 4 times, 12 times zoom)

·        Supports cloud registration to Cisco Spark Services for even faster and more cost effective deployment

·        Dual display





Additional Information:

• Item Code: SX20
• Production Capacity: 10
• Delivery Time: Ready
• Packaging Details: Box

Model	SX20
Type	Cisco WebEx
Room size	Medium room
Video resolution	Full HD 1080p
Connection type	IP based
Included items	Codec + camera
Brand	Cisco
Size	Width: 11.8 inches (30.0 cm) Height: 1.4 inches (3.4 cm) Depth: 7.1 inches (18.0 cm)
Power Supply	Yes
Video Format	VGA
Bandwidth	720p30 from 768 kbps 720p60 from 1152 kbps 1080p30 from 1472 kbps 1080p60 from 2560 kbps
Audio Output	Full individual audio and video transcoding
Mounting	Table mount
Weight	3KG
Mic type	Table mic
Warranty	1Year
License type	Perpetual
Humidity	0 DegreeC to 40 DegreeC (32 DegreeF to 104 DegreeF) ambient temperature 10% to 90% Relative Humidity (RH)
Exposure Control	Exposure Compensation, Manual, Auto
Material	Ready
Dual Stream	H.2 3 9 ( H.3 2 3 ) d u al s t r e a m B F C P ( SIP ) d u al s t r e a m S u p p o r t r e s o
Auto Configuration	Yes
Camera Type	Digital
Display	End Point
Usage/Application	Video Conferencing End Point
Communication Type	CISCO SX20
Model Name/Number	CTS-SX20-PHD12X-K9
Color	Gray

CTS-SX20-PHD12X-K9 Video Conferencing End Point   The Cisco TelePresence® SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful video conferencing system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports optional embedded multipoint support with Cisco® TelePresence MultiSite technology, enabling users to add three additional participants to a video call. SX20 Quick Set combines a powerful codec, premium resolution of 1080p, two camera choices, and a dual-display feature in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact, feature-rich and affordable package.

Additional Information:

• Item Code: CTS-SX20-PHD12X-K9
• Production Capacity: 40
• Delivery Time: Ready Stock
• Packaging Details: Box

System type	Room kit
Room size	Medium room
Video resolution	Full HD 1080p
Connection type	USB
Brand	Cisco
Size	Width: 11.8 inches (30.0 cm) Height: 1.4 inches (3.4 cm) Depth: 7.1 inches (18.0 cm)
Bandwidth	720p30 from 768 kbps 720p60 from 1152 kbps 1080p30 from 1472 kbps 1080p60 from 2560 kbps
Mic type	Table mic
Included items	Cam + mic + speaker, Codec + camera
Platform support	Cisco Webex
Warranty	1Year
Camera Type	Digital
Display	End Point
Usage/Application	Video Conferencing End Point
Communication Type	Recommend latest software
Model Name/Number	HDX 8000
Color	Gray

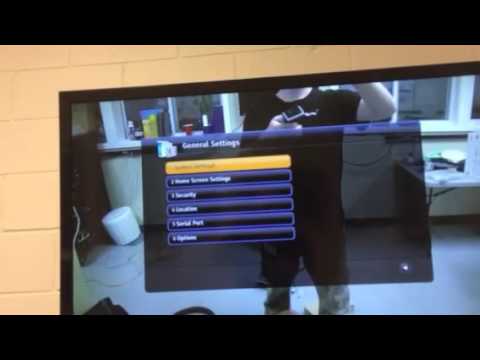

Polycom HDX 8000 Video Conference System comes pre-loaded with 1080p and 4-site multi-point capability. Includes a Polycom EagleEye Camera, HDX mic array, remote, and cables. This Polycom system works great with web conferencing services like Skype for Business, Zoom, GoToMeeting, Lifesize Cloud, and more.

Additional Information:

• Production Capacity: 6
• Delivery Time: Ready stock
• Packaging Details: Box
