Operating Weight	7911 Kg
Model	CAT 424 B2
Engine Power	76 HP
Digging Depth	4773 mm
Loader Bucket Capacity	1.1 Cum
Backhoe Bucket Capacity	0.24 Cum
Backhoe Lift Capacity	2642 Kg
Max. Reach at Full Height	2632 mm
Hydraulic Oil	38 Ltr

The CAT 424 b2 Backhoe Loader is built for performance, reliability, and operator comfort. Designed to tackle the toughest jobs with ease, this versatile machine combines superior digging, trenching, and material-handling capabilities with advanced technology and fuel efficiency.

Brand	CAT
Maximum Dig Depth	4709 mm (Backhoe)
Maximum Operating Weight	8760 kg, 7990 kg (estimated)
Gross Power	68.5 kW (93 HP)

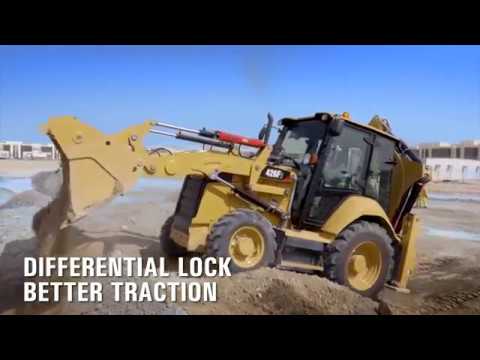

Model Name/Number	426F2
Transmission Oil	15 L
Rear Axle - Including Planetary L	14.5
Pump Type	Variable flow,Axial piston
Loading Reach Mm	1477
Loading Height Mm	4031
Hydraulic Tank L	40
Hydraulic System Type	Closed center
Engine Displacement L	4.4
Cooling System L	22
Fuel Tank Capacity	160 L
Engine Oil	8.8 L (with filter)
Travelling Speed -Reverse	5.5 / 9 / 20.7 / 40 km/hr
Travelling Speed -Forward	5.5 / 9 / 20.7 / 40 km/hr
Max. Torque	394 Nm @1400 rpm
Stroke	127 mm
Bore	105 mm
Net Power	66.0 kW (88 HP)
Max Pump Capacity	132 L/min
Engine Model	Cat C4.4 Mechanical Turbocharged and Inter-cooled
Swing Arc	180 deg
Noise Level	80 dbA (Inside cab),104 dbA (Outside cab)
Stick Dig Force	35.29 kN
Net Torque Rise	38 % @1200 rpm
Max Operating Height	5719 mm
Power Steering	Hydrostatic
Bucket Dig Force	57.22 kN
System Pressure	250 bar (Backhoe),250 bar (Loader)
Steering Type	Front wheel
Stabilizer Overall Width	2242 mm
Bucket Rotation	205 deg

All Day Comfort
The all new 426F2 cab is designed to provide maximum comfort, ease of operation and overall style for today’s demanding operator. The new design features a spacious interior, flat glass and excellent visibility. The cab is wider allowing the operator to freely move when turning from one mode of operation to another. Excellent ergonomics ensure that all controls are within easy reach of the operator. Other features include additional storage space, large vents throughout the cab and clear gauges that provide information to the operator to help maximize the machine’s performance. Tinted glass is offered as standard.

Parallel Lift
The 426F2 parallel lift loader boasts class leading lift capacities and breakout forces, providing more power and greater productivity. Available with either a General Purpose or Multi-Purpose bucket, the 426F2 can be matched precisely to your needs. The proven design of the F2 loader makes light work of lifting and loading. The parallel lift loader arms offer excellent forward visibility along with outstanding material retention throughout the lift and lower cycles.

Excavator Style Boom
Caterpillar’s instantly recognizable boom is more than a cosmetic design feature, it also outperforms straight boom designs too.Whether close-up truck loading on a narrow highway or digging over obstacles such as walls, the excavator style boom outperforms the rest. Combine this versatility with powerful breakout forces and the controllability of the load-sensing, flow sharing hydraulic system and you have the best boom and stick combination in the industry. Additionally our system offers swing and boom cushioning as standard. This feature enables very fast trenching by damping the boom on lift or swing while trenching.

Hydraulic Performance
It’s rare that you’ll be working at full production 100% of the time, so why should the machine be working at full capacity, using more fuel, making more noise and generally increasing wear and tear on key components? The 426F2 has a load-sensing, closed center hydraulic system, which is designed to closely match power and flow to the demand needed by the operation. So whether you’re in full trenching mode, or delicately digging around services, you are always in total control. In applications such as loading and carrying speed is important. The system will match the flow needed to get the job done quickly and efficiently. As there is minimal demand on the system unless needed, there are less parasitic horsepower losses and more power available for rimpull which means better loading and roading performance. The 426F2 also features flow-sharing hydraulic valves, ensuring that the correct flow of oil reaches the implement cylinders, providing greater control and eliminating oil starvation when operating multiple functions, such as grading with the backhoe.

Easy Access
The 426F2 is equipped with a flip open hood, allowing access to all the check and fill points, air cleaner, washer bottle and visual check indicators. The hinged cooling pack provides easy access to not only the radiator and air conditioner, but also the transmission and hydraulic cooler.The 426F2 carries on theCat Backhoe Loader tradition with sealed for life axle oscillating pins, axle and driveshaft U-joints. Daily checks that can be time consuming for a busy operator are kept to a minimum on the 426F2. Cat Product LinkTM system provides remote reporting of machine location and hours.
