Graylogix

Maximum Power	20 W
Voltage	12V
Brand	Graylogix
Part Number	K-39
Usage/Application	Industrial
Color	Silver
Material	Metal

Semiconductor coolers are a form of solid state cooling that incorporates both semiconductor technologies and electronic assembly techniques. One such example is the Thermoelectric Peltier Refrigeration Cooling System DIY Kit. The DIY kit is a semiconductor cooling kit which uses a TEC1-12706 Thermoelectric Cooler 6A Peltier Module. The kit has 2 heat sinks: the bigger one is for the hotter side and the smaller one is for the cooler side. The bigger the heat sink, the greater dissipation of the heat. The fan, also included in this kit acts as a radiator. This is attached to the bigger heat sink. The TEC1-12706 thermoelectric Peltier module is sandwiched between the two heat sinks. The module will reduce the temperature. The kit when assembled takes up less space and is ideal for Pet Space air conditioning( dogs house, chicken, etc), small refrigerator.

 Note:

1. The kit does not include TEC1-12706 Thermoelectric Peltier Module
2. This is an unassembled kit.

Features of Thermoelectric Peltier Refrigeration Cooling System DIY Kit:-

1. Using GL style of the refrigerator, effectively release the thermal deformation ability of the refrigerator produce at work.
2. Small volume, does not occupy space, installation is simple.
3. This semiconductor cooler is a form of solid-state cooling that incorporates both semiconductor technologies and electronic assembly techniques.
4. It can be used as a Pet Air Conditioner (chicken, little dog, etc.) or a little fridge.

Features of Thermoelectric Peltier Refrigeration Cooling System DIY Kit:-

Package Includes:-

1. 1 x Cooling Fan
2. 1 x Fan Gauze
3. 1 x Guide cold plate
4. 1 x Radiator
5. 1 x Thermal insulation gasket
6. 1 x Silicon grease
7. 1 x Pack of Screws.

Biocompatibility	Yes
Brand	GRAYLOGIX
Sensitivity	Good
Voltage	5V and 3.3V
Output	Pulse
LED	Yes

The Green Easy Pulse Sensor Heart Beat Sensor HRM2511E is a DIY pulse sensor that is designed for hobbyists and educational applications, It is used to illustrate the principle of phot plethysmography (PPG), PPG is a non-invasive technique for detecting the cardio-vascular pulse wave from a fingertip. The Easy Pulse Sensor uses a transmission mode PPG probe (HRM-2511E) sensor.
This Sensor uses an infrared light source to illuminate the finger on one side, and On the other side of the sensor there is a photodetector that measures small variations in the transmitted light intensity due to changes in blood volume inside the tissue.

• The onboard components & instrumentation provide a clean and filtered analog PPG waveform.
• The on-board LED also indicates the digital pulse output.
• The analog and digital signals are both synchronous with the heartbeat.

Features of Easy Pulse Sensor:

• Stable PPG signal output (Generate Phot plethysmography PPG with Arduino)
• MCP6004 Op amp based instrumentation with rail-to-rail output capability for maximum output signal swing
• Separate analog & digital outputs
• Potentiometer gain control for the analog output
• Pulse width control for the digital output
• Additional test points on board for analyzing signals at different stages of instrumentation
• Output as +3.3V & +5V
• Simple to interface Easy Pulse Sensor with Arduino & any other Microcontroller.

Sensor Type	Glass Electrode
pH range	0 to 14
ORP Range	-1500 to +1500 mV
Type Of Ph Meter	Portable
Temperature Range	27 Degree
Usage/Application	Industrial
Resolution	0.1 pH
Wetted parts	Glass
Brand	GRAYLOGIX
Cable Length	0.5 Meter
What's Included	PH Sensor Board and PH Electrode
Calibration	Done
Process Connection Thread	BNC Connector
Storage Conditions	Dry
Is It Water Proof	Non Water Proof
Sensor Output	Analog
Power	9V DC
Material	Glass

Ready to use with 8 bit Microcontrollers
Input power supply- 5v
4 data lines connected to Burgstick
Test switch on each Data bit
Output LED's on each Data bit
Frequency 433Mhz.

Additional Information:

• Production Capacity: 100 Per day
• Delivery Time: 2 to 3 Days
• Packaging Details: Industrial Standard

Parameter Measures	SpO2 + Pulse Rate
Brand	GL Make
Model Name/Number	Pulse Oxymeter
Display Type	Dual Color LED
Display Mode	3 Display Modes
Warranty	6 Months
Oximeter Accuracy	100%
Features	Digital
Usage/Application	Home Use

Fingertip Pulse Oximeter

It measures pulse rate and spo2 blood oxygen saturation of arterial haemoglobin levels. It accurately determines spo2, i.e. blood saturation levels. The oxygen monitor features a large digital led display that is rotational.

Features of Fingertip Pulse Oximeter

• Battery : DC 3V
• SpO2 : 70-100%
• Bpm : 25-250bpm

Display Type	Digital
Model Name/Number	AN0032R
Electrical requirement	Yes
Brand	GRAYLOGIX
Usage/Application	Industrial
Shape	Round
Packing Type	Box

The Anemometer Wind Speed Measuring Device AN0032R is a device that measures wind speed and direction. It is a common instrument used in weather stations and meteorology. The earliest known description of an anemometer was by Italian architect and author Leon Battista Alberti in 14501.

The device can be either in a contained flow like airflow in a duct or in the unconfined flows like the atmospheric wind. To determine the air velocity, anemometers are able to detect the change in some physical properties of the fluid. Sometimes to measure the effect of the fluid on a mechanical device inserted into the flow. Anemometers can be categorized into two categories such as portable handheld anemometers and those affixed to the ground at weather stations2. The Anemometer Wind Speed Measuring Device AN0032R is a weather station instrument that measures wind speed. It derives its name from the Greek word “anemos,” meaning wind, and describes any wind speed instrument used in meteorology.

Features of Anemometer Wind Speed Measuring Device AN0032R:

• Salient and smooth operation
• Digital pulse output
• Hall effect sensor-based
• Pulses vary depending on the wind speed
• Active low pulse indicates one full rotation
• Output is internally pulled high, so there is no need to connect a pull-up resistor
• 3-meter long waterproof cable
• Simple installation with nuts and bolts
• Secure and fasten all the nuts and bolts before operating the device
• Red wire = 5V DC
• Black wire = GND
• Green/yellow wire = output

Please note the following conditions:

• Keep the bearing lubricated for best operations and longer life
• Mount the base on a sturdy platform to keep the device stable
• Avoid any kind of vibrations while reading the output data
• This device is not 100% waterproof and can be operated in mild rainy conditions
• Cover the device if unused and keep it lubricated.

Output Voltage	5V DC
Material	Plastic
Brand	GRAYLOGIX
Model	C-64
Input Voltage	24V
Application	DC to DC Conversion
Capacity	5A
Color	Black
Conversion Efficiency	90%

DC-DC Converter 2.5V to 30V 5A Portable Variable Power Supply consists of XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module. capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation.
Best Suitable for 5A Variable lab Bench Power Supply. It has an maximum duty cycle of 100% and and minimum dropout of 0.3V and an efficiency of 96%.

Features of DC to DC 2.5V to 30V 5A Portable Power Supply

• High efficiency up to 96%
• The built-in thermal shutdown function
• Built-in current limit function
• In-Built output short protection function
• Input reverse polarity protection: None (if required, the high current diode in series with the input).

Parameters of Portable Power Supply

• Input Voltage (V)  4 to 30V
• Output Voltage(V) 1.25 to 30V
• Max. Output Current (A)  0 to 5A
• Output Power(Watt)  75W

Additional Information:

• Packaging Details: Industrial Standard

Display Type	Digital
Usage/Application	Air Velocity
Model Name/Number	AN0032R
Weight	1 kg
Dimensions	30 x 30 x 10 cm
Red Wire	5V DC
Black wire	GND
Green/Yellow Wire	Output

 The Anemometer Wind Speed Measuring Device AN0032R is a device that measures wind speed and direction. It is a common instrument used in weather stations and meteorology. The earliest known description of an anemometer was by Italian architect and author Leon Battista Alberti in 14501.

The device can be either in a contained flow like airflow in a duct or in the unconfined flows like the atmospheric wind. To determine the air velocity, anemometers are able to detect the change in some physical properties of the fluid. Sometimes to measure the effect of the fluid on a mechanical device inserted into the flow. Anemometers can be categorized into two categories such as portable handheld anemometers and those affixed to the ground at weather stations2. The Anemometer Wind Speed Measuring Device AN0032R is a weather station instrument that measures wind speed. It derives its name from the Greek word “anemos,” meaning wind, and describes any wind speed instrument used in meteorology.

Features of Anemometer Wind Speed Measuring Device AN0032R:

• Salient and smooth operation
• Digital pulse output
• Hall effect sensor-based
• Pulses vary depending on the wind speed
• Active low pulse indicates one full rotation
• Output is internally pulled high, so there is no need to connect a pull-up resistor
• 3-meter long waterproof cable
• Simple installation with nuts and bolts
• Secure and fasten all the nuts and bolts before operating the device
• Red wire = 5V DC
• Black wire = GND
• Green/yellow wire = output

Please note the following conditions:

• Keep the bearing lubricated for best operations and longer life
• Mount the base on a sturdy platform to keep the device stable
• Avoid any kind of vibrations while reading the output data
• This device is not 100% waterproof and can be operated in mild rainy conditions
• Cover the device if unused and keep it lubricated.

Biocompatibility	Yes
Sensor Type	Finger Clip
Model Number	HRM2511E
Package Dimensions	5 x 5 x 5 cm
Output	+3.3V & +5V
Weight	0.01 kg

The Heart Beat Sensor provides a simple way to study the heart's function. This sensor monitors the flow of blood through Finger. As the heart forces blood through the blood vessels in the Finger, the amount of blood in the Finger changes with time. The sensor shines a light lobe (small High Bright LED) through the ear and measures the light that is transmitted to LDR. The signal is amplified, inverted and filtered, in the Circuit .By graphing this signal, the heart rate can be determined, and some details of the pumping action of the heart can be seen on the graph
square wave
Figure shows that the blood flowing through the Finger rises at the start of the heartbeat. This is caused by the contraction of the ventricles forcing blood into the arteries. Soon after the first peak a second, smaller peak is observed. This is caused by the shutting of the heart valve, at the end of the active phase, which raises the pressure in the arteries and the earlobe

Additional Information:

• Item Code: Heart_Beat_Sensor
• Port of Dispatch: Piece
• Production Capacity: 100 Per Day
• Delivery Time: Same Day
• Packaging Details: Industrial Standard

Module Power	DC 9.00V 1A
Measuring Range	0-14PH
Accuracy	0.1pH (24)
Internal Resistance	250MO
Alkali Error	0.2PH
Dimensions	10 x 10 x 10 cm
Weight	0.5 kg

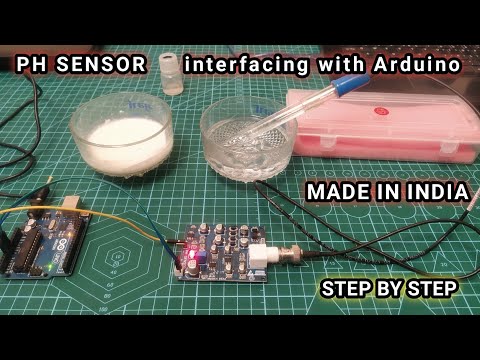

PH Sensor Kit for Arduino is designed and manufactured for industrial and real-time online PH value monitoring, It can be easily interfaced with Arduino and other similar microcontrollers, the Module is built for simple and convenient practical applications, which has long life up to 1 year of durability, thus making it suitable for long term online monitoring. This industrial pH electrode is made of sensitive glass membrane with low impedance. It can be used in a variety of PH measurements with fast response and excellent thermal stability.

It has good reproducibility,  and can eliminate basic alkali error. In 0pH to 14pH range, the output voltage is linear. The reference system which consist of the Ag/AgCl gel electrolyte salt bridge has a stable half-cell potential and excellent anti-pollution performance. The ring PTFE membrane is not easy to be clogged, so the electrode is suitable for long-term online detection.

Specifications:

• Module Power: DC 9.00V 1A
• Measuring Range: 0-14PH
• Accuracy: ± 0.1pH (24 )
• Response Time: 1min
• Industry pH Electrode with BNC Connector
• PH Interface ( 2 foot patch )
• Power Indicator LED
• Output: Analog values in the range of (0.5V to 3V)
• Alkali Error: 0.2PH
• Internal Resistance: 250MO
• Response Time: <1min
• Operating Temperature: 0-60°
• Terminal Blocks: BNC plug
• BNC Connector suitable for most PH meter and controller.
• Suitable for wide range of application: Aquariums, Hydroponics, Laboratory etc.
• This PH sensor is calibrated @ 24 degree centigrade room temperature. Calibrated values are: PH4 = 1.5V, PH7 = 2.0V and PH9 = 2.5V

Instructions for use of PH Sensor Kit for Arduino

• Place the PH Sensor probe vertically and keep it for long time before using.
• The Device will give excellent results if the sensor probe is used multiple times in the period of 2 to 3 days.
• Rinse the sensor probe tube in deionized water and dab it with the tissue paper before immersing it in the test solution.
• The device will take approximately 30 to 40 seconds to stabilize and give the results.
• Before placing the probe in the storage solution make sure to rinse the probe tip in the deionized water, dab it with the dry tissue paper and then place it in the storage cap.

Important Notes:

• This instrument is calibrated for the PH sensor provided along with this Kit. And may not give accurate results if the PH sensor probe is changed. Hence calibration is required if the PH sensor Probe is changed.
• Results are directly proportional to the temperature of the solution.
• PH sensor probe Tube tip is very sensitive and should not be touched with hands and cannot be placed on the ground.
• The bulb type tip is very fragile and should be kept in the storage solution if not used.

Package includes

• Industry pH electrode (BNC connector) ×1
• pH sensor circuit board KIT ×1
• User Manual x 1
• Buffer Solution PH 4.01 x 1
• Buffer Solution PH 6.86 x 1
• Buffer Solution PH 9.18 x 1
• PH Test Strips x 100

Additional Information:

• Production Capacity: 100 Pcs per day
• Delivery Time: 2 to 3 days
• Packaging Details: Industrial Standard

Sensor Type	Hall Effect
Current Range	200 A
Output Type	Analog
Supply Voltage	5 V DC
Accuracy	1 %
Pin Count	3
Offset Voltage	3v
Maximum Input Voltage	12v
Mounting Type	TH
Part Number	WCS1500 Current Sensor 200A
Brand	GRAYLOGIX
Frequency Range	DC
Number Of Channels	1 Channel
Ingress Protection	IP20
Isolation voltage	4000V
Current Load	200A
operating current	3mA



WCS1500 Current Sensor 200A Hall Effect Base Linear Current Sensor with 200A Current Sensing Capability

Features:

Diameter 9.0mm conductor through hole.
Output voltage proportional to AC & DC current
Wide sensing current range 0~200A at 5V volt.
High sensitivity 11mV/A
Wide operating voltage range 3.0~12 V.
Low operating current 3mA
Isolation voltage 4000V
Ratiometric output from supply voltage
23K Hz Bandwidth
Two bronze sticks for easy soldering on PCB.

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),Other
• Port of Dispatch: Bangalore
• Production Capacity: 100
• Delivery Time: 2 TO 3 DAAYYS
• Packaging Details: Industrial stanadared

Usage	For Security
Output	PNP
Body Material	Metal
Sensing Distance	10 mm
Voltage	12 V
Current	10mA
Switching Function	Normally open (NO)

DC 12V 24V Inductive Proximity Sensor Switch Inductive Sensor PNP Interruptor Detector Monitor Metal DC Switch Interrupteur

Model: ST18-3008
Wire Type Cylindrical DC 3 Wire Type
Switch Appearance Type Cylinder Type
Theory Inductive Sensor
Output Type
PNP NO(Normal Open)
Diameter of Head 12mm
Detecting Distance 4mm
Supply Voltage DC 6-36V
Current Output300mA
Response Frequency 0.5KHz
Detect Object Iron
Operating Temperature -25°C to +55°C (Non-freezing Condition)
Size 6.2 x 2cm/2.4” x 0.8” (L*Max. Dia)
Cable Length 110cm/43.3″
External Material Plastic, Alloy
Net Weight 46g

Package Included:
1 x DC Proximity Sensor Switch.
