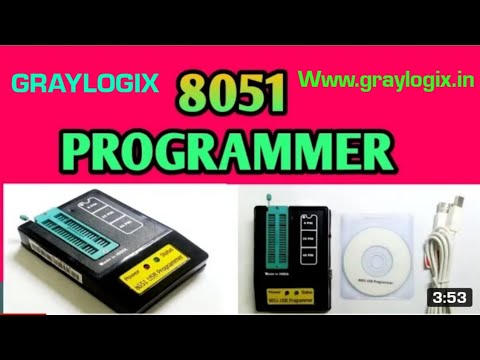

TOP8051 Programmer used to program 8051 series of microcontrollers which is an self powered USB programmer, best suitable for industries, and supported by, XP, Win 7 and Win 10 operating system.

FIRST USE & SETUP INSTRUCTIONS:

1. CHECK THE NOTEPAD FILE WHICH SHOWS THE DIFFERENT TYPES OF IC’S SUPPORTED BY THIS DEVICE.
2. INSTALL USB DRIVERS GIVEN IN THE CD.
3. COPY THE WILLAR SOFTWARE TO THE DESKTOP.
4. SELECT THE DEVICE.
5. OPEN THE HEX FILE AND GIVE COMMAND AUTO PROGRAM.

LIST OF ICs SUPPORTED by TOP8051 Programmer:

ATMEL [MCU/MPU]
AT89C51
AT89C52
AT89S51
AT89S52
AT89S53
AT89S8252
AT89C1051
AT89C2051
AT89C4051

ATMEL [Serial EEPROM]
AT93C46
AT93C56
AT93C66
AT24C01
AT24C02
AT24C04
AT24C08
AT24C16
AT24C164
AT24C32
AT24C64

SST [MCU/MPU]
SST89C54
SST89C58
SST89C59
SST89E54RD
SST89E58RD
SST89E554RC

Additional Information:

• Item Code: 8051USBProgrammer
• Pay Mode Terms: T/T (Bank Transfer),Other
• Port of Dispatch: Bangalore
• Delivery Time: 2 working days
• Packaging Details: Industrial Standared

The PIC kit 2 Development Programmer/Debugger is a development tool with an easy to use interface for programming and debugging Microchip’s Flash families of microcontrollers. The full featured Windows® programming interface supports baseline (PIC10F, PIC12F5xx, PIC16F5xx), midrange (PIC12F6xx, PIC16F), PIC18F, PIC24, dsPIC30, dsPIC33, and PIC32 families of 8-bit, 16-bit, and 32-bit microcontrollers, and many Microchip Serial EEPROM products. With Microchip’s powerful MPLAB Integrated Development Environment (IDE) the PIC kit 2 enables in-circuit debugging on most PIC® microcontrollers. In-Circuit-Debugging runs, halts and single steps the program while the PIC microcontroller is embedded in the application. When halted at a breakpoint, the file registers can be examined and modified.

Additional Information:

• Item Code: PIC-Kit-2
• Port of Dispatch: Bangalore
• Packaging Details: Industrial standared

SIM7600EI 4G LTE USB Modem for Data and SMS designed and manufactured by Graylogix for industrial application related to GSM which works on standard AT commands with any Baud rate. Best suitable for SMS and Data applications, supports all types of sim cards including JIO, This modem works on both 2G and 4G network comprising of 3 external antennas, one 4G main antenna, the auxiliary antenna and the GPS antenna. it is USB self powered. Fast and stable network performance.

• SIM7600EI USB modem,
• 4G Antenna,
• GSM Antenna,
• GPS Antenna,
• USB Cable

Additional Information:

• Production Capacity: 100 per Day
• Delivery Time: Same Day
• Packaging Details: Industrial Standard.

PICkit 3.5 is a programmer and debugger device designed by Microchip Technology, which is used for programming and debugging Microchip’s PIC microcontrollers. It is an upgrade to the previous PICkit 3 device and supports a wide range of PIC microcontrollers. The device is small, portable, and connects to a computer via USB.

• Supports a wide range of PIC microcontrollers, including mid-range and 8-bit devices.
• Can program and debug PIC microcontrollers in-circuit or in-system.
• Provides a fast and reliable programming and debugging experience.
• Offers advanced features such as real-time execution, breakpoints, and single-stepping.
• Has a user-friendly graphical interface for easy operation.

Overall, the PICkit 3.5 is a versatile and powerful tool for programming and debugging PIC microcontrollers, suitable for both hobbyists and professionals in the field of embedded systems.

• 1 x PICkit3.5 PIC KIT3.5 Debugger Programmer
• 1 x Mini USB cable
• 1 x 6-Pin flat cable

16×2 LCD Green display module with Green backlight.
Wide viewing angle and high contrast.

Built-in industry standard HD44780 equivalent LCD controller.
Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
LCM type: Characters
Can display 2-lines X 16-characters.
Voltage: 5V DC.
Module dimension: 80mm x 35mm x 11mm.
Viewing area size: 64.5mm x 16mm.

Additional Information:

• Port of Dispatch: Bangalore
• Production Capacity: 10 per day
• Delivery Time: 2 working days
• Packaging Details: Industrial Standared

HC05 BLUETOOTH Serial and TTL

HC-05 Bluetooth 2.0 Serial Communication
Both TTL and Serial DB9
Input voltage = 5v to 9V DC

Additional Information:

• Port of Dispatch: Bangalore

HC05 Bluetooth Module for TTL based Bluetooth communication between any microcontroller like Arduino etc.

2. Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
3. Module working voltage 3.3 V.
4. Potter default rate of 9600, the user can be set up.
5. The core module size : 28 mm x 15 mm x 2.35 mm.
6. Working current: matching for 30 MA, matching the communication for 8 MA.
7. Dormancy current: no dormancy.
8. Used for GPS navigation system, water and electricity gas meter reading system.
9. With computer and Bluetooth adapter, PDA, seamless connection equipment

Features of HC05 Bluetooth Module:

Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC.GND.TXD.RXD foot for the Bluetooth
With “Re-search” button(ON/OFF/WAKE foot for it , external MCU out input “High level” can control module to research)
Compatible with Bluetooth master module”. slave module” or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm

Additional Information:

• Pay Mode Terms: T/T (Bank Transfer),Other
• Port of Dispatch: Bangalore
• Packaging Details: Industrial standared
