Hilti India Private Limited

Laser Type	Line and point
Accuracy	+/-2 mm at 10 m

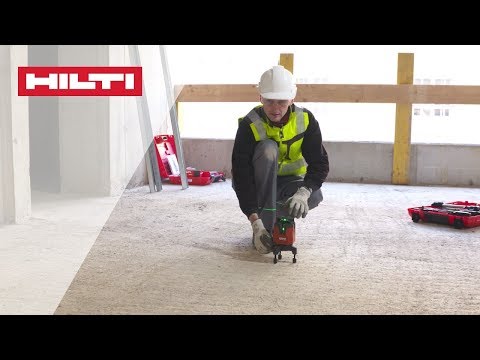

Model Name/Number	PM 40-MG
Brand	Hilti
Fan Angle	360 degree (Horizontal),240 degree (Vertical)
Ip Protection Class	IP 54 (EN 60529)
Max Operating Distance	40 m (lines),100 m (lines,with receiver)
Maximum Operating Time	10 h
Self Leveling Range	+/- 3 degree
Self Leveling Time	3 s
Dealer Type	Authorised

Features

• The most versatile tool for precise and fast 360° aligning, levelling and squaring
• Rechargeable B12 Li-ion battery allows up to 1.5 days of continuous layout work
• Metal Blade Axicon technology – delivering outstanding, long-lasting accuracy
• Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
• Laser class 2 – no special precautionary measures needed

Get Best Price Of Hilti Multi Line Laser Pm 40-Mg.

Instrument Type	Laser Tracker
Battery Type	4 x 1.5 V (AA)
Ip Protection Class	IP 54 (EN 60529)
Accuracy	+-3 mm at 10 m
Brand	Hilti

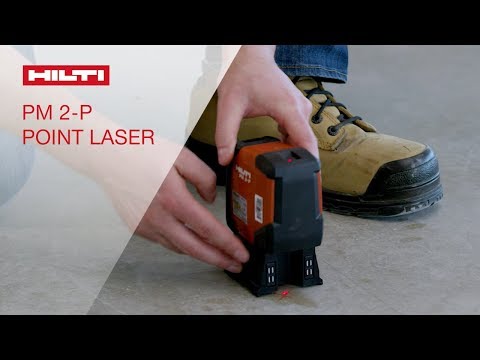

Model Number	PM 2-P
Max. Operating Distance	30 m (points)
Maximum Operating Time	50 h
Self-levelling Range	+-4 Degree
Self-levelling Time	3 s
Warranty	1 Year Free Repair
Dealer Type	Authorised

Features:

• Two vertical laser points for precision aligning up to 30 m/100 ft
• Compact size allows high-speed layout
• Rubber-coated housing and pendulum lock for higher robustness
• Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
• Laser class 2 – no special precautionary measures needed

Applications:

• Transferring points from floors to ceilings
• Vertical alignment of windows and doors
• Vertical alignment of steel and timber structures

Instrument Type	Laser Tracker
Battery Type	4 x 1.5 V (AA)
Ip Protection Class	IP 54 (EN 60529)
Accuracy	+-3 mm at 10 m
Brand	Hilti
Model Number	PM 2LG
Max. Operating Distance	20 m (lines), 50 m (lines, with receiver)
Maximum Operating Time	14 h
Self-levelling Range	+-4 Degree
Self-levelling Time	3 s
Horizontal Fan Angle	180 Degree
Vertical Fan Angle	135 Degree
Warranty	1 Year Free Repair
Dealer Type	Authorised

Features:

• Green beam for best visibility up to 20 m/66 ft in vertical and horizontal layout tasks
• Compact size allows high-speed layout
• Rubber-coated housing and pendulum lock for higher robustness
• Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
• Laser class 2 – no special precautionary measures needed

Applications:

• Transferring reference heights
• Levelling suspended ceilings
• Levelling electric sockets, cable trays, radiators and pipe installations
• Levelling and aligning doors and windows
• Aligning pipes vertically

Accuracy	+-3 mm at 10 m
Model Name/Number	PM 2-L
Battery Type	4 x 1.5 V (AA)
Brand	Hilti
Ip Protection Class	IP 54 (EN 60529)
Maximum Operating Time	14 h
Self-levelling Range at Room Temperature	+-4 Degree
Self-levelling Time	3 s
Horizontal Fan Angle	180 Degree
Vertical Fan Angle	135 Degree
Laser Type	Line
Warranty	1 Year Free Repair
Dealer Type	Authorised
Max. Operating Distance	10 m (lines), 30 m (lines, with receiver)

Features:

• Compact size allows high-speed layout
• Rubber-coated housing and pendulum lock for higher robustness
• Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
• Laser class 2 – no special precautionary measures needed

Applications:

• Transferring reference heights
• Levelling suspended ceilings
• Leveling electric sockets, cable trays, radiators and pipe installations
• Leveling and aligning doors and windows
• Aligning pipes vertically

Get Best Price Of Hilti Line Laser Machine.

Model Name/Number	PR 2-HS A12
Rotation Speed	300 rpm
Brand	Hilti
Accuracy	+-0.5 mm at 10 m
Operating Range	2 - 600 m
Laser Class	<4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling Range	+- 5 Degree
Operating Temperature Range	-20 - 50 Degree C
Maximum Operating Time	16 h
Warranty	2 Year Free Repair
Dealer Type	Authorised

Features:

• One button, one function makes the tool extremely easy to use
• Unaffected by the sun and other light sources thanks to Pulse Power technology
• Digital measurement indicates to the user precisely how much the measurement deviates from the target value
• Single manual slope mode at up to 60% using the PRA 79 slope adapter
• Extended 12 cm laser receiver window for quick detection of the laser beam over the entire working range

Applications:

• Excavation
• Levelling formwork and pouring concrete
• Transferring and checking reference heights
• Setting out slopes

Model Name/Number	PS 300 Ferroscan
Brand	Hilti
Data Memory	200 scans
Working Temperature Range	-10 - 50 Degree C
Dimension	284 x 163 x 154 mm (LxWxH)
Max. Detection Depth	200 mm
Localisation Accuracy	1% +/-3mm mm square
Minimum Distance	30 mm
Dealer Type	Authorised

Features
Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
Smart algorithm helps accurate depth measurements for rebar
Wide sensor area enables quick and easy scan over large areas
Record scan data for documentation and structural analysis

Applications
Verification and analysis for 1st layer rebar
Checking concrete cover over large areas for structural repair work
Building acceptance inspections and quality control
Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

Dealer Type	Authorised
Measuring Range	0 m - 200 m
Brand	Hilti

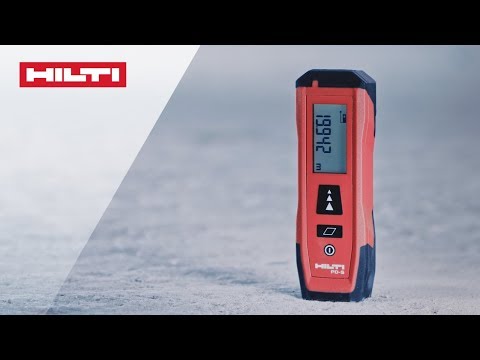

Model Name/Number	PD-E
Warranty	1 Year Free Repair
Battery Type	2 x 1.5 V (AAA)
Ip Protection Class	IP 65 (EN 60529)
Data Memory	Last 30 measurements,Calculation results with graphics
Measuring Functions	Single and continuous measurement,Outdoor mode,Digital level
Measurement Accuracy	1.0 mm
Laser Class	<1 mW,635 nm,Class 2 (EN 60825),Class II (FDA CFR 21 art. 1040)

Features:

• High-quality laser module enables long-range measurements even under the toughest outdoor conditions
• Purpose-built outdoor display can be read even in very bright sunlight
• Built-in optical viewfinder for outdoor measurements
• Rugged and durable to resist hard jobsite environments
• Built-in 360° tilt sensor and smart estimation functions support measurements in challenging situations

Applications:

• Measuring quickly and safely in places where access is difficult
• Measuring surface areas for quotations in renovation work
• Determining the length or height of objects that cannot be directly accessed (remote measurement)
• Measuring long distances using outdoor mode
• Easy measurement of roof lengths using the trapezoid function

Dealer Type	Authorised
Measuring Range	0.2 m - 60 m
Brand	Hilti
Model Name/Number	PD-S
Warranty	1 Year Warranty
Battery Type	2 x 1.5 V (AAA)
Ip Protection Class	IP 54 (EN 60529)
Data Memory	Last 2 measurements
Measuring Functions	Single and continuous measurement
Measurement Accuracy	1.5 mm
Laser Class	<1 mW,635 nm,Class 2 (EN 60825),Class II (FDA CFR 21 art. 1040)

Features:

• Extremely simplified keypad - intuitive to use
• Rugged and durable to resist hard jobsite environments
• Protected against dirt, dust and splashing water
• Compact design fits in every pocket
• LCD display with backlight

Applications:

• Measuring distances from 0.2 - 60 m quickly and accurately
• Measuring distances and heights where traditional measuring methods fail
• Measuring long distances and heights in a one-man operation
• Measuring areas to calculate paint, flooring or concrete quantities
