India Medtronic Private Limited

Set type	advanced imaging system
Usage	Reusable
Application area	Pediatric neuro, Spinal, Cranial, Neuro ENT
Usage/Application	Spine,Orthopaedic Trauma,and Neurological Procedures
Brand	Medtronic
Length	110.5 in (280.6 cm) docked
Width	32.0 in (81.3 cm)
Height	79.6 in (202.2 cm) gantry door open
Weight	2046 lbs (925.8 Kg)
Gantry Opening	27.5 in (69.9 cm)
Bore Diameter	38 in (96.5 cm)

The O-armTM system is an intraoperative 2D/3D imaging system that is designed to meet the workflow demands of the surgical environment. It can be used in variety of procedures including spine, cranial, and orthopedics.

Indications:
The O-arm O2 Imaging System is a mobile x-ray system designed for 2D fluoroscopic and 3D imaging for adult and pediatric patients weighing 60 lbs or greater and having an abdominal thickness greater than 16cm, and is intended to be used where a physician benefits from 2D and 3D information of anatomic structures and objects with high x-ray attenuation such as bony anatomy and metallic objects. The O-arm O2 Imaging System is compatible with certain image guided surgery systems.

The O-arm system’s high quality, versatile imaging provides the information you need to guide your clinical decision making.

Advanced Surgical Solutions:
Along with StealthStation™ navigation, the O-arm system provides enhanced 3D visibility and surgical feedback. It also:

• Provides current patient data in the OR
• Enables advanced surgical approaches like MIS
• Provides additional information in challenging procedures, like heavier patients or patients with unusual anatomy
• Automatic registration keeps the process simple

The O-arm system also offers options for workflow efficiencies, such as:

• In procedures where pre-op axial/coronal/sagittal slice data is necessary, it may be possible to use the O-arm system to provide the initial data set
• Eliminating the need to send patients to be scanned in radiology

Imaging Protocols:
The O-arm system provides flexibility for surgeons to achieve As Low As Reasonably Achievable (ALARA). Multiple image protocols allow the surgeon flexibility to choose the appropriate dose to the patient based upon individual clinical objectives.

Opportunities To Reduce Dose:
With opportunities to reduce dose to the surgeon and staff, the O-arm and StealthStation systems eliminate the need to wear lead protective apparel during the navigated steps of the procedure.

Surgical Workflow:
The O-arm system has been designed to complement the surgical workflow with:

• Multiple surgical table options
• Inter-room mobility for concurrent cases
• On-demand imaging, no need to schedule in advance

Set type	Cranial robot
Usage	Reusable
Application area	Cranial
Usage/Application	Medical
Brand	Medtronic
Operating Room Footprint	Small
Display Type	Digital
Material	ABS
Warranty	1 Year

Cranial Robotic Guidance Platform
Stealth Autoguide™ cranial robotic guidance platform is engineered to provide stereotactic positioning and trajectory guidance.

Robotic Precision. Powered By You
Stealth Autoguide™ cranial robotic guidance platform accurately aligns to your surgical plans for cranial procedures.

• Continuous real-time visualization, feedback, and robotically-assisted movement allows you to quickly and accurately align to your surgical plans for cranial procedures.
•  Seamlessly integrating with your StealthStation™ system and Midas Rex™ drill technology, the innovative Stealth Autoguide™ strives to improve your workflow efficiency with a minimal footprint in your O.R.

Real-Time Visualization, Feedback, And Robotic Movement
Visualase
Stealth Autoguide™ aligns the bone anchor to a planned trajectory. A flexible Visualase™ laser catheter is passed through the bone anchor to the target area.

Depth Electrodes
Stealth Autoguide™ assists in the placement of sEEG anchor bolts to enable the placement of depth electrodes. Allowing you to place multiple sEEG electrodes quickly and efficently.

Biopsy
Stealth Autoguide™ easily and precisely aligns to your surgical plan to place the biopsy needle. This solution enables accurate location of lesion with direct depth stop calculation and confirmation of biopsy location with biopsy needle navigation.

Seamless Integration
With StealthStation™ system:

• Select variable intervention setups and approaches.
• Align to multiple trajectories during a single procedure.
• Save time with simplified trajectory positioning and alignment.
• Continuously monitor trajectory alignment through the procedure.

With Midas Rex™ drill technology:

• Minimize movement and increase stability while drilling.
• Perform accurate incision placement.
• Specify drilling depth based on measurement of the skull thickness.
• Track real-time visualization, feedback, and misalignment alerts continuously while drilling.

Robotically Assisted Placement
Use the Stealth Autoguide™ platform to:

• Perform robotically assisted alignment efficiently for biopsy, epilepsy sEEG bone anchor placement, and Visualase™ bone anchor for catheter placement.
• Track progress continuously with real-time navigation and visual feedback for misalignment alerts.
• Align to your surgical plans accurately with equivalent or improved trajectory accuracy compared to standard of care techniques.

Small Operating Room Footprint:

• Align to your surgical plans with a smaller O.R. footprint compared to other robotic systems.
• Set-up quickly and simply.
• Navigate easily with clear icons that provide visual prompts and continual feedback throughout the procedure.

Usage	Hospital
Brand	Medtronic
Equipment Type	Surgical Navigation System
Usage/Application	Hospital
Import Options for Patient Pre-op Exams	Yes
Monitor Size	27 inch
Monitor Type	Touchscreen
RAM	16 GB
Number Of Emitter Designs	Two
Emitter Design Type	Electromagnetic
Camera Type	Optical

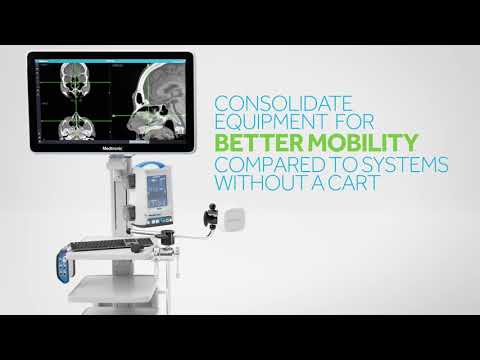

The StealthStation S8 surgical navigation system enables you to precisely track the location of surgical instruments throughout a procedure. The StealthStation S8 system introduces the most advanced version of Stealth technology  a combination of hardware, software, tracking algorithms, image data merging, and specialized instruments to help guide you during surgical procedures.

Indications:
The StealthStation System is intended as an aid for precisely locating anatomical structures in either open or percutaneous procedures. The StealthStation System is indicated for any medical conditions in which the use of stereotactic surgery may be appropriate, and where reference to a rigid anatomical structure, such as the skull, a long bone, or vertebra, can be identified relative to a CT or MR based model, fluoroscopy images, or digitized landmarks of the anatomy.

The StealthStation surgical navigation system offers both optical and EM tracking capabilities, integration with external devices like microscopes and ultrasound, a broad array of instrument offerings, and core software applications for neurosurgery and spine procedures including:

• Biopsy
• Tumor resection
• Catheter placement
• Deep brain stimulation lead placement
• Spine decompression or fusion (including, but not limited to ACDF, ALIF PLIF, TLIF, cortical screw placement)
• Spinal or pelvic fixation (including, but not limited to, SI fixation, placement of occipital pedicle, cortical, facet screws, fixation for scoliosis, kyphosis, or other deformity )
• Treatment for spinal or sacral trauma (including, but not limited to, vertebroplasty, sacroplasty )

System Advancements:

• Intuitive user interface with two touchscreen monitors, which support multitouch gestures like pinch-and-zoom and drag-and-drop1
• Better visualization with easier manipulation of 2-D and 3-D views and intuitive layering and blending tools2
• Patient registration with more versatility, such as using both touch and trace techniques within the same registration process2
• Model building tools to get more out of the data and improve your planning process
• Single or dual cart configurations for greater flexibility

Capabilities:

• Interfaces with intraoperative imaging systems, including iMRI , iCT , C-arms, and the O-arm surgical imaging system, to orient surgeons with 3-D images of the patients anatomy
• Tracks surgical instruments in real time, based on preoperative and intraoperative images
• Relays movements of instrumentation relative to patient anatomy via optical or electromagnetic navigation options
• Helps guide your planning and approach prior to and during surgery, allowing you to create, store, and simulate progression along one or more surgical trajectories
• Integrates with external devices like endoscopes and microscopes, streamlining visualization workflows

System Technologies
Dual Cart Stealth S8 System Design
Interact with the StealthStation surgical navigation system through two large, 27-inch, high-definition, touchscreen monitors, providing ultimate flexibility in interacting with the system.

• Two electromagnetic emitter designs, each with large tracking volume
• 1 terabyte solid-state drive  ample space to store examinations of patients
• 16GB of RAM memory for fast performance and image manipulation
• Optical camera with large tracking volume provides flexibility in positioning and addressing line-of-sight issues

Set type	Craniotomy set
Instrument grade	Titanium
Usage	Reusable
Application area	Cranial, Neuro ENT, Spinal
Usage/Application	Spinal & Cranial
Type	Pneumatic and Electric
Brand	Medtronic
Speed	200-75,000 rpm
Tool	Navigable
Size	Compact

High-Speed Drill System
The Midas Rex™ MR8™ high-speed drill system offers power and performance for spine, cranial, ENT, orthopedic, and other surgical procedures.

Advancing Surgical Possibilities
The Midas Rex MR8 high-speed drill system has a lower operating temperature, less chatter, improved visibility of the surgical site, and even better cutting performance. Navigable with StealthStation™ S8, it seamlessly integrates with other technologies in our portfolio. With our comprehensive support, education, training, and service, you have a partner that’s there for you from start to finish.

Product Features:
Precision You Can Feel
Our latest drill technology delivers smooth, precise bone cutting performance with a lightweight, compact handpiece design so you can be confident during your procedures.

The MR8 drill system now features:

• Streamlined attachment profiles for improved visibility
• Adjustable tool exposure lengths
• Handpiece engineered to reduce vibration

Versatility You Can See
Our wide range of attachments have been redesigned to provide a more streamlined profile with flexible options you can tailor so that you have improved visualization and increased accessibility of the surgical site.

Updates include:

• Lighter ergonomic design
• Enhanced motor technology for longer drilling

Applications:
Cranial Applications
Reliable, durable, and engineered for longevity. The Midas Rex MR8 platform now integrates navigated high-speed drilling with StealthStation S8 for cranial applications so you have real-time navigated drilling with a streamlined workflow.

Spinal Applications
Accommodate a variety of spine procedures. Our expanded offering of navigable tools means you have the cutting options you need so you can accomplish your surgical goals with the least amount of disruption to the procedure and patient.

Midas Rex MR8 ClearView™
The expanded ClearView offerings broaden our portfolio of tools for Midas Rex MR8 platform so you have more options for bone and biomaterials removal for lateral skull-base and posterior cervical applications.
