Laumas Weight Transmitter

Leading Distributor / Channel Partner of Laumas TLB Weight Transmitter and Laumas TLM8 Weight Transmitter from Pune.

Interested in this product?

Get Best Quote

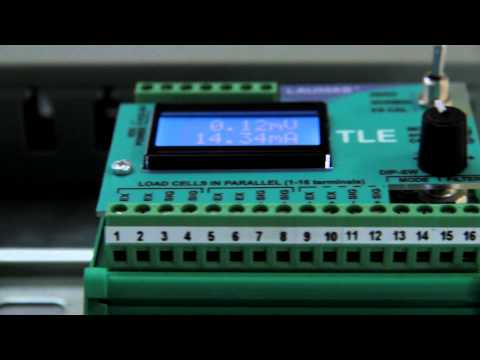

Laumas TLB Weight Transmitter

₹ 21,000/UnitGet Latest Price

Minimum Order Quantity: 1 Unit

Brand	Laumas
Model Name/Number	TLB
Display Type	Digital
Number of Load Cells	up to 8
Load Cells Supply	5 VDC/120 mA
Linearity	<0.01% full scale
Thermal Drift	<0.0005% full scale/ DegreeC
A/D Converter	24 bit (16000000 points) - 4.8 kHz
Divisions	+-999999
Measurement Range	+-39 mV
Usable Load Cells Sensitivity	+-39 mV
Usable load cells Sensitivity	+-7 mV/V
Conversions per Second	300/s
Display Range	+-999999
Relay Outputs	3 - max 115 VAC/150 mA
Optoisolated Digital Inputs	2 - 5/24 VDC PNP
Serial Ports	RS485
Baud Rate	2400, 4800, 9600, 19200, 38400, 115200 (bit/s)
Optoisolated Analog Output	0/10 V; 0/5 V; +-10 V; +-5 V
Humidity	85%
Storage Temperature	-30 Degree C +80 Degree C
Operating Temperature	-20 Degree C +60 Degree C
Power supply and Consumption	12/24 VDC +-10%; 5 W
Applied Standards	2014/31/UE - EN45501:2015 - OIML R76:2006
Operation Modes	Single interval, multi-interval
Accuracy Class	III or IIII
Dimensions	115x25x120 mm

Features:

Input/Outputs and Communication

RS485 serial port for communication via protocols ModBus RTU,
ASCII Laumas bidirectional or continuous one way transmission.
3 relay outputs controlled by the setpoint values or via protocols.
2 optoisolated PNP digital inputs: status reading via serial communication protocols.
1 load cell dedicated input

Additional Information:

View Complete Details

Yes, I am interested!

Interested in this product?

Get Best Quote

₹ 28,000/PieceGet Latest Price

Minimum Order Quantity: 1 Piece

Display Type	Digital
Brand	Laumas
Model Name/Number	TLM8
Usage/Application	Weight Measurement
Dimension	148x92x60 mm
Linearity	<0.01% full scale
Divisions	+-999999
Optoisolated Digital inputs	3 - 5/24 VDC PNP
Serial Ports	RS485
Humidity (condensate free)	85%
A/D Converter	8 channels - 24 bit (16000000 points) - 4.8 kHz
Decimals	0/4
Operating Temperature	-20 DegreeC +60 DegreeC
Accuracy Class	III or IIII
Number of Load Cells	up to 16 - 4/6 wires
Analog output Linearity	<0.01% full scale
Thermal Drift	<0.0005% full scale/ DegreeC
Relay Outputs	5 - max 115 VAC/150 mA
Usable load cells Sensitivity	+-7 mV/V
Baud Rate	2400, 4800, 9600, 19200, 38400, 115200 (bit/s)
Conversions per Second	600/s
Power supply and Consumption	12/24 VDC +-10%; 5 W
Measurement Range	+-39 mV
Analog Output	16 bit = 65535 divisions. 0/20 mA; 4/20 mA
Storage Temperature	-30 DegreeC +80 DegreeC
Operation Modes	single interval, multi-interval, multiple range

Features:

Weight transmitter with 8 independent reading channels with display of the total weight.
The TLM8 series allows to have same benefits and performance of an advanced digital weighing system even using analog load cells.
TEST key for direct access to the diagnostic functions.
Back panel mounting on Omega/DIN rail or junction box (on request).
Backlit LCD graphic display, resolution: 128x64 pixel, visible area: 60x32 mm.
5-key keyboard.
Extractable screw terminal blocks.
The instrument can be configured and managed using the free

Input/Output and Communication:

RS485 serial port for communication via protocols ModBus RTU,
ASCII Laumas bidirectional or continuous one way transmission.
Current or voltage 16 bit analog output.
5 relay outputs controlled by the setpoint values or via protocols.
3 optoisolated PNP digital inputs: status reading via serial communication protocols.
8 load cell dedicated inputs.

Additional Information:
