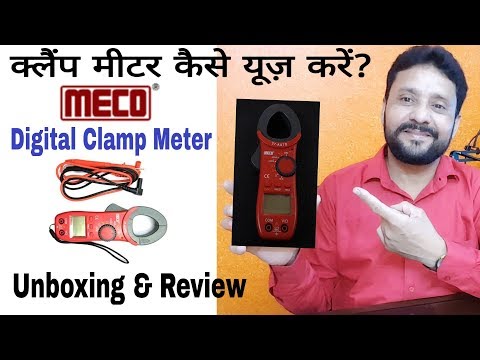

• Display: 3½-digit LCD, 2000 counts resolution.

• Measurement Type: True RMS (TRMS) for accurate AC readings on non-sine waves.

• Auto-Ranging: Automatically selects measurement range for convenience.

• AC Current: up to 600 A (auto-ranging).

• AC Voltage: up to 600 V (auto-ranging).

• DC Voltage: up to 600 V (auto-ranging).

• Resistance: up to 20 MΩ.

• Jaw Opening: Cable diameter approx 25 mm max.

• Non-Contact Voltage (NCV) detection (with LED & buzzer).

• Backlight for display in low-light.

• Torchlight integrated on clamp body.

• Continuity test with audible buzzer.

• Diode test function.

• Data Hold & Max Hold functions.

• Auto power-off with low battery indicator.

• Power Source: 2 × AAA (1.5 V) batteries (included).

• Included in Box: Test leads, instruction manual, batteries, carrying case.

This clamp meter is a budget-friendly tool suitable for:

• Electrical troubleshooting and maintenance.

• Current measurement without disconnecting conductors.

• Basic voltage and resistance checks in residential, commercial, and light industrial tasks.

Additional Information:

• Item Code: 27-AUTO
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

• True RMS Measurement:

  • Provides accurate readings for complex waveforms found in modern electrical installations (important for devices like motors, variable frequency drives, and dimmers).

• AC/DC Voltage Measurement:

  • AC Voltage: 600V max

  • DC Voltage: 600V max

  • Accuracy: ±(1.0% + 3)

• AC/DC Current Measurement:

  • AC Current: 0.1 A to 400 A

  • DC Current: 0.1 A to 400 A

  • Accuracy for both: ±(1.0% + 3)

• Resistance Measurement:

  • Range: 0.1 Ω to 4000 Ω

  • Accuracy: ±(1.0% + 3)

• Continuity Test:

  • Audible beep when resistance is below a threshold (usually 30Ω or less), helpful for quickly checking circuits.

• Data Hold:

  • Captures and freezes the measurement on the display to make it easier to record the value.

• Peak Hold:

  • Captures and displays the highest value (great for detecting short, high current spikes).

• Large Jaw Opening:

  • Can accommodate conductors up to 30 mm (1.18 inches) in diameter, making it versatile for most cables and electrical components.

• Backlit Display:

  • The display is backlit, which is particularly helpful when working in dimly lit environments.

• CAT IV 600 V, CAT III 1000 V rating for safety in high-voltage environments.

• IEC 61010 compliant, ensuring it meets rigorous standards for electrical measurement safety.

• Auto Power-Off: The device automatically shuts off after a period of inactivity to save battery life.

• Battery Type: Powered by 2 x AAA batteries, providing around 400 hours of operation.

• Overload Protection: The meter is designed to protect against overload conditions that could damage the instrument.

• Dimensions: 265mm x 87mm x 45mm (10.4 x 3.4 x 1.8 inches)

• Weight: Approximately 300g (0.66 lbs)

• Test Leads: For measuring voltage and resistance directly.

• Carrying Case: Protective case for storage and transportation.

• User Manual: Includes operating instructions.

• Electrical Troubleshooting: Perfect for identifying faults in residential and commercial wiring, circuits, and electrical devices.

• HVAC Systems: Used for measuring current and voltage in heating, ventilation, and air conditioning systems.

• Field Service Work: Ideal for electricians, maintenance workers, and engineers who need accurate, portable measurement tools for installation, maintenance, and repairs.

• Motor & Machine Diagnostics: Works well for diagnosing motors and machines by measuring inrush currents, regular operating currents, and other electrical conditions.

Additional Information:

• Item Code: FLUKE317
• Delivery Time: READY STOCK
• Packaging Details: 1 NOS PACKING

The MECO 3600BL+ is a True RMS, autoranging digital clamp meter with a 3¾‑digit, 4200‑count display designed for industrial, electrical, HVAC, and general maintenance use. It measures AC/DC current up to high amperages and offers a wide range of multifunction measurements.

• DC Current: up to 1200 A

• AC Current: up to 1000 A (True RMS)

• DC Voltage: up to 1000 V

• AC Voltage: up to 750 V

• Resistance: up to 40 MΩ

• Capacitance: up to 40 μF

• Frequency: up to 9.999 MHz

• Duty Cycle: 10 %–90 %

• Includes K‑type thermocouple (up to ~260 °C) for temperature measurement.

• 3¾‑digit LCD

• 4200 counts

• Backlit display for low‑light use.

• ≈ 55 mm maximum (suitable for thicker cables / busbars).

✔ TRMS (True RMS) for accurate AC measurements on non‑sine signals.
✔ Autoranging — no manual range switching needed.
✔ MAX / MIN capture (record high/low values).
✔ Δ REL relative measurement mode.
✔ Data Hold — freeze reading on display.
✔ Audible Continuity Test and Diode Test.
✔ Auto Power Off and Low Battery Indicator.

• Clamp meter unit

• Test leads

• 2 × 1.5 V AAA batteries

• K‑type thermocouple

• Carrying case

• Instruction manual

Ideal for:

• Electrical system diagnostics

• Industrial machine maintenance

• HVAC servicing

• Automotive electrical checks

• Power and control panel troubleshooting

Additional Information:

• Item Code: 3600BL
• Pay Mode Terms: T/T (Bank Transfer),Other
• Port of Dispatch: Ahmedabad
• Production Capacity: 100 NOS. IN STOCK
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

• MECO DMM 63+ Digital Multimeter
• Meco DMM 63+ 2000 Count Manual Ranging Digital Multimeter
• Meco 3‑1/2 Digit / 2000 Count Digital Multimeter, DMM 63+
• Meco DMM63+ Digital Multimeter

These are essentially the same model (DMM 63+ / 63 +) — a basic 3½‑digit, 2000‑count digital multimeter by MECO Instruments designed for general electrical measurements.

• 3½‑digit LCD with 2000 counts (max ~1999 readings) with backlight for easier viewing in dim light.

Voltage

• DC Voltage: 200 mV / 2 V / 20 V / 200 V / 1000 V

• AC Voltage: 200 V / 750 V (typically 45–450 Hz)

Current

• DC Current: 200 µA / 2 mA / 20 mA / 200 mA / 10 A

Resistance

• Resistance: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ

Battery Testing

• Battery Test Ranges: 1.5 V and 9 V battery checks.

hFE (Transistor Test)

• hFE measurement for transistors.

✔ Backlight for display
✔ Data Hold to freeze readings
✔ Audible Continuity Test (beeper sounds on continuity)
✔ Diode Test Function
✔ hFE Transistor Test
✔ Low Battery Indication

Typical manufacturer data for similar units indicates:

• DC Voltage: about ±(0.5 % + 3 digits) on lower ranges and ±(1.0 % + 5 digits) on the 1000 V range.

• AC Voltage: about ±(2.0 % + 10 digits).

• DC Current: approx ±(1.8 % + 2) to ±(2.0 % + 10) on 10 A.

• Resistance: approx ±(1.0 % + 4 digits).

(Exact accuracy may vary slightly by seller/document version.)

• Power Source: Typically two 1.5 V ‘AAA’ batteries (some listings mention 9 V battery variants).

• Battery Life: ~200 hours typical.

• Accessories: Test leads, batteries, instruction manual included.

The MECO 63+ 2000 Count Digital Multimeter is a basic, reliable manual‑ranging multimeter suitable for:
✔ Household electrical checks
✔ Battery and low‑voltage DC measurements
✔ Continuity and diode checks
✔ Simple transistor testing (hFE)
✔ General maintenance and DIY projects

It’s a good entry‑level DMM for everyday electrical measurement needs, especially where True RMS and advanced features aren’t required.

Additional Information:

• Item Code: 63PLUS
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Additional Information:

• Item Code: B6018
• Production Capacity: WE ARE DISTRIBUTOR. KEEPING STOCK ATLEAST 100 NOS. AT A TIME
• Delivery Time: READY STOCK
• Packaging Details: PACKED IN A CORRAGATED BOX WITH INSTRUCTION MANUAL, PAIR OF TEST LEADS, TEMPERATURE SENSOR AND 3 X 1.5V AAA BATTERY

• Display: 3½-digit, 2000 counts manual ranging.

• AC current measurement up to 1000 A AC (50 Hz ~ 60 Hz) for the main range.

• AC voltage: up to 750 V AC (45 Hz ~ 450 Hz).

• DC voltage: up to 1000 V DC.

• Resistance measurement up to 20 kΩ.

• Maximum jaw opening for the clamp: accommodates cable diameter up to 53 mm.

• Includes data hold function (i.e., you can freeze the reading on display).

• Has audible continuity check (for quickly identifying continuity / open circuits).

• Low battery indication.

• Overload protection and over-voltage protection built in.

• Accessories included: one pair of test leads, a 9 V battery, instruction manual and a carrying case.

• Approximate physical size: around 230 × 68 × 37 mm and weight ~240 g including battery.

• Suitable for electricians, HVAC maintenance, industrial applications where high current measurement is needed (since up to 1000 A AC).

• The large jaw opening (53mm) means it can grip substantial cables, useful for power systems rather than just small wiring.

• Manual ranging (rather than auto-ranging) implies the user has to set the appropriate range; may be a little fiddlier than auto-ranging models.

• Because of the high current capacity and voltage ranges, care must be taken to use it safely (observe insulation, environment, rated category, etc).

• Made by MECO (an Indian manufacturer of test & measurement instruments) — so local availability/servicing might be easier in India.

• Accuracy specs: on some sites the accuracy for AC current is given as ±(2.5% + 8 digits) up to 800A, and above 800A readings are only for reference.

• It is manual ranging, which means you must set the correct measurement range; for users who prefer “just connect and it auto-selects”, auto-ranging models might be preferable.

• If you need true RMS measurement (for distorted waveform currents) or additional features (temperature, frequency, logging etc) this model may not suffice.

• Ensure you observe proper safety category ratings (though I did not find explicit CAT II/CAT III ratings easily — you may need to check the detailed datasheet) before using it in high-energy circuits.

Additional Information:

• Item Code: DTT266
• Delivery Time: READY STOCK
• Packaging Details: 1NOS. PACKING

1. AC Current Measurement:

   • Range: 0.1 A to 1000 A (AC)

   • Accuracy: Typically ±1.5% of reading for AC current.

   • The meter can measure current up to 1000 A, making it suitable for a wide range of applications, including industrial, commercial, and high-current testing.

2. AC Voltage Measurement:

   • Range: 0 to 600 V (AC)

   • Accuracy: Typically ±1% of reading for AC voltage.

   • The voltage range is sufficient for standard electrical systems, including home and industrial circuits.

3. DC Voltage Measurement:

   • Range: 0 to 600 V (DC)

   • Accuracy: Typically ±1% of reading for DC voltage.

4. Resistance Measurement:

   • Range: 0 Ω to 40 MΩ (commonly)

   • Accuracy: Typically ±1% of reading for resistance measurement.

   • Useful for checking continuity or testing resistive components in electrical circuits.

5. Frequency Measurement:

   • Range: Likely 10 Hz to 1 MHz, depending on the meter model.

   • Used for measuring the frequency of AC signals in electrical systems.

6. Temperature Measurement:

   • Range: -20°C to 1000°C (via K-type thermocouple)

   • Useful for checking temperature in systems like motors or electrical panels.

• Backlit LCD Display:

  • The MECO 2250JR features a clear, backlit digital display that allows for easy reading in low-light environments.

  • The display shows both numerical readings and possibly a bar graph for visual representation of measurements.

• Auto Ranging:

  • The meter has auto-ranging functionality, so it automatically selects the optimal range for the measurements, eliminating the need for manual range adjustment.

1. Safety Category:

   • CAT III 600V or CAT IV 300V (depending on the model’s exact certification).

   • This ensures the meter is safe to use in distribution boards, branch circuits, and other environments with potential voltage transients.

2. Overload Protection:

   • Overload protection is built in to prevent damage to the meter when measuring high currents or voltages beyond the rated range.

3. Durable Construction:

   • Designed for rugged use, often featuring a protective rubber casing to resist drops and impact damage in industrial environments.

1. Data Hold Function:

   • Allows you to freeze the displayed measurement, making it easier to read the value or record it when working in challenging conditions.

2. Peak Hold Function:

   • Records the peak value of the waveform for analysis.

3. Auto Power Off:

   • The meter typically features auto power-off to save battery life when not in use, which can be especially useful for long work shifts.

4. Low Battery Indicator:

   • The meter will display a low battery indicator when the battery is running low.

Additional Information:

• Item Code: 2250JR
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Fluke brand best make digital rugged, reliable ac clamp tester model 303, having ac current upto 600.0A, AC Voltage upto 600v, resistance upto 4000 OHMS, With audiable continuity, data hold and backlight display.  Instrument is supplied with test leads (TL-75), Soft case, user manual and 2  X AA Batteries.

Additional Information:

• Item Code: FLUKE303
• Production Capacity: 20 NOS. IN STOCK
• Delivery Time: READY STOCK
• Packaging Details: INSTRUMENT IS SUPPLIED WITH CARRYING CASE, TEST LEADS, INSTRUCTION MANUAL.

• To measure AC current in live circuits (up to 1000 A) without disconnecting the conductor — great for industrial or heavy-load wiring, motors, panels, etc.

• To check voltages (AC/DC), resistance, continuity, diodes, making it useful for diagnostics, maintenance, wiring checks.

• To test temperature with probe, useful for HVAC, heating elements, or situations requiring thermal checks.

• Non-contact voltage detection (NCV) and clamp-light/backlight help with safety and usability when working in dark or compact spaces.

• For maintenance, electrical installation, troubleshooting, field-work, or lab-work where portability, ease-of-use, and multi-function measurement is needed.

Additional Information:

• Item Code: CM2070C
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

• Display: 3¾-digit LCD, up to 4,000 counts.

• AC Current (auto-ranging): Up to 600 A.

• AC Voltage: Up to 600 V.

• DC Voltage: Up to 600 V.

• Resistance: Up to ~40 MΩ.

• Frequency measurement: ranges up to ~10 MHz (auto-ranging) in some documentation.

• Jaw opening: Approx 25 mm cable diameter max.

• Dimensions: ~185 × 65 × 28 mm.

• Weight: ~170 g including battery.

• Power: 2 × 1.5 V AAA batteries. Typical battery life ~200 hours.

• Safety / standard: CAT II / CAT III 600 V depending on variant.

• True RMS measurement for AC, enabling more accurate readings in non-sinusoidal signals.

• Auto-ranging: the meter automatically selects the appropriate measurement range.

• Non-contact voltage (NCV) detection (LED / buzzer) for AC voltage presence.

• Backlight for LCD display — useful in low-light conditions.

• Data Hold, REL (Relative) mode, auto power-off to conserve battery.

• Audible continuity buzzer and diode test.

• Good for general electrical maintenance, field service, and industrial use where up to 600 A AC current measurement is needed.

• Covers a fairly wide range of current (up to ~600 A AC) and voltage (up to ~600 V) — sufficient for many commercial & industrial electrical tasks.

• True RMS and auto-ranging make it more versatile and accurate than some basic clamp meters.

• Compact and relatively lightweight, with convenient features like backlight, NCV, data hold which add value in field work.

• Manufactured by MECO, a brand with presence in Indian market; good local support likely.

• The jaw opening is ~25 mm — larger cables or large multi-core bundles may not fit.

• For very high currents (e.g., > 600 A) or higher voltage environments, this model may not suffice; you’d need a higher-range clamp meter.

• While specs show CAT II / CAT III ratings, you must confirm the particular unit’s certification and that it meets your required safety category for the circuits you’ll test.

• Ensure you buy from an authorised supplier so you get correct version and calibration certificate (if needed).

• For very specific measurements like DC current above some limits, temperature, capacitance etc., this model may or may not include those — check the variant (72 AUTO BL vs 72T AUTO etc) for additional features.

Additional Information:

• Item Code: MECO72AUTO
• Delivery Time: READY STOCK
• Packaging Details: 1NOS. PACKING

Kusam Meco 3.5 digits 2000 counts digital clamp meter model 2700

ELECTRICAL SPECIFICATIONS:-

AC CURRENT : 20A, 200A, 300A

AC VOLTAGE: 200 V, 750 V

DC VOLTAGE: 2 V, 200 V, 1000 V

RESISTANCE:  200Ω, 200KΩ

With diode test , audible continuity and data hold facility. Instrument is supplied with carrying case, cash probes, instruction manual and 9V  installed battery.

Additional Information:

• Item Code: KM2700
• Port of Dispatch: Ahmedabad
• Production Capacity: As per customers requirement
• Delivery Time: Upto 50 pieces ready stock
• Packaging Details: Instrument is supplied with carrying case, tester probe, instruction manual.

• True RMS (TRMS) measurement for both AC and DC currents, so it gives accurate readings even with non‑sinusoidal / distorted waveforms.

• 3¾ digit, 4200 count display (LCD) with backlight.

• Auto ranging (automatic selection of measurement range) with manual override in some models.

• Measures DC current up to 1200A, AC current up to 1000A.

• Measures voltages:
    • DC up to 1000V
    • AC up to 750V

• Resistance measurement up to ~ 40 MΩ.

• Capacitance measurement (up to ~ 40 µF) in many versions.

• Frequency measurement (up to 9.999 MHz) & duty cycle measurement (10%–90%) in many versions.

• Temperature measurement via a K‑type thermocouple (often supplied).

• Max / Min recording (to capture extremes), ΔREL (relative / zero reference) function.

• Data Hold (freeze reading), backlight, auto power off, low battery indication.

• Jaw opening (clamp) accommodating conductor up to ~ 55 mm diameter.

From the specs given by a seller (JioMart) for this model:

Also one supplier gives these for a related “3600BL+” version: DC current 1200A, AC current 1000A, etc.
Another supplier (Royal Tools) states accuracies and ranges including DC 1200A, AC 1000A, DC voltage up to 1000V, AC up to 750V, resistance in multiple decades, capacitance up to 40 µF.

Commonly, you will find:

• Test leads (1 pair)

• K‑type thermocouple pair (for temperature measurement, usually up to ~260 °C)

• Batteries (AAA / 1.5 V, or sometimes other batteries depending on version)

• Carrying case

• Instruction / user manual

Additional Information:

• Item Code: 3600
• Delivery Time: READY STOCK

• Test Leads x 1 Pair
• 1.5V 'AAA' Battery x 2 Pcs
• Instruction Manual x 1 Pc
• K Type Thermocouple (upto 260° C) x 1 Pair
• Carrying Case x 1 Pc

Additional Information:

• Item Code: UT202

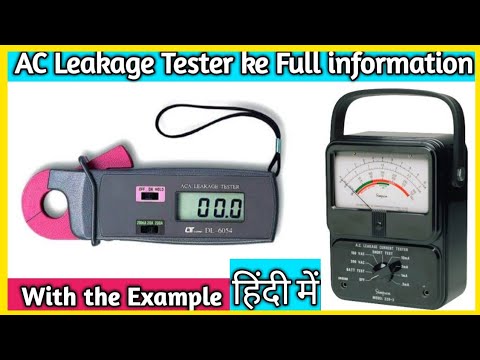

The Lutron DL-6054 is a digital AC leakage current tester (sometimes called an ACA leakage tester clamp meter) used to detect and quantify AC leakage (ground fault) currents in electrical installations, equipment, and industrial systems without disconnecting the circuit. It’s commonly used by electricians, technicians, and maintenance personnel for safety checks and troubleshooting.

Measurement Ranges & Resolution

• AC current measurement:

  • 200 mA range with 0.1 mA resolution

  • 20 A range with 0.01 A resolution

  • 200 A range with 0.1 A resolution

Display

• 13 mm (0.5") LCD

• 3 1/2 digit maximum reading (up to 1999)

Accuracy

• ±(1.2 % + 5 digits) (typical)

Physical & Power

• Battery: 9 V DC (006P)

• Power Consumption: approx. 1.2 mA

• Weight: Approx. 200 g (including battery)

• Dimensions: Approx. 180 × 47 × 35 mm (H × W × D)

Clamp/Jaw

• Jaw opening size: approx. 19 mm diameter for conductor clamping

Operating Conditions

• Temperature: 0 °C → 50 °C (32 °F → 122 °F)

• Humidity: Less than 80 % RH

✔ High precision measurement of low AC leakage currents (mA level).
✔ Data Hold function – freeze measurement on the display for easy recording.
✔ Crystal time base for stable measurement timing.
✔ Overload protection on all ranges to protect the instrument.
✔ Automatic zero adjustment to ensure accurate readings.
✔ Clear LCD display, readable even in bright lighting.
✔ Designed to meet IEC 1010 safety standards.
✔ Compact and lightweight, easy to carry and use in the field.

This tester is ideal for:

• Detecting earth/ground leakage currents in installations and machines.

• Industrial troubleshooting and safety inspections.

• Monitoring AC load conditions and leakages on inductive conductors.

• Safety compliance checks in electrical maintenance.

Additional Information:

• Item Code: DL-6054
• Pay Mode Terms: L/C (Letter of Credit)
• Port of Dispatch: AHMEDABAD
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

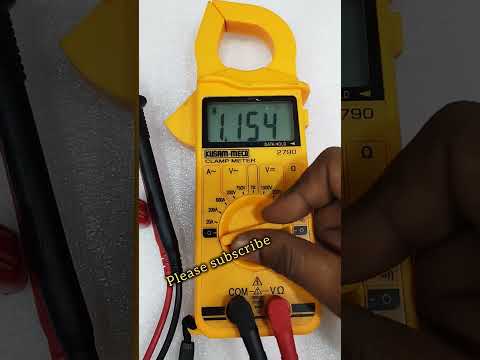

The Kusam-Meco 2790 is a compact digital clamp meter used mainly for measuring AC current and electrical parameters in circuits without breaking the circuit. It combines a clamp current meter with basic multimeter functions, suitable for general electrical troubleshooting and maintenance.

• AC Current (Clamp): up to 600 A AC (main range)

• AC Voltage: 0–750 V AC (50–500 Hz)

• DC Voltage: 0–1000 V DC

• Resistance: up to 200 kΩ

• Frequency: 2–20 kHz

• AC Current: ±(3.5 % + 5 digits)

• AC Voltage: ±(3.0 % + 4 digits)

• DC Voltage: ±(1.5 % + 1 digit)

• Resistance: ±(1.5 % + 3 digits)

• Frequency: ±(0.5 % + 3 digits)

• �� 3½-digit LCD display (≈2000 counts) — clear digital readings.

• �� Large LCD for easy viewing.

• �� Continuity buzzer — alerts for continuity tests.

• �� Diode check function.

• �� Data Hold — freezes displayed reading.

• �� Low battery indicator.

• �� Overload protection on all ranges.

• �� Includes test leads, battery, manual, and carrying case.

• �� Jaw Opening: ~32 mm — fits most standard cables.

• �� Power: 9 V battery.

• �� Size: approx. 19.2 × 8.2 × 3.3 cm; weight ~250–350 g (varies by sourcing).

• �� Made in India — reliable general electrical tool for service technicians and electricians.

✔ Measuring AC current non-invasively without disconnecting wires.
✔ Checking voltages on AC and DC circuits.
✔ Resistance, continuity, frequency, and basic troubleshooting.
✔ Handy for maintenance, electrical installation checks, workshops.

• It’s an average-sensing meter, not True-RMS — so readings on highly distorted waveforms may be less accurate.

• Not geared for very high-precision lab measurements (basic field tool).

Additional Information:

• Item Code: KM2790
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

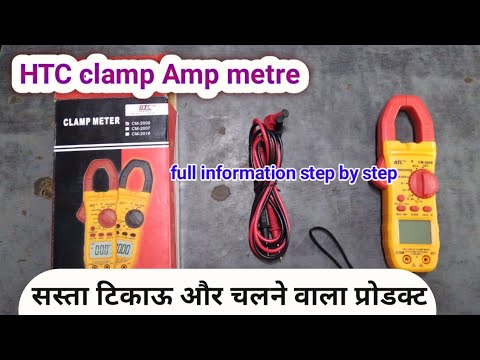

• Measuring AC current in wires / cables without disconnecting the circuit — useful for panel maintenance, load checks, motor current measurement, building wiring diagnostics.

• Checking AC/DC voltage and basic resistance — handy for general electrical troubleshooting in homes, small workshops, or light industrial settings.

• Continuity and diode testing or basic resistance checks — helpful for fault-finding in wiring, connectors, and circuits.

• Anywhere portability is needed: compact size, battery-powered, and clamp‑based measurement make it useful for field work or maintenance rounds.

• Maximum current measurement is 600 A — for higher‑current applications you’d need a higher‑rated clamp meter.

• As with any clamp meter, accuracy depends on correct placement: only one conductor should pass through the clamp jaw (not a cable bundle) for proper current reading.

• For DC current measurement: although the primary spec is AC current, the meter does not emphasise DC‑current measurement in specs — so for precise DC current measurement you may want a dedicated meter or clamp designed for DC.

Additional Information:

• Item Code: CM2000
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

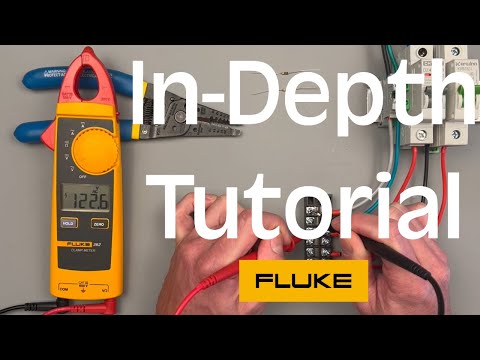

• Measures both AC and DC current up to 200 A.

• Measures AC and DC voltage up to 600 V.

• Resistance measurement up to ~300/3000 Ω plus continuity detection (≤ 70 Ω threshold).

• Compact and practical design: 18 mm triangular jaw opening for clamp, very slim body (≈ 205 × 60 × 22 mm) making it easier to reach tight cable spaces.

• Safety rating: CAT III 600 V.

• Additional handy features: backlit display, Data Hold, Zero‑function for DC measurements.

• Because it measures DC current (not just AC) up to 200 A, it’s well suited for technicians working on both AC and DC circuits (for example solar systems, battery banks, DC motor drives).

• Compact clamp jaw and slim profile make it ideal for tight cable bundles, control panels or maintenance environments where space is constrained.

• Good for general field service, industrial maintenance, HVAC, electrical panel work — anywhere you need a reliable clamp meter with solid safety rating.

• The CAT III 600 V rating means it covers many standard industrial installations (but note, not all heavy‑duty environments which might demand CAT IV etc.).

• Although it has DC current measurement, the accuracy is specified only to 2% ±5 digits for 200 A DC (which is decent, but not “high precision lab grade”).

• The jaw opening is only 18 mm — large conductors or big cables might not fit or the measurement may be less convenient.

• For very high current (>200 A) or larger cables, you’d need a larger clamp meter.

• If your job involves high‑voltage distribution (e.g., CAT IV or 1000 V+), you may need a meter with higher safety category than CAT III 600 V.

• The stated specs are under standard conditions (temperature, frequency etc); actual field accuracy may vary with temperature, conductor geometry, noise, etc.

Additional Information:

• Item Code: FLUKE362
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

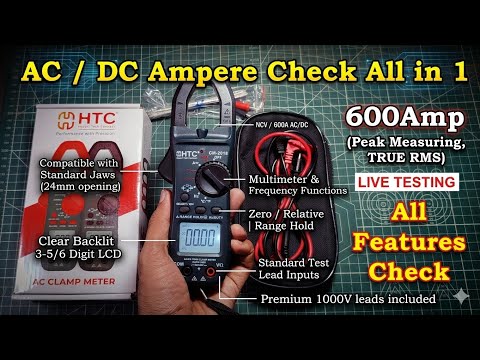

• Measuring current in live cables without disconnecting the circuit — very useful in electrical wiring, panel checks, motor or HVAC wiring, industrial setups.

• Measuring voltage (AC/DC) in circuits, boards, distribution panels, etc.

• Checking continuity, resistance, diode state of components / wires / connectors.

• Measuring capacitor values, frequency signals (like from inverter drives or switching circuits), which is helpful in electronics repair or diagnostics.

• Measuring temperature (via probe) — useful for HVAC, motor overheating checks, maintenance of electrical machines.

• Using NCV feature to detect live wires without direct contact — helpful for safety checks before opening panels.

Additional Information:

• Item Code: CM2016
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

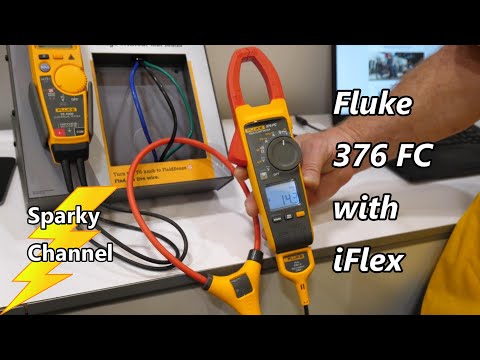

1. True RMS Measurement:

   • Ensures accurate readings of AC signals, including non-sinusoidal waveforms that are common in modern electrical systems (such as those with inverters, motors, or non-linear loads).

2. AC/DC Voltage Measurement:

   • AC Voltage: 600 V max

   • DC Voltage: 600 V max

   • Accuracy: ±(1.0% + 2)

3. AC/DC Current Measurement:

   • AC Current: 0.1 A to 1000 A

   • DC Current: 0.1 A to 1000 A

   • Accuracy: ±(1.0% + 2)

4. Resistance Measurement:

   • Range: 0.1 Ω to 4000 Ω

   • Accuracy: ±(1.0% + 2)

5. Continuity Testing:

   • Audible beep when resistance is below a threshold (typically less than 30Ω), useful for quickly identifying broken connections.

6. Capacitance Measurement:

   • Range: 1nF to 100μF

   • Accuracy: ±(2.0% + 3)

7. Frequency Measurement:

   • Range: 10 Hz to 100 kHz

   • Can measure the frequency of the AC signal, which is particularly useful for troubleshooting motor-driven systems.

8. Inrush Current:

   • Inrush Current Measurement: Can capture inrush current when equipment like motors or transformers are first energized, which is helpful for diagnosing equipment startup behavior.

9. Peak Hold:

   • The meter can capture and display peak values, which is useful for detecting short-lived spikes or surges in electrical systems.

10. Data Hold Function:

    • Freezes the current reading on the display for easy recording or inspection.

11. Auto and Manual Ranging:

    • The Fluke 376 automatically selects the optimal range for most applications but also allows manual range selection for more control when needed.

• Large Jaw Opening:

  • The clamp can accommodate conductors up to 55mm (2.17 inches) in diameter, which is larger than most clamp meters and allows you to clamp around larger cables and conductors.

• Display:

  • 6000-count, backlit LCD display, which makes it easier to read in low-light environments.

• Auto Power-Off:

  • The Fluke 376 has an auto power-off feature to conserve battery life when not in use.

• CAT IV 600 V and CAT III 1000 V rated for safety, making it suitable for use in both residential and industrial environments.

• IEC 61010 compliant, which ensures that it meets safety standards for electrical testing and measurement tools.

• Powered by 3 x AA batteries, with up to 1000 hours of operation (depending on usage).

• Low battery indicator appears when the battery is running low.

• Length: 250 mm (9.8 inches)

• Width: 95 mm (3.7 inches)

• Depth/Thickness: 40 mm (1.6 inches)

• Weight: Approximately 500 grams (1.1 lbs)

Additional Information:

• Item Code: FLUKE376
• Delivery Time: Ready Stcok
• Packaging Details: 1NOS PACKING

1. True RMS Functionality:

   • True RMS ensures accurate measurement of AC current, even when the waveform is not a perfect sine wave. This is especially useful for testing electronic devices or inverters that may have non-linear outputs.

2. Wide Clamp Jaw:

   • The clamp jaw of the HTC CM-2046 is typically around 42 mm, allowing you to clamp over a wide variety of cables or busbars, including thick conductors, without the need to disconnect them.

3. Data Hold:

   • The Data Hold function allows you to freeze the current reading on the display, making it easy to record measurements even in hard-to-reach locations or when working with complex setups.

4. Backlit LCD Display:

   • The LCD screen is large and backlit, making it easy to read measurements even in dimly lit environments like electrical panels or control rooms.

5. Frequency Measurement:

   • The ability to measure frequency is a useful feature for verifying the operation of generators, inverters, and other frequency-sensitive devices.

Additional Information:

• Item Code: CM2046
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

1. Multifunction Calibration:

   • The Metravi 709H is a multifunction calibrator, meaning it can generate a variety of test signals used to calibrate different types of measuring instruments, including voltage, current, temperature, and frequency signals.

2. High Accuracy:

   • The calibrator is designed to offer high-precision output for calibration tasks, ensuring that test instruments are calibrated to the exact required standards. The accuracy typically ranges in the 0.1% to 0.05% range, depending on the type of output signal being generated.

3. Voltage Generation:

   • It can generate a wide range of DC and AC voltages, making it ideal for calibrating voltmeter and multimeter instruments.

   • Typically, it offers both low-range and high-range voltage outputs, which are adjustable depending on the requirements of the instrument being tested.

4. Current Generation:

   • The Metravi 709H can generate a range of DC currents, which is useful for calibrating ammeters, multimeters, and other current-measuring devices.

   • It usually includes 0-20mA and 0-24mA ranges, which are commonly used for loop testing, control systems, and process instrumentation.

5. Temperature Simulation:

   • The temperature function allows it to simulate a variety of temperature conditions, which can be used to calibrate temperature measuring devices, including thermometers, RTDs, and thermocouples.

   • It typically supports a wide temperature range, often from -50°C to 1500°C (depending on the sensor type used) or more, with adjustable accuracy.

6. Frequency Generation:

   • The calibrator can generate AC frequencies, which are used to test frequency counters, oscilloscopes, and other frequency-measuring equipment.

   • This is useful for applications in communication systems, signal processing, and test instrumentation.

7. User-Friendly Interface:

   • The device typically features an LCD display that shows the calibration output values clearly. The interface is intuitive, with easy-to-use knobs or push-button controls for adjusting the test parameters.

   • The user can manually set the output values or use predefined calibration settings.

8. Wide Calibration Range:

   • The 709H calibrator supports a broad range of output values for various types of signals, ensuring that it can be used for a wide array of calibration tasks across different fields and applications.

9. Compact & Portable:

   • Designed to be compact and portable, the Metravi 709H is suitable for fieldwork as well as laboratory calibration. It is built to withstand rough handling and ensure accurate measurements even in industrial environments.

10. Durability and Build Quality:

    • The calibrator is typically built with a robust casing and designed to handle industrial environments, making it suitable for use in factories, plants, and workshops.

Additional Information:

• Item Code: 709H
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Model: AT500
Type: Non‑contact high voltage detector (arm/armband wearable)
Brand: Metravi
Purpose: Alerts the user with visual + audible warnings when approaching high‑voltage conductors — used for safety during electrical work around live lines.

• Power Source: Battery operated

• Battery Type: 2 × CR1632 button cells (included)

• Standby Time: Up to ~12 months

• Working Frequency: 50 Hz / 60 Hz

• Detection Mode: Automatic trigger — no buttons to press

• Operation: Non‑contact induction technology senses AC high voltage and triggers alarms.

• Voltage Detection Range: 1 kV to 500 kV AC

• Alarm Indicators:

  • LED light (visible under high ambient light)

  • Buzzer sound (>60 dB at ~60 cm)

• Automatic sound + light alarm when nearing a live voltage source.

• Optimal sensing distance: ~10 cm from the conductor (approx.).

• Wearable Design: Arm/forearm mounted — alarm symbol facing fingertip direction.

• Weight: ~51 g (lightweight for wearable use)

• Protection Rating: IP54 (dust‑proof + splash resistant)

• Working Temp: –10 °C to 40 °C (standard electrical field conditions)

• Alarm Distance Error: Approx. ±10 cm (typical).

✔ Hands‑free high‑voltage presence detection for overhead lines and electrical environments.
✔ Non‑contact detection means no direct contact with the conductor is required.
✔ Automatic alarm triggers on getting close to a live (high voltage) source.
✔ Wearable on arm — ideal for line workers, maintenance electricians, and field personnel.
✔ Not suitable for shielded or armoured cables (works only with single‑core).

• Not for shielded/armoured cables — only single‑core conductors can be detected.

• Detection distance varies with voltage level — higher voltages trigger alarms at greater distances.

Additional Information:

• Item Code: AT500
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

1. Voltage Measurement:

   • The Kusam Meco KM 805S allows you to measure DC voltages from 200mV to 1000V DC and AC voltages from 200mV to 750V AC. This makes it suitable for a wide range of applications, including testing home appliances, automotive electrical systems, and industrial equipment

2. Current Measurement:

   • The multimeter can measure both DC and AC currents from 200μA to 10A, which makes it useful for checking currents in electronic circuits, automotive systems, and home electrical systems

3. Resistance and Continuity Testing:

   • The resistance measurement range is from 200Ω to 20MΩ, and the multimeter features a continuity check with an audible beep. This makes it easy to test circuits for open or closed paths.

4. Frequency Measurement:

   • The frequency measurement range is from 10Hz to 1MHz, making it useful for testing signals in electronic circuits, oscillators, and signal generators

5. Diode and Transistor Testing:

   • The diode testing function helps to check the health of diodes and verify their forward voltage drop. The transistor testing function allows users to test NPN and PNP transistors for proper operation

Additional Information:

• Item Code: KM805s
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

• DC Voltage: up to 1000 V

• AC Voltage: up to 750 V
  (Autoranging with multiple sub-ranges on the dial)

• DC Current: up to 10 A

• AC Current: up to 10 A
  (Fused for safety on current ranges)

• Resistance: up to 60 MΩ

• Capacitance: up to 100.0 mF

• Frequency: up to 10.00 MHz

• Duty Cycle: 1 % – 99 %

• Temperature measurement using K-Type thermocouple (included) — typically up to ~260 °C with the supplied probe.

• True RMS (TRMS) for accurate AC readings on non-sinusoidal signals.

• Autoranging – automatically selects the best range for each measurement.

• NCV (Non-Contact Voltage) detection with LED + buzzer + signal strength indication.

• Continuity test with audible buzzer.

• Diode test and data hold.

• Backlit LCD display and torch light for visibility in dark areas.

• Auto Power Off to conserve battery.

• Duty cycle measurement and frequency measurement up to MHz ranges.

• Holster with magnet and test lead gripper for convenience.

Included in the box:

• Test leads (1 pair)

• 3 × AAA batteries

• K-Type thermocouple temperature probe (up to ~260 °C)

• Holster with magnet

• Spare fuses

• Instruction manual

Great for:

• Electrical troubleshooting in homes and workshops

• Automotive electrical diagnostics

• Electronics projects and component testing

• HVAC temperature measurement with the thermocouple

• Frequency and duty cycle measurements in circuits

• Designed with CAT II 600 V safety rating for general electrical work.

• Fused current inputs for protection.

Additional Information:

• Item Code: 801JR.
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

1. AC Current Measurement:

   • The Metravi DT-115A can measure AC current up to a specific range, typically up to 1000 A (check the exact specifications for this model).

   • It offers the ability to measure AC current without needing to disconnect the circuit, thanks to its clamp design.

2. Digital Display:

   • The meter comes with a digital LCD display, providing clear readings. The display is usually backlit for ease of reading in low-light conditions.

3. Non-Contact Measurement:

   • The clamp allows for non-contact AC current measurement, meaning you do not need to interrupt the circuit to take a reading, providing convenience and safety.

4. Auto-Ranging:

   • The auto-ranging feature allows the clamp meter to automatically select the optimal measurement range, making it easy for users to take readings without having to manually adjust settings.

5. True RMS (Root Mean Square) Measurement:

   • It provides True RMS measurements, which ensures accurate readings even for non-sinusoidal waveforms (important for measuring distorted AC signals).

6. Resistance & Continuity Testing:

   • In addition to measuring current, the DT-115A also offers resistance and continuity testing. This is useful for identifying open circuits or short circuits in a system.

7. Overload Protection:

   • The meter is designed with overload protection, which prevents damage to the device when measuring beyond its rated range.

8. Data Hold Function:

   • The data hold feature allows you to freeze the measurement on the display, making it easier to record or analyze the result.

9. Peak Hold Function:

   • Peak hold captures the highest value of the measurement, which is beneficial when diagnosing transient spikes or fluctuations in current.

10. Compact & Lightweight:

    • The DT-115A is designed to be compact and lightweight, making it easy to carry around and use in a variety of environments.

• AC Current Measurement Range:

  • 0 to 1000A (typically), though you should verify the exact range for the particular model you're considering.

• AC Voltage Measurement Range:

  • 0 to 600 V (AC voltage range).

• Resistance Measurement:

  • Typically 0 to 2000Ω (or similar resistance range).

• Frequency Range:

  • The meter typically supports 50Hz to 60Hz, suitable for standard AC systems.

• Display Type:

  • Digital LCD with backlight for clear reading.

• Battery Type:

  • Powered by a 9V battery.

• Safety Rating:

  • CAT III 600V, which means it is suitable for use in industrial and residential electrical installations.

• Dimensions:

  • Approximately 240 x 80 x 40 mm (dimensions may vary slightly).

• Weight:

  • Around 300 to 500 grams, making it portable and easy to handle.

Additional Information:

• Item Code: DT-115A
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING
