International Instruments Industries

Test Voltage	5 kV
Brand	Meco
Usage/Application	Insulation Resistance Testing
Model Name/Number	DIT954
Accuracy	±(5% of reading + 2 digits)
Insulation Resistance Range	200 GΩ

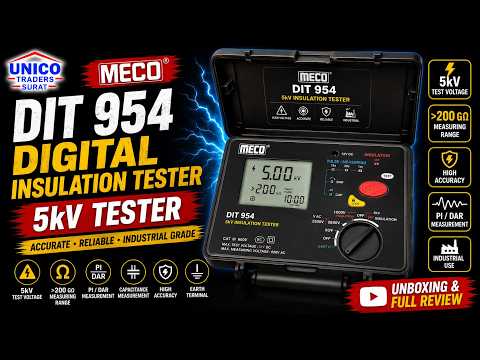

🔧 MECO DIT 954 – 5 kV INSULATION TESTER (Specifications) 🔌 Test Voltage (DC)

• 1000 V

• 2500 V

• 5000 V

👉 Fixed high-voltage selections (fewer ranges than 954-6R)

📏 Insulation Resistance Range

• Up to 200 GΩ

🎯 Accuracy

• Insulation Resistance:
  ±(5% of reading + 2 digits)
  (±10% typical at very high GΩ range)

• Test Voltage Accuracy:
  ±5%

📟 Display

• 3½-digit LCD (1999 counts)

• Clear digital readout

• HV (High Voltage) warning indicator

⚙️ Functions & Features

• Push-button insulation test

• Automatic discharge of test object

• Data hold

• Over-range indication

• Rugged portable design

🛡️ Safety & Compliance

• CAT III

• Conforms to IS 10656

• IEC 61010 safety standards

• Suitable for industrial field use

🔋 Power Supply

• Battery operated

• External AC adaptor supported

🌡️ Operating Conditions

• Operating temp: 0 °C to 40 °C

• Storage temp: –10 °C to 50 °C

🎒 Standard Accessories

• High-voltage test leads

• AC adaptor

• Batteries

• Carrying case

• Instruction manual

• Calibration / test certificate (dealer dependent)

🏭 Typical Applications

• HT/LT motors

• Transformers

• Power cables

• Switchgear

• Electrical panels

• Preventive maintenance testing

Additional Information:

• Item Code: DIT954
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Display Type	Analog
Test Voltage	1kV
Insulation Resistance Range	2000M Ohm
Brand	Meco
Frequency	NO
Usage/Application	Industrial
Model Name/Number	MC-981

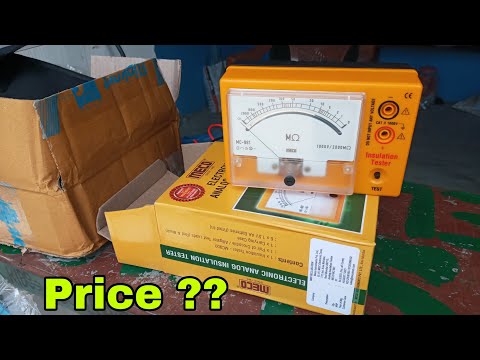

📏 Product Overview

Meco MC 981 1000V Analog Insulation Tester /
MECO MC 981 Analog Insulation Tester /
Meco 1000V‑2000MΩ Analog Insulation Tester /
MECO MC 981 1000V ‑ 2000MΩ Analog Insulation Tester (and variants including Meco 1000V ‑ 2000MΩ Analog Insulation Tester With Battery Adapter) are handheld analog insulation testers designed for measuring insulation resistance in electrical systems and equipment.

🔌 Key Specifications

🔋 Test Voltage

• 1000 V DC test voltage for insulation measurement.

📏 Insulation Resistance Range

• Measures from 0 to 2000 MΩ (Megaohms) — suitable for motors, cables, installations, appliances, etc.

📈 Accuracy

• ± 5% of indicated value within the effective measuring range.

📍 Display

• Analog dial with a large ~80 mm scale for clear, easy reading.

🧰 Operation & Features

✔ Single-person push-button operation — simply press the button to apply the test voltage and read the insulation resistance.
✔ Consistent terminal voltage: The tester maintains voltage close to the rated value to ensure reliable readings across the range.
✔ Rugged construction: ABS yellow case with a polycarbonate front cover for durability and visibility.
✔ Safety standards: Designed to conform to IEC 61010 (CAT II) and IS 10656-1983 standards.

🔋 Power & Accessories

Power Supply:

• Runs on 6 × 1.5 V AA batteries (9 V total), typically included.

Included Accessories:

• Pair of crocodile/alligator test leads (red & black).

• Carrying case for portability.

• Test and calibration certificate.

Optional:

• Some versions (like MC-981BA) can include a battery adaptor for external power.

🛠 Typical Applications

This analog insulation tester is well-suited for:

• Insulation resistance testing of motors and generators.

• Electrical cables (distribution, communication).

• Industrial, commercial, and residential wiring.

• Household appliances like washers, mixers, toasters.

📌 Notes

• Since it’s an analog meter, you read the resistance from a needle on the dial — this is simple but doesn’t log data digitally.

• Analog insulation testers are often used in field and workshop environments where ruggedness and quick insight are more important than digital features.

Additional Information:

• Item Code: MC-981
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Current Measurement	600 A
Usage/Application	Industrial
Digit Display	4
Measurement Type	TRMS
Ranging	Autoranging
Size	Pocket Size
Backlight Display	Yes
Temperature Measurement	Yes

Key Specifications Features & Functions

• Auto / Manual Ranging — The meter can auto‑select ranges or be manually forced.

• Δ Zero Button (for DC current) — Allows compensation of residual magnetism or offset to zero the reading before measuring DC currents.

• Data Hold — Freezes the display reading so you can note it.

• Audible Continuity / Beeper — For checking open circuits / continuity.

• Diode Test — Built‑in diode test mode.

• Auto Power Off — Device powers off after a period of inactivity to conserve battery.

• Low Battery Indicator — Alerts when battery voltage is low.

• Overload Indication — Display shows “OL” or “–OL” when measurement exceeds range.

Accuracy & Other Notes

From the ToolBuy listing:

• DC Voltage:
    • On 400 mV – 400 V ranges: ±(0.5 % reading + 8 digits)
    • On 600 V range: ±(0.7 % reading + 2 digits)

• AC Voltage:
    • On lower ranges (4 V, 40 V, 400 V): ±(1.2 % reading + 4 digits) (at 50–60 Hz)
    • On 600 V: ±(4 % reading + 5 digits)

• DC Current (400 A range): ±(1.5 % reading + 5 digits)

• DC Current (600 A range): ±(2.0 % reading + 5 digits)

• AC Current (400 A range): ±(1.75 % reading + 5 digits)

• AC Current (600 A range): ±(3.5 % reading + 5 digits)

• Resistance:
    • On 400 V – 400 kV ranges: ±(0.75 % reading + 8 digits)
    • On 4 MV: ±(1.0 % reading + 6 digits)
    • On 40 MV: ±(2.0 % reading + 4 digits)

• Frequency: ±(0.3 % reading + 2 digits)

• Duty Cycle: ±(0.5 % reading + 5 digits) for 1%–90%

• Diode Test: Open‑circuit voltage typical ~ 3.0 V, test current ~ 1 mA ± 0.6 mA

• Continuity: Audible beep for ≤ ~40 V (approx threshold)

Also:

• Overload protection on many ranges up to 600 V (DC or AC RMS)

• Sample rate ~ 3 readings per second

• Operating temperature: 0 °C to 50 °C (non‑condensing)

• Storage temperature: –20 °C to 60 °C (with battery removed)

Additional Information:

• Item Code: 3690AUTO
• Delivery Time: READY STOCK

Brand	Zoyi
Model Name/Number	ZT-MD1
Features	AUTO RANGE, RESISTANCE RANGE, CAPACITANCE RANGE, INDUCTANCE RANGE, CONTINUITY RANGE
Display	OLED
FREQUENCY	100Hz, 1KHz, 10KHz

Zoyi Bridge Tweezers ZT-MD1

Key Features:

• Precision Tips: The ZT-MD1 bridge tweezers are designed for precise handling of small components, such as in electronics and micro-soldering applications. The fine, sharp tips are ideal for manipulating tiny parts without causing damage.

• Anti-Magnetic: Like many high-quality tweezers, the ZT-MD1 is likely anti-magnetic, which is essential for working with sensitive electronic components, as magnetic fields can affect or damage circuits.

• Ergonomic Design: The tweezers are often designed with ergonomics in mind, providing a comfortable grip for extended use, reducing hand fatigue during precision tasks.

• High-Quality Material: The tweezers are typically made from stainless steel or other durable, corrosion-resistant materials, ensuring longevity and resistance to wear and tear.

• Bridge-Type Design: The bridge feature allows the tweezers to remain stable when holding components, providing better control and more precise manipulation of parts.

• Variety of Uses: These tweezers are likely suited for applications such as PCB assembly, component placement, tinning wires, and working with small mechanical parts.

Pros:

• Precision Handling: Perfect for delicate work where precise control is needed, such as soldering, assembling PCBs, or dealing with small electronic components.

• Anti-Magnetic: Helps ensure that no magnetic interference affects your work, especially when dealing with sensitive electronic parts.

• Durable Material: Made from high-quality materials like stainless steel, the tweezers are built to last and resist wear and corrosion.

• Ergonomic: Comfortable for extended use, reducing strain on your hands when working on intricate tasks.

• Versatile: Suitable for a wide range of tasks, including electronics, jewelry-making, and other fine assembly work.

Cons:

• Delicate Tips: Like many precision tools, the tips of the tweezers could be prone to bending or breaking if mishandled, so care should be taken when using them.

• Not Ideal for Heavy Duty: These tweezers are not meant for heavy-duty tasks like gripping larger objects or applying significant pressure. They're optimized for fine, detailed work.

Applications:

• Electronics Work: Ideal for soldering, repairing, and assembling PCBs or small electrical components.

• Jewelry Making: Perfect for handling small parts or stones when working with delicate jewelry.

• Precision Assembly: Used in fields where small, delicate components need to be manipulated with great accuracy, such as model building, watches, or small machinery.

• Micro-mechanics: Ideal for working with tiny mechanical parts, such as in cameras, eyeglasses, or watches.

Test Voltage	2.5 kV
Brand	Meco
Accuracy	±(2% of reading + 5 digits)
Model Name/Number	DIT927
Power Source	8 × 1.5 V AA

🔌 MECO DIT 927 – 2.5 kV Digital Insulation Tester 📊 Test Voltages (DC)

• 250 V / 500 V / 1000 V / 2500 V DC
  Used to stress the insulation and measure insulation resistance.

📏 Insulation Resistance Measurement

• Ranges:

  • 0.1 MΩ to 200 MΩ

  • 200 MΩ to 10 GΩ

  • 10 GΩ to 20 GΩ

• Maximum measurable insulation resistance: 20 GΩ

🎯 Accuracy

• 0.1 MΩ to 200 MΩ: ±(3% of reading + 5 digits)

• 200 MΩ to 10 GΩ: ±(5% of reading + 5 digits)

• 10 GΩ to 20 GΩ: ±(10% of reading + 5 digits)
  (All typical at ~23 °C, RH < 75%)

📟 Display

• 3½-digit LCD (1999 counts) with large digit height

• Red LED HV warning indicator

• Data Hold and annunciators for clear readout

🔌 Additional Measurement Feature

• AC Voltage Measurement:
  Measures AC voltage up to 600 V (40–60 Hz) — useful for checking presence of voltage before insulation test.

🔋 Power Supply

• Battery operated with 8 × 1.5 V AA (rechargeable batteries typically included)

• Also supports AC adaptor (12 V DC)

⚙️ Functions & Operation

• Auto range on insulation resistance test

• Single-person push-button start/stop

• Low battery indication, over-range indication

• Suitable for manual calculation of P.I. (Polarization Index) and D.A.R. (Dielectric Absorption Ratio)

🛡️ Safety & Standards

• Complies with IS 10656-1983 and IEC/EN 61010-1 & 61010-31

• EMC IEC 61326-1 Class B

• Over-Voltage CAT III 600 V protection

• IP44 splash/particle protection

🌡️ Environmental Conditions

• Operating temperature: 0 °C to 40 °C

• Storage temperature: –10 °C to 50 °C

• Relative humidity limits per standards

🎒 Accessories Included

• High-voltage insulation test leads

• Rechargeable batteries

• AC adaptor

• Carrying bag

• Instruction manual

• (Calibration/test certificate may vary by dealer)

🏭 Typical Applications

Useful for insulation resistance testing of:

• Transformers, motors, generators

• Cables and switchgear

• Distribution equipment

• Maintenance checks in industrial/commercial settings

📌 Quick Summary

• Voltage ranges: 250 V–2500 V DC

• Max insulation resistance: 20 GΩ

• Additional AC measurement: up to 600 V AC

• Auto range & data hold functions

• Safety: CAT III 600 V, IP44 compliant



Additional Information:

• Item Code: DIT927
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Test Voltage	5 kV
Brand	Meco
Usage/Application	Insulation Resistance Testing
Model Name/Number	DIT 954-6R
Accuracy	±(5% of reading + 2 digits)

📐 Technical Specifications

Test Voltage Ranges (DC):

• 100 V

• 250 V

• 500 V

• 1000 V

• 2500 V

• 5000 V
  These six voltage ranges allow flexible testing suited for different equipment and standards.

Insulation Resistance Range:

• Up to 200 GΩ
  (The exact resolution and accuracy vary by range — typically finer resolution at lower ranges and broader at higher ones).

Display:

• 3½-digit (1999 counts) LCD with green backlight for clear reading in low-light conditions.

• Red LED high-voltage (HV) indicator warns when test voltage is present.

Operation:

• Push-button operation (single-person test).

• Auto range in insulation test mode.

• Data hold to freeze readings on display.

• Beep function on test start/end may be included.

Safety & Standards:

• Complies with IS 10656-1983 and IEC/EN 61010-1 & 61010-31 safety standards.

• EMC IEC 61326-1 Class B.

• CAT III 600 V over-voltage protection.

• IP 44 enclosure protection.

Operating Conditions:

• Operating temperature: ~0 °C to 40 °C

• Storage temperature: ~-10 °C to 50 °C

• Powered by 8×1.5 V AA batteries (12 V) and AC adaptor.

🎒 Typical Applications

• Testing insulation resistance of motors, transformers, cables, generators and other electrical equipment.

• Preventive maintenance, fault detection, insulation deterioration evaluation in industrial or commercial electrical systems.

📦 Standard Accessories Included

• High-voltage insulation test leads (1 set)

• AC adaptor

• AA batteries (8 pieces)

• Heavy duty carrying bag

• Instruction manual

• Test & calibration certificate (may vary by dealer).

Additional Information:

• Item Code: DIT954-6R
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Display Type	Analog
Test Voltage	500 V
Insulation Resistance Range	100M Ohm
Brand	Meco
Frequency	NO
Usage/Application	Industrial
Model Name/Number	MC-903

• The MECO MC-903 is the analog insulation tester with:

  • 500 V DC test voltage

  • 0 – 100 MΩ insulation resistance range

  • Standard analog pointer display

  • Single-button push operation

  • Accuracy of ± 5 % of indicated value in the effective range

  • ABS yellow case with polycarbonate cover

  • Meets IEC 61010 CAT II and designed to comply with IS 10656-1983 standards.

So if you meant “analog insulation tester with 500 V and ~100 MΩ range,” the correct MECO model number is MC-903, not MC-904.

Below are the typical details for that MC-903 analog insulation tester:

🧰 MECO MC-903 Analog Insulation Tester (500 V – 100 MΩ)

(Analog insulation resistance tester in the MC-900 family)

📌 Technical Specifications

• Test Voltage: 500 V DC

• Insulation Resistance Range: 0 – 100 MΩ

• Display: Analog pointer on graduated scale

• Accuracy: ± 5 % of indicated value in the effective range

• Push-Button Operation: Single-hand test button

• Scale Length: Approximately 80 mm

• Case Material: ABS yellow housing with polycarbonate front cover

• Safety Standards: IEC 61010 CAT II compliant and designed to generally conform to IS 10656-1983

🔋 Power & Accessories

• Battery: Typically powered by 6 × 1.5 V AA cells (installed)

• Accessories:
  • Pair of crocodile/alligator test leads
  • Carrying case
  • Test and calibration certificate

🛠 Use-Cases

Good for basic insulation verification of:

• Electric motors and transformers

• Cables and wiring systems

• Industrial and residential electrical installations

• Appliances and machinery insulation checks

Additional Information:

• Item Code: MC-903
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Display Type	Analog
Test Voltage	1kV
Insulation Resistance Range	500M Ohm
Brand	Meco
Frequency	NO
Usage/Application	Industrial
Model Name/Number	MC-907

🔎 Key Specifications & Features

🔋 Test Voltage

• Up to 1000 V DC — suitable for most insulation testing jobs.

📈 Resistance Range

• 0 – 500 MΩ (Mega Ohms) insulation resistance measurement.

📊 Accuracy

• Approx. ± 5 % of indicated value within effective range for reliable readings.

🧰 Operation

• Single-person push button operation — easy and safe testing.

• Large analog scale (~80 mm) for clear visibility.

🏷️ Standards & Safety

• Designed to generally conform to IS 10656 – 1983 and IEC 61010 (CAT II) safety standards.

📦 Included Accessories

• Pair of crocodile/alligator test leads (red & black).

• Carrying case.

• Test and calibration certificate.

• 6 × 1.5 V AA batteries included (9 V total).

⚡ Dielectric Strength

• Tested to 3.5 kV @ 50 Hz for 1 min between input terminals and case for safety.

📏 Physical

• Approx. 144.5 × 95 × 72.5 mm size; weight ~438 g (with batteries).

• Yellow ABS resin case with polycarbonate front cover for durability.

🧩 Typical Use-Cases

• Testing insulation resistance of motors, transformers, generators.

• Cables and communication lines insulation integrity.

• Industrial, commercial, and home wiring insulation checks.

• Household appliances (washers, mixers, toasters) insulation safety tests.

📌 Good to Know

• Being analog (needle dial) it’s simple and robust — no digital electronics to reset or calibrate often.

• Accuracy and operation are typical for field insulation testers — suitable for basic to medium-duty electrical work.

Additional Information:

• Item Code: MC-907
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Display Type	Analog
Test Voltage	500 V
Insulation Resistance Range	1000M Ohm
Brand	Meco
Frequency	NO
Usage/Application	Industrial
Model Name/Number	MC-941

📊 Key Specifications

• Test Voltage (DC): 500 V applied for insulation resistance testing.

• Insulation Resistance Range: 0 – 1000 MΩ (1 GΩ).

• Accuracy: ±5 % of indicated value in the effective range.

• Display: Analog dial with pointer and graduated scale (approx. 80 mm length).

• Operation: Single-person push-button test for simple on-site use.

• Case: ABS yellow housing with polycarbonate front cover — rugged for field work.

• Standards: Designed to conform generally to IS 10656-1983 and meets IEC 61010 CAT II (1000 V phase-to-earth) safety rating.

🔌 Power & Environment

• Power Supply: 6 × 1.5 V AA batteries (typically fitted).

• Operating Temperature: ~0 °C to 50 °C.

• Storage Temperature: ~–10 °C to 60 °C.

• Humidity: rated for up to ~80 % RH max (non-condensing).

🧰 Included Accessories

• Pair of crocodile/alligator test leads (red & black).

• Carrying case for transport.

• Test & calibration certificate.

• Batteries installed.

🛠️ Typical Applications

This instrument is suitable for checking the insulation resistance of:

• Electric motors and transformers.

• Cables (communication and power).

• Industrial, commercial & residential wiring.

• Household appliances (e.g., washers, mixers).

📌 What It Doesn’t Do

• ❌ No frequency measurement — it’s strictly an insulation resistance tester, not a general-purpose meter.

• ❌ No digital readout or logging — analog only, and no data storage.

📍 Who It’s For

This is a field-oriented, industrial insulation tester ideal for:

• Electricians and maintenance technicians

• Workshop diagnostic checks

• Preventive checks on motors, cable runs, and equipment

It’s not a lab precision instrument — accuracy is typical of analog insulation testers and fine for general insulation testing rather than calibrated lab metrology.

Additional Information:

• Item Code: MC-941
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Display Type	Analog
Test Voltage	100 V
Insulation Resistance Range	20M Ohm
Operating Temperature	0-50 degree c
Dc Voltage Range	0-100 V
Test Type	Insulation
Model Name/Number	MC-901

📊 Key Specifications

🔹 Test Voltage:

• 100 V DC test output for insulation resistance measurement.

🔹 Resistance Range:

• Measures insulation resistance from 0 to 20 MΩ.

🔹 Accuracy:

• Approximately ± 5 % of indicated value within effective range.

🔹 Operating Principle:

• Analog meter with a pointer and calibrated scale (approx. 80 mm length) for visual reading.

🔹 Operation:

• Single-button push operation — easy to use with one hand.

🔹 Safety & Standards:

• Complies with IEC 61010, CAT II 1000 V phase-earth category.

• Designed to generally conform to IS 10656-1983 standards.

🔹 Build & Display:

• Yellow ABS case with a polycarbonate front cover for durability.

• Clear analog scale for resistance values.

🔌 Electrical & Environmental Specs

(from manufacturer catalog)

• Power: 9 V (6 × 1.5 V AA batteries included).

• Dielectric strength: ~3.5 kV @ 50 Hz for 1 min between input terminals and case.

• Operating temperature: 0 °C to 50 °C.

• Storage temperature: -10 °C to 60 °C.

• Relative humidity: up to ~80 % max.

• Dimensions/Weight: ~144.5 × 95 × 72.5 mm; ~438 g (including batteries).

📦 What’s Included

Standard accessories usually supplied with the MC-901:

✔ Pair of crocodile/alligator test leads (red & black)
✔ Carrying case for portability
✔ Test & calibration certificate
✔ AA batteries (fitted)

Optional versions like the Analog Insulation Tester 100V ‑ 20M Ohm with Battery Adaptor (MC-901BA) also include a battery adaptor for mains charging.

📌 Typical Uses

This tester is designed for insulation resistance testing in a variety of settings:
✅ Motors, transformers, electrical machines
✅ Cables (communication & electrical distribution)
✅ Industrial, commercial & residential wiring
✅ Household appliance insulation checks (e.g., washing machines, toasters)

Additional Information:

• Item Code: MC-901
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Test Voltage	100V, 500V, 1000V, 2500V, 5000V
Packaging Type	Box
Display Type	Analog
Tester Range	100V, 500V, 1000V, 2500V, 5000V
Usage/Application	Insulation Resistance Testing
Model Name/Number	444

International Instruments Industries gained 20 years of experience in providing our clients a comprehensive range of Metal Body Insulation Testers that can test the voltage ranging from 50 V to 5000 V DC. Our range is housed in the robust and attractive case, which is meant from aluminum. Moreover, we also supply Analog Insulation Testers of various major brands such as Waco, CIE and Shanti. As per the requirements of our clients, we also offer Insulation Tester in backlite body.



Specifications:



·         Test voltage from 50V to 5000V DC
·         Megaohms range can be given from 10M to 50,000M
·         Dual ranges can also be supplied
·         Housed in sturdy & elegant aluminum case
·         We can supply Analog Insulation Tester in the brands of Waco, CIE & Shanti
·         We can also supply you Insulation Tester in backlite body

Additional Information:

• Item Code: CIE444
• Production Capacity: AS WE ARE DISTRIBUTOR, WE HAVE 25NOS. IN STOCK
• Delivery Time: READY STOCK

Voltage Range	275Kv
Country of Origin	Made in India
FRP Rod Length	Up to 1.5 meter
Storage Temperature Range	-20°C to +60°C
Operating Temperature Range	-10°C to +50°C
Material (Tester)	ABS plastic housing
Material (Rod)	FRP (Fiber Reinforced Plastic)

Metravi 275HP1 High Voltage Tester (Non-contact Type) with FRP Rod Kit – Key Features and Specifications Key Features Explained:

1. Non-contact Detection:

   • The Metravi 275HP1 is a non-contact high voltage tester, meaning it can safely detect high-voltage fields without needing to make direct contact with the live electrical components. This is especially useful for testing overhead power lines, high-voltage transformers, and other equipment where direct contact with live parts could be dangerous.

2. High Voltage Detection Range:

   • It can detect voltages from 3 kV to 275 kV AC, making it suitable for a wide range of high-voltage electrical systems, including power transmission lines and industrial electrical equipment.

3. FRP Rod Kit:

   • The tester comes with an FRP rod kit (Fiber Reinforced Plastic), which ensures high insulation and safety. The FRP rod allows the user to safely test high-voltage equipment from a distance, typically up to 1.5 meters (extendable with additional rods). FRP is a strong and lightweight material that is ideal for use in high-voltage environments because of its excellent insulation properties.

4. Voltage Indication:

   • The Metravi 275HP1 provides both visual (LED) and audible (alarm) indications when high voltage is detected. This ensures that the user can clearly see and hear when high voltage is present, even from a distance.

Temperature Range	450 DegreeC
Power	65w
Model Name/Number	ZT-N1
Cord Length	1 m
Adjustable Temperature	Yes
Brands	Zoyi

Zoyi Smart Electric Soldering Iron ZT-N1

Key Features:

• Smart Control: Features intelligent temperature control with LCD display for easy monitoring.

• Adjustable Temperature: The temperature range is typically from 200°C to 480°C, offering flexibility for different soldering tasks.

• Fast Heating: Equipped with a high-efficiency heating element (likely ceramic or similar), providing quick heat-up time (usually within 30 seconds to 1 minute).

• Ergonomic Design: Designed for comfortable use with a lightweight body and anti-slip handle, reducing hand strain during extended use.

• Temperature Stability: Maintains consistent temperature during use, ideal for sensitive components.

• Soldering Tip Compatibility: Compatible with various standard tips, offering versatility for precision work.

• Safety Features: Includes features like auto sleep mode or overheat protection, ensuring safety during use.

• Power Supply: Operates with a typical AC voltage (likely 220V), and the power consumption could range between 60W to 80W depending on the model.

Pros:

• Precise Temperature Control: With a digital readout, it's easy to adjust and maintain the right temperature for different tasks.

• Quick Heating: Saves time during projects, especially when soldering multiple components.

• Ergonomically Designed: Comfortable to use for extended periods, reducing hand fatigue.

• Portable and Compact: Easy to store and transport for on-the-go repairs or projects.

Cons:

• Requires Power Source: Limited to areas with access to electrical outlets, not battery-powered.

• Fragility of Soldering Tips: As with many electric soldering irons, tips can wear out or degrade over time, especially with frequent high-temperature use.

Ideal For:

• Hobbyists and DIYers: Perfect for small electronics repairs, model-making, or crafting.

• Electronic Technicians: Great for detailed soldering work on PCBs, components, or wiring.

• Beginners: Simple, easy-to-use controls with temperature stability, making it great for learning soldering.

Measurement Range	0 to 2000 mG
Axis	3 Axis
Frequency Range	30 Hz to 1000 Hz
Display Type	Digital
Power Source	Battery
Mounting	Handheld
RF Radiation	50MHz – 3.5GHz

�� Measurement Ranges & Key Specs �� What It’s Good For (Use‑Cases)

Because of its multi‑field measurement capability, EMF‑54 is useful for:

• Home & Office EMF safety checks — measuring stray electric & magnetic fields from wiring, appliances, power sockets; checking for RF radiation from WiFi routers, modems, smart devices.

• Telecom / broadcast / tower‑site inspection — detecting RF exposure levels near cell towers, broadcast antennas, or other transmitters.

• Industrial / electrical safety audits — measuring magnetic/electric field exposure around electrical panels, industrial machinery, transformers, motors, high‑voltage lines.

• Electronics / lab / research — for testing emissions, checking shielding effectiveness, RF noise, interference on electronics setups.

• General EMF awareness & “electro‑smog” monitoring — for those concerned about EMF exposure in living or work space, or complying with safety limits/regulations.

⚠️ What to Know / Limitations

• As with many handheld EMF meters, accuracy depends on sensor calibration, orientation (especially for magnetic & electric field detection — though EMF‑54 uses 3‑axis magnetic detection, which helps).

• RF / high‑frequency measurement covers up to 3.5 GHz — adequate for many WiFi / cellular / broadcast sources, but may not cover some newer / higher‑frequency bands (e.g. some 5 G bands, depending on frequency).

• The meter gives field strength or power density; interpreting “safe vs unsafe” levels often requires external reference (regulations/guidelines). The meter does not automatically assess “health risk” — it only measures values.

Additional Information:

• Item Code: EMF-54
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Test Voltage	1000 V DC
Resistance Range	0–20 GΩ
Display Type	Digital
Power Source	Battery
Protection Class	CAT III
IP Rating	IP40
Memory	No Memory

🔧 MECO DIT 936PI – Digital Insulation Resistance Tester

The DIT 936PI is a digital insulation tester with PI & DAR functions, designed for low-voltage and medium-voltage electrical equipment testing.

⚡ Test Voltage (DC)

• 250 V

• 500 V

• 1000 V

👉 Suitable for LV motors, cables, panels, and distribution equipment.

📏 Insulation Resistance Range

• 0.1 MΩ to 20 GΩ

(Typically divided into MΩ and GΩ auto-ranges)

🧪 Test Types / Functions

• Insulation Resistance (IR) – DC

• Polarization Index (PI)

• Dielectric Absorption Ratio (DAR)

• AC Voltage Measurement (up to 600 V AC)

• Low Resistance / Continuity Test

🎯 Accuracy (Typical)

• Insulation Resistance:

  • Up to 200 MΩ: ±(3% rdg + 5 digits)

  • Above 200 MΩ: ±(5% rdg + 5 digits)

• AC Voltage: ±(1.5–2% rdg)

• Low Resistance: ±(3–4% rdg)

📟 Display & Interface

• Digital LCD display (large, clear)

• Push-button operation

• Rotary function selector

• HV (High Voltage) warning LED

• Data Hold function

🔋 Power Source

• Battery operated (AA batteries)

• Supports external DC adaptor

• Low battery indication

🛡️ Safety & Protection

• CAT III 600 V

• Conforms to IEC / EN 61010

• IP44 protection

• Automatic discharge of test object after measurement

🌡️ Environmental Conditions

• Operating temperature: 0 °C to 40 °C

• Storage temperature: –10 °C to 50 °C

🎒 Standard Accessories

• High-voltage test leads

• Crocodile clips

• Batteries

• Carrying pouch

• Instruction manual

• Calibration / test certificate

🏭 Typical Applications

• LT motors & generators

• Control panels

• Power cables

• Switchgear

• Preventive maintenance using PI & DAR

Additional Information:

• Item Code: DIT936PI
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING

Voltage Range	1 kV
Country of Origin	Made in India
Safety rating	CAT III 1000V
Weight	52 gm.
Power	2 × AAA alkaline batteries
Light	Brifght Flashlight

Key Features / Specifications

• Non-contact detection of AC voltage — you don’t need to touch a bare conductor to check for live voltage.

• Voltage detection range: 200 V to 1000 V AC (50/60 Hz) according to some sources.

• Safety rating: CAT III 1000V.

• Rugged, double-moulded exterior for durability and insulation.

• Built-in bright flashlight (LED) — useful for working in dark or low-light areas.

• Audible beeper + red LED indicator when voltage is detected (“line is live”).

• Compact size with a pocket clip, making it easy to carry around.

• All outer surfaces are non-conductive — safer to handle.

• Power: 2 × AAA alkaline batteries.

• Certification / Safety: Pollution Degree 2.

• Warranty: 1 year (against manufacturing defects).

• Weight: around 52 g.

Applications / Use Cases

• Detects presence of AC voltage in cables, wires, outlets, circuit breakers, lighting fixtures, etc.

• Can help trace a break (open circuit) in a wire: you run the tester along the wire, and when the signal (light / beep) stops, that could indicate a break or fault.

• Useful for electricians, tradespeople – a quick “is this live?” check without needing to make contact.

Pros & Considerations

Pros:

• Very safe — non-contact detection minimizes the risk of shock.

• Lightweight and portable.

• Flashlight integration is practical.

• Audible + visual alert increases usability.

Considerations:

• It’s a detector, not a precise meter: it indicates presence of voltage, but does not give a precise reading (i.e., not for measuring exact voltage value like a multimeter).

• The lower limit of detection is relatively high (200 V), so it might not detect low-voltage AC circuits (depending on source).

• Battery-powered — need to replace AAA batteries periodically.

Additional Information:

• Item Code: AC-5
• Delivery Time: READY STOCK
• Packaging Details: 10NOS PACKING

Test Voltage	1000 V
Usage/Application	Insulation Resistance Testing
Model Name/Number	6350IN
Product Brand	HTC
Color	Black
Display Type	LCD

6350IN Digital Insulation Tester: The 6350IN Digital Insulation Tester provides accurate insulation resistance measurements for electrical safety and predictive maintenance.

Display Type	LED
Material	ABS
Weight	200gm to 300gm
Frequency	50 Hz or 60 Hz
Country of Origin	Made in India

Key Features:

1. Voltage Detection:

   • It is primarily used to detect AC voltage in the range of 90V to 600V.

   • It can be used on circuits like power outlets, wires, and electrical installations to quickly check if power is present.

2. Non-Contact Voltage Detection:

   • Non-contact testing: The tester can detect voltage without the need to physically touch the wires or electrical components. This makes it safer to use in live circuits.

3. Audible and Visual Indicators:

   • Audible Buzzer: It produces a loud beep when AC voltage is present.

   • LED Indicators: The device typically has a series of LEDs (often a red LED) that light up to indicate the presence of voltage.

4. Safety Features:

   • Non-contact type: This allows for safe operation, as it prevents direct contact with live parts.

   • It’s designed to meet safety standards, ensuring safe operation even in industrial or home environments.

   • Insulated body: The tester is designed with an insulated body for additional user protection.

5. Compact and Ergonomic Design:

   • It is lightweight, portable, and easy to handle, typically resembling a pen-style tester, which makes it convenient to carry in a toolbag or pocket.

   • Pen-style design: Its slim shape allows you to easily test tight or hard-to-reach places.

6. Wide Applications:

   • Ideal for electricians, maintenance personnel, and DIYers to quickly check outlets, switchboards, power cables, etc.

   • It can be used in both residential and industrial applications to detect the presence of AC voltage.

7. Battery Operated:

   • The tester typically runs on 1 x 9V battery. This is commonly included with the product, but check packaging for specific details.

Specifications: Advantages:

• Safety: Being non-contact means you don’t need to worry about accidental shocks while testing live wires.

• Quick Voltage Detection: Saves time in troubleshooting and can be used in various applications where quick voltage checks are required.

• Portable and Lightweight: Easy to carry and use in tight spaces or on large installations.

• Clear Feedback: The audible beep and LED indication provide immediate feedback, ensuring that users are aware of the voltage status

Additional Information:

• Item Code: AC-4
• Delivery Time: READY STOCK
• Packaging Details: 1NOS PACKING
