International Instruments Industries

No. of Phases	Three Phase
Phase	3 Phase
Brand	SELEC
Model	MFM 384
Usage	Industrial
Country of Origin	Made in India

�� Key Specifications

• Compatible with wiring systems: 1‑phase 2‑wire, 2‑phase 3‑wire, 3‑phase 3‑wire, 3‑phase 4‑wire.

• Voltage input ranges: 11 V–300 V AC (Line‑to‑Neutral), 19 V–519 V AC (Line‑to‑Line).

• Current input (nominal): 5 A AC (programmable CT primary up to 10 kA) or min ~11 mA; max ~6 A for internal input.

• Accuracy: ±0.5% for voltage & current, ±0.1% for frequency, ±0.01 for power factor, ~1% for active/reactive/apparent energy (Class 1).

• Features:

  • True RMS measurement of voltage & current.

  • Measures voltage, current, frequency, power factor, active/reactive/apparent power & energy.

  • Programmable CT/PT primary & secondary ratios.

  • Supports % THD up to 31st harmonic.

  • RS‑485 communication, Modbus RTU protocol.

• Display & physical:

  • Panel‑mount size: 96 × 96 mm.

  • LCD with back‑light, bar‑graph representation of current.

• Auxiliary / supply voltage: Typically 85‑300 V AC/DC (depending on variant) for the 96×96 version.

✅ Highlights / Advantages

• Very flexible meter: works across 1‑phase and 3‑phase systems and various wiring configurations.

• High accuracy and rich feature set: good for energy monitoring, power quality (via THD), demand measurement.

• Communications built‑in (RS‑485 / Modbus) enables integration into SCADA / BMS systems.

• Customisable via CT/PT settings: adapts to a wide range of current/voltage levels.

• Heavy duty industrial meter, suitable for panel‑mounting and professional installations.

⚠️ Things to Check / Consider

• Ensure you pick the correct variant (for your supply voltage, measurement configuration). Some versions supply 85‑300 V AC/DC, others may differ.

• Verify that your CTs/VTs are set or compatible with the meter’s programmable range.

• For accurate THD & power quality work, ensure your wiring/installation is proper (good grounding, correct phases, minimal noise).

• Installation environment: check temperature/humidity/specs; older datasheet shows operating ‑10 °C to +55 °C.

• Make sure you have the required space (96×96 panel cut‑out) and front bezel clearance for mounting.

• Because this meter has many features, you may need to spend time configuring parameters (CT/PT settings, communication address/baud rate etc).

�� Typical Applications



• Monitoring industrial electrical panels: tracking voltage, current, power, energy usage.

• Building management systems (BMS): integration of power measurement into centralized monitoring via Modbus.

• Energy auditing & efficiency: measuring energy import/export, demand peaks, power factor improvement.

• Power quality checks: THD monitoring, phase sequence detection.

• Utility sub‑metering or commercial installations.

Additional Information:

• Item Code: MFM384
• Pay Mode Terms: L/C (Letter of Credit),Other
• Port of Dispatch: AHMEDABAD
• Delivery Time: READY STOCK UP TO 50 NOS.
• Packaging Details: 5 NOS PACKING

Display Type	LED
Mounting Type	Flush Mounting
Voltage	240V AC
Power Source	Battery Powered
Color	White
Model	XTC562
Brand	Selec

Multifunction digital timer offers precise time tracking with adjustable settings for various durations. It also includes a programmable counter, allowing users to track events or actions based on time or count parameters.

The XTC562 is a panel‑mount multifunction device combining timer, counter, rate & batch functions. It’s designed for industrial automation and process control.

Display & Indicators

• Dual display: 6 + 6 digits (upper & lower). The upper display shows main parameter (Timer / Counter / etc.), the lower often shows batch/rate or status.

• Colour: Typically “White + Orange” LEDs for the two displays.

Functions / Modes

Operates in several modes, including:

• Timer Modes: ON‑delay, Interval, Cyclic (ON first / OFF first), Instantaneous + Delayed at start pulse, Instantaneous + Delayed at power on, Motor reverse, Batch timer mode.

• Counter Modes: ON‑delay, Interval, Time‑Pulse Repeat, Auto‑Reset.

• Rate / Batch / Totalizing: It can show “rate” or do batch counting functions.

Input / Counting

• Start Input Types: Pulse, Gate, Level.

• Counting Direction: Unidirectional, Bi‑directional, Quadrature.

• Sensor / Input Compatibility: NPN, PNP, or potential free contacts. Possibly also encoder type pulses.

• Least count / Resolution: For counter mode, selectable least count from 0.0001, 0.001, 0.01, 0.1 & 1 depending on application.

Timer / Counter Ranges

• Timer Range: Several preset ranges; across seconds, minutes, hours. Some examples:

  • 9999.99 / 99999.9 / 999999 seconds

  • 9999.59 min:sec, 99999.9 min, 999999 min

  • 9999.59 hr:min, 99999.9 / 999999 hr

• Counter Range: Dependent on least count, as above.

Outputs / Relays

• 2 SPDT relays (i.e. 2 change‑over contacts).

• Contact rating (typical) 5 A @ 230 VAC / or at rated voltage.

Power & Electrical

• Supply Voltage: Universal range 90‑270 V AC/DC.

• Built‑in Sensor Supply: some internal supply (e.g. ~12 V DC) for sensors.

Mechanical / Physical

• Panel‑mount type; cutout size: 48 × 48 mm

• Weight: ~120 g net; gross more with packaging etc.

Additional Features

• Dual set points (2 outputs you can preset).

• Programmable input scaling. So you can adjust scaling of sensor or pulse input.

• Memory retention on power‑off for settings / counts / timers etc.

• Reset options: front panel reset and remote reset.

• Start input options (Pulse, Gate, Level) so you can choose how timer or counter starts.

Additional Information:

• Item Code: XTC562
• Delivery Time: READY STOCK
• Packaging Details: 10 NOS. PACKING

No. of Phases	Single Phase
Usage/Application	Industrial
Brand	Selec
Model Name/Number	MFM384 R C
Color	White
Dimensions	70 mm
Display Type	LCD

Din Rail Multifunction Meter is designed for easy installation on a standard DIN rail, making it ideal for panel mounting in industrial and commercial settings. It measures key electrical parameters like voltage, current, power, energy, and frequency, offering comprehensive data for energy management. With a clear display, it provides real-time monitoring and helps optimize energy usage. The meter is built to withstand demanding environments and ensures reliable performance. Its compact design saves space, making it a practical choice for electrical control systems.
Basic Overview

• A DIN-rail mount multifunction energy meter packed in a compact 70 mm width housing.

• Supports wiring for 1-phase 2-wire, 2-phase 3-wire, 3-phase 3-wire, and 3-phase 4-wire systems.

Display & Interface

• Features an LCD with backlight, structured as one row of 4 digits and two rows of 7 digits for reading parameters.

• Includes LED indicators such as:

  • INT for energy integration (1,000 pulses/kWh)

  • MD for maximum demand

  • Communication activity indicators and harmonic distortion (% THD).

Electrical Characteristics & Measurement

• Voltage measurement: 11–300 V AC (L–N) and 19–519 V AC (L–L).

• Current: Typically 5 A AC nominal (range: 11 mA to 6 A), with a burden of 0.5 VA per phase at 5 A.

• Frequency range: 45–65 Hz.

• Programmable CT: from 1/5 A up to 10,000 A; Secondary CT: 1 A or 5 A programmable.

• PT settings: Primary range 100 V to 500 kV; Secondary: 100 V to 500 V, both programmable.

Accuracy & Measurements

• Voltage & Current: ± 0.5% full scale

• Frequency: ± 0.1%

• Power Factor: ± 0.01

• Power (active/reactive/apparent): ± 1%

• Energy (active/reactive/apparent): Class-1 accuracy.

• Measures Max/Min demand power and Import/Export energy.

Communication & Memory

• Communicates via RS-485 using the Modbus RTU protocol.

• Configurable settings:

  • Device address 1–255

  • Half-duplex mode, up to 500 m transmission distance

  • Baud rates from 300 to 19,200 bps, with selectable parity and stop bits.

• Response time: 100 ms (per some data) or up to 500 ms depending on source.

• Energy data retention: up to 10 years.

Power Supply & Physical Specs

• Auxiliary supply: 85–270 V AC (50/60 Hz).

• Power consumption: less than 8 VA (some variants less than 4 VA).

• Weight: approximately 208 g.

• Operating temperature: −5 °C to +60 °C; Storage: −20 °C to +75 °C. Humidity: up to 85% RH, indoor use up to 2,000 m altitude.

Certifications & Compliance

• Certified for CE, RoHS, and optionally MID for billing-grade accuracy.

• Meets EMI/EMC standards per IEC 61326-1 and related immunity levels for ESD, surge, radio noise, etc.

Additional Information:

• Item Code: MFM384-R-C
• Delivery Time: READY STOCK
• Packaging Details: 10 NOS. PACKING

Phase	Single Phase
Model Name/Number	MRJ4M QUAD
Voltage	300 V AC
Display Type	LCD
Usage/Application	Industrial
Dimension	70 x 90 mm
Brand	Selec
Mounting Type	Din Rail Mount

Four Channel Rail Mount Multifunction Meter is designed for installation on a DIN rail, making it perfect for space-efficient panel mounting in industrial environments. It measures four distinct electrical parameters simultaneously, such as voltage, current, power, energy, and frequency across multiple circuits. The meter provides real-time data for efficient energy monitoring and optimization. With a clear display, it ensures easy visibility and analysis of critical electrical information. This meter is built for durability, offering reliable performance in demanding applications.



Additional Information:

• Item Code: MRJ4M-QUAD
• Delivery Time: READY STOCK

No. of Phases	Single Phase
Phase	Single Phase
Model Name/Number	MRJ4M
Voltage	300 V AC
Display Type	LCD
Usage/Application	Industrial
Dimension	70 x 90 mm
Brand	Selec
Mounting Type	Din Rail Mount

Single Channel Rail Mount Multifunction Meter is a compact device designed for easy installation on a DIN rail in industrial and commercial panels. It measures essential electrical parameters like voltage, current, power, energy, and frequency for a single circuit. The meter offers real-time monitoring, helping optimize energy usage and system performance. With a clear display, it ensures accurate and easily readable data. Its robust design ensures reliability and durability in demanding environments.

 Measurement Capabilities

• Measures True RMS Voltage, Current, Frequency, Power Factor, Active/Reactive/Apparent Power, Energy, and Maximum Demand.

Display & Interface

• Features a backlit LCD display organized into 3 rows: two 4-digit rows plus one 7-digit row.

• Clearly stands out for data visibility in industrial settings.

Electrical Input & Installation

• Self-powered via the monitored circuit (60–300 VAC Line-to-Neutral, or 104–520 VAC Line-to-Line).

• Compatible with both 3-phase 4-wire and single-phase 2-wire systems.

Configuration & Communication

• Programmable CT primary (5 A to 10 kA) and PT primary/secondary values.

• Equipped with RS-485 Modbus RTU, supporting baud rates up to 19 200 bps, with half-duplex communication.

Pulse Output & Energy Reset

• Includes a pulse output (24 V DC, up to 100 mA), configurable for pulse duration (0.1–2.0 s) and weight (0.01–9.99 kWh).

• Energy readings can be reset programmatically. Retains memory for up to 10 years.

Performance & Accuracy

• Accuracy specs:

  • Voltage & Current: ±0.5% of full scale

  • Power Factor: ±0.01

  • Frequency: ±0.1

  • Power & Energy: ±1%

• Fast response time of up to 100 ms, regardless of baud rate.

Environmental & Mechanical

• Power consumption: < 8 VA.

• Operating temp: –10 °C to +55 °C; Storage temp: –20 °C to +75 °C; up to 85% humidity (non-condensing).

• Lightweight (approx. 191 g), designed for standard DIN-rail mounting.

Safety & Compliance

• Meets IEC 61326-1 EMI/EMC requirements, including robust surge, ESD, and immunity specs.

Additional Information:

• Item Code: MRJ4M
• Delivery Time: READY STOCK
• Packaging Details: 10 NOS. PACKGING

Model Name/Number	MRJ4M-SL
Voltage	300 V AC
Display Type	LCD
Usage/Application	Industrial
Dimension	70 x 90 mm
Brand	Selec
Mounting Type	Din Rail Mount
No. of Phases	Three Phase
Phase	Single Phase

Dual Channel Rail Mount Multifunction Meter is designed for efficient DIN rail installation, ideal for monitoring two separate circuits. It measures key electrical parameters such as voltage, current, power, energy, and frequency for each channel. With real-time data display, it helps optimize energy consumption and improve system performance. The meter features a clear display for easy data interpretation and monitoring. Its compact and durable design ensures reliable operation in industrial and commercial applications.

Additional Information:

• Item Code: MRJ4M-SL
• Delivery Time: READY STOCK
• Packaging Details: 10 NOS. PACKING

No. of Phases	Single Phase
Material	Aluminium
Phase	1 Phase
Brand	Selec
Model	MRJ385-G-PNW
Size	96 x 96 mm
Color	White

TheMRJ385‑G‑PNW is a panel‑mount, single‑channel multifunction energy meter from Selec with “Plug‑N‑Wire” CT input (RJ45 connectors), capable of monitoring a range of electrical (power & energy) and power‑quality parameters (including THD). It supports single‑phase and three‑phase systems.

Key Specifications Performance / Operating Conditions

• Frequency range supported: 45‑65 Hz.

• Temperature / Environment: Operating temp: approx –10 to +55 °C (typical, in ambient‑industrial environments) from the TME listing.

• Weight: ~300 g according to one distributor (TME) for the CE / RoHS version.

Use‑Case / Applications

Some typical uses of the MRJ385‑G‑PNW include:

• Monitoring total and average energy usage (active/reactive/apparent) in industrial/commercial panels.

• Power quality monitoring (THD in both current & voltage), which helps to detect harmonic distortion, imbalance, etc.

• Demand measurement (max/min power), import/export energy tracking, phase angle monitoring.

• Integration via RS‑485 / Modbus RTU into SCADA / energy management systems.

• Environments where using “Plug‑N‑Wire” CTs simplifies installation and maintenance.

Additional Information:

• Item Code: MRJ385-G-PNW
• Delivery Time: READY STOCK
• Packaging Details: 5 NOS. PACKING

Display Type	LED
Mounting Type	Surface Mounting
Voltage	230V AC
Power Source	Battery Powered
Color	Black
Model	XTC5400
Brand	Selec

Multifunction digital timer provides versatile time measurement with programmable countdown or count-up options. It also includes a programmable counter, enabling event tracking and automated time-based actions.
General Description

• Dual‑line display: 4 + 4 digits, 7‑segment LED.

• Modes: Works both as timer and as counter (programmable).

• Has 2 set‑points (relays).

• Input scaling is programmable.

Display / Indicators

• LED indication for Relay1, Relay2.

• Also indicates units of time: Seconds, Minutes, Hours.

Timer & Counter Ranges, Modes

Timer:

• Time ranges include:
  • 99.99 / 999.9 / 9999 seconds
  • 99.59 min:sec
  • 999.9 / 9999 minutes
  • 99:59 hours:minutes, and 999.9 / 9999 hours

Counter:

• Counts from –999 up to 9999 (i.e. negative to positive).

Operating Modes:

• Timer modes: ON Delay, Interval, Cyclic (ON first), Cyclic (OFF first), Batch.

• Counter modes: ON Delay, Interval, Auto Reset, Time Pulse Repeat, Batch.

Counting Direction:

• Timer counts down.

• Counter can count up and down.

Inputs / Reset / Scaling etc.

• Reset options: front (by buttons), remote, and on power interruption.

• Programmable input scaling: scale factor from 0.001 up to 9.999 (powers of ten from –3 to +1 etc).

• Sensor type: supports NPN, PNP, or potential‑free contacts.

Outputs & Relays

• 2 relay outputs (2 C/O SPST) i.e. two change‑over contacts.

• Contact rating: 5A at 230V AC.

Electricals, Power & Environmental

• Supply voltage: 90‑270V AC or DC; also 24V AC/DC version available.

• Tolerance: approx –15% to +10%.

• Accuracy: Timer ±0.05 % of setting or 50 ms (whichever is greater). Counter ±2 counts.

• Input speed (for counter mode): several options including up to 5 kHz.

• Ambient conditions: Operating temperature 0‑50°C, Storage ‑20 to +75°C.

• Humidity: up to 95% RH.

Mechanical / Mounting / Size / Certification

• Panel mounting type. Size: 48 mm × 48 mm front panel cut‑out.

• Certifications: CE; in variants, UL, RoHS.

Additional Information:

• Item Code: XTC5400
• Delivery Time: READY STOCK
• Packaging Details: 10 NOS. PACKING

Temperature Range	450 DegreeC
Power	65 W
Model Name/Number	ZT-N2
Cord Length	1 m
Adjustable Temperature	Yes
Brands	Zoyi

Zoyi Smart Electric Soldering Iron ZT-N2

Key Features:

• Smart Temperature Control: The ZT-N2 features smart temperature control, allowing you to set and maintain precise temperatures for different soldering tasks. This is ideal for delicate components or when working with different types of solder.

• Temperature Range: The iron usually offers a temperature range of 200°C to 450°C (or 392°F to 842°F), providing flexibility for various soldering applications.

• LCD Display: Features a digital LCD display that shows the current temperature, making it easy to monitor and adjust settings on the fly.

• Fast Heating: The ZT-N2 is likely equipped with a ceramic heating element that heats up quickly, often in under 30 seconds, reducing downtime during soldering tasks.

• Ergonomic Design: Designed with comfort in mind, the soldering iron is typically lightweight and features an ergonomically designed handle, which reduces hand fatigue during extended use.

• Sleep Mode & Auto Shut-Off: Includes sleep mode and auto shut-off for safety. If the iron is idle for a set period, it will automatically lower the temperature or turn off to prevent overheating or accidents.

• Replaceable Soldering Tips: The ZT-N2 is likely compatible with various replaceable tips, allowing you to use different tip shapes for specific tasks like fine-pitch soldering, surface-mount soldering, or larger components.

• Anti-static Design: The soldering iron is usually built with anti-static protection to prevent static discharge, which could damage sensitive electronic components.

• Power Consumption: Typically uses around 60W to 80W of power, providing the heat needed for most general soldering applications.

Pros:

• Precise Temperature Control: The ability to set and maintain specific temperatures ensures optimal performance for various soldering tasks.

• Fast Heating: Quick heat-up time minimizes wait times and increases efficiency, especially during repetitive tasks.

• Safety Features: Sleep mode and auto shut-off help reduce the risk of accidents, making it safer for long-term use.

• Versatile: With a wide temperature range and interchangeable tips, the ZT-N2 is suitable for a variety of soldering tasks.

• Ergonomically Designed: Lightweight and comfortable, reducing hand strain during extended use.

• Cost-Effective: Compared to higher-end models, Zoyi soldering irons tend to offer good value for their features and performance.

Cons:

• Limited Advanced Features: While the ZT-N2 is smart and precise, it may lack some of the more advanced features found in high-end soldering stations, such as programmable temperature profiles or advanced soldering tips.

• Tip Wear: As with most electric soldering irons, the tips can wear out with frequent use and may need to be replaced periodically.

• Wattage: While it’s suitable for most general tasks, high-power soldering may require a more powerful iron if you’re working with larger components or heavier-duty tasks.

Applications:

• DIY Projects: Perfect for hobbyists and DIY enthusiasts working with electronic kits, small projects, or repairs.

• Soldering Workstations: Can be used as part of a larger soldering setup for more advanced soldering tasks, especially when precision is key.

No. of channels	1 channel
Mounting	Panel mount
Supply voltage	90–270 V AC/DC
Output contact	2 C/O
Switch rating	5 A
Display type	Digital LED
Brand	Selec

📊 Display & Interface

• Dual display: 6 white digits + 6 orange digits (dual LED) for simultaneous display of two values (e.g., time + count or rate + count).

🔌 Inputs

• Start Input: Pulse, Gate, and Level modes.

• Sensor Compatibility: Supports input from NPN, PNP, or potential‑free contact sensors.

• Counting Modes: Unidirectional, Bidirectional, and Quadrature counting.

⏱️ Operating Modes 🕒 Timer Modes

• On Delay

• Interval

• Cyclic (On first / Off first)

• Instantaneous + Delayed on start pulse

• Instantaneous + Delayed on power‑on

• Motor Reverse

• Batch Timer

🔢 Counter Modes

• ON Delay

• Interval

• Time Pulse Repeat

• Auto Reset

📈 Rate / Batch

• Rate indication with High / Low / Band functions

• Batch counting capability

🧮 Ranges & Resolution

• Timer Ranges:

  • 9999.99, 99999.9, or 999999 seconds

  • 9999.59 min:sec to 999999 min

  • 9999.59 hr:min to 999999 hr

• Counter Resolution:
  Least count selectable from 0.0001, 0.001, 0.01, 0.1, or 1 units.

🔄 Set Points

• Dual set points programmable for control or triggering actions in timer/counter applications.

🔁 Outputs

• 2 × SPDT relay outputs (typically rated for 5 A each), used for control, alarms, or switching external devices based on timing/count conditions.

🛠️ Features

• Memory Retention (retains values during power interruptions).

• Programmable Input Scaling for converting input signals to meaningful engineering values.

• Batch Counting & Rate Indication for production or process speed monitoring.

🔌 Power & Physical

• Supply Voltage: Universal 90–270 V AC/DC.

• Panel Mount: Designed for 72 × 72 mm cut‑out panel mounting.

• Certification: CE certified.

🧰 Typical Uses

Ideal for automated production systems, packaging machines, batching systems, and process timing/counting tasks where flexible timing, counting, and rate features are required.

Additional Information:

• Item Code: XTC262
• Delivery Time: READY STOCK
• Packaging Details: 5NOS PACKING

Phase	Single Phase
Model Name/Number	MFM376
Voltage	300 V AC
Usage/Application	Industrial
Dimension	96 x 96 mm
Brand	Selec

LED Multifunction Meter is a highly efficient device designed to monitor key electrical parameters such as voltage, current, power, energy, and frequency. It features an LED display for clear and bright readings, ensuring visibility in various lighting conditions. Compact and easy to install, it is suitable for both industrial and commercial applications. The meter supports real-time data analysis, helping to optimize energy usage and improve system performance. It is an ideal choice for those seeking a reliable, energy-efficient, and cost-effective solution.

Phase	Single Phase
Model Name/Number	MFM384
Voltage	300 V
Display Type	LCD
Usage/Application	Industrial
Brand	Selec

MFM384 Multifunction Meter is an advanced electrical measurement device designed to monitor various parameters such as voltage, current, power, energy, and frequency. It provides real-time data on electrical systems to help optimize performance and ensure efficient energy usage. With a clear display, it offers both digital and analog output options. The meter supports communication protocols like Modbus for remote monitoring and integration with other systems. It is commonly used in industrial, commercial, and utility applications for energy management and fault detection.

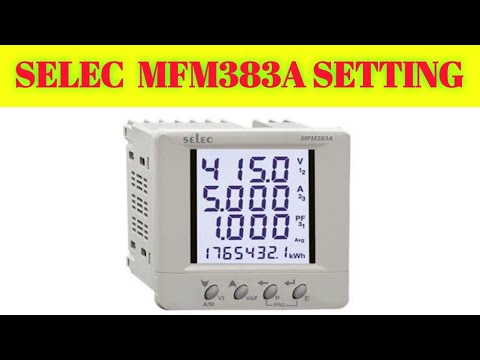

Phase	Single Phase
Model Name/Number	MFM383A
Voltage	270 V AC
Display Type	LCD
Usage/Application	Industrial
Dimension	96 x 96 mm
Brand	Selec
Mounting Type	Panel Mount
Features	Password Protection

Economical LCD Multifunction Meter is a cost-effective solution for monitoring essential electrical parameters such as voltage, current, power, energy, and frequency. It features an easy-to-read LCD display, providing real-time data for efficient energy management. Compact and user-friendly, it is designed for quick installation in both residential and commercial applications. The meter helps in identifying energy consumption patterns and optimizing efficiency. Its affordable price point makes it an ideal choice for budget-conscious users without compromising functionality.

Phase	Three Phase
Model Name/Number	MFM391
Voltage	270 V AC
Usage/Application	Industrial
Dimension	96 x 96 mm
Brand	Selec
Mounting Type	Panel Mount

Economical LED Multifunction Meter offers a budget-friendly solution for monitoring essential electrical parameters like voltage, current, power, energy, and frequency. Featuring an LED display, it provides clear and bright readings, even in low-light environments. Its compact design makes it easy to install in various residential and commercial applications. The meter helps optimize energy usage and improve system performance with real-time data monitoring. This cost-effective option delivers reliable performance without compromising on functionality.

Voltage	300V
Current	5A
Frequency	55 Hz
Energy (kWh)	9,999,999.9
Power Factor	1.00 lag/lead
Display	Customized LCD

Trinity NF-29 multifunction panel meter



Trinity Brand Indian make multi display instrument model NF-29.  The unit is low cost, easy-to-use, individual and multifunctional that enables to measure all the basic parameters required in an electrical installation and monitors electricity over and above basic metering. The entire range is very rugged and cost-effective. All these products are field proven and more than 100,000 units are active in service



Features:

• •Micro-controller based
• •Measurement of all important Electrical Parameters
• •All parameters with default accuracy class 1.0S
• •Displays with customized LCD
• •Individual voltages and currents for all three phases (R-Y-B)
• •Individual three powers-KW, KVA and KVAR
• •Individual PF and system PF with lead (-) and lag side
• •Frequency (Hz), three energies (KWh, KVAh, KVARh)



Additional Information:

• Item Code: NF29
