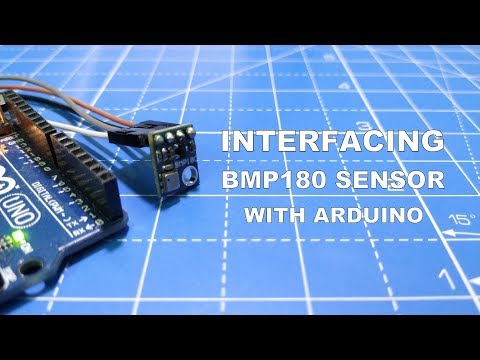

Bmp180 Sensor Is An Extremely Precise Low Cost Sensor From Bosch For Measuring Barometric Pressure And Temperature. Because Pressure Changes With Altitude You Can Also Use It As An Altimeter! The Sensor Is Soldered Onto A Pcb With A 3.3v Regulator, I2c Level Shifter And Pull-up Resistors On The I2c Pins. It Is Completely Identical To The Bmp085 In Terms Of Firmware/software.

Features:-

•
• Vin: 3 To 5vdc
• Logic: 3 To 5v Compliant
• Pressure Sensing Range: 300-1100 Hpa (9000m To -500m Above Sea Level)
• Up To 0.03hpa / 0.25m Resolution
• -40 To +85°c Operational Range, +-2°c Temperature Accuracy
• This Board/chip Uses I2c 7-bit Address 0x77.

• Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V.
• Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C).
• Peak current: 1.12mA.
• Operating Pressure: 300 hPa to 1100 hPa.
• Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m.

• BMP280 Barometric Pressure and Altitude Sensor I2C/SPI Module is a cheapest and tiny Atmospheric Sensor Breakout to measure barometric pressure, and temperature readings all without taking up too much space. Basically, anything you need to know about atmospheric conditions you can find out from this tiny breakout. The BMP280 Breakout has been designed to be used in indoor/outdoor navigation, weather forecasting, home automation, and even personal health and wellness monitoring.

  BMP280 Barometric Pressure and Altitude Sensor I2C/SPI Module
• This module uses an environmental sensor manufactured by Bosch with temperature, a barometric pressure sensor that is the next generation upgrade to the popular BMP085/BMP180/BMP183 Sensor. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI; This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude and the pressure measurements are so good; you can also use it as an altimeter with ±1 meter accuracy.
• The BMP280 is the next-generation of sensors and is the upgrade to the BMP085/BMP180/BMP183 – with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications but can use either I2C or SPI. For simple easy wiring, go with I2C. If you want to connect a bunch of sensors without worrying about I2C address collisions, go with SPI.

RCWL-0516 microwave radar motion sensor with diode protection. Wide range detection for security systems.

Key Features:

• Microwave radar motion detection
• Built-in diode protection
• Wide range detection capability
• Perfect for security systems
• RCWL-0516 controller

• Main Chip: Lm393 Ir Reflection Detection Probe, Tcrt5000
• With The Signal Output Indicator
• Adjustable Sensitivity (Adjustable Sensing Distance), Channel Output Single, Can Be Connected Directly To The Microcontroller Io Port
• Operating Voltage: Dc 3v ~ 5v
