I R Technology Services Pvt. Ltd.

Machine Type	Automatic
Usage/Application	Carbon Sulphur Analysis in Metal, Ceramics and other inorganic materials
Connectivity	Computer
Detector Type	Infrared
Display Type	LCD Touchscreen
Time To Result Min	2
Measuring Range	Carbon:- 2ppm to 6%; sulphur:- 2ppm to 1.75% for a 1gm sample

Determine carbon and sulfur in metals, ores, and other inorganic materials with our 744 series. The 744 takes advantage of our immersive Cornerstone® brand software platform and a number of features, such as an improved IR cell design and available automation, come together to increase usability, lab productivity, and lower your cost-per-analysis.

Features

• High-frequency furnace
  • Integrated oxygen lance floods crucible with high-purity oxygen to promote complete combustion
  • 18 MHz, 2.2 kW induction furnace for rapid and consistent combustion
• Optional 10-and 60-sample autoloaders available for hours of worry-free operation
• High-velocity vacuum system keeps dust and debris contained
• Improved IR cell design
  • Temperature stabilized construction provides increased protection from ambient temperature fluctuations
  • Optimized emitter control and detection circuitry improves IR cell lifetime and long-term stability

Machine Type	Automatic
Usage/Application	Wide Range Carbon Sulphur Analysis in Metal, Ceramics and other inorganic materials
Connectivity	Computer
Detector Type	Infrared
Display Type	LCD Touchscreen
Detection Range	Carbon:- 0.6 ppm to 6.0% for a 1 g sample; Sulphur:- 0.6 ppm to 6.0% for a 1 g sample

Easily analyze your wide-range carbon and sulfur content with our CS844 for the determination of carbon and sulfur in primary steels, ores, finished metals, ceramics, and other inorganic materials using the combustion technique. State-of-the-art hardware and our exclusive Cornerstone® touch-screen software platform provide your laboratory with increased usability and a lower cost-per-analysis.

Features

• Maximize laboratory productivity with automation
  • 10- and 60-position shuttle loaders or integrated robotic process loaders available.
  • High-efficiency autocleaner/vacuum system keeps maintenance to a minimum
  • Automatic combustion tube service and exchange system
• Ergonomic, operator-centered design with a boom-mounted touch-screen interface
• Improved IR cell design provides dual-range detection and improved lifetime and stability
• High-efficiency furnace with low-maintenance design reduces the need for additional accelerant and cleaning

Applications



The 844 series is ideal for the following applications: primary steels, ores, finished metals, ceramics, alloys, and other inorganic materials.

Additional Information:

• Delivery Time: 3 Months

Machine Type	Automatic
Usage/Application	Determine Oxygen,nitrogen & hydrogen in ferrous and nonferrous alloys & other inorganic materials
Model Name/Number	LECO ONH836
Brand	LECO
Product Type	Elemental Analyser
Detector Type	Infrared,Thermal
Display Type	LCD Touchscreen
Measuring Range	Oxygen:- 0.05 ppm to 5.0%; Nitrogen:- 0.05 ppm to 3.0%; Hydrogen:- 0.1 ppm to 2500 ppm for 1gm sampl

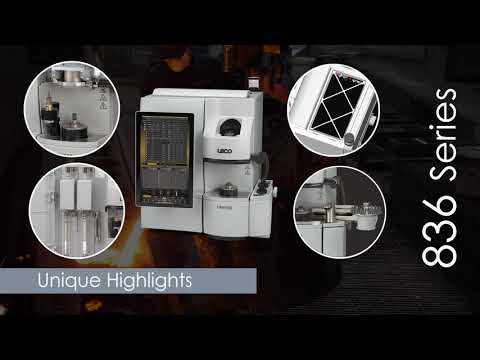

The ONH836 Oxygen/Nitrogen/Hydrogen Elemental Analyzer is designed for wide-range measurement of oxygen, nitrogen, and hydrogen content of inorganic materials, ferrous and nonferrous alloys, and refractory materials using the inert gas fusion technique. Automation and our Cornerstone® brand touch-screen software come together to streamline your analysis, while a robust design ensures reliability.

Features

• A robust sample loading area simplifies routine maintenance and minimizes atmospheric contamination
• Triple IR cells for oxygen detection allows the widest detection range in the industry
• Increase laboratory productivity with automation options
  • Available autocleaner minimizes the need for manual cleaning between analysis
  • 20-position shuttle loader for both crucibles and samples
• Boom-mounted touch-screen interface provides improved ergonomics and intuitive operation
• State-of-the-art infrared (IR) and thermal conductivity (TC) detectors, with no moving parts and no manual adjustments
• Improved TC cell stability
  • Bypassable OMI-2 carrier gas scrubber for enhanced TC cell stability
  • Patented Dyanamic Flow Compensation further enhances TC cell stability

Applications

The 836 series is ideal for the following applications: inorganic materials, ferrous and nonferrous alloys, copper, aluminum, titanium, and refractory materials.

Features	A Unique Design; Improved Plumbing; Accessible components; Fixed furnace; Advanced furnace control
Model Name/Number	LECO DH603
Brand	LECO
Usage/Application	Residual and Diffusible hydrogen determinations in various ferrous alloys
Product Type	Analytical
Automation Grade	Automatic
Measuring Range	Hydrogen: 0.1 ppm to 2500 ppm for a 1gm sample
Power Supply	230V Ac

Hydrogen determinations in ferrous alloys are delivered quickly and precisely with our DH603 which uses residual, diffusible, and total hydrogen measurements. A small footprint, user-friendly operating software, increased instrument safety, and reliability are all part of the advanced DH603 design to truly streamline your hydrogen determination.

Features

• Exclusive ECLIPSE architecture—a unique design by LECO that improves reliability and serviceability
• A variety of evacuated pin tubes and diffusible samplers for quick and easy hydrogen determination of molten metals
• Improved plumbing offers faster maintenance of flow path
• Easily accessible components to the operator thanks to ergonomic shells
• The state-of-the-art furnace control system allows for temperature ramping from ambient to 1100°C
• Optional diffusible sampler piercer—you have the choice of diffusible, residual/total hydrogen determination
• Gas dose calibration allows for calibration without reference materials

Additional Information:

• Delivery Time: 3 months

Model	RHEN602
Usage/Application	Determine the hydrogen content in your aluminum, other metals, refractories, and inorganic materials
Model Name/Number	LECO RHEN602
Product Type	Elemental Analyser
Measuring Range	Hydrogen:- 0.05 ppm to 250 ppm for a 1gm sample
Brand	Leco
Sensitivity	0.05 ppm at 1 g sample mass
Nominal Sample Weight	Up to 6 g
Ideal For	Aluminum as well as other metals, refractories, and inorganic materials

Determine hydrogen content for aluminum, other metals, refractories, and inorganic materials with the RHEN602. Improved furnace operating parameters optimize sample size, accuracy, and precision. The RHEN602 handles a wide range of metals, especially at low levels (<2 ppm). Multiple method selection assures optimal furnace and analysis settings for each sample matrix. On-board diagnostics minimize downtime.

The RHEN602 provides an advanced electrode furnace operating system for more detailed temperature profiles and complete control of set points and ramp rates.



Features:

• Programmable ramping electrode furnace (capable of bulk and surface analysis)
• Calibration by gas dose or standards
• Pre-defined application techniques
• State-of-the-art solid-state thermal conductivity (TC) technology
• Easy-to-use Windows–based operating system maximizes flexibility for production and research applications
• SmartLine Remote Diagnostics allows LECO service to connect directly to your instrument for quicker solutions and maximized up-time
