I R Technology Services Pvt. Ltd.

Isothermal sample analysis (Radiant RHX600) stage and Control Pad
system controller. It has the following specifications:

• User friendly HMI display for easy temperature setting and operation.
•  Excellent stability from low to high range of temperature.
•  Real time display of temperature vs time graph.
•  Heating Rate from 0.01 to 80 °C/min. Up to 100 temperature step mapping.
• Compact design provides higher stability and greater temperature control.
•  Swing out lid for easy access of sample.
•  Innovative design that can be mounted directly on both manual or motorized stage.
•  Compatible with both transmitted and reflected microscopes.

• Stage 40 mm X 40 mm
•  Temperature range - 40°C to 125°C*.
•  Temperature Stability 0.1°C
•  Temperature accuracy +- 0.1°C
•  Heating/Cooling rate 0.01°C/min to 30°C/min

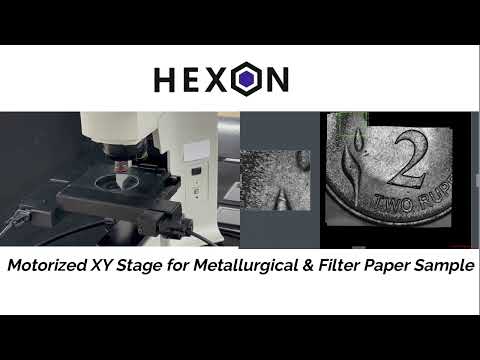

• Travel range: 50 mm x 50 mm
• Ball screw pitch: 1 mm
• Stage opening: 150 mm x 150 mm
• Minimum possible moment is 5μm
• Integrated with joystick controller for precise movement
• Controlled motorized stage movement at different specific magnifications
• Compact controller box for easy handling
• Flat ergonomic design with rounded corners
• Plain surface for easy cleaning

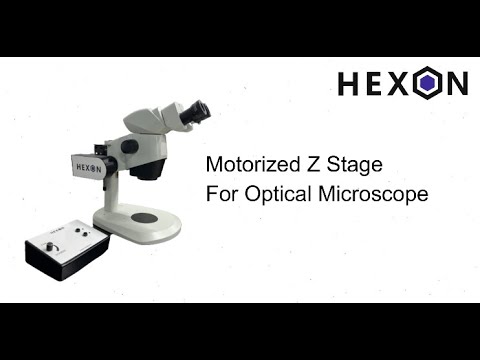

• Motorized cum manual stage

• Precise control of z axis with stepper motor
• Sturdy and stable assembly for vibration free movement
• Console with knob for course and fine movement
• Easy focus of the microscope with the z axis with push
• buttons for up and down movement
• Easy and quick installation
• Uses only one RS232 cable and one power cable Motorized z axis is a belt drive based z axis movement of the microscope head with variable speed adjustment.
• The z axis speed adjusted from minimum to maximum with the help of a knob.
• It has a wide application in most of the industries for focusing the sample with motorized movement of z axis.
