Spectrophotometer
| Mobility | Portable |
| Brand | Hunterlab |
| Model No / Item Code | MiniScan Hunter Lab Colorimeter |
| Display | LCD Graphical Display |
| Port Size | 14.3 mm |
| Available With | 45 Degree / 0 Degree or diffuse/8 Degree geometry and large area or small area view |
| Sample Readings | Averages up to 20 sample readings |
The UltraScan VIS color measurement benchtop spectrophotometer/colorimeter measures opaque, transparent, and translucent solids and liquids in the complete CIE recommended spectral range of 360 – 780 nm. It can be used in production and in the laboratory for inspecting raw materials, evaluating finished product or developing methods for color analysis.eter measures opaque, transparent, and translucent solids and liquids in the complete CIE recommended spectral range of 360 – 780 nm. It can be used in production and in the laboratory for inspecting raw materials, evaluating finished product or developing methods for color analysis.
The UltraScan VIS easily measures both reflected and transmitted color as well as transmission haze and meets CIE, ASTM and USP guidelines for accurate color measurement. UltraScan VIS uses diffuse/8° geometry with automated specular component inclusion/exclusion. For transmission measurement, the use of a robust CIE-conforming sphere instrument (TTRAN Total Transmission mode) effectively negates the effects of minor scattering typically found in transparent samples.
Because of its exceptional inter-instrument agreement and long-term stability, you can be confident that differences between measurements are due to product color changes, not instrument variability. Materials on the borderline of accepted tolerances will not be unnecessarily rejected.
View Complete Details
Portable Color Spectrophotometer
Get Latest Price
| Instrument Type | Portable |
| Mobility | Portable |
| Brand | Hunterlab |
| Model No / Item Code | MiniScan EZ 4500L |
| Display | LCD Graphical Display |
| Data Storage | Stores 100 standards and 800 sample measurements |
| Sample Readings | Averages up to 20 sample readings |
| Available With | 45 Degree / 0 Degree Large Area View |
| Port Size | 31.8 mm |
MiniScan EZ is a portable, reflected-color measurement spectrophotometer.
HunterLab's most popular handheld spectrophotometer provides a port size that has a 25 mm viewed area. The large viewed area makes this unit suitable for a wide range of sample types, such as fabrics, paper, plastic parts, building materials.
Features:
- Lightweight and rubberized handle for operator comfort
- Easy one-handed operation with thumb-tip navigation of functions
- Large, easy to read LCD graphical display
- Displays color data, color difference data, color plot, spectral data, spectral data difference, spectral plot, spectral difference plot
- Includes all commonly used color scales and indices
- Stores 100 standards and 800 sample measurements
View Complete Details
| Mobility | Portable |
| Brand | Rigaku |
| Model Name/Number | Progeny |
| Material | Fiber |
| Sensitivity | superior accuracy |
| Display | Digital |
| Usage/ Application | Laboratory use |
| Warranty | 24 months |
| Operating Temperature | 20 to +50 Degree C intermittent,+40 Degree C continuous |
| Battery | 14.4V Li-ion,3100mAH,Greater than 5hrs |
| External Battery Charger | 100~240VAC,50-60Hz,+18V DC,2.5A |
Perform lab-quality analysis of the widest range of solids, powders, liquids and other substances with handheld Progeny. Designed to be customized and flexible for seamless integration into any work environment for:
- Raw material identification of pharmaceutical, nutraceutical and cosmetic ingredients
- Verification of trial materials, chemical, solvents and cell culture media
- Authentication of finished products and anti-counterfeit prevention
Raman for streamlining your material ID workflow

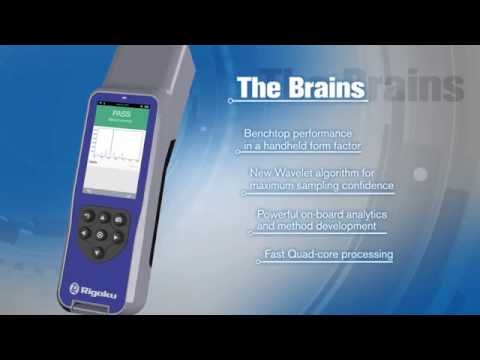

Progeny is a technologically advanced portable Raman spectrometer, expertly designed for processes including incoming material receiving, the warehouse, clean room, laboratory analysis and mobile lab. With the push towards 100% inspection, Progeny handheld Raman enables users to reduce workflow steps and make immediate decisions. CompleteID software provides fast and simple PASS / FAIL results, helping to achieve leaner manufacturing processes and lower costs per analysis without compromising quality.
1064 nm laser for superior Raman performance
Unlike other portable Raman spectrometers, Progeny successfully minimizes sample-induced fluorescence interference with the use of a unique 1064nm excitation laser for expanded positive material identification. Sample moisture content is not an issue either. Progeny handheld Raman spectrometer delivers the industry’s widest and most comprehensive range of raw material identification and finished pharmaceutical product authentication in a handheld, sealed platform.
Features:
By integrating Progeny into the development of new applications or adapting it to current workflows, you can expect the ability to:
- Accurately analyze your materials through packaging
- Minimize the learning curve with a smartphone-inspired interface
- Increase confidence in your material ID with unparalleled sensitivity
- Measure a wide range of materials with interference-free data
- Expand your data transfer flexibility (LIMS, wireless, and docking station)
Advanced Performance:
- Spectral resolution 8-11 cm???¹ reveals minor differences in similar material
- Spectral range 200-2500 cm???¹ covers the most relevant molecular spectral features
- Transmissive volume phase grating design for years of alignment-free operation
- TE cooled InGaAs 512 pixel detector for high-resolution results
User Control:
- 30-490 mW adjustable laser power in 5 mW increments to optimize analysis
- 5 ms to 30 s adjustable exposure time in 5 ms increments for more accurate results
- Adjustable focus nose cone to ensure analysis of materials through packaging
CompleteID™ Software:
- Administrator created workflow methods specific to material ensures accurate analysis
- Rapid addition of new materials to your custom onboard library
- Truly 21 CFR Part 11 compliant digital signatures
- On-board barcode scanner for error-free sample information entry
Sophisticated Ergonomics:
- Optimal for one-handed operation: 29.9 cm x 8.1 cm x 7.4 cm (11.8 in x 3.2 in x 2.9 in) and weighing ~1.5 kg (3.5 lbs)
- IP-68 rated ruggedized aluminum housing for maximum durability and minimization of cross-contamination
- Large high-resolution screen allows for high visibility in confined spaces and outdoors
Unique Accessories:
- Docking station for easy data transfer to LIMS or Server
- Adjustable focus vial adapter to accommodate your different vial sizes
- Tablet adapter to accommodate different sized tablets and other sample types for increased flexibility
View Complete Details
| Mobility | Benchtop |
| Display | 7.1 cm x 5.4 cm (2.8 in. x 2.1 in.) backlit color LCD |
| Wavelength Range | 400-700 nm |
| Brand | Hunterlab |
| Model No / Item Code | ColorFlex EZ Coffee |
| Photometric Range | 0 to 150 % |
| Height | 16 cm (6.3 in.) |
| Width | 13 cm (5.1 in.) |
| Light Source | Pulsed Xenon Lamp |
| Weight | 4.5 kg (9.9 lbs) |
| Depth | 36 cm (14.2 in.) |
| Effective Bandwidth | 10 nm equivalent triangular |
| Flashes per Measurement | 1 flash |
| Geometry | Directional annular 45 Degree illumination / 0 Degree viewing |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11 |
| Interface | 3 USB 2.0 ports |
| Lamp Life | Greater than 1 million flashes |
| Measurement Principle | Port up dual-beam spectrophotometer |
| Measurement Time | Greater than 1 second from button push to measurement, 2 seconds from button push to data display |
| Minimum Interval between Measurements | 3 seconds |
| Observers | 2 Degree and 10 Degree |
| Operating Environment | 10 Degree to 40 Degree C (50 Degree to 104 Degree F), 10 % to 90 % RH, noncondensing |
| Port Diameter | 31.8 mm (1.25 in) illuminated |
| Power | 100 to 240 VAC 47 to 63 Hz |
| Reporting Interval | 10 nm |
| Spectral Resolution | Less than 3 nm |
| Spectrophotometer | Sealed optics; 256-element diode array and a high resolution concave holographic grating |
| Specular Component | Excluded |
| Standards Conformance | CIE 152004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C |
| Storage Environment | -20 Degree to 65 Degree C (-5 Degree to 150 Degree F), 10 % to 90 % RH, noncondensing |
| View Diameter | 25.4 mm (1 in) measured |
Specifically built to meet and exceed your needs in measuring the color of roasted coffee grounds.
The most recent addition to the ColorFlex EZ family of products, the ColorFlex EZ Coffee is specifically built to meet and exceed your needs in measuring the color of roasted coffee grounds. Every ColorFlex EZ Coffee comes with 60 years of color quality control experience and innovation by HunterLab, the world's true measure of color.
Coffee color scales provided in firmware include:
- HunterLab Coffee Color Index (HCCI)
- SCAA Number
- SCAA Roast Classification
New to this version:
Other colorimetric and spectral data indices, including Hunter L,a,b color and CIE L*a*b* color, are also provided within the firmware, allowing the capability to also use your ColorFlex EZ Coffee to measure the reflected color of a wide range of non-coffee samples - liquids, semi-solids, powders, and solids. Inside its optional custom designed, watertight carrying case will be everything you will need to immediately start measuring coffee color values.
- ColorFlex EZ Coffee instrument
- Complete set of calibration & diagnostic tiles
- PQ Coffee tile
- 1 sleeve of plastic coffee sample dishes
Features:
- Measures the reflected color of roasted coffee grounds, including freeze-dried, as well as instant powders
- Product-standard storage with Pass/Fail tolerances
- Displays Color Data, Color Plot, Spectral Data, and Spectral Plots
- Available with 45°/0° measurement geometry
- Requires very little bench space
- Can be connected to a printer or a PC
- Compatible with EasyMatch software
Standard Accessories:
- Calibrated instrument white tile
- Certificate of traceability
- Black glass
- Green diagnostic tile
- PQ (Performance Qualification) Coffee tile
- Universal AC adaptor
- Computer interface cable
- USB flash drive
- ColorFlex EZ Coffee User Manual (on CD)
Standards Traceability:
- Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
View Complete Details
| Instrument Type | Benchtop |
| Wavelength Range | 400-700 nm |
| Mobility | Benchtop |
| Light Source | Pulsed Xenon Lamp |
| Display | 7.1 cm x 5.4 cm (2.8 in. x 2.1 in.) backlit color LCD |
| Brand | Hunterlab |
| Model No / Item Code | Colorflex EZ |
| Photometric Range | 0 to 150 % |
| Height | 16 cm (6.3 in.) |
| Width | 13 cm (5.1 in.) |
| Weight | 4.5 kg (9.9 lbs) |
| Effective Bandwidth | 10 nm equivalent triangular |
| Flashes per Measurement | 1 flash |
| Minimum Interval between Measurements | 3 seconds |
| Measurement Principle | Measurement Principle Port up or Port forward dual-beam spectrophotometer |
| Measurement Time | Less than 1 second from button push to measurement,2 seconds from button push to data display |
| Languages | Chinese,English,French,German,Italian,Japanese,Spanish |
| Lamp Life | Greater than 1 million flashes |
| Geometry | Directional annular 45 Degree illumination / 0 Degree viewing |
| Interface | 3 USB 2.0 ports |
| Reporting Interval | 10 nm |
| Power | 100 to 240 VAC 47 to 63 Hz |
| Port Diameter | 31.8 mm (1.25 in) illuminated |
| Operating Environment | 10 Degree to 40 Degree C (50 Degree to 104 Degree F),10 % to 90 % RH,noncondensing |
| Spectral Resolution | Less than 3 nm |
| Spectrophotometer | Sealed optics; 256-element diode array and a high resolution concave holographic grating |
| Depth | 36 cm (14.2 in.) |
| View Diameter | 25.4 mm (1 in) measured |
| Specular Component | Excluded |
| Observers | 2 Degree and 10 Degree |
| Storage Environment | -20 Degree to 65 Degree C (-5 Degree to 150 Degree F),10 % to 90 % RH,noncondensing |
| Illuminants | A,C,D50,D55,D65,D75,F2,F7,F11 |

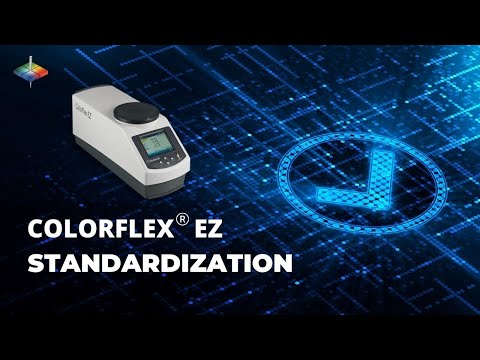

HunterLab's next generation ColorFlex EZ spectrophotometer takes color quality control to its highest level with 45°/0° design for the ultimate in color measurement preciseness. Combining versatility, simplicity, and performance, the ColorFlex EZ reflects almost 60 years of color measurement innovation in one easy-to-use, the compact instrument from the world's most trusted leader in color quality.
With innovative 45/0 design
The ColorFlex EZ's 45°/0° design is the optimal instrument design for achieving color quality perfection. It is the only instrument design in the industry that 'sees' your samples the way the human eye does.
That means you see your colors exactly the way your customers do give you unsurpassed confidence and trust in your outcomes.
Standard Accessories:
- Calibrated instrument white tile
- Certificate of traceability
- Black glass
- Green diagnostic tile
- Universal AC adaptor
- Computer interface cable
- USB flash drive
- ColorFlex EZ User guide
Features:
- Measures the reflected color of solids and liquids
- Product-standard storage with Pass/Fail tolerances
- Displays Color Data, Color Plot, Spectral Data, and Spectral Plots
- Requires very little bench space
- Can be connected to a printer or a PC
- Compatible with EasyMatch software
View Complete Details
| Instrument Type | Benchtop |
| Wavelength Range | 350-1050 nm |
| Mobility | Benchtop |
| Spectral Bandwidth | 5 nm equivalent triangular |
| Light Source | Pulsed Xenon lamps (3),calibrated and controlled in the UV range |
| Brand | Hunterlab |
| Model No / Item Code | UltraScan PRO |
| Photometric Range | 0-150 % |
| Usage / Application | Industrial Use |
| Spectral Range | full CIE visible range plus NIR |
| Wavelength Resolution | less than 2 nm |
| Weight | 25.9 kg (57 lbs) |
| Transmission Compartment | Large and open on 3 sides 10.2 cm D X 35.6 cm W x 16.5 cm H (4 in. D x 14 in. W x 6.5 in. H) |
| Height | 32.3 cm (12.7 in.) |
| Width | 42.0 cm (16.5 in. |
| Depth | 49.8 cm (19.6 in.) |
| Power | 90 to 250 VAC,50 to 60 Hz 60 watts passive,120 watts maximum |
| Geometry | Diffuse d/8 Deg reflectance,d/8 Deg total transmission,d/0 Deg regular transmission |
| Interface | RS-232C serial,19,200 baud,DB9 (female) terminal |
| Operating Environment | 4 Deg to 38 Deg C (40 Deg to 100 Deg F),10 % to 85 % RH,noncondensing |
| Storage Environment | -21 Deg to 66 Deg C (-5 Deg to 150 Deg F),10 % to 90 % RH,noncondensing (-5 Deg to 150 Deg F) |
| Lens Switching | Automatic for LAV/MAV/SAV |
| Measurement Principle | Dual-beam spectrophotometer |
| Spectrophotometer | 2 polychromator,each with 512 element diode array and high resolution,concave holographic grating |
| Specular Component | Automated Included (RSIN) or Excluded (RSEX) in reflectance |
| Sphere Coating | Spectraflect for sphere,Duraflect for port plate and specular exclusion door |
| Sphere Diameter | 152 mm (6 in.) |
| Reporting Interval | 5 nm |
| Automatic UV Control | 400 nm cutoff filter for UV control and UV exclusion Optional 420 nm cutoff filter for UV exclusion |
| Transmission Modes | Total (TTRAN) and Regular (RTRAN) |
Your reference instrument for measuring both reflected and transmitted color.
The UltraScan PRO is designed to be your reference instrument for measuring both reflected and transmitted color. It meets CIE, ASTM and USP guidelines for accurate color measurement. The instrument's optical resolution enables it to precisely measure colors using colorants with sharp cutoff characteristics.
The D65 illumination source is calibrated in the ultraviolet region for the accurate measurement of whitening agents. UltraScan PRO has an extended wavelength range into the near infrared and near ultraviolet that permits the measurement of camouflage materials and UV blockers. The system uses diffuse/8° geometry with automated specular component inclusion/exclusion. It also features three sizes of sample measurement areas with automated lens change. The UltraScan PRO includes EasyMatch QC software and an electronic record keeping version that is 21 CFR 11 compliance is available.
Use UltraScan PRO for both research and quality control. From opaque solids to clear liquids to transparent films, UltraScan PRO precisely measures both reflected and transmitted color, spectral reflectance, spectral transmittance, and transmission haze. A host of measurement features and specialized sample-handling devices make UltraScan PRO the most versatile high-performance color measurement spectrophotometer available.
Features:
- Measures reflectance, transmittance, and haze
- Three reflectance measurement areas
- Exceptional inter-instrument agreement
- Automated UV calibration and control
- Large transmission compartment open on three sides
- Includes EasyMatch QC software
Standard Accessories:
- Calibrated instrument white tile
- Certificate of traceability
- Black calibration light trap
- Transmittance zero calibration plate
- Green diagnostic tile
- Wavelength diagnostic filter
- Fluorescent standard
- Reflectance sample clamp
- LAV aperture
- MAV aperture
- SAV aperture
- RS-232C cable
- USB-to-Serial adapter
- Power cord
- EasyMatch QC Software
- EasyMatch QC Basic manual
Standards Traceability:
- Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
View Complete Details
XAS Spectroscopy
Get Latest Price
| Instrument Type | Rack Mount |
| Energy Range | 10 KeV-10 MeV |
| Detector Type | Plastic Scintillator |
| Channels | 8192 |
| Cooling Type | Electro Cooling |
| Interface | Ethernet |
| Power Source | 110-230 V AC |
X-ray Absorption Spectroscopy (XAS) is a powerful technique used to analyze the chemical state and local electronic structure of elements across a wide range of research fields. In this method, the transmission or fluorescence of X-rays is measured while gradually increasing the X-ray energy in small increments near the element’s absorption edge. The absorption edge corresponds to the specific energy required to eject an electron from an inner shell of the target element (for example, iron—Fe). Subtle variations in X-ray absorption around this edge reveal detailed information about the electronic state and local chemical environment of the atom.
View Complete Details
| Flame Type | Air LPG |
| Atomizer Type | Hydride |
| Wavelength Range | 185-900 nm |
| Number Of Lamps | 8 Lamps |
| Element Detection | Trace Metals |
| Usage Area | Water Lab |
| Power Supply | 110-230 V AC |
X-ray Absorption Spectroscopy (XAS) is a powerful technique used to analyze the chemical state and local electronic structure of elements across a wide range of research fields. In this method, the transmission or fluorescence of X-rays is measured while gradually increasing the X-ray energy in small increments near the element’s absorption edge. The absorption edge corresponds to the specific energy required to eject an electron from an inner shell of the target element (for example, iron—Fe). Subtle variations in X-ray absorption around this edge reveal detailed information about the electronic state and local chemical environment of the atom.
View Complete Details
| Usage/Application | Industrial |
| Brand | Bellingham + Stanley |
| Material | Hard plastic |
| Use | Industrial |
| Color | Grey |
The DSG Series from Bellingham + Stanley answers a call from customers looking for highly reliable, premium quality instruments to complete a suite of instrumentation from a brand they trust. DSG Series density meters from Bellingham + Stanley are available in 2 unique models offering great flexibility as well as ease of use.
Additional Information:
- Delivery Time: 2 weeks
View Complete Details
- Developed and Managed by IndiaMART InterMESH Limited
