Seating Capacity	40+D (2x2) PB
Fuel Type	Diesel
Model Name/Number	Pro 3011 L AC
Overall Length	10403 mm
Brand	Eicher
Wheelbase	5260 mm
Overall Width	2590 mm
Overall Height	3056 mm
Ground Clearance	165 mm
Front Overhang	2009 mm
Rear Overhang	3134 mm

Product Details :-

The new Skyline Pro 3011 is designed to provide class leading width for better comfort and dynamic seating options. The premium 3011 bus is built on the reliable 3000 series platform. It offers a wider bus body that improves interior ambient space, wide gangway and large comfortable seats. LED lit modular hat-rack, plush pushback seats and pasted tinted glass windows give a definite edge and new level of comfort to our widest Skyline Pro.

Seating Capacity	36+D HHR 2X2
Model Name/Number	Pro 3009 H AC
Overall Length	8957 mm
Brand	Eicher
Wheelbase	4320 mm
Overall Width	2350 mm
Overall Height	3145 mm
Overhang Front	2045 mm
Overhang Rear	2592 mm
Turning Circle Diameter	15.2 m
Engine Make	E494
Displacement	3770 cc
Power	160hp (120kW) @ 2600rpm
Torque	500 Nm @1800rpm
Clutch	330 mm
Transmission	ET40S6 , Synchromesh (6 SPeed+1 Rev)
GVW	9.8 T
Chassis Type	Domex 650
Chassis Dimension	210 X 76 X 6 mm
Fuel Tank Capacity	100 Liter
Brakes	Dual Circuit 'S' Cam Full Air brakes
Tyres	235/75 R17.5-14PR Tubeless
Suspension Front	Parabolic With ARB
Suspension Rear	Parabolic
Steering	Power Steering
Battery	2 x 12V 130 Ah
Alternator	2 x 120 A
Flooring	Silicon Embedded Vinyl
DEF Tank Capacity	27 Liter

Product Details :-

The new Skyline Pro is the premium range of Eicher Staff buses built on the reliable 3000 series platform. Powered by the new E494 engine which delivers 160 hp power with best in class fuel efficiency. Factory built AC coach, pasted tinted glass windows, LED lit modular hat-rack, plush pushback seats and varied seating configurations give a definite edge to our Pro range of buses.

Seating Capacity	44+D HHR 2x2
Brand	Eicher
Overall Length	10439 mm
Overall Width	2350 mm
Overall Height	2993 mm
Engine Make	E494
Displacement	3770 cc
Speed	2600rpm
Torque	500 Nm @ 1800rpm
Clutch	330 mm
GVW	10.7 Tonnes
Chassis Type	Domex 650
Chassis Dimension	210 X 76 X 6 mm
Battery	12V 130 Ah
Wheel Base	5260 mm
Wheelbase	5260 mm
Overhang Front	2045 mm
Overhang Rear	3134 mm
Turning Circle Diameter	18.5 Meter
Power v	160hp (120kW) @ 2600rpm
Transmission Make	ET40S6
Transmission Type	Synchromesh (6 SPeed + 1 Rev)
Fuel Tank Capacity	160 Liter
Brakes	Dual Circuit 'S' Cam Full Air brakes
Tyres	235/75 R17.5-14PR Tubeless
Suspension Front	Parabolic with ARB
Suspension Rear	Parabolic
Steering	Power Steering
Alternator	2 x 120 A
Flooring	Silicon Embedded Vinyl
DEF Tank Capacity	27 Liter

Product Details :-

The new Skyline Pro is the premium range of Eicher Staff buses built on the reliable 3000 series platform. Powered by the new E494 engine which delivers 160 hp power with best in class fuel efficiency. Factory built AC coach, pasted tinted glass windows, LED lit modular hat-rack, plush pushback seats and varied seating configurations give a definite edge to our Pro range of buses.

Seating Capacity	62
Seating Layout	2+2
Max Power	160 hp
Overall Length	10439 mm
Model Name/Number	3010 L AC
Rear Overhang	3134 mm
Front Overhang	2045 mm
Brand	Eicher
Tyres	235/75 R17 Tubeless
Front Suspension	Parabolic with anti-roll bar
Rear Suspension	Parabolic
Steering	Power Steering
Transmission Type	Synchromesh (6 Speed + 1 Rev)
Battery	2x 12V 130Ah
Alternator	2 x 120A
Wheelbase	5260 mm
Torque	500 Nm @ 1800 rpm
Floor Type	Silicon Embedded Vinyl
Fuel Tank Capacity	160 Liter
DEF Tank Capacity	27 Liter
Seating capacity (3x2)	62+D
Overall Width	2350 mm
Overall Height	3145 mm
Turning Circle Diameter	18.5 mm
Engine	E494
Displacement	3770 cc
Power	160 hp (120 kW) @ 2600 rpm
Clutch Diameter	330 mm
Transmission	ET40S6
GVW (Gross Vehicle Weight)	10.7 Tonnes
Chassis Frame	Domex 650
Chassis C Frame Dimensions	210 X 76 X 6 mm
Brakes	Dual circuit 'S' cam full air brakes

Product Details :-

The new Skyline Pro is the premium range of Eicher School buses built on the reliable 3000 series platform. Comfort and safety are the hallmark of the Pro range. The new E494 Engine gives a definitive edge to Skyline Pro to deliver a premium journey experience every time. Industry leading safety features like FDSS, seat belts and antiroll bar ensure a cocoon of passenger safety.

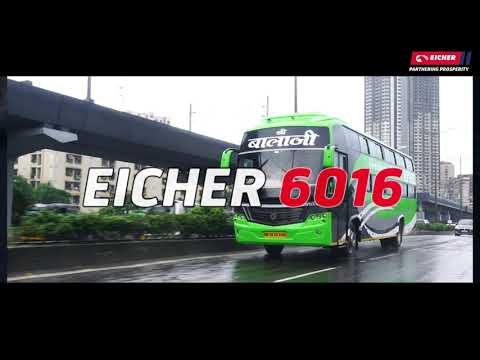

Model Name/Number	6016 M LPO
Seating Capacity	57+D HHR 3X2
Brand	Eicher
Overall Length	10910 mm
Chassis type	Domex 650 Straight Frame
GVW	16.2 Ton
Battery	2x12V, 150Ah
Alternator	90A
Steering	Power Steering
Wheelbase	5340 mm
Overall Width	2590 mm
Overall Height	3420 mm
Ground Clearance	240 mm
Front Overhang	2370 mm
Rear Overhang	3200 mm
Turning circle diameter	20.9 m
Engine make	VEDX5
Displacement	5132
Power	210 HP (155kW) @ 2200 rpm
Torque	825 Nm@ 1600 rpm
Clutch Diameter	395 mm
Transmission Make	ET70S6
Transmission type	Synchromesh 6 Speed + 1 Rev
Chassis Dimension	230 x 76 x 6 mm
Fuel tank capacity	250 Liter
Brakes	Dual Circuit 'S' Cam Full Air brakes
Tyres	10R20, 16PR
Suspension Rear	Weveller
DEF tank capacity	33 Liter

Product Details :-

Eicher 6016, is the hallmark of Performance, Reliability and Fuel Efficiency. The new 6000 range is equipped with VEDX5 engine and world class Engine Management System (EMS) based on Volvo group’s global platform, high pressure Denso FIE system and reinforced Domex® chassis to make it the most reliable product in its class. Features like cruise control, Fuel Coaching, Mbooster+ and intelligent Engine Protection System (EPS) make the Eicher 6016 a preferred choice for intercity, Route Permit and staff applications.

Brand	Eicher
Seating Capacity	51+1+D (3X2)
Model Name/Number	2090 L
Overall Length	9584 mm
Rear Overhang	3144 mm
Front Overhang	1200 mm
Wheelbase	5240 mm
Overall Width	2350 mm
Overall Height	2860 mm
Min Ground Clearance	187 mm
Turning Circle Diameter	19.4 m
Engine Make	E474
Displacement	2960 cc
Power	140hp (105kW) @ 3200 rpm
Torque	400Nm @ 2500 rpm
Clutch	310
Transmission Make	ET35S6
Transmission Type	Synchromesh (6 Speed,1 Rev)
GVW	9.9 Ton
Chassis Type	Domex 650
Chassis C frame dimensions	200x65x5 mm
Fuel Tank Capacity	160 L
Brakes	Dual Circuit 'S' Cam Full Air brakes
Tyres	235/75 R17.5- 14PR (Radial Tubeless )
Suspension Front	Parabolic with Anti-Roll Bar
Suspension Rear	Parabolic
Steering	Power Steering
Battery	12V 130Ah
Alternator	110A
Flooring	Vinyl
DEF Tank Capacity	19 Liter

Product details :-

The all new Skyline is completely revamped with distinctively premium looks, 2350 mm wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline school buses offer the right blend of safety, comfort and performance to ensure that every journey of the students is safe and comfortable. BSVI skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.

Brand	Eicher
Model Name/Number	Pro 3010 L AC
Seating Capacity	40+D PB 2X2
Overall Length	10439 mm
Wheelbase	5260 mm
Overall Width	2350 mm
Overall Height	2993 mm
Overhang Front	2045 mm
Overhang Rear	3134 mm
Turning Circle Diameter	18.5 Meter
Engine Make	E494
Displacement	3770 cc
Power	160hp (120kW) @ 2600rpm
Torque	500 Nm @ 1800rpm
Clutch	330 mm
Transmission Make	ET40S6
Transmission Type	Synchromesh (6 SPeed + 1 Rev)
GVW	10.7 Tonnes
Chassis Type	Domex 650
Chassis Dimension	210 X 76 X 6 mm
Fuel Tank Capacity	160 Liter
Brakes	Dual Circuit 'S' Cam Full Air brakes
Tyres	235/75 R17.5-14PR Tubeless
Suspension Front	Parabolic with ARB
Suspension Rear	Parabolic
Steering	Power Steering
Battery	12V 130 Ah
Alternator	110 A
Flooring	Silicon Embedded Vinyl
DEF Tank Capacity	27 Liter

Product Details :-

The new Skyline Pro is the premium range of Eicher Staff buses built on the reliable 3000 series platform. Powered by the new E494 engine which delivers 160 hp power with best in class fuel efficiency. Refreshed design, pasted tinted glass windows, LED lit modular hat-rack, plush pushback seats and varied seating configurations give a definite edge to our Pro range of buses.

Seating Capacity	44
Max. Power	160HP
Brand	VECV
I Deal In	New Only

Refreshed design, pasted tinted glass windows, LED lit modular hat-rack, plush pushback seats and varied seating configurations give a definite edge to our Pro range of buses.

Model	Skyline
Application	Staff
Seating Capacity	32 Seater
Fuel Type	Diesel
Emission Norm	BS6
AC Type	Non AC
Engine Power	120 HP
Bus Length	8.5 m
Body Type	Built Up
Gearbox	Manual 5 Speed

The all new Skyline Next is completely revamped with distinctively premium looks, and wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline Next staff buses offer the right blend of safety, comfort and performance to ensure that every journey of the passengers is safe and comfortable. BSVI Skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.
