Joy Engineering

Part Description: PRK3C.A3/4T-M8 – Polarized Retro-Reflective Photoelectric Sensor
Part No.: 50129403

• Operating Principle: Reflection principle

• Special Features: Autocollimation, Teach input

• Operating Range: 0 to 4 m (with reflector TK(S) 100x100)

• Operating Range Limit: 0 to 5 m (with reflector TK(S) 100x100)

• Supply Voltage: 10 to 30 V DC (including residual ripple)

• Switching Output: 1 Transistor, PNP, Light switching

• Switching Frequency: 1,500 Hz

• Connection Type: Connector

• Dimensions (W x H x L): 11.4 mm × 34.2 mm × 18.3 mm

• Net Weight: 10 g

• Operational Controls: Teach button

• Ambient Temperature (Operation): -40 to 60 °C

• Degree of Protection: IP67, IP69K

• Certifications: c UL US

Series 3C

Operating principle Reflection principle

Application Detection of highly transparent bottles

Detection of transparent films

Special version Autocollimation

Operating range 0 ... 3 m (guaranteed operating range), With reflector TK(S) 100x100

Operating range limit 0 ... 3.6 m (typical operating range), With reflector TK(S) 100x100

Light source LED, Red

Wavelength 635 nm

Transmitted-signal shape Pulsed

LED group Exempt group (in acc. with EN 62471)

Protective circuit Polarity reversal protection

Short circuit protected

Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple

Residual ripple 0 ... 15 %, From UB

Open-circuit current 0 ... 15 mA

Number of teach inputs 1 Piece(s)

Type Teach input

Function Keyboard lockout

Light/dark switching

Sensitivity adjustment

Number of digital switching outputs 1 Piece(s)

Type Digital switching output

Switching element Transistor, PNP

Switching principle Light switching

Switching frequency 1,500 Hz

Response time 0.33 ms

Readiness delay 300 ms

Response jitter 110 µs

Number of connections 1 Piece(s)

Function Signal IN

Signal OUT

Voltage supply

Type of connection Cable with connector

Cable length 200 mm

Sheathing material PUR

Cable color Black

Wire cross section 0.2 mm²

Thread size M8

Type Male

Material Metal

No. of pins 4 -pin

Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm

Housing material Plastic

Plastic housing PC-ABS

Lens cover material Plastic / PMMA

Net weight 20 g

Housing color Red

Type of fastening Through-hole mounting

Via optional mounting device

Recommended tightening torque for M3 fastening 0.9 N·m

Compatibility of materials ECOLAB

Type of display LED

Number of LEDs 2 Piece(s)

Operational controls Teach button

Function of the operational control Sensitivity adjustment

Ambient temperature, operation -40 ... 60 °C

Ambient temperature, storage -40 ... 70 °C

Degree of protection IP 67

IP 69K

Protection class III

Approvals c UL US

Standards applied IEC 60947-5-2

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Part description PRK25C.A2/6G - Polarized retro-reflective photoelectric sensorPart no. 50141896
Operating principle : Reflection principle
Special version : Autocollimation
Operating range : 0 ... 5 m, With reflector TK(S) 100x100
Light source : LED, Red
Supply voltage UB : 10 ... 30 V, DC, Incl. residual ripple
Switching output 1Transistor, Push-pull , Light switching (PNP)/dark switching (NPN)

Switching output 2Transistor, Push-pull , Dark switching (PNP)/light switching (NPN)
Switching frequency : 1,500 Hz Function : Voltage supply Signal OUT
Type of connection : Cable
Dimension (W x H x L)15 mm x 42.7 mm x 30 mm
ype of fasteningVia optional mounting device, Through-hole mounting with M4 thread
Protection class : III
Certifications : c UL US
Standards applied : IEC 60947-5-2

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

description FT28.3/4P - Energetic diffuse sensorPart no. 50122592
Operating principle : Diffuse reflection principle
Operating range, white 90% : 0.001 ... 0.21 m
Light source : LED, Red
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Switching output 1Transistor, PNP , Light switching

Switching output 2Transistor, PNP , Dark switching
Switching frequency : 500 Hz
Number of conductors : 4 -wire
Cable length : 2,000 mm
Dimension : (W x H x L)15 mm x 46.5 mm x 31.8 mm
Thread size : M18
Net weight : 75 g
Operational controlsTeach button
Protection class : IIICertifications : c UL USStandards applied : IEC 60947-5-2

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: standard

Part description PRK5.M3/4P - Polarized retro-reflective photoelectric sensorPart no. 50128201
Operating principle : Reflection principle
Application : Detection of bottle container, Detection of semi-transparent media
Operating range : 0.02 ... 4.5 m, With reflector TK(S) 100x100
Light source : LED, Red
Supply voltage UB : 10 ... 30 V, DC, Incl. residual ripple
Switching output 1Transistor, PNP , Light switching
Switching output 2Transistor, PNP , Dark switching
Switching frequency : 500 Hz
Dimension : (W x H x L)14 mm x 32.5 mm x 20.2 mm
Net weight : 70 g

Ambient temperature, operation : -40 ... 60 °C
Degree of protection : IP 67
Protection : classIIICertifications : c UL USStandards applied : IEC 60947-5-2

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: standard

LE46C.1/4P-M12 - Throughbeam photoelectric sensor receiverPart no. 50127037
Operating principle : Throughbeam principle
Operating range : 0.5 ... 120 m
Supply voltage : UB10 ... 30 V, DC, Incl. residual ripple

Switching output 1Transistor, PNP ,Light switching
Switching output 2Transistor, PNP ,Dark switching
Switching frequency : 500 Hz
Function : Voltage supply, Signal OUT
Type of connection : Connector
Material : Plastic
Dimension : (W x H x L)20.5 mm x 76.3 mm x 44 mm
Net weight : 60 g
Type of fastening : Via optional mounting device, Through-hole mounting
Ambient temperature, operation : -40 ... 60 °C
Degree of protection : IP 67, IP 69K
Certifications : c UL US

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Part description RK46C.DXL3/4P-M12 - Unpolarized retro-reflective photoelectric sensorPart no. 50125752
Series : 46COperating principle : Reflection principle
Operating range : 0.4 ... 4 m, With reflector TK(S) 100x100
Operating range limit : 0.4 ... 5.2 m, With reflector TK(S) 100x100
Light source : LED, Red
Supply voltage :  UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple : 0 ... 15 %, From UB
Switching output 1Transistor, PNP , Light switching
Switching output 2Transistor, PNP , Dark switching
Switching frequency : 250 Hz
Function : Voltage supply, Signal OUT
Material : Plastic
Dimension :  (W x H x L)20.5 mm x 76.3 mm x 44 mm
Type of fastening : Via optional mounting device, Through-hole mounting
Compatibility of materials : ECOLAB
Operational controls : Teach button
Ambient temperature, operation : -40 ... 60 °C
Degree of protection : IP 67, IP 69K
Certifications : c UL US
Standards applied : IEC 60947-5-2

Additional Information:

• Item Code: RK46CDXL34PM12
• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Series 46C Operating principle Reflection principle Application Detection of small parts Detection of stretch-wrapped objects Detection of transparent objects Special version Extra long light spot (XL) Operating range Guaranteed operating range Operating range 0.4 ... 4 m, With reflector TK(S) 100x100 Operating range limit Typical operating range Operating range limit 0.4 ... 5.2 m, With reflector TK(S) 100x100 Measurement field length 60 mm Type of detection range Light-band 40-60 mm Light source LED, Red Wavelength 620 nm

Additional Information:

• Item Code: 50022816
• Production Capacity: 100
• Delivery Time: Ex Stock
• Packaging Details: TKS 100X100 Reflector Part no.: 50022816 Design Rectangular Triple reflector size 4 mm Mounting dimension, width 103 mm Mounting dimension, height 125 mm Mounting dimension, thickness 8.7 mm Reflection surface height 96 mm Reflection surface width 96 mm Reflector material Plastic Material of base material Plastic Polarization-changing Yes Chemical designation, reflector material PMMA8N Structure, active surface Triple Net weight 70 g Type of fastening Adhesive Through-hole mounting Ambient temperature, operation -40 ... 65 °C Degree of protection IP 67

Additional Information:

• Production Capacity: 1000
• Delivery Time: Exstock
• Packaging Details: Standard

Part description : HT3C.V/2N-M8 - Diffuse sensor with background suppressionPart no : 50136246
Operating principle : Diffuse reflection principle with background suppression
Application : Detection of high-gloss or polished surfaces, Detection of transparent objects
Special version : V-optics
Operating range, white 90% : 0.015 ... 0.15 m
Operating range limit : 0.015 ... 0.15 m
Adjustment range : 20 ... 150 mm
Light source : LED, Red
Supply voltage UB : 10 ... 30 V, DC, Incl. residual ripple
Residual ripple : 0 ... 15 %, From UB
Switching output 1Transistor, NPN , Light switching
Switching output 2Transistor, NPN ,Dark switching
Switching frequency : 1,000 Hz
Response time : 0.5 ms
Function : Voltage supply, Signal OUT
Material : Metal
Dimension (W x H x L) : 11.4 mm x 34.2 mm x 18.3 mm
Plastic housing : PC-ABS
Operational controls : Multiturn potentiometer
Ambient temperature, operation : -40 ... 60 °C
Degree of protection : IP 69K, IP 67
Certifications : c UL US

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

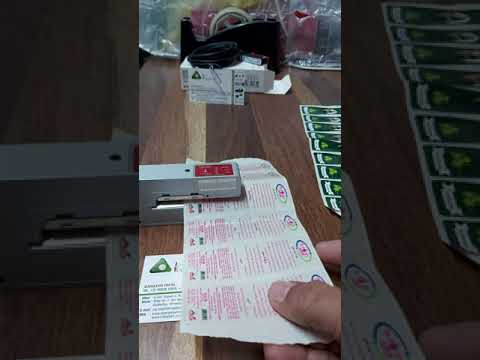

Ultrasonic forked sensor, switching signal on label and in label gap, m12 connector, 10 mm label width, 2 mm label gap, features teach input, horizontal plug outlet, short carriage, IP 65 protection

Part description GSU14E/16T.3-M12V - Ultrasonic fork sensorPart no. 50142878
Principle of physics : Ultrasonics
Application : Detection of non-transparent labels, Detection of transparent labels
Special version : Teach input, Manual fine tuning of the switching threshold
Supply voltage UB : 18 ... 30 V, DC
Open-circuit current : 0 ... 60 mA, Typical value
Voltage type : DC
Switching voltage : high: ≥9V, Low: ≤2V
Active switching state : High
Switching output 1Transistor, Push-pull , IO-Link / NPN light switching (switching in the gap), PNP dark switching (switching on the label)
Switching output 2Transistor, Push-pull ,PNP light switching (switching in the gap), NPN dark switching (switching on the label)
Switching frequency : 2,000 Hz
Response time : 0.2 ms
Dimension (W x H x L): 22 mm x 46.9 mm x 96 mm
Housing material : Metal
Housing color : Silver
Ambient temperature, operation : 0 ... 60 °C
Degree of protection : IP 65
Certifications : c UL US
US patents : US 6,314,054 B

Additional Information:

• Item Code: 50142875
• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: standard

IS 118 MM/4NO-8E0 -Inductive switch
Part no. 50129856
Typ. operating range limit Sn8 mm
Operating range Sa0 ... 6.5 mm
Supply voltage UB10 ... 30 V, DC
Switching current, max.200 mA
Switching output 1Transistor, PNP , NO (normally open)
Switching frequency : 3,000 Hz
Function : Signal OUT, Voltage supply
Number of conductors : 3 -wireWire cross section : 0.35 mm²

Design : CylindricalThread size : M18 x 1 mmDimension  : (Ø x L)18 mm x 55 mm
Type of installation : Embedded
Ambient temperature, operation : -25 ... 70 °CAmbient temperature, storage : -25 ... 70 °C
Degree of protection : IP 67Standards applied : IEC 60947-5-2

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: standard

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Additional Information:

• Production Capacity: 100
• Delivery Time: EXSTOCK
• Packaging Details: STANDARD

Part description IS 108 MM/4NO-2E0 - Inductive switchPart no. 50129928
Series : 108
Typ. operating range limit Sn : 2mm
Operating range Sa : 0 ... 1.6 mm
Supply voltage UB : 10 ... 30 V, DC
Residual ripple : 10 %, From UB
Open-circuit current : 0 ... 10 mA
Switching output 1Transistor, PNP , NO (normally open)
Switching frequency : 3,000 Hz
Function : Voltage supply, Signal OUT
Type of connection : Cable
Number of conductors : 3 -wire
Wire cross section : 0.18 mm²
Type of display : LED
Ambient temperature, operation : -25 ... 70 °C
Degree of protection : IP 67

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: Standard

Additional Information:

• Production Capacity: 1000
• Delivery Time: Exstock
• Packaging Details: Standard

Additional Information:

• Production Capacity: 100
• Delivery Time: Exstock
• Packaging Details: standard
