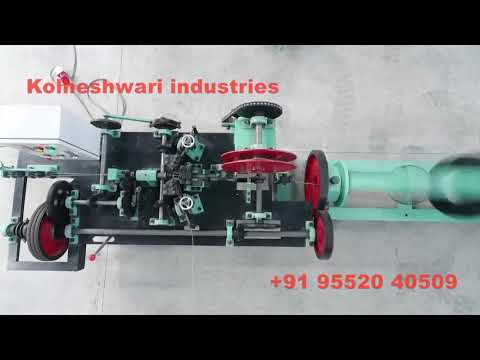

Barbed Wire Machine

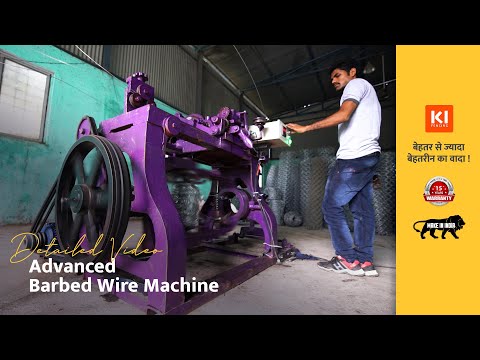

Barbed Fencing Wire Making Machine
₹ 2,50,000/PieceGet Latest Price
Minimum Order Quantity: 1 Piece
Product Brochure Watch Video
| Usage/Application | Barbed Wire Making |
| Automation Grade | Automatic |
| Body Material | Mild Steel |
| Machine Weight | 2000 |
| Production Capacity | 701-800 kg/shift |
| Strip Thickness | 2mm to 2.5 mm |
| Bundle Coil | 30 kgs |
Double Wire Automatic Chain Link Fencing Machine
Key Points:
Double Production
Least Production Cost
One Machine: One Operator
No Noise
Space Saving
Production Capacity (Per day)
2 MM: 2000- 2500 KGS
2.5 MM: 3500-4000 KGS
3 MM: 4500- 5500 KGS
4 MM: 5000 -5500 KGS
Machine Specification:
Delta Servo / Panasonic Servo / Mitsubishi Servo Cutting Machine 6HP X2
Pay of Stand Stand Up to 1000 Kgs Capacity
Schneider electric Parts
Mitsubishi PLC System
Locking Part with Standard Gear Box System
High Speed Auto Roller
Auto Stop Sensor System
Remote Control Operated
High Speed Twisting and Locking
Jumbo Cutter
Electric Panel with Dual Drive
Technical Specification:
Wire Día:
Gi: 2 mm to 4 mm
PVC: 3 MM TO 6 MM
Mesh Size: 40 mm to 110 mm
Space Required: 20x20 sq ft
Power Specifications:
Total Load: 20 HP
Power Connection: 19 HP
Total Motors: 9
Auto Stabilizer
(Can be Customized)
KI Standard Accessories
Tool kit
Sensor
relay
Wheel
Spares
Oil Dispenser
Special Tool box for Molds
Mold 7 sets
Service Provided from KI
Free Installation Support
Free Training Support
24 hrs. Technical Service
Online Support
Video Support
Call Support
Customization Support
Additional Information:
- Production Capacity: 1000 kgs per day
- Delivery Time: 20 days
- Packaging Details: we are doing packing in three different ways 1. box packing 2. loose packing 3.rapping
View Complete Details
| Usage/Application | Making barbed wire |
| Automatic Grade | Automatic |
| Body Material | MS |
| Capacity | 1 MT/day |
| Diameter | 2 to 2.5mm |
| Frequency | 50 Hz |
| Voltage | 380V |
| Brand | Kolheshwari |
| Model Name/Number | KIB-200 |
We are offering Barbed Wire Machine to our clients. Best in Industries.
View Complete Details
