ALFA LAVAL OIL SEPARATOR
| Capacity(LPH) | 2000, 500-1500 LPH |
| Purifiers Type | Alfa Laval Oil Separator |
| Model Name/Number | Alfa Laval MAB 103 |
| Phase | 3 Phase |
| Weight | 500 Kg |
| Power | 440 v |
| Frequency | 50-60Hz |
| Phase Type | 3 |
| Brand | Alfa Laval |
| Automation Grade | Manual |
We are happy to introduce our self as the Worldwide supplier of Marine & Industrial machinaries. Basically we purchase Marine machinary from well known Alang Ship Braking Yard and after that we do recondition through our well trained & exprinced team members.
We have multiple models available in Oil Separator & Oil Prufier.
Separation takes place in a solids-retaining bowl that can be arranged for either clarification or purification. In both cases, the contaminated oil is fed into the separator through the centre, and it is separated by centrifugal force into its various phases, the heaviest phase (sludge and water) being forced outwards to the periphery of the bowl. The accumulation of sludge is periodically removed from the bowl by hand.
Installation
The oil is pumped, heated, and separated as shown in the figure. A liquid seal in the separator bowl prevents the oil from escaping through the water outlet. If this seal is broken, an alarm device is activated. With unmanned engine rooms, the
signals are transmitted to a remote control unit. When the seal is broken, the three-way valve shuts off the oil feed and the oil is recirculated until the fault is corrected.
Basic Equipment
- Dirty oil inlet device.
- Clean oil outlet device with sight glass.
- Water outlet spout.
- Liquid seal water inlet.
- Set of gravity discs.
- Clarifier parts comprising discharge collar, top disc without neck, and bottom disc without holes.
- Revolution indicator.
- Set of resilient mountings.
- Set of Standard Spare Parts.
- Built-on gear type pump (combined feed/discharge pump).
Extra Equipment
- Electric motor.
- Starter.
- Set of tools.
- Set of recommended additional spares for long-time service.
- Flexible connections.
- Preheater.
- Alarm device for broken liquid seal.
Multiple Models are available in Alfa Laval Brand:-Alfa Laval Solid Bowl Centrifugal Oil Purifier Model MAB 103, MAB 104, MOPX 207, MAPX 207, MAB 204, MAB 205 AND MAB 206, WHPX 510, MAPX-204, MAPX-205, MAPX-309, MAB-102, MAB-207, WHPX-505, WHPX-510, FOPX-613, MIB-303, MIB-505, MMB 304, MMB 305 Alfa Laval Oil Separator, Industrial Centrifuge, HFO Purifier, Waste Oil Purifier, Separation Equipment.
Machine Function:Alfa Laval Oil Purifier, Separators, Industrial Centrifuge for removing Water and Solid Sludge from Various Contaminated Oils.Machine can be used with various like Biodiesel Purification, Waste Oil Purifier, Engine Oil Purifier, Quench Oil, Lube Oil Purifier, and Virgin Coconut.Electric Motor 3 Phase 380-50hz, 440-60hz, These Units are Used on Marine Ships for Purification of Mineral Oils, Engine Oils, Lubricating Oils, Furnace Oils,Purification or Clarification of Mineral Oils used in Marine Installations and Power Stations, Fuel and Lubricating Oils.
Additional Information:
- Delivery Time: 2-3 Days
View Complete Details

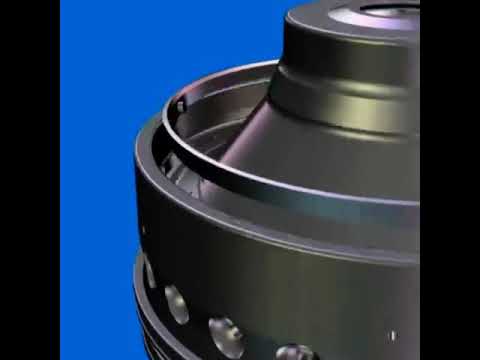

Alfa Laval Centrifuge Bowl Disc
₹ 500/PieceGet Latest Price
Minimum Order Quantity: 10 Piece
Watch Video
| Capacity(LPH) | 600 |
| Purifiers Type | Fuel |
| Brand | ALFA LAVAL |
| Material | SS 316L,SS 304 (0.3 - 2.0 mm thick) |
| Frequency | 50-60 hz |
| Grade | SS 316 |
| Country of Origin | Made in India |
Separation technology involving a disc stack separator (which can also be referred to as a centrifuge) is used for centrifugation in which various phases of solids and liquids are isolated from one another based on the difference in densities.
Additional Information:
- Production Capacity: 100
- Delivery Time: 1-2 days
- Packaging Details: WOODEN BOX
View Complete Details
| Capacity(LPH) | 900 |
| Purifiers Type | Fuel |
| Material | Stainless Steel |
| Brand | Alfa Laval |
| Frequency | 50/60 HZ |
| Motor Power | 5.5-7.5 kw |
| Steel Grade | SS 316 |
| Country of Origin | Made in India |
Separation technology involving a disc stack separator (which can also be referred to as a centrifuge) is used for centrifugation in which various phases of solids and liquids are isolated from one another based on the difference in densities.
Additional Information:
- Packaging Details: WOODEN BOX
View Complete Details
| Material | METAL |
| Brand | ALFA LAVAL |
| Type Of Machine | HEATER |
| Model Name/Number | HEATPAC |
| Frequency | 50/60 Hz |
| Phase | 3 |
HEATPAC is automatically heats all types of mineral oils, particularly high-density, high-viscosity fuel oils, sensitive lubricating oils and turbine oils, prior to centrifugal separation. It can, for instance, be used to heat oil before separation when steam production is low due to slow steaming. It can also be used for tank heating when tank design and operation requires storing fuels in tanks that do not have the possibility to be heated.
Additional Information:
- Packaging Details: WOODEN BOX
View Complete Details
| Capacity | 500-4500 LPH |
| Model Name/Number | MAB 206 |
| Brand | Alfa Laval |
| Weight | 600 KGS |
| Power | 440 V |
| Frequency | 50-60 HZ |
| Motor Rating | 3600 |
| Phase Type | 3 Phase |
The wellknown technology incorporating a very efficientseparator is the basis also in the Alfa Laval’s mineral oiltreatment system, PA. The system is based on the samecomponents as the sucessful Purifier Unit.
Application:
The PA purifier system is specifically designed for purificationor clarification of mineral oils found in the marine and powerindustries.
View Complete Details
| Model Name/Number | IMO FEED PUMP |
| Fuel Type | Diesel |
| Flow Rate | 100 m3/hr |
| Material | CASTING |
| Capacity | 1.1 KW |
| Pressure | 10 BAR |
| Power | 50/60 HZ |
| Product Type | FEED PUMP |
| Max Flow Rate | 10 BAR |
Imo pumps are also manufactured for lubrication service for diesel engines, gas and steam turbines, reduction gearing, generator sets, blowers and other similar equipment.
Additional Information:
- Packaging Details: WOODEN BOX
View Complete Details
| Brand | Alfa Laval |
| Material | Metal |
| Type Of Machine | Cotrol Panel Unit |
| Capacity | 40 - 100 |
| Frequency | 50/60 Hz +-5% |
| Model Name/Number | EPC-41 |

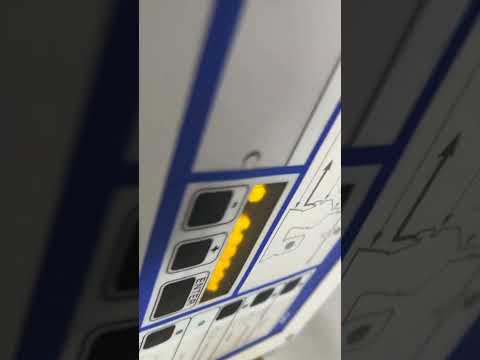

EPC-41 control unit is used within a
separation system for automatic control of the
separation process.
Additional Information:
- Delivery Time: 2 DAYS
- Packaging Details: WOODEN BOX
View Complete Details
