Marvel Machine Tools Private Limited

Press Capacity	300 Ton
Capacity	300 ton
Stroke Length	350 mm
Power Source	Pneumatic
Usage/Application	Industrial
Type Of Press	H Frame Press
Bed Size	2600 x 1360
Automation Grade	Fully Automatic
Number Of Strokes	40 SPM
Model Name/Number	AIDA JAPAN
I Deal In	Second Hand Only

#1478 AIDA JAPAN FT300 "H" Frame Double Crank Press
Cap: 300Tons Stroke: 350mm, Ram: 2500 x 1000mm ,Bed: 2500 x 1000mm,  Die Height: 700mm, Adjustment: 100mm, SPM: 20~40        With Die Cusion Power Required :V/KVA/Phase:3 ,Main Motor:KW, Air Required:5.5kgcq2, Working Space FB: 0'-0" LR: 0'-0" HT: 0'-0"

Capacity	200 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	SW-200

H-FRAME DOUBLE CRANK PRESSAMADA JAPAN
MODEL : SW-200SKU # 1564Brief Specifications/ Details

• Cap : 200Tons
• Stroke  : 300mm
• Die Height : 625mm
• Adjustment : 150mm
• SPM : 25
• Slide :  1800 x 1000mm
• Bolster :  2100 x 1300mm

Accessories : With Die Cushion

Additional Information:

• Item Code: 1564
• Production Capacity: 200

Capacity	200 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	SW-200

H-FRAME DOUBLE CRANK PRESSAMADA JAPAN
MODEL : SW-200SKU # 1563Brief Specifications/ Details

• Cap : 200Tons
• Stroke  : 300mm
• Die Height : 625mm
• Adjustment : 150mm
• SPM : 25
• Slide :  1800 x 1000mm
• Bolster :  2100 x 1300mm

Accessories: With Die Cushion

Additional Information:

• Item Code: 1563
• Production Capacity: 200

Capacity	200 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	E2P-200

H FRAME DOUBLE CRANK PRESSKOMATSU JAPAN
MODEL: E2P-200
SKU # 1544

Brief Specifications/ Details

• Cap : 200Tons
• Stroke : 400mm
• Die Height : 600mm
• Adjustment : 150mm
• SPM : 15~30
• Slide : 2000 x 1100mm
• Bolster : 2000 x 1200mm

 Accessories : Die Cushion

Additional Information:

• Item Code: 1544
• Production Capacity: 200

Press Capacity	300
Capacity	300 ton
Stroke Length	350
Power Source	Pneumatic
Number Of Strokes	40 SPM
Bed Size	2600 x 1360 mm
Automation Grade	Automatic
Model Name/Number	FT300
Clutch Type	Pneumatic Clutch

SKU # 1478

Brief Specifications/ Details

• Cap: 300Tons
• Stroke: 350mm
• Ram Size: 2500 x 1000mm
• Bed Size: 2500 x 1000mm
• Die Height: 700mm
• Adjustment: 100mm
• SPM: 20 TO 40

     Accessories

With Die Cushion

Capacity	300 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	E2G-300

SKU # 1529

Brief Specifications/ Details

• Cap : 300Tons
• Stroke : 450mm
• Die Height : 750mm
• Adjustment : 200mm
• SPM : 15~30
• Slide : 1900 x 1200mm
• Bolster : 2000 x 1500mm

 Accessories
Die Cushion & Moving Bolster

Additional Information:

• Item Code: 1529
• Production Capacity: 300

Capacity	500 Tons
Usage/Application	Industrial
Categories	Press
I Deal In	Second Hand Only

#1520 AIDA JAPAN QDA-60 'H' FRAME DOUBLE CRANK BLANKING PRESS LINE
Cap:600Tons, Stroke:200mm, Die Height:550mm, Adjustment: 150mm, SPM:25~60, Ram Size: 2500 x 1400mm, Bed Size: 2500 x 1400mm,Power Required :V/KVA/Phase:3 ,Main Motor:KW, Air Required:5.5kgcq2, Working Space FB: 0'-0" LR: 0'-0" HT: 0'-0"

Capacity	250 Tons
Type Of Press	H Frame Press
Usage/Application	Industrial
Categories	Press
I Deal In	Second Hand Only

#1502 KOMATSU JAPAN E2M300 'H' Frame Double Crank Press  Blaking Press
Cap:300Tons, Stroke:250mm, ,Bed Size:1960 x 1170mm,Ram Size:1850 x 900mm Die Height: 400mm, Adjustment:200mm, SPM:20~60 ,  Power Required :V/KVA/Phase:3 ,Main Motor:KW, Air Required:5.5kgcq2, Working Space FB: 0'-0" LR: 0'-0" HT: 0'-0"

Capacity	300 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	D-35

SKU # 1693
H FRAME DOUBLE CRANK PRESSAIDA JAPAN
MODEL : D-35Brief Specifications/ Details

• Cap : 350Tons
• Stroke : 450mm
• Die Height : 850mm
• Adjustment : 450mm
• SPM : 15~26
• Slide : 2450x 1200mm
• Bolster : 2450x 1350mm

Accessories

With Die Cushion & Moving Bolster

Additional Information:

• Item Code: 1693
• Production Capacity: 350

Press Capacity	400 ton
Capacity	400 Ton
Stroke Length	150 mm
Power Source	Pneumatic
Number Of Strokes	35~80
Bed Size	1975 x 1000
Automation Grade	Automatic
Model Name/Number	E2F-400
Clutch Type	Pneumatic Clutch

SKU # 1519Brief Specifications/ Details

• Cap: 400Tons
• Stroke : 150mm
• Die Height : 720mm
• Adjustment : 150mm
• Ram Size: 1850 x 1100
• Bed Size : 1975 x 1000mm

Capacity	200 ton
Power Source	Pneumatic
Automation Grade	Automatic
Model Name/Number	PDW-20

H-FRAME DOUBLE CRANK PRESSAIDA JAPAN
MODEL : PDW-20SKU # 1578Brief Specifications/ Details

• Cap : 200Tons
• Stroke : 300mm
• Die Height: 850mm
• Adjustment : 430mm
• SPM :15~25
• Slide : 1830 x 1000mm
• Bolster : 2000 x 1220mm

Accessories : With Die Cushion

Additional Information:

• Item Code: 1578
• Production Capacity: 200

Automation Grade	Automatic
Capacity	STRAIGHT SIDE DOUBLE CRANK PRESS
Model Name/Number	F-4350-84Packing Size: F-B: 10'-0", L-R: 11'-0", HT: 23'-0"
Brand	VICKERS BRITISH CLEARING
Controlling Mode	ELECTRIC
Material	STEEL
Power	440 VOLTS
Production Capacity	MEDIUM
Quality	USED - GOOD WORKING CONDITION
Slider Drive Mechanism	ELECTRIC
Slider Movement	ELECTRIC
Usage/Application	DRAWING, STAMPING, CUTTING, PRESSING
Weight	50 TONS
Power Source	Pneumatic

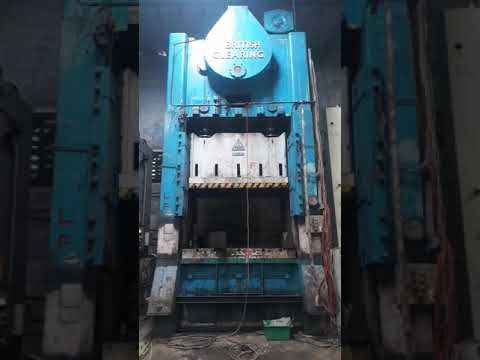

SKU # 1037

SSDC PRESS

VICKERS BRITISH CLEARING

MODEL: F-4350-84



Brief Specifications/ Details

Cap: 350Tons

Stroke: 400mm

Bed Size: 2130 x 1270mm

R

Ram Size: 2000 x 1270mm

Die Height: 800mm

Adjustment: 500mm

Dist.btw. Column: 2250mm

SPM: 15



Accessories

With Die Cushion

Cushion Stroke: 203mm



Other Details (Approx)

Power Required: 415V/ 25KVA Phase: 3

Main Motor: 35HP

Air Required: 5.5kg/sqcm

Working Space: F-B: 10’-0”, L-R: 11’-0”, HT: 23’-0”

Additional Information:

• Production Capacity: MEDIUM
• Delivery Time: READY STOCK
• Packaging Details: Packing Size: F-B: 10¿¿¿-0¿¿¿, L-R: 11¿¿¿-0¿¿¿, HT: 23¿¿¿-0¿¿¿

Capacity	250 ton
Automation Grade	Automatic
Model Name/Number	MDE-250
Material	Mild Steel
Type Of Press	H Frame Press
Size	1300 x2000 mm
Usage/Application	Industrial

#1483 FUKUI JAPAN
MODEL : MDE-250 STRAIGHT SIDE H FRAME PLUNGER GUIDED      Cap:250Tons, Stroke:400mm, Ram Size:1300x 2000mm,Bed Size:1300 x2000 mm, Die Height: 850mm, Adjustment: 450mm, SPM:16~22 With Die Cushion Power Required :V/KVA/Phase:3 ,Main Motor:KW, Air Required:5.5kgcq2, Working Space FB: 0'-0" LR: 0'-0" HT: 0'-0"

Capacity	300 ton
Automation Grade	Automatic
Model Name/Number	MDE-300L2
Power Source	Pneumatic

H-FRAME DOUBLE CRANK PRESSFUKUI JAPAN
MODEL : MDE-300L2SKU # 1562Brief Specifications/ Details

• Cap : 300Tons
• Stroke  : 450mm
• Die Height : 800mm
• Adjustment : 200mm
• SPM : 20
• Slide : 2200 x 1300mm
• Bolster : 2200 x 1300mm

Accessories: With Die Cushion

Additional Information:

• Item Code: 1562
• Production Capacity: 300

Capacity	300 ton
Automation Grade	Automatic
Model Name/Number	MDE-300
Power Source	Pneumatic

SKU # 1570Brief Specifications/ Details

• Cap : 300Tons
• Stroke  : 450mm
• Die Height : 850mm
• Adjustment : 250mm
• SPM : 18
• Slide : 2500 x 1520mm
• Bolster : 2500 x 1520mm

Accessories

With Die Cushion & With Moving Bolster

Additional Information:

• Item Code: 1570
• Production Capacity: 300

Type	H FRAME DOUBLE CRANK BLANKING PRESS LINE
Type Of Press	H Frame Press
Automation Grade	Automatic
Usage/Application	Industrial
Categories	Press
I Deal In	Second Hand Only

#1520 AIDA JAPAN
MODEL:QDA-60 'H' FRAME DOUBLE CRANK BLANKING PRESS LINE      Cap:600Tons, Stroke:200mm, Die Height:550mm, Adjustment: 150mm, SPM:25~60, Ram Size: 2500 x 1400mm, Bed Size: 2500 x 1400mm,Power Required :V/KVA/Phase:3 ,Main Motor:KW, Air Required:5.5kgcq2, Working Space FB: 0'-0" LR: 0'-0" HT: 0'-0"

Additional Information:

• Item Code: 1520
• Production Capacity: 600 tons
