Mascot Cnc Tools & Equipments Private Limited

Tapping Capacity	M3-M30
Operation Type	Electric
Hole Diameter	as per taping size
Number Of Shaft	Hydraulic
Head Type	Vertical
Material	Steel
Motor Power	1200 W (1.6 HP)
Working Radius	1100 mm
Working Stroke	200
Functions	Tapping
Machine Type	Arm Type
Automation Grade	Semi-Automatic
Layout	Vertical
Spindle Speed (RPM)	200 RPM
Voltage	Three Phase 5HP
Weight (kg)	92 kg
Country of Origin	Made in India
Usage/Application	Use in Tapping
Cycle Time	As per application
Spindle Travel	1800 mm
Piller Length	300 mm
Table Working Surface	T Slot Table
Approx. Weight	50 Kg
Forward Speed	200
Reverse Speed	200
Floor Area Space	As per application
Model Name/Number	KEE30S (M3-M30)

We are a renowned name engaged in supplying an extensive range of Flex Arm Tapping Machine.
Our supplying range includes 3 models  ranging from M3-M45. Machine Radius is 1800mm & 2200mm. Model No. are KEH24D, KEH30D, KEH45D.
These machines are used in various materilas like Stainless Steel, Steel, CI, Alluminium, Brass, etc. In manual machine we have to make one by one hole it takes long time whereas we supply Flex Arm Tapping Machine in which more holes can be done in a single setup which saves time.

Additional Information:

• Production Capacity: As per use
• Delivery Time: 2 Weeks
• Packaging Details: In wooden case

Skimmer Type	Tube
Oil Removal Rate	5 LPH
Application	STP, Coolant Tank, Sump, ETP
Type	Tube type
Mounting Type	Portable
Motor Power	0.5 HP
Model Name/Number	OS-001
Oil Type	Cutting Oil, Hydraulic Oil
Body Material	SS304
Control Type	On Off

We came across a lot of our cutting fluid customers complaining about frequent lubrication oil leakages into their machining centre sumps thereby deteriorating the cutting fluid health and increase in number of machine breakdowns which would ultimately affect the productivity. Many conventional oil skimmers (belt type, disc type, etc.) are ineffective due to its limited reach, slow rate of oil removal and removal of cutting fluid along with the floating tramp oil.

 High rate of oil removal from 6 to 40 Ltrs per Hour Reaches and removes oil from areas under the machining centre Works for long hours due to quick cooling motor Custom made tubes as per customer requirement Standard tube sizes 1.2/1.8/2.2/2.5 mtr Easy mounting and dismounting and portability

Additional Information:

• Delivery Time: 1 week

Machine Type	Manual
Control Type	Manual
Brand	YEAN LUYI
Tool Diameter Range	3-32mm
Voltage	220-400 V
Model Number	YN08A-08B
Surface Finishing	Calor Coated
Grinding Wheel Diameter	150 mm
Tool Type	End Mill
Operation Type	Resharpening
Range	1.0R-2.5R
Box	Corrugated
Automation Grade	Semi-Automatic

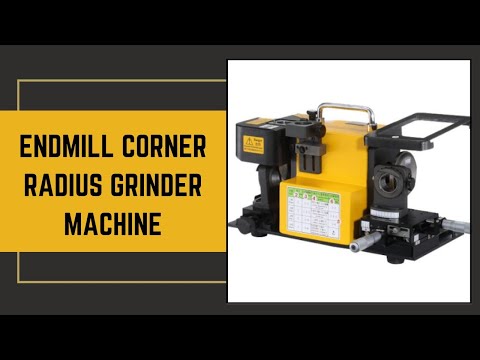

Extensive research work conducted by our professional’s aids in selecting the suitable vendors who can suffice us with quality-assured range of Endmill Grinder. Our vendors design and develop the entire range of Endmill Griders using finest grade material and components to ensure excellent impact beaing capacity and durability. Besides, our vendors follow sophisticated designing patterns and drawings to ensure that range is flawless in nature. Proper packaging done at our end ensure that our products are safely transported across the nation.

Additional Information:

• Delivery Time: 2 week

Nozzle Type	Turbo
Material	MS Plastic Brass
Size	As per selection of item
Code Number	As per selection of item
Gross Weight	50 gm
Max Flow	10 br to 100 br
Weight	10 gm
Package	Plastic
Number Of Pieces	5
Packaging Type	Plastic packing
Set Contain	steel plastic brass
Sound	silent
Temperature Range	40 to 45
Usage/Application	Industries
Item Code	As per selection of item
Brand	QPM

We sale high qualityCoolant Nozzles ,Nozzle are used for increasing the tool life liquid will pass thru it & it will be coolant pass. Nozzles are used for CNC & VMC Machine & where tool is required coolant on every machine it is required.

Additional Information:

• Item Code: na
• Production Capacity: na
• Delivery Time: 2 weeks
• Packaging Details: 1 packet = 5 nos. per size in plastic packing

Capacity	0- SO Lph depending upon the thickness of free floating oil viscosity of the oil in the effluent an
Model Name/Number	AFTER CUSTOMER SELECTION
Material	Stainless Steel
Type	Belt Type Oil Skimmer
Usage/Application	ETP PLANT/STEEL GRINDING CI GRINDING/ALLUMINIUM MACHINING/CI MACHINING
Ambient Temperature	40-55
Filtration Capacity	S I/hr to 20 I/hr

•BELT TYPE OIL SKIMMER Product Details: Belt Oil Skimmer offered come in quality construction finish and find suitability for achieving effective removalof un-emulsified oil. We can make these available in filtration capacities of S I/hr to SO I/hr. These skimmers provide support for continual cleaning operation as well as come in auto belt tensioning configuration for superior performance.Some of its features include allows for ease of maintenance, compact finish; ideally suited for individual machines and large tanks; application suitability in steel grinding, washing machine, aluminium machining, tube mill and other areas Features: Used for removing un-emulsified oil.• Filtration capacity : S I/hr to 20 I/hr• Continues cleaning operation. Auto belt tensioning • Ease of maintenance. Single drive. Very compact . • Ideal for individual machines and large tanks.

Skimmer Type	Belt
Oil Removal Rate	5 LPH
Application	STP, ETP, Sump, forging, Coolant Tank
Type	Belt type
Mounting Type	Portable
Motor Power	0.5 HP
Usage/Application	Industrial
Model Name/Number	Belt Type Oil Skimmer
Design	Belt Type
Oil Recycle Rate	10 (l/hr)
Number Of Belts	1
Oil Type	Cutting Oil, Hydraulic Oil
Length Of Belt	1000 mm, as per tank size
Body Material	SS304
Control Type	On Off
Color	Silver
Can Remove Oil	Yes
Diameter	Standard Total Diameter of Belt
Dimension	as per decided belt size
Filter Capability	Per Hours 10 Litre
Gear Motor Power	Single Phase 220V
Brand	MASCOT
Country of Origin	Made in India

We Offered newly Launched Oil Skimmer with added feature as below.

• Compact Structurem Easy to be relocated.
• All the panels were rust preventing painted, that efficiently prolong the life time of the machine.
• Specialy Designed oil transferring belt improves the efficiency and durability.
• the special alloy aluminum pulley allows the belt operating more smothly.

Additional Information:

• Item Code: W65X500MM
• Production Capacity: Per Hours 10 Litre
• Delivery Time: 1 Week
• Packaging Details: Corrugated Box

Model Name/Number	YN01A
Brand	Mascot(Yeanluyi)
Warranty	Mechanical Parts 6 months warranty
No Load Speed	5500 rpm + / -5%
Power Consumption	0.5KW
Usage/Application	In Drill Grinding
Type Of Power Tool	Motor
Material	Steel Body
Disc Diameter	4 inch
Voltage	220 V
Amperage	10 ampere
Battery Voltage	220V
Collet Chuck Size	ER20
Color	Yellow
Continuous Rating Input	230V
Dimensions	280x150x160mm
Do You Require Grinding Wheel Also	Yes
EAN Code	NA
Kickback Brake	Machine power off on switch
Motor Type	AC
Overload Protection	Fuse
Phase	Single Phase
Size	Dia. 2-13 mm
Spindle Size	10 mm
Spindle Thread	NA
Tool Length	Anyone
Wheel Diameter	78 mm
Wheel Size	15 mm
Is It Spindle Lock	Non Spindle Lock
Certification	NA
Feature	Easy Grinding
Frequency Hz	50 Hz
Grinder Type	Manual
Max Wheel Dia	80 mm
Number Of Jars	1
Part Number	YN01A
Power Source Volt	AC 110V TO 220V
Product S Type	Potential Product
Standard Accessories	Wheel, Collet, Collet Holders
Max. Watt Out	200W
Switch Type	On / Off
Angle Grinder	90 to 140
Class Of Tool	NA
Power Input	220V
Handle Type	Steel Handle
Grip Material	Steel
Power Requirement	220V
Rated Voltage	110v to 220V
Weight	12 kg
Pack Quantity	1
Base Material	Steel
Deadman Switch	na
Active Vibration Reduction	na
Operation Mode	grinding
Diy Supplies	na
Rated Power Input	220V
Rated Speed	5500 +/-
Protection Class	guard on wheel
Disc Size	wheel size 78 mm
Disc Bore	12 mm
Wheel Aperture	na
Grinding Stone Bore	12 mm
White Grinding Stone Dimension	78x15 mm
Bore Size	12 mm
SKU	na
Hose Size	na
Air Consumption	na
Air Inlet Size	na
Average Air Consumption	na
Exhaust	na
Output	super finishing & perfect accuracy
I Deal In	New Only
Dust Ejection System	No
Lock On-Off Switch	Yes

Extensive research work conducted by our professional’s aids in selecting the suitable vendors who can suffice us with quality-assured range of Drill Grinder. Our vendors design and develop the entire range of Drill Griders using finest grade material and components to ensure excellent impact beaing capacity and durability. Besides, our vendors follow sophisticated designing patterns and drawings to ensure that range is flawless in nature. Proper packaging done at our end ensure that our products are safely transported across the nation.

Features:

• Optimum performance
• Durability
• Corrosion resistant.

Additional Information:

• Item Code: YN01A
• Production Capacity: Per wheel 1500 times grinding
• Delivery Time: Ex-Stock / 2-3 Week
• Packaging Details: Corrugated Box

Thread Size	1/4" BSPT
Material	Brass
Design	Air Atomising
Nozzle Size	1/4 inch
Type	Thread Type
Pressure	3-6 bar

We sale high quality Coolant Nozzles ,Extension Tubes & Accessories Nozzle are used for increasing the tool life liquid will pass thru it & it will be coolant pass. Nozzles are used for CNC & VMC Machine & where tool is required coolant on every machine it is required.

Material	SS / MS
Color	All
Code Number	As per selection of item
Brand	QPM
Package	5
Number Of Pieces	5

We sale high qualityCoolant Nozzles ,Nozzle are used for increasing the tool life liquid will pass thru it & it will be coolant pass. Nozzles are used for CNC & VMC Machine & where tool is required coolant on every machine it is required.

Working Stroke	1100mm
Drilling Capacity In Steel	NA
Hole Diameter	0-25 mm
Number Of Shaft	Servo Motor
Material	All material
Functions	Tapping
Automation Grade	Semi-Automatic
Max Hole Diameter	<50 mm
Layout	Vertical
Voltage	Single Phase 220V
Usage/Application	Use in Tapping
Cycle Time	As per application
Spindle Travel	1100 mm
Piller Length	300 mm
Table Working Surface	As per requirement
Approx. Weight	28 to 30 kg
Model Name/Number	KEE30S (M3-M30)
Forward Speed	40 + 150
Reverse Speed	40 + 150
Floor Area Space	As per application
Min. No. Of Strokes	As per requirement
Torque	205
Chuck Size	Size 2 Dia. 31
Type	Electric
Power	Single Phase
Hydraulic Pressure	NA
Working Radius	1100 mm
Width Of Adhesive Tape	NA
Tapping Speed In Aluminium	150
Size	M3-M30
Motor Wattage	220V
Spindle Taper	NA
Magnetic Iron Separator	Yes
Country of Origin	Made in India

We are a renowned name engaged in supplying an extensive range of Flex Arm Tapping Machine.
Our supplying range includes 3 models  ranging from M3-M30. Machine Radius is 1100mm. Model No. are KEE12S, KEE16S, KEE30S.
These machines are used in various materilas like Stainless Steel, Steel, CI, Alluminium, Brass, etc. In manual machine we have to make one by one hole it takes long time whereas we supply Flex Arm Tapping Machine in which more holes can be done in a single setup which saves time.

Additional Information:

• Item Code: KEE30S
• Production Capacity: As per use
• Delivery Time: 2 Weeks
• Packaging Details: In Wooden Box

Automation Grade	Manual
Control Unit	Manual
Brand	Yeanluyi-Mascot
Length	12"/8"

Extensive research work conducted by our professional’s aids in selecting the suitable vendors who can suffice us with quality-assured range of Drill Grinder. Our vendors design and develop the entire range of Drill Griders using finest grade material and components to ensure excellent impact beaing capacity and durability. Besides, our vendors follow sophisticated designing patterns and drawings to ensure that range is flawless in nature. Proper packaging done at our end ensure that our products are safely transported across the nation.

Features:

• Optimum performance
• Durability
• Corrosion resistant.

Functions	Grinding of Tap
Hole Diameter	various
Surface Finishing	Color Coated
Power Source	Electric
Voltage	220 V
Frequency	50/60 Hz

We Also Provide Tap Sharpener with more effectiveness and with added feature.

Hole Diameter

10 mm

We are a renowned name engaged in supplying an extensive range of Horizontal Tapping Machine.
