Masterfax Enterprises

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 6-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

• ^{4 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder}
• H.265+/H.265 dual-stream video compression
• Supports Full-channel AI-Coding
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 5 channels IP camera inputs, each channel up to 2MP; Max 21.5 Mbps incoming bandwidth
• Up to 4 channels video stream ( analog channel ) SMD Plus

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 10-ch IP camera inputs (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 5-ch IP camera inputs (up to 2 MP)
• Up to 1080p Lite@30 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

• _{4-wire analog video intercom bundle for villa or house}
• _{One call button for easier calls}
• _{Including DS-KB2411T-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories}
• _{European power supply adaptor included (please mark for other standards when you order)}

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 6-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

·Up to 5-ch IP camera accesses

·Incoming/Outgoing bandwidth: 60Mbps/40Mbps

·S+265, H.265, S+264, H.264 video formats

·Max. decoding capability: 6MP(30fps)×1 or 1080P(30fps)×4

·4-ch synchronous playback

·Up to 8 TB capacity for each HDD

·Simultaneous HDMI and VGA outputs

·HDMI output at up to 4K resolution

·1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

·S+ 265 compression effectively reduces the storage space by up to 75%

·Support cloud upgrade

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 24-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

• 4 channels and 1 HDD 1U AcuSense DVR
• Supports facial recognition or false alarm reduction based on deep learning algorithm
• Supports face picture comparison and face picture search
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected

• Power Supply12 VDC ±15%
• Power ConsumptionMax. 4 W
• Protection LevelIP66
• MaterialPlastic
• IR RangeUp to 20 m
• Dimensions65.9 mm × 189.2 mm × 81.8 mm ( 2.59" × 7.45" × 3.22")
• Weight400 g (0.88 lb.)
• Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

. 2-MP 1/3.2" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 2 MP (1920 × 1080)@30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in IR LED, and the max. illumination distance is 30 m.

· Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

· Bulit in Mic.

· 12 VDC power supply, easy for installation.

· IP67 protection.

Max. 30 fps@1080p.

· 24/7 color imaging.

· 20 m illumination distance.

· Super Adapt. · Built-in MIC (-A).

· Quick-to-install eyeball saves installation time.

• Full Metal Housing
• Up to 1920×1080@30fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.001Lux@F1.6
• Smart IR, IR Range: 50m
• Support Video Analytics
• Plugin Free
• Operating Conditions -35°~65°, 0~95% RH
• POE, IP67

• 8 channels and 1 HDD 1U AcuSense DVR
• Supports facial recognition or false alarm reduction based on deep learning algorithm
• Supports face picture comparison and face picture search
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12 network cameras can be connected

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 12-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

The parameters and datasheets below can only be applied to A51-U-IL-S2 series.

* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

> Max 25 fps@5MP (16:9 video output).

• 5 MP high performance COMS
• 2560 × 1944 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed lens
• EXIR 2.0, smart IR, up to 20 m IR distance
• OSD menu, 2D DNR, DWDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• Up to 20m IR distance

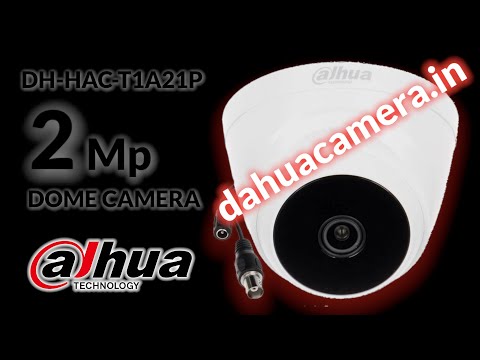

• 2MP IR HDCVI Fixed-focal Eyeball Camera
• Max. 30 fps@1080p
• Built-in-MIC.
• Smart IR Illumination
• 25 m illumination distance.
• Quick-to-install eyeball saves installation time.
• 2.8 mm fixed lens (3.6 mm optional).
• CVI/CVBS/AHD/TVI switchable.

• High quality imaging with 2 MP, 1920×1080 resolution
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• Smart-Hybrid light, optimize your security with flexible lighting options

• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options

• 2 MP coaxial audio camera
• Enhancing safety with discreet and economical built-in microphone
• Transmits audio over the coaxial cable
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

• 5 MP, 2560 × 1944 resolution
• Digital WDR
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 25 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
