Type	PC-based Spirometer
Brand	MIR
Model Number/Name	Spirodoc
Synonyms	Diagnostic Spirometer, Pulmonary Function Test PFT Device
Usage/Application	Hospital, Clinic, Diagnostic Center
Tests Performed	pirometry: FVC,VC,IVC,MVV,PRE/POST Bronchodilator comparison
Weight	99 g
Real Time Testing	Yes
Bluetooth	Yes
USB Port	Yes
Touchscreen	Yes
Oximetry	Yes
Sleep Test	Yes
SPO2 measurement	Yes
Display	LCD Backlit Touch screen Display
Power Supply	Lithium ion 3.7 V,1100 mA rechargeable battery with 30 hours measurement back-up Data transmission
Flow Range	+- 16 L/s
Volume Accuracy	+- 3% or 50 mL
Flow Accuracy	+- 5% or 200 mL/s
Dimensions	Central unit: 101 x 48 x 16 mm - Removable turbine: 46 x 47 x 24mm
Resolution	128x64 pixels
Accelerometer	Triaxial +/- 2 g,400 Hz sampling
Battery Charger	100 VAC - 240 VAC,50 Hz-60 Hz output 5 VDC,500 mA,micro USB type B
SpO2 Range	0-100%
SpO2 Accuracy	+/-2% (50-100% SpO2)
Pulse Rate Range	20-254 BPM
Heart Rate Accuracy	+/-2 BPM or 2%,whichever is greater

Spirodoc® is the first 3D Oximeter® incorporating a triaxial motion sensor to correlate the saturation level (%SpO2) with physical activity (walk counter, movement analysis and VMU). Get best price of MIR Spirodoc Handheld PC-Based Spirometry Machine.

3D accelerometer with motion analysis:

• 6MWT with new O 2 Gap Index (MIR patent pending):
• Simple, clear SpO2 and Pulse Rate measurements with the plethysmographic curve.
• During the single six-minute walk test (6MWT), Spirodoc® estimates the level of oxygen therapy required by the patient.
• Innovative and essential in pneumology, cardiology and rehabilitation etc.

Day and night:

• Spirodoc® carries out sleep desaturation studies and memorizes events as well as body position.

Features:

• Memory up to 10.000 Spirometry tests or 900 hours of Oximetry (if available) recording coupled with powerful and flexible search services.
• Rechargeable, long-life battery
• Traffic light health indicator for immediate test interpretation.
• LCD Backlit Touch screen Display With on-screen results and curves preview for immediate data assessment.
• Winspiro PRO® PC software (always included)
• Real Time test on PC, includes free online updates, and provides Real Time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Quanjer 2012-GLI Predicted values with LLN and Z-score.
• Available with both DISPOSABLE or REUSABLE turbine flowmeter.
• Spirometry Test: FVC, VC, IVC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters.
• Spirometry test interpretation
• Embedded Temperature sensor for BTPS conversion

Type	PC-based Spirometer
Brand	MIR
Model Name/No.	Minispir
Usage/Application	Diagnostic Center, Clinic, Hospital
Real Time Testing	Yes
Weight	65 gram (2.5 Oz)
USB Port	Yes
Synonyms	Spirometry Machine, Pulmonary Function Test PFT Device
Temperature Sensor	Semiconductor (0-45 deg C)
Flow Sensor	Bi-directional digital turbine
Flow Range	+/- 16 L/s
Volume Accuracy	+/- 3% or 50 mL
Flow Accuracy	+/- 5% or 200 mL/s
Dimension	142x49.7x26 mm
Measured Parameters	FVC,FEV1,FEV1%,FEV6,PEF,FEF25-75%,FIVC,Lung Age,VC,IVC

A complete spirometer with EHR connectivity and accurate readings, designed for software based medical solutions. Get best price of MIR Minispir Handheld PC-Based Spirometer.

Features:

• COPD and Asthma screening has never been so intuitive and inexpensive
• Ideal for integrated custom applications
• Minispir ® for complete respiratory analysis
• Minispir ® Light for essential spirometry testing

Description:

• Plugs directly into the USB port.
• Real time Flow/Volume loop and Volume/time
• curve with PRE/POST comparison.
• Advanced spirometry test interpretation.
• Pediatric incentive animations.
• Estimated Lung Age (ELA).
• Bronchial provocation test including new Mannitol protocol with FEV1 response curve.
• Temperature sensor for BTPS conversion.
• WinspiroPRO ® is a unique spirometry and oximetry software, which comes standard with Minispir ®
• All patient records are shown on simple, single-screen patient cards with dynamic management of all data and graphs.
• WinspiroPRO ® can easily be connected to a hospital database or EMR and occupational health system. (HL7 interface)

Minispir ® light measures the essential parameters for a diagnostic spirometry:

• FEV6, FVC, FEV1, FEV1%, PEF, FEF2575, FIVC,
• Lung Age, VC, IVC.
• Flow/Volume loop and Volume/Time curve.
• Spirometry test interpretation.
• Temperature sensor for BTPS conversion.
• Inexpensive and easy to use, Minispir ® light meets the requirements of integrated healthcare platforms and tablet applications.
• Winspiro ® light is an intuitive and efficient software,
• which comes standard with Minispir ® light for
• complete diagnosis.

Type	Desktop Spirometer
Brand	MIR
Model Name/No.	Spirolab III
Usage/Application	Diagnostic Center, Clinic, Hospital
Tests Performed	FVC,VC,MVV,PRE/POST Bronchodilator
Weight	4.2 lbs. (1.9 kg)
Printer	Yes
Turbine Flowmeter	Disposable
Synonyms	Spirometry Machine, Pulmonary Function Test PFT Device
SpO2 Range	0-99%
SpO2 Accuracy	+/- 2% between 70-99% SpO2
Pulse Rate Range	30-254 BPM
Pulse Rate Accuracy	+/-2 BPM or 2%
Temperature Sensor	Semiconductor (0-45 deg C)
Flow Accuracy	+/-5% or 200 mL/s
Dimensions	12.2x8.1x2.6 inch (310x205x65 mm)

Spirolab III® is a multitasking and versatile spirometer ideal for accurate and early diagnosis of respiratory diseases (like COPD and Asthma). Easy to use for family doctors screening or pharmacy quick tests. Gest best price of MIR Spirolab III Diagnostic Colour Spirometer.

Features & Specifications:

• Spirometry test: FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters.
• Paedriatric Incentive for Spirometry
• Fast and silent built-in printer with customizable printout format.
• Colour screen: High resolution color display.
• Database up to 6,000 Spirometry tests or 900 hours of Oximetry recording coupled with powerful and flexible search services.
• Optional function available: Oximeter with adult or paediatric finger probe.
• Long life Rechargeable Battery.
• Bluetooth® 2.1 and USB Connectivity
• Wireless or via cable Real Time test directly on your PC.
• Winspiro PRO® PC software provides Real Time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Includes free online updates.
• Paediatric Incentive for Spirometry with wide choice of pictures and animations.
• Spirometry test after drug adminitration: Bronchodilator Reversibility, Bronchial Challenge with FEV1-response curve with protocols for both Methacholine and Mannitol.
• Quanjer 2012-GLI Predicted values with LLN and Z-score
• Patient Trend Charts for easy follow-up: Search engine for instant access to database. Wide choice of communication protocols for integration with EMR.

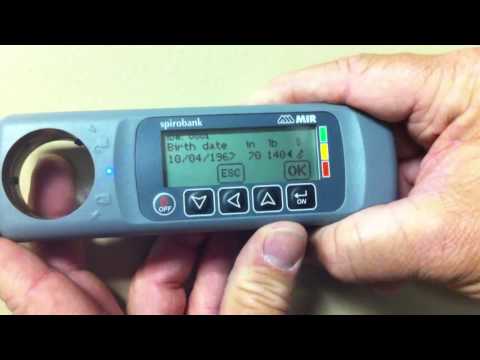

Type	Hand-held Spirometer
Brand	MIR
Model Name/No.	Spirobank USB
Usage/Application	Clinic, Diagnostic Center, Hospital
Tests Performed	VC,IVC,FVC,FEV1,FEV6,PEF,FEV1/FVC%,FEF25-75%,FIVC,ELA (Estimated Lung Age)
Weight	6.4 Oz (180 gram) with battery
USB Port	Yes
Display	128 x 48 pixel
Max Volume	10 L
Power Supply	9V DC (PP3 battery)
Flow Range	+- 16 L/s
Volume Accuracy	+- 3% or 50 mL,whichever is greater
Flow Accuracy	+- 5% or 200 mL/s,whichever is greater
Dimensions	6.4 x 1.9 x 1.3 inch (162 x 49 x 32 mm)
Synonyms	Pulmonary Function Test PFT Device, Spirometry Machine
Temperature Sensor	Semiconductor (0-45 degree C)
Flow Sensor	Bi-directional digital turbine
Graphic	LCD - FSTN
Keyboard	5 keys Membrane Keyboard
Connectivity	USB

PC software for maximum spirometry and oximetry performance. Transforms any of the MIR instruments into one of the most sophisticated advanced diagnostic and interpretation devices on the market. Get best price of MIR Spirobank USB Pocket-Size Diagnostic Spirometer.

Inexpensive Spirometry:

• The test results are transferred via USB to the PC for instant printout and storage. The 3 best test with Flow/Volume loop and Volume/time curve can be printed in PDF format.

World first: 4 devices in a single small unit Spirometer Pulse Oximeter Questionnaire Triaxial Accelerometer:

• Dual modes: patient monitoring and doctor.
• Unique 3D Oximeter: combines pulse oximetry with motion analysis.
• Desaturation area directly related to physical activity (walked step count, movement, VMU).
• 6 minute walk test with O2-Gap calculation for oxygen prescription.
• Rechargeable with lithium batteries.
• Backlit touchscreen display.
• 4 Detachable optional spirometry flowmeter

Re-defines what an Oximetry Lab can do. No other oximeter has all these features:

• Explores the latest in dynamic analysis.
• Sleep disorder detection with events recording.
• 6MWT - six minute walk test with automatic alarm for rest, walk and recovery.
• Up to 1000 hours recording (at 2 or 4 sec. intervals).
• Parameters directly shown on the display (min, max,
• mean SpO2 and Pulse Rate, Delta Index, T90, T89,
• T88, T5, ODI, NOD, Desaturation Area etc.).
• USB, RS232 and Bluetooth® connection.

The most powerful, the most simple:

• Spirometer with oximetry option.
• Sleep disorder detection with events recording.
• 6MWT - six minute walk test with automatic alarm for rest, walk and recovery.
• Post analysis data shown right on the display to provide a quick detailed assessment.
• 6000 spirometry or 1000 hours oximetry memory.
• USB, RS232 and Bluetooth® connection.

Our world famous spirobank 100% redesigned for a new life with latest cutting edge technology:

• Multifunction spirometer with graphic display for stand alone and online PC operation.
• FVC, VC, IVC, MVV, PRE-POST BD.
• Lung Age estimation.
• Advanced spirometry test interpretation.
• Internal temperature sensor for automatic BTPS.
• 6000 spirometry test memory.
• USB and Bluetooth® connection.

The most convenient way to access a mini-laboratory in one small device:

• PC based diagnostic spirometer with oximetry option.
• Plugs directly into the USB socket on your PC, Laptop or Notebook for online measurement.
• Internal temperature sensor for automatic BTPS.
• No batteries required.
• Ideal, simple solution for custom made applications

New generation stand alone device:

• Diagnostic spirometer with oximetry option.
• Color screen with fast and silent thermal printer.
• PRE-POST bronchodilator comparison.
• New printout with the 3-best Flow/Volume loops.
• 6000 spirometry or 1000 hours oximetry memory.
• USB, RS232 and Bluetooth® connection.

World’s First Disposable Turbine with Cardboard Mouthpiece:

• Easy to replace
• Factory calibrated
• Single packaging
• Single patient use
• Maximum hygiene
• Each one individually tested
• Available in box of 50 pieces
